HDMI over IP CAT5/5e/6/6A/7 Extender 4K

product Description
vz1trx4k1
vz1trx4k4https://viewzusa.com/ds/wp-content/uploads/2021/04/vz1trx4k1-300x156.webp
vz1trx4k10
vz1trx4k9
vz1trx4k5
vz1trx4k3
vz1trx4k2
vz1trx4k8
vz1trx4k6
vz1trx4k7
vz1trx4k1 vz1trx4k4https://viewzusa.com/ds/wp-content/uploads/2021/04/vz1trx4k1-300x156.webp vz1trx4k10 vz1trx4k9 vz1trx4k5 vz1trx4k3 vz1trx4k2 vz1trx4k8 vz1trx4k6 vz1trx4k7

VZ-1TRX-4K extender includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 230 ft (70 m) at 4K resolution by using a CAT 6/6A/7 cable. It is perfect for videowall or security monitor installation. VZ-1TRX-4K extender uses new technology, ipcolor that stands for global leading UHD video digital transmission, the core of ipcolor is supporting zero latency, 4K resolution uncompressed transmission through 10G Ethernet by using Ethernet cables.

  • Lossless Ultra HD 4K Video Transmission
  • Support Resolutions up to 4K@60Hz (8 / 10 / 12 bit)
  • New IPColor Technology
  • Available IR Signal Transmission (IR In / Out)
  • Support HDMI Loop-through at Transmitter
  • Transmission Length CAT 5/5e – 131ft / 40m
  • Transmission Length CAT 6/6A/7 – 230ft / 70m
  • Support HDR (HDR 10 + Dolby)

Compatible Monitors

Product Features

  • Model Number: VZ-1TRX-4K
  • Extends HDMI signal over a single network cable
  • New IPColor Technology
  • Supports
    @60Hz  – 480i / 480p / 720p / 1080i / 1080p / 4K
    @50Hz  – 576i / 576p / 720p / 1080i / 1080p / 4K
    @30Hz  – 3840×2160 / 4096×2160
    @24/25Hz  – 3840×2160 / 4096×2160
  • Lossless Ultra HD 4K Video Transmission
  • Support 4K@60Hz (8 / 10 / 12 bit)
  • Available IR Signal Transmission – IR In / Out
  • Transmit HDMI Signal over Single CAT 5 / 5e / 6 / 6A / 7 Cable with Standard of IEEE-568B
  • Transmission Length CAT 5/5e – 131ft / 40m
  • Transmission Length CAT 5e – 230ft / 70m
  • Support HDMI Loop-through at Transmitter
  • Support HDR (HDR 10 + Dolby), Zero Latency
  • DC 5V / 2A

Specification

Resolution @59.94/60 Hz – 480i / 480p / 720p / 1080i / 1080p / 3840×2160
@50 Hz – 576i / 576p / 720p / 1080i / 1080p / 3840×2160
@30 Hz – 3840×2160, 4096×2160
@23.98 /25 Hz – 3840×2160, 4096×2160
HDCP™ Version HDCP 2.2
HDMI Compliance HDMI 2.0a
IPColor Technology Support
Transmission Distance – CAT 5 / 5E up to 131ft / 40m
Transmission Distance – CAT 5 / 5E up to 230ft / 70m
Audio Format LPCM / DTS-H D / DTS / Dolby Digital 5.1ch
In / Out TDMS Signal 0.7 ~ 1.2 Vp-p (TDMS)
In / Out DDC Signal 5 Vp-p (TTL)
In / Out HDMI Cable Length ≤ 8 m (AWG 24)


Interface

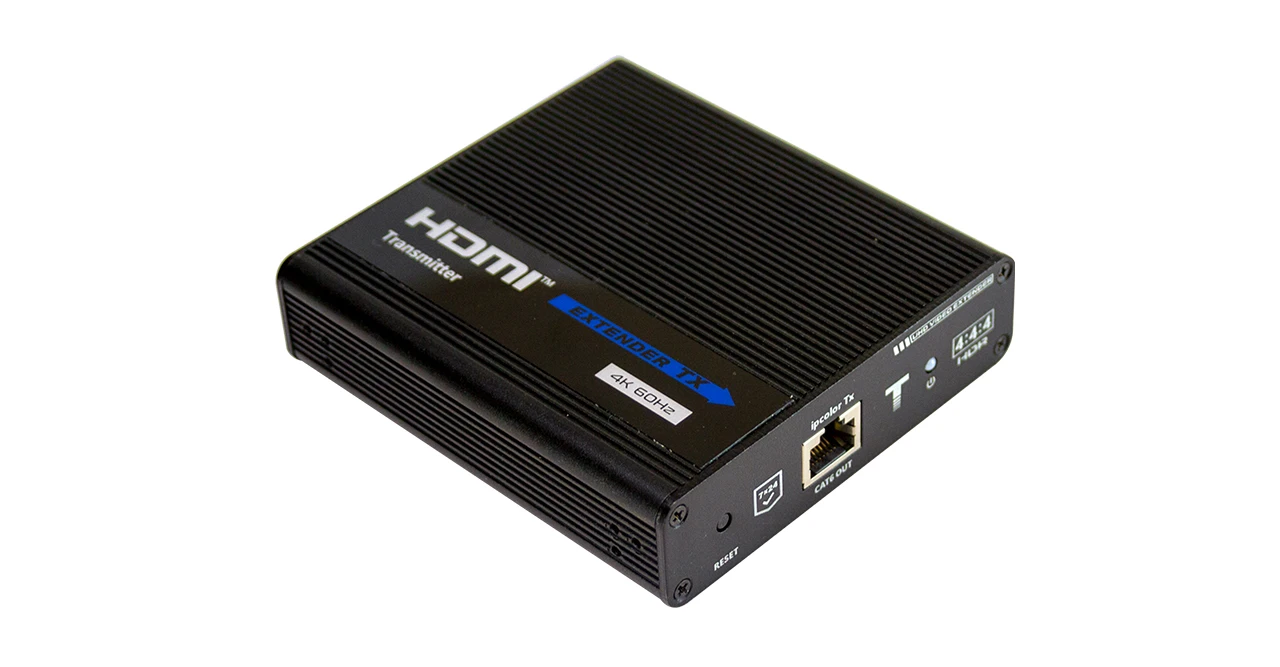

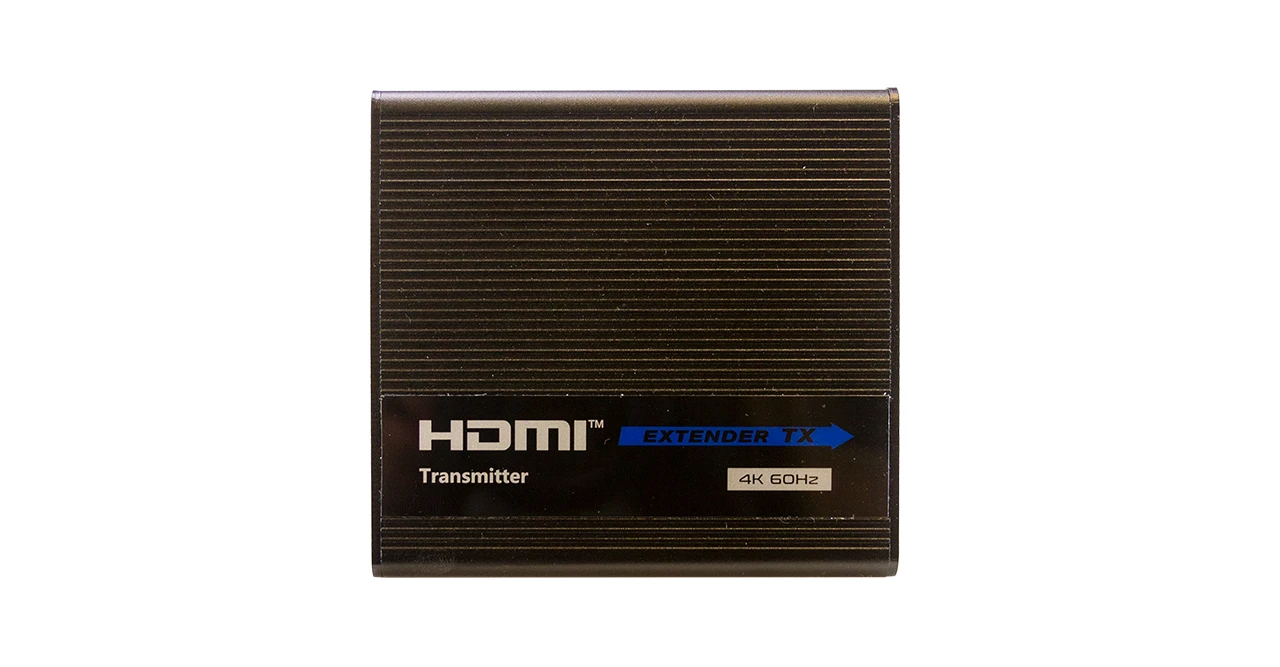

Transmitter TX – Power Input (DC 5V) 1
Transmitter TX – IR In / Out 1 / 1
Transmitter TX – CAT6 (RJ45) Out 1
Transmitter TX – HDMI In / Out 1 / 1

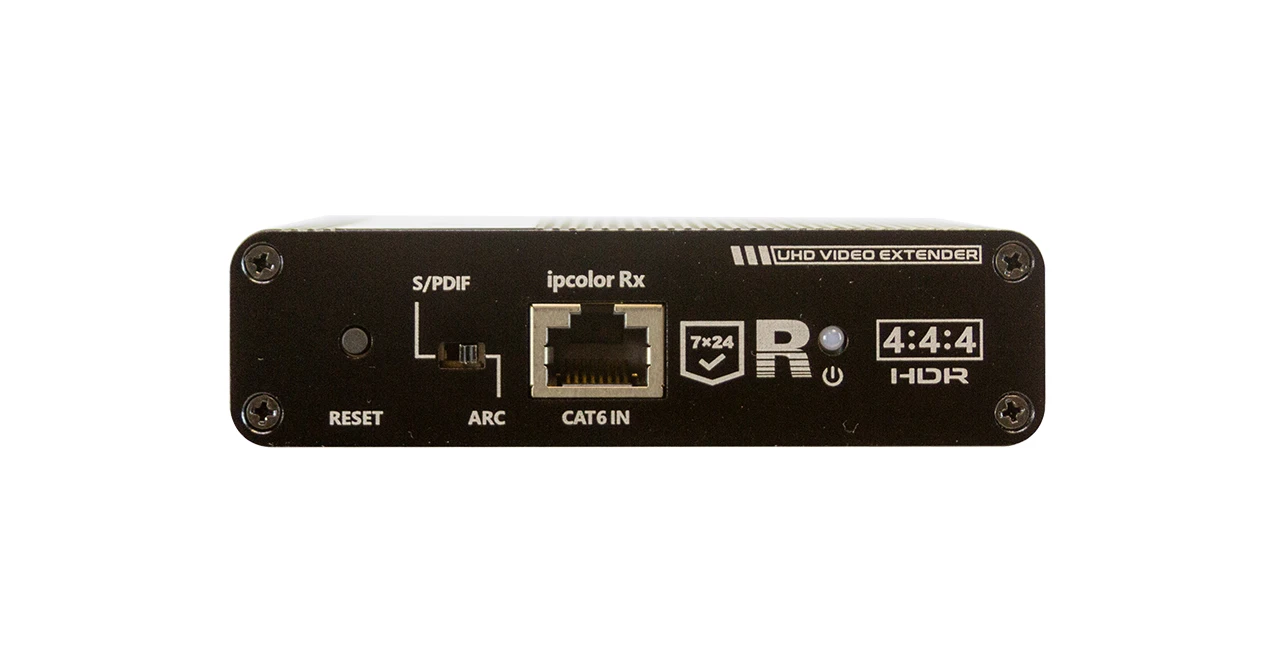

Receiver RX – Power Input (DC 5V) 1
Receiver RX – IR In / Out 1 / 1
Receiver RX – S/PDIF (ARC support) 1
Receiver RX – CAT6 (RJ45) In 1
Receiver RX -HDMI Out 1


Dimensions & Weight

Outline Dimension (W x H x D) 4.17″ x 1.0″ x 3.9″ / 106 mm  x 26.2 mm x 99 mm)
Net Weight TX 0.46 lbs / 210g
Net Weight RX 0.46 lbs / 210 g
Gross Weight 01.85 lbs / 0.83 kg


General Summary

Power – Electrical Ratings DC 5V / 2A (100 ~ 240 VAC, 50/60 Hz)
Power – Consumption TX : ≤ 4 W / RX: ≤ 4 W
Operating Temperature -4°F ~ 140°F / -20°C ~ 60°C
Storage Temperature -22 ~ 158°F / -30 ~ 70°C
Operating Humidity 0 ~ 90% RH
Mechanical Construction Aluminum alloy (Black)
Protection Level 1a Contact discharge level 3, 1b Air discharge level 3 implementation of the standard : IEC61000-4-2


Product Dimension & Weight
