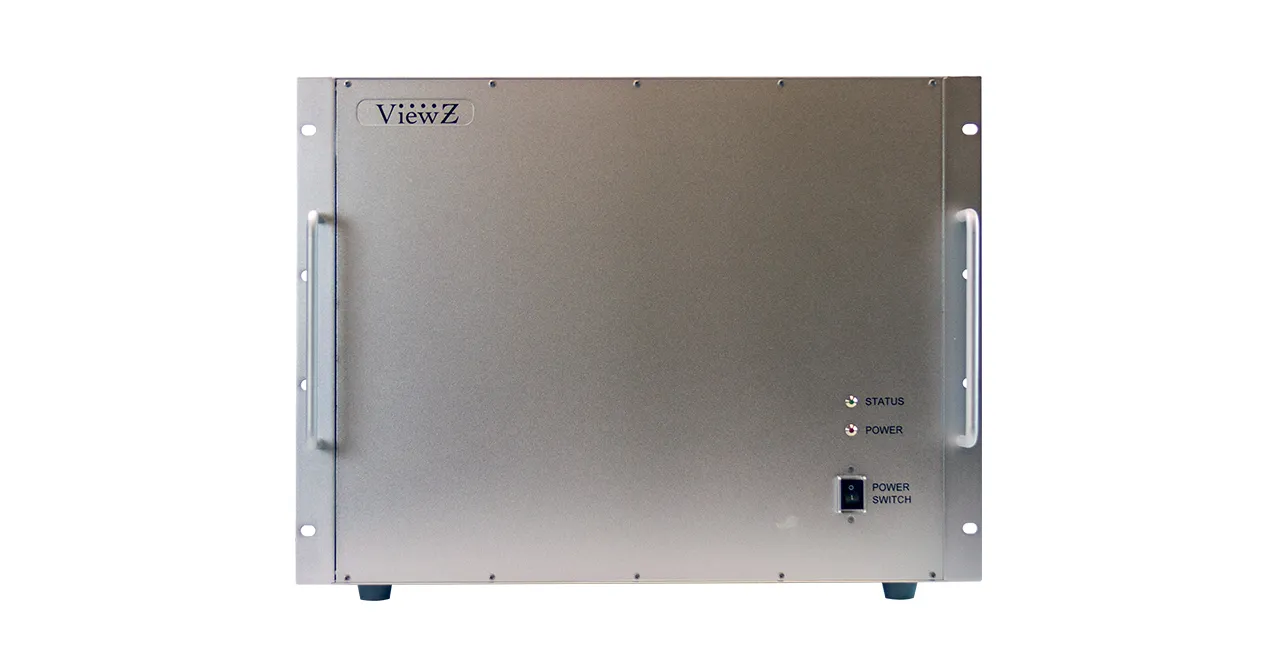

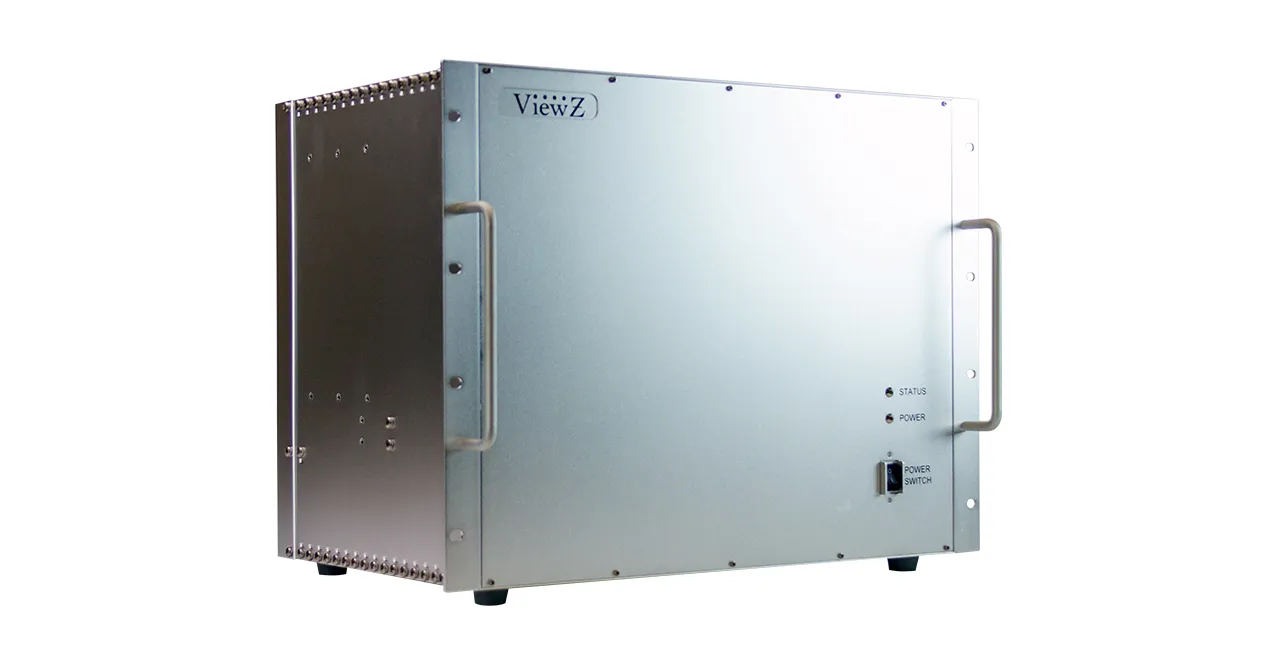

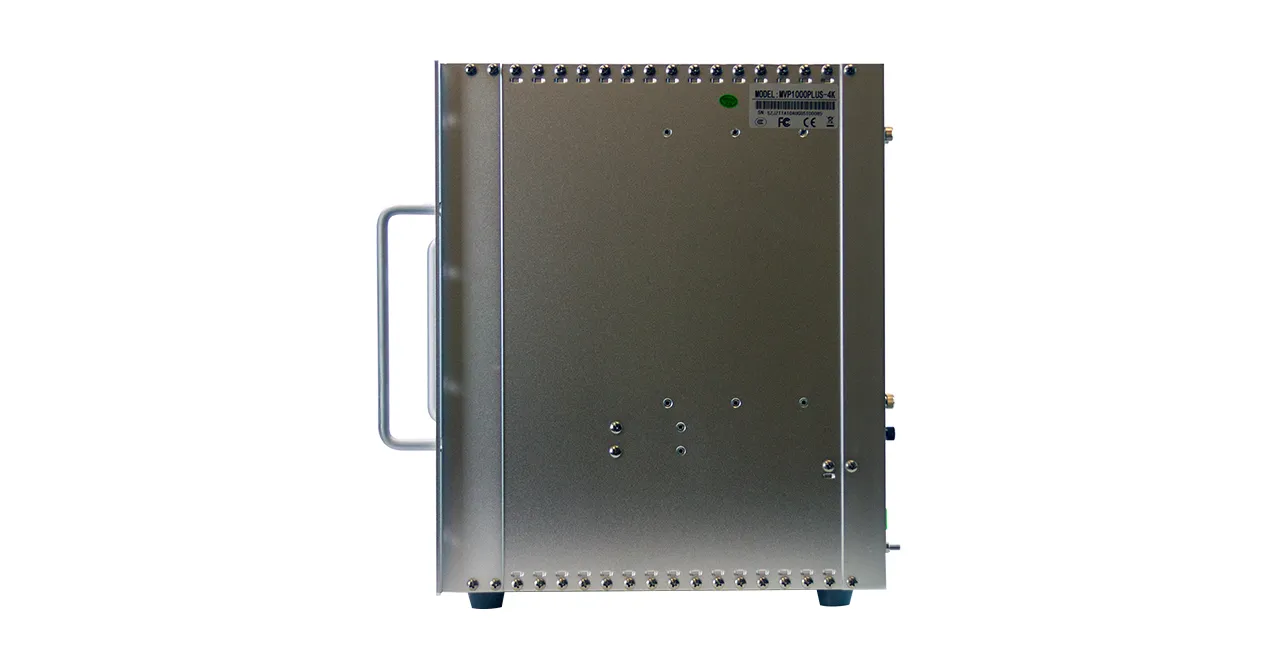

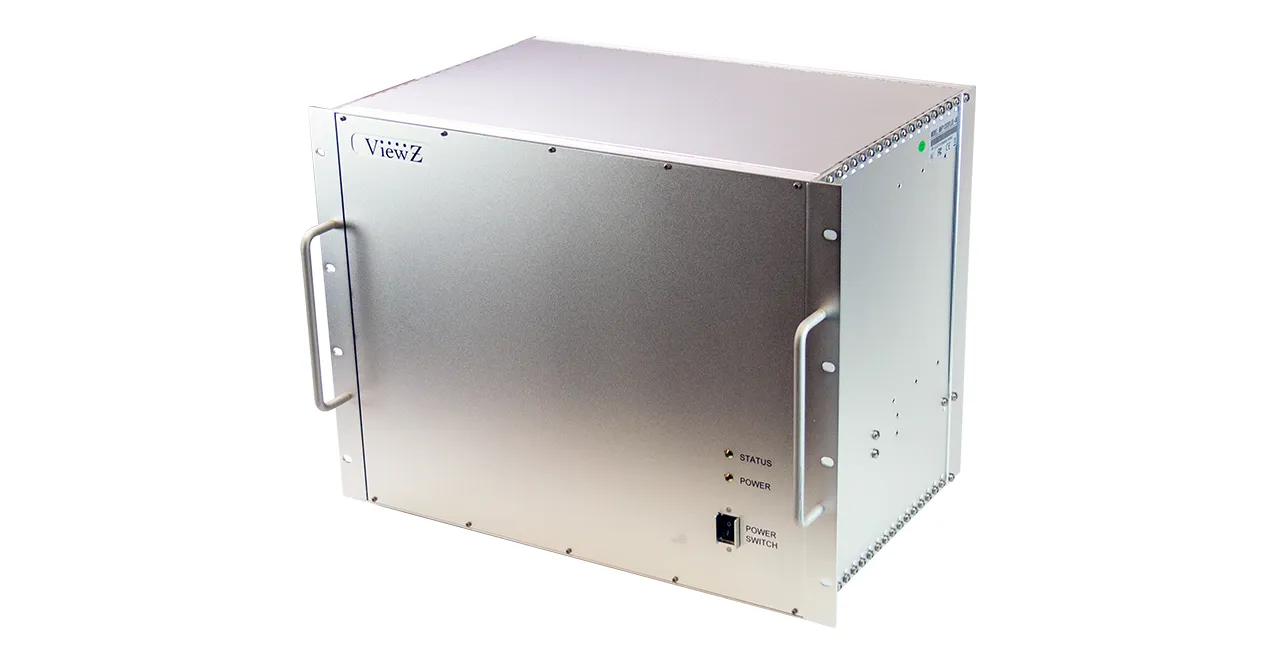

ViewZ PRO series CCTV video wall controllers are built to deliver maximum performance, reliability and user-friendliness. PRO series controllers can be controlled remotely from a central location via controller software that also has the ability for multi system/site management.

  • Maximum Input and Outputs of 128 x 128 for 1080p (64 x 64 for 4K)
  • Hot-Plugable Structure and High Integration of Chassis
  • Pure Hardware Structure, no Operating System and High Stability
  • Advanced Remote Control Software via TCP/IP
  • Serial Control RS-232C Available
  • Redundant Power Supply (above 9U Chasis)
  • Optional Text and Logo

Compatible Monitors, Mounts & Accessories

Product Features

VZ-PRO-MX Series is a FPGA-design professional high-performance image processing video wall controller . It can display multiple images on multiple screens in real time without loss of frames for full function multi-window splicing. This advanced control device provides an ideal image processing solution for security operations centers, traffic control centers and other similar applications.

This wall controller adopts the large-scale high performance FPGA array and high–speed digital switching technology architecture and combined with full digital hardware design concept, provides a CPU-free operation and offers powerful processing capabilities such as broadband video signal acquisition and real-time high resolution digital image processing. VZ-PRO-MX uses digital multibus aralleling and digital multibus data switching processing mechanism that can fundamentally ensure all the input signal sources are processed with real-time processing and data consistency without delay, discretization and frame loss .

  • Model Number: VZ-PRO-MX
  • Maximum Input and Outputs of 128 x 128 for 1080p (64 x 64 for 4K)
  • Hot-Plugable Structure and High Integration of Chassis
  • Pure Hardware Structure, no Operating System and High Stability
  • Advanced Remote Control Software via TCP/IP
  • Serial Control RS-232C Available
  • Redundant Power Supply (above 9U Chasis)
  • Optional Text and Logo
  • 3 year Warranty

*HDCP compatibility is required for playing content from HDCP-encrypted devices such as Blue-ray and DVD players.

Specification

4RU 9RU 17RU 25RU 33RU
Frame Number 1 1 2 3 4
Total Card Support 17 34 68 102 136
Max Input Card 8 16 32 48 64
Max Output Card 8 16 32 48 64

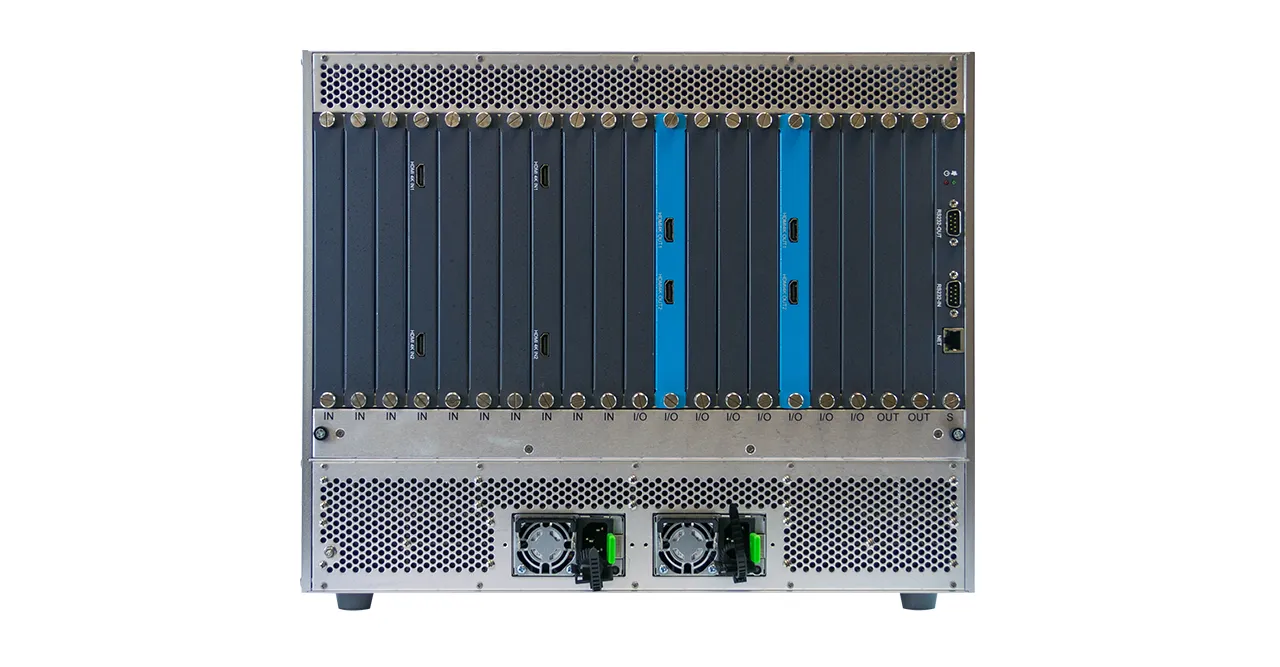

Interface

HDMI 4K Input Card HDMI – 1 Input | Up to 3840x2160p/30
HDMI 4K Output Card HDMI – 1 Output | Up to 3840x2160p/30
HDMI HD Input Card HDMI – 2 Inputs | Up to 1920x1080p/60
HDMI HD Output Card HDMI – 2 Outputs | Up to 1920x1080p/60
DVI HD Input Card DVI – 2 Inputs | Up to 1920x1080p/60
DVI HD Output Card DVI – 2 Outputs | Up to 1920x1080p/60
IP Decoder Card RJ x45, H.265, H.264, H.263 (captures 1080p upto 16ch or 2180p/30 upto 4ch)
Ethernet (RJ-45) In 1 (Remote Control)
RS 232 In 1 (Serial Control)
USB 3.0 / USB 2.0 – Firmware Update 1 / 2


Resolution

Max Resolution 3840 x 2160 @30Hz
Max Bit Rate 6.75 Gbps per system
Support Layers Up to 48 layers per output card


Remote Control

Serial Control (RS232C) | TCP/IP (RJ45) Support
Remote Control Software for TCP/IP Support (Compatible with Windows XP/7/8/10)


Dimensions & Weight

4RU 9RU 17RU 25RU 33RU
Outline Dimension (W x D x H) 17.3″ x 12.6″ x 6.97″ / 440 x 177 x 320 mm 17.3″ x 12.6″ x 16.14″ / 440 x 177 x 410 mm 17.3″ x 12.6″ x 28.74″ / 440 x 177 x 730 mm 17.3″ x 12.6″ x 41.34″ / 440 x 177 x 1050 mm 17.3″ x 12.6″ x 53.94″ / 440 x 177 x 1370 mm
Net Weight 26.4 lbs / 12 Kg 55 lbs / 25 Kg 96.8 lbs / 44 Kg 136.4 lbs / 62 Kg 176 lbs / 80 Kg


Mount

4 RU 9 RU 17 RU 25 RU 33 RU
Server Chassis 4U (19”) 9U (19”) 17U (19”) 25U (19”) 33U (19”)


General Summary

4RU 9RU 17RU 25RU 33RU
Power Input 100 – 240V AC
Power Consumption (Full load) 170 Watts 340 Watts 680 Watts 1020 Watts 1360 Watts
Redundant Power Supply N/A Support Support Support Support
Operating Temperature -22°F ~ 122°F / -30°C ~ 50°C
Operating Humidity 5% – 95% Non-Condensing
Cooling Fan Built-in


Product Dimension & Weight
