43″ Smart AD PVM

product Description

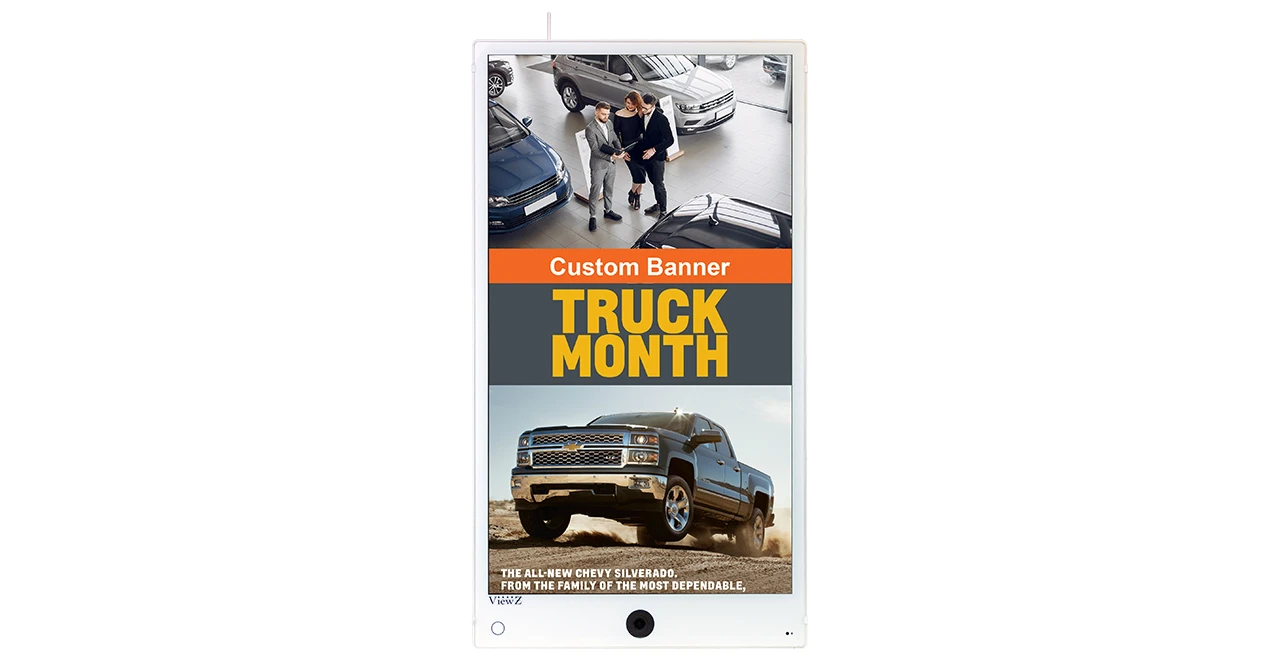

vzpvmp5w3-2
vzpvmp5b3-4

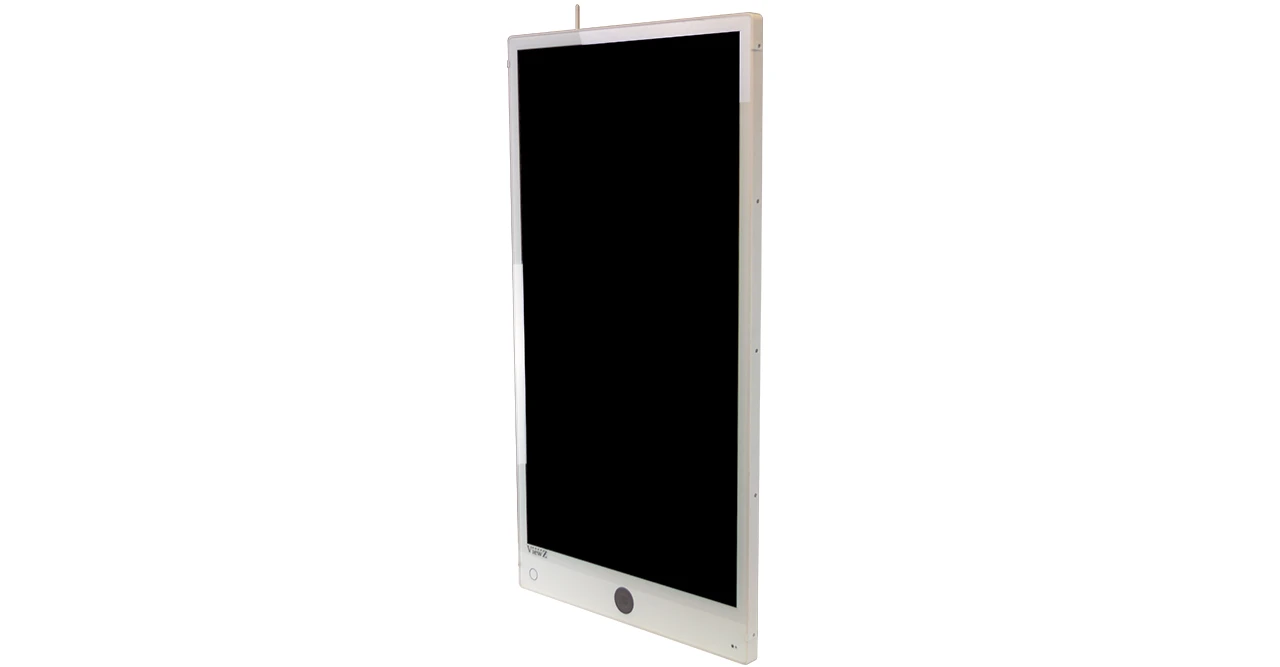

vzpvmp5w3-3
vzpvmp5b3-5

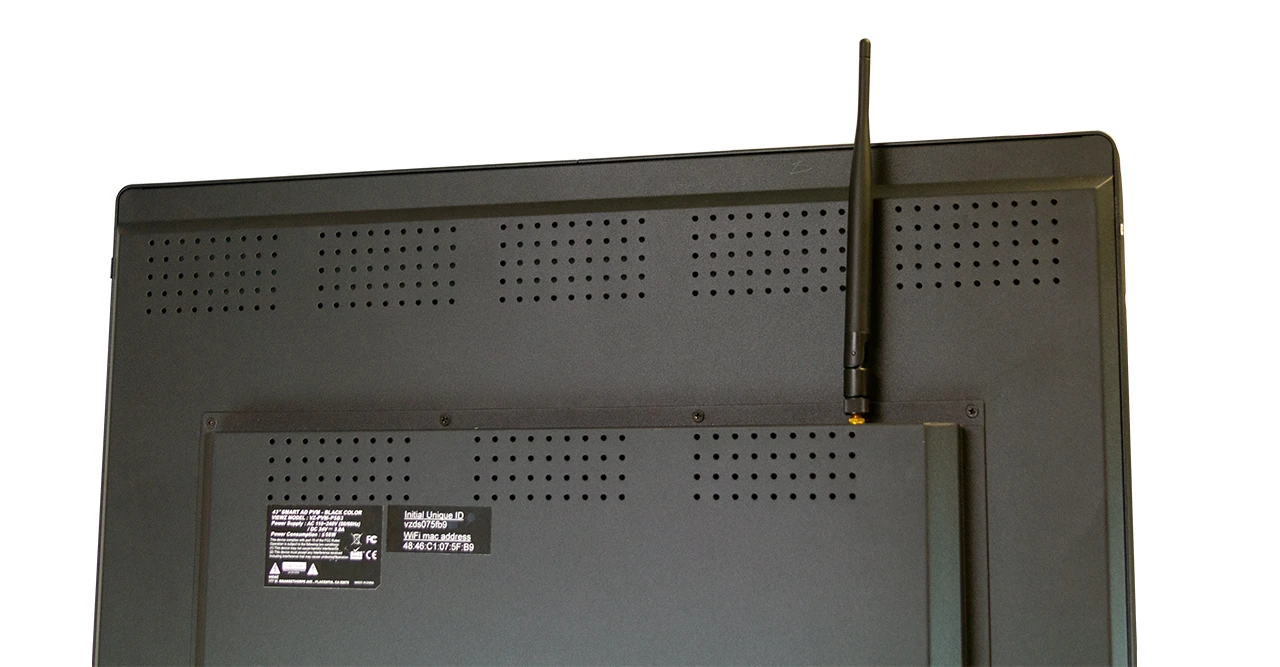

vzpvmp5b3-3

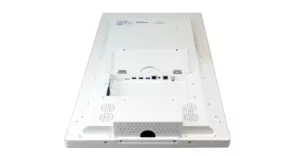

vzpvmp5w3-6

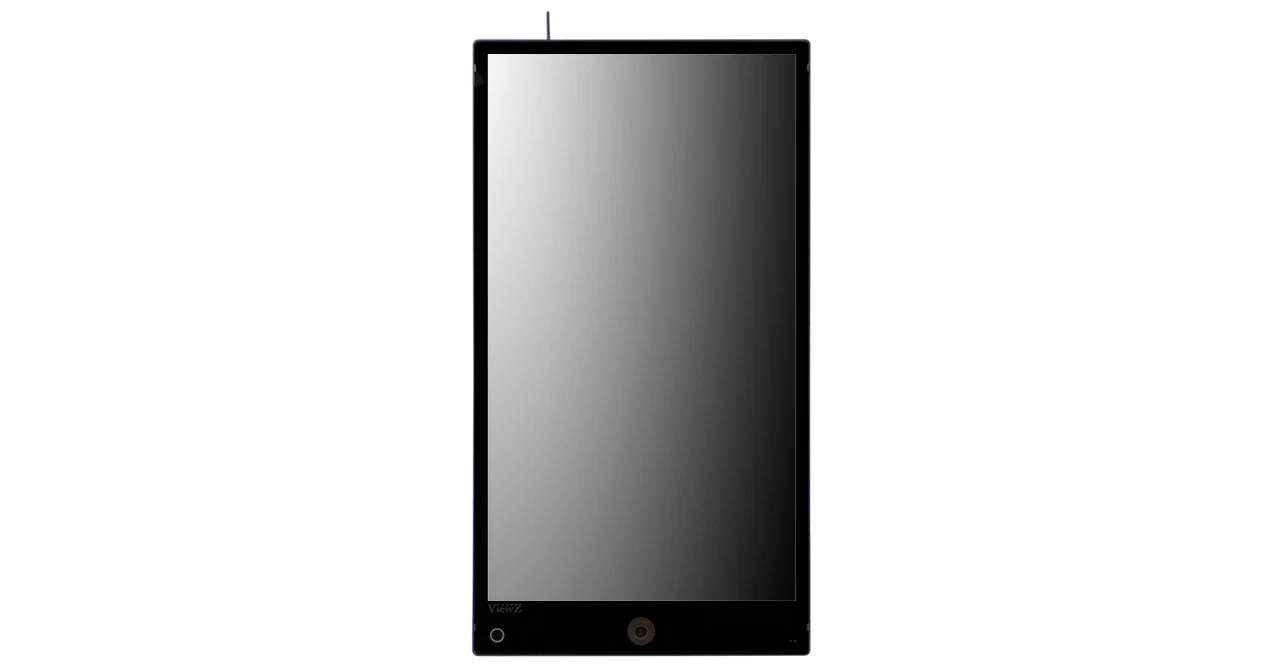

vzpvmp5b3-1

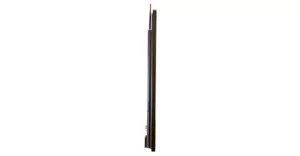

vzpvmp5b3-6
vzpvmp5w3-2 vzpvmp5b3-4 vzpvmp5w3-3 vzpvmp5b3-5 vzpvmp5b3-3 vzpvmp5w3-6 vzpvmp5b3-1 vzpvmp5b3-6

Smart AD PVM by ViewZ is a CMS capable PVM solution with advanced digital signage features designed for multi-location retails that rely on central management of signage contents.

  • 43” Mega Pixel IP Full HD 1080p Resolution
  • Built-in Android OS w/CMS for Digital Signage
  • CMS will operate via Cloud Server or Intranet Server System
  • Onvif Profile-S Compliant
  • Security Alert System
  • Protective Glass & IPS Panel for Wider Viewing Angle – 178°/178°
  • Camera Motion Sensor
  • Auto Power Recovery
  • Built-in 2 Mega Pixel Camera / 720 TV Line – Analog Video Resolution
  • BNC(NTSC/PAL), RJ-45, Audio
  • NDAA Compliant
  • Supports Dual Voltage (110V AC and 24V DC)

Compatible Mounts & Accessories

Product Features

  • 43” Mega Pixel IP Full HD 1080p Resolution
  • Onvif Profile S Compliant
  • Security Alert System
  • Built-in Android OS w/CMS for Digital Signage
  • Built-in 2 Mega Pixel Camera / 720 TV Line – Analog Video Resolution
  • Protective Glass / IPS Panel for Wider Viewing Angle – 178° / 178°
  • Supports Dual Voltage (110V AC and 24V DC)
  • BNC(NTSC/PAL), RJ-45, Audio
  • Camera Motion Sensor
  • Auto Power Recovery
  • “A“ Commercial Grade LED
  • NDAA Compliant
  • 3-Year Warranty

Ordering Information : Parts #

Model Features Family Series Size Color Voltage
43″, Black, AC 110V / DC 24V VZ-PVM- P 5 B 3
43″, White, AC 110V / DC 24V VZ-PVM- P 5 W 3



  • Series: Z (HD PVM) , I (IP PVM) , P (Portrait IP PVM)
  • Size: 1 (10inch) , 2 (23inch) , 3 (27inch) , 4 (32inch) , 5 (43inch)
  • Color: B (Black) , W (White)
  • Voltage: 3 (AC110V / DC24V), 4 (PoE)

Powerful Content Management System for Remote Control
One Server Control Unlimited Smart AD PVMs

ViewZ Smart AD PVM Content Management Software(CMS) allows the administrator to control every Smart AD PVM in the organization’s Intranet or Internet. From a centralized location, the signage contents that reside on a centralized server would be distributed to multiple units/locations either manually or automatically based on a set schedule.

Introduction

CMS Software

Spec Overview

Smart AD PVM - Creating a Group

Smart AD PVM - Registering a Device

Smart AD PVM - Adding Contents

Smart AD PVM - Creating an Advertising

Smart AD PVM - Setting a Schedule

Smart AD PVM - Usage Report

Display

Screen Size 43″
Max Resolution 1080 x 1920 @60Hz
Pixel Pitch 0.4902 mm x 0.4902 mm
Brightness 250 cd/m²(Typical)
Contrast Ratio 1200 : 1
Aspect Ratio 9 : 16
Viewing Angle (H/V) 178°/178°
Display Color 16.7 Million
Response Time < 8ms


Interface

CVBS (Camera) Out 1
RJ 45 (TCP/IP) 2 (CMS, IP Camera)
Audio Out 1
Micro SD Card In 1 (Max. 64GB)
USB In 3


IP Features

Ethernet Interface 10/100Base-T
Web Client Protocol TCP / IP
Supported Protocol TCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP


Special Features

Multi Display Function PIP / PBP
Filter Type 3D Comb filter / De-Interlace
Blinking Message “Recording” Yes
Multi-Lingual Language English, Spanish, French, Russian, Portuguese


Android Board Spec

Android OS Ver. 6.1.
CPU RTD1295 Quad Core, ARM Cortex-A53 64bit
RAM 2GB DDR4
Flash Memory 32GB


Dimensions

Outline Dimension (W x H x D) 22.99” x 41.91” x 3.18” / 584 mm x 1064.6 mm x 81 mm
Net Weight 24.4 kg / 54.79 lbs
Gross Weight 32 kg / 70.54 lbs


Mount

Vesa 200 mm x 200 mm / M6 x L8 Screws


Camera

Camera Type 2.1 Mega Pixel IP Camera
Lens DC Auto Iris 2.8 ~ 12mm Vari-focal Lens
Active Pixels 1080(H) x 1920p(V) 30fps
Image Sensor / Encoder Chipset SONY IMX290 / Hi3516D
Function 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, D/N, WDR, AGC, AWB
Video Compression H.264, MJPEG, CBR, VBR support
Video Out 1ch CVBS (NTSC/PAL) / 1ch RJ-45 output
Motion Detection Support
Support Protocol TCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP
Ethernet Port 10 / 100 Base-T
Web Application IE 6 ~ 11, Firefox
Integration Protocol ONVIF 2.6 (supported)


General Summary

Transmitter – IR Remote Control Yes
Dual Voltage Power – Electrical Ratings 110V AC (50/60Hz) / 24V DC ( 3A )
Power – Consumption ≤ 68 W
Warranty – Parts / Labor 3 Year / 3 Year
Operating Temperature 14 ~ 122°F / -10 ~ 50°C
Compatible Mounts – Wall VZ-AP200
Compatible Mounts – Ceiling VZ-CM308, VZ-CMKiT-01, VZ-CMKiT-02
Regulation FCC(A), CE, NDAA
