IPX 1.5mm Indoor Fixed LED

product Description

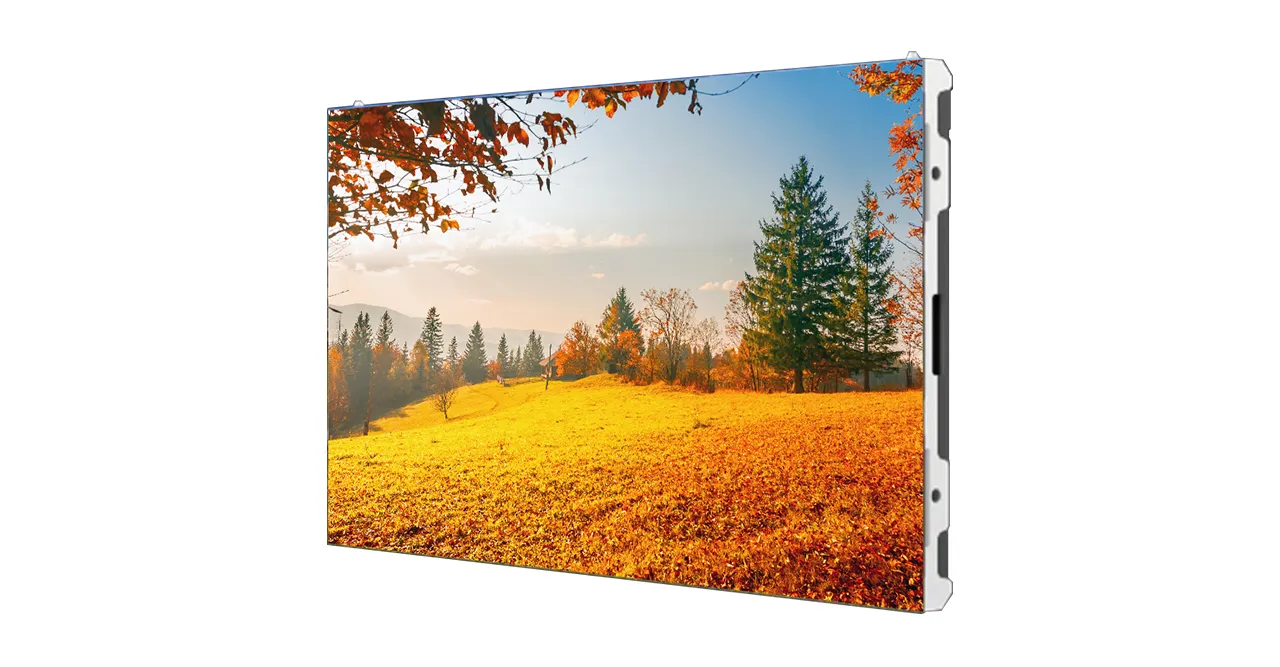

vzipx2715-1
vzipx2715-1

27” Rectangular Type & Wall Mount Available LED Tile

  • 0.0615”/1.5625 mm Pixel Pitch
  • High Visual Uniformity without Ghosting & Smearing
  • Vivid Color Display (HDR Processing)
  • Advanced Grayscale Gives Detailed and Realistic Images
  • Internal Connection Cable Free Design
  • Seamlessly splices Images without Black Lines on the Screen
  • Delicate & Smooth Video
  • Color Temperature – 6500k to 12000k Adjustable
  • COB Technology, Anti-Collision & Waterproof – IP65 (Front)
  • Ultra-Slim Design & Dual Receiving Cards
  • Advanced Heat Management without Noise
  • Front Maintenance & Wall Mount Available
  • 3-Year Warranty

Specification | Dimension | Download

Series : IPX | Key Features : LED Tile Indoor LED

Product Features

  • Model Number: VZ-IPX2715
  • 0.0615”/1.5625 mm Pixel Pitch
  • High Visual Uniformity without Ghosting & Smearing – Pixel by pixel calibration technology eliminates the difference in brightness & chromaticity within & between panels, improves the uniformity of display
  • Vivid Color Display (HDR Processing) – HDR processing technology enhances image quality & vivid color display
  • Clearly Visible under Low Brightness – High grayscale level under low brightness ensures the detail of the image are clearly visible
  • Delicate & Smooth Video – 3840 Hz high refresh rate eliminates streaks on the screen, enhances the clarity & contrast of the image, making the video picture delicate and smooth
  • Ultra-wide viewing angle ensures satisfactory viewing experience from diversified angles
  • Adopts flip-chip technology, no wire bonding, stable and reliable, high luminous efficiency, energy efficient
  • Convenient Adjustment – Precise Floating Connector – With precise floating connector, panel and module can achieve three dimension adjustment, which makes the screen surface flat & optimizes bright & dark lines adjustment
  • Low failure rate and maintenance cost
  • Seamlessly splices images without black lines on the screen
  • Internal connection cable free design
  • Advanced grayscale gives detailed and realistic images
  • Color Temperature – 6500K to 12000K Adjustable
  • COB Technology, Anti-Collision & Waterproof – IP65 (Front)
  • Ultra-Slim Design & Dual Receiving Cards
  • Advanced Heat Management without Noise
  • Front Maintenance & Wall Mount Available
  • 27” Rectangular Type
  • 3-Year Warranty

Display

LED Type Flip-chip COB
Pixel Pitch 0.0615″ x 0.0615″ / 1.5625 mm x 1.5625 mm
Brightness 600 cd/m² (Typical)
Module Resolution 96 x 108 @3840Hz
Cabinet Resolution 384 x 216 @3840Hz
Viewing Angle (H/V) 170°/160°
Contrast Ratio 4000 : 1
Gray Scale Processing 14 bit
Color Uniformity ± 0.003 Cx,Cy
Drive Mode / Scanning Mode Constant Current Driving / 54S
Driver IC Chipone ICND2069 PWM


Dimensions & Weight

Module Dimension (W x H) 5.9″ x 6.64″ / 150 mm x 168.75 mm
Cabinet Dimension (W x H x D) 23.62″ x 13.27″ x 1.55″ / 600 mm x 337.5 mm x 39.5 mm
Net Weight (Cabinet) 8.81 lbs / 4.0 kg


General Summary

Power – Electrical Ratings AC 100-240V, 50/60Hz
Power – Consumption 100 W/m2 (Avg) / 260 W/m2 (Max)
Maintenance Mode Front Maintenance
Regulations FCC(A), CE, RoHs
Protection Level IP65 (Front)
Cabinet Material Die-Cast Aluminum
Operating Temperature | Humidity -10 ~ 40°F / 14 ~ 104°C | 10 ~ 90% RH
Storage Temperature | Humidity -20 ~ 60°F / -4 ~ 140°C | 10 ~ 90% RH


Product Dimension & Weight
