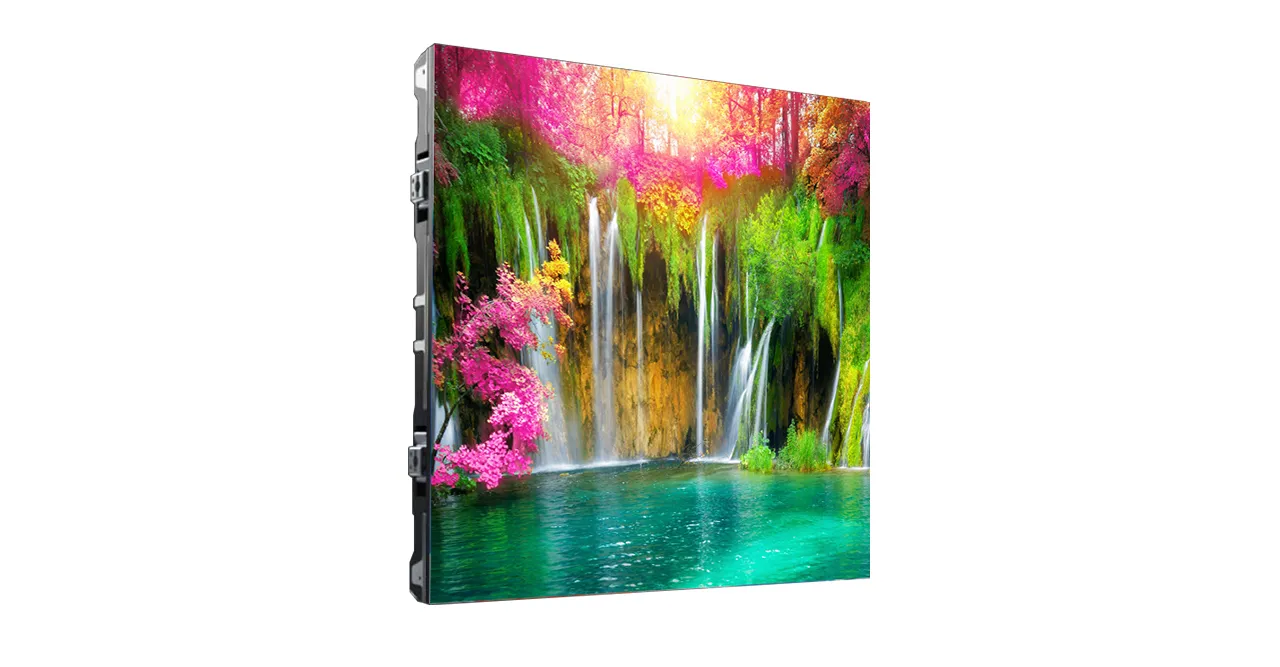

28” Square Type & Wall/Hang/Stack Available LED Tile
- 0.1”/2.6mm Pixel Pitch
- High Visual Uniformity
- Vivid Color Display (HDR Processing)
- Curve Lock: +5° ~ -5° & +10° ~ -10° / Creative Dislocation Splicing
- Clearly Visible under Low Brightness
- Convenient Maintenance
- Higher Reliability – Optional Power & Data Redundancy
- Delicate & Smooth Video
- Front/Rear Maintenance & Wall/Hang/Stack Available
- 3-Year Warranty
Specification | Dimension | Download
Series : IRX | Key Features : LED Tile Indoor LED
Product Features
- Model Number: VZ-IRX2826
- 0.1”/2.6mm Pixel Pitch
- High Visual Uniformity – Pixel by pixel calibration technology eliminates the difference in brightness & chromaticity within & between panels, improves the uniformity of display
- Vivid Color Display (HDR Processing) – HDR processing technology enhances image quality & vivid color display
- Clearly Visible under Low Brightness – High grayscale level under low brightness ensures the detail of the image are clearly visible
- Delicate & Smooth Video – 3840 Hz high refresh rate eliminates streaks on the screen, enhances the clarity & contrast of the image, making the video picture delicate and smooth
- Higher Reliability – Optional Power & Data Redundancy – Optional dual receiving cards & dual power supply, the product ensures continuity of information transmission without power or signal loss, particularly for control room & studio scenarios
- Convenient Maintenance – Fast front & rear maintenance of module & power box
- Curve Lock: +5° ~ -5° & +10° ~ -10° / Creative Dislocation Splicing – Knob-type curve lock for quick & precise positioning. Easily achieve inner & outer curve configuration
- Front/Rear Maintenance
- 28” Square Type & Wall/Hang/Stack Available
- 3-Year Warranty
Display
| LED Type | SMD |
| Pixel Pitch | 0.1″ x 0.1″ / 2.6 mm x 2.6 mm |
| Brightness | 800 cd/m² (Typical) |
| Module Resolution | 96 x 96 @3840Hz |
| Cabinet Resolution | 192 x 192 @3840Hz |
| Viewing Angle (H/V) | 160°/120° |
| Contrast Ratio | 3000 : 1 |
| Gray Scale Processing | 14 bit |
| Video System | NTSC / PAL |
| Control System / Receiving Card | Colorlight K5+ / Novastar A5sPlus |
| Driver IC | ICN2153 |
Dimensions & Weight
| Module Dimension (W x H) | 9.84″ x 9.84″ / 250 mm x 250 mm |
| Cabinet Dimension (W x H x D) | 19.68″ x 19.68″ x 2.95″ / 500 mm x 500 mm x 75 mm |
| Net Weight (Cabinet) | 17.63 lbs / 8 kg |
General Summary
| Power – Electrical Ratings | AC 100-240V, 50/60Hz |
| Power – Consumption | 180 W/m2 (Avg) / 520 W/m2 (Max) |
| Maintenance Mode | Front / Rear Maintenance |
| Regulations | FCC(A), CE, RoHs |
| Protection Level | IP30 |
| Cabinet Material | Die-Cast Aluminum |
Product Dimension & Weight
Click below to enlarge
