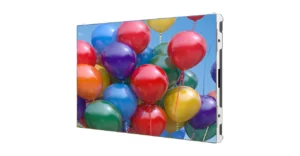

27” Rectangular Type & Wall Mount Available LED Tile
- 0.049”/1.25 mm Pixel Pitch
- High Visual Uniformity without Ghosting & Smearing
- Vivid Color Display (HDR Processing)
- Advanced Grayscale Gives Detailed and Realistic Images
- Internal Connection Cable Free Design
- Seamlessly splices Images without Black Lines on the Screen
- Delicate & Smooth Video
- Color Temperature – 6500k to 12000k Adjustable
- COB Technology, Anti-Collision & Waterproof – IP65 (Front)
- Ultra-Slim Design & Dual Receiving Cards
- Advanced Heat Management without Noise
- Front Maintenance & Wall Mount Available
- 3-Year Warranty
Specification | Dimension | Download
Series : IPX | Key Features : LED Tile Indoor LED
Product Features
- Model Number: VZ-IPX2712
- 0.049”/1.25 mm Pixel Pitch
- High Visual Uniformity without Ghosting & Smearing – Pixel by pixel calibration technology eliminates the difference in brightness & chromaticity within & between panels, improves the uniformity of display
- Vivid Color Display (HDR Processing) – HDR processing technology enhances image quality & vivid color display
- Clearly Visible under Low Brightness – High grayscale level under low brightness ensures the detail of the image are clearly visible
- Delicate & Smooth Video – 3840 Hz high refresh rate eliminates streaks on the screen, enhances the clarity & contrast of the image, making the video picture delicate and smooth
- Ultra-wide viewing angle ensures satisfactory viewing experience from diversified angles
- Adopts flip-chip technology, no wire bonding, stable and reliable, high luminous efficiency, energy efficient
- Convenient Adjustment – Precise Floating Connector – With precise floating connector, panel and module can achieve three dimension adjustment, which makes the screen surface flat & optimizes bright & dark lines adjustment
- Low failure rate and maintenance cost
- Seamlessly splices images without black lines on the screen
- Internal connection cable free design
- Advanced grayscale gives detailed and realistic images
- Color Temperature – 6500K to 12000K Adjustable
- COB Technology, Anti-Collision & Waterproof – IP65 (Front)
- Ultra-Slim Design & Dual Receiving Cards
- Advanced Heat Management without Noise
- Front Maintenance & Wall Mount Available
- 27” Rectangular Type
- 3-Year Warranty
Display
| LED Type | Flip-chip COB |
| Pixel Pitch | 0.049″ x 0.049″ / 1.25 mm x 1.25 mm |
| Brightness | 600 cd/m² (Typical) |
| Module Resolution | 120 x 135 @3840Hz |
| Cabinet Resolution | 480 x 270 @3840Hz |
| Viewing Angle (H/V) | 170°/160° |
| Contrast Ratio | 20000 : 1 |
| Gray Scale Processing | 14 bit |
| Color Uniformity | ± 0.003 Cx,Cy |
| Drive Mode / Scanning Mode | Constant Current Driving / 60S |
| Driver IC | Chipone ICND2069 PWM |
Dimensions & Weight
| Module Dimension (W x H) | 5.1″ x 6.64″ / 150 mm x 168.75 mm |
| Cabinet Dimension (W x H x D) | 23.62″ x 13.27″ x 1.5″ / 600 mm x 337.5 mm x 39.5 mm |
| Net Weight (Cabinet) | 8.81 lbs / 4.0 kg |
General Summary
| Power – Electrical Ratings | AC 100-240V, 50/60Hz |
| Power – Consumption | 100 W/m2 (Avg) / 270 W/m2 (Max) |
| Maintenance Mode | Front Maintenance |
| Regulations | FCC(A), CE, RoHs |
| Protection Level | IP65 (Front) |
| Cabinet Material | Die-Cast Aluminum |
| Operating Temperature | Humidity | -10 ~ 40°F / 14 ~ 104°C | 10 ~ 90% RH |
| Storage Temperature | Humidity | -20 ~ 60°F / -4 ~ 140°C | 10 ~ 90% RH |
Product Dimension & Weight
Click below to enlarge
