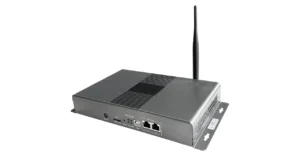

vzsb50-2
vzsb50-3

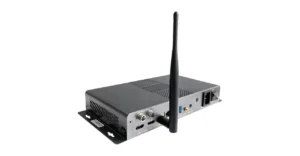

vzsb50-1

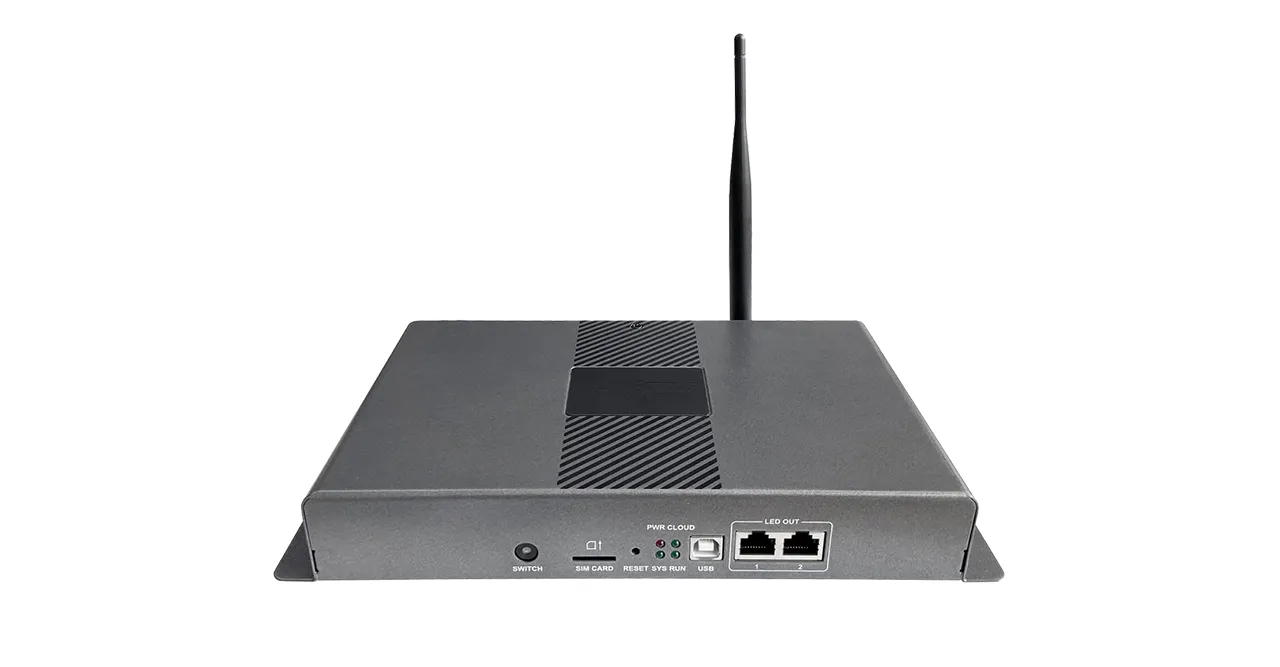

vzsb50-4
vzsb50-2 vzsb50-3 vzsb50-1 vzsb50-4

The VZ-SB50 is a new generation of multimedia player created by NovaStar for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the VZ-SB50 enables users to manage LED displays from an Internet-connected device anywhere, anytime.

  • HDMI 1.4 (1080p@60Hz) In / Out Loop through
  • Support H.264 / H.265 4K @60 Hz
  • Loading capacity up to 1,300,000 pixels, Maximum width: 4096 pixels & height: 4096 pixels
  • 2 Sensors for Brightness, Temperature & Humidity
  • EDID Management – Custom & Standard
  • 2 Gigabit Ethernet ports with a processing capacity of up to 650,000 pixels per port (maximum width/height: 4096 pixels)
  • Synchronized playback between multiple devices possible (synchronization via NTP or GPS (4G module required))

Compatible LED Module & Accessories

Product Features

  • Model Number: VZ-SB50
  • HDMI 1.4 (1080p@60Hz) In / Out Loop through
  • Support H.264 / H.265 4K @60 Hz
  • Loading capacity up to 1,300,000 pixels, Maximum width: 4096 pixels & height: 4096 pixels
  • 2 Sensors for Brightness, Temperature & Humidity
  • EDID Management – Custom & Standard
  • 2 Gigabit Ethernet ports with a processing capacity of up to 650,000 pixels per port (maximum width/height: 4096 pixels)
  • Synchronized playback between multiple devices possible (synchronization via NTP or GPS (4G module required))
  • Stereo Audio Output
  • 2x Gigabit Ethernet ports
    These two ports serve as primary by default.
    Users can also set one as primary and the other as backup.
  • 1x Stereo audio connector
    The audio sample rate of the internal source is fixed at 48 kHz.
    The audio sample rate of the external source supports
    32 kHz, 44.1 kHz, or 48 kHz. If NovaStar’s multifunction card
    is used for audio output, audio with a sample rate of
    48 kHz is required
  • Built to run 24/7/365
  • 3 year Warranty

Specification

Max Pixel per LED 650,000 pixels
Total Pixel 1.3 Million pixels
Max Input Resolution 1920 x 1200 @ 60Hz
Max / Min Output Width / Height 4096 x 4096 pixels / 800 x 600 pixels


Decoding Format

VIDEO – MPEG1 & MPEG2 1920×1080 @30Hz (48×48 pixel)
VIDEO – MPEG4 1920×1080 @30Hz (48×48 pixel)
VIDEO – H.264, H.264 MVC, H.265 HEVC 4096×2304 @60Hz (48×48 pixel)
VIDEO – VP8, VC-1 1920×1080 @30Hz (48×48 pixel)
VIDEO – VP9 4096×2304 @60Hz (64×64 pixel)
VIDEO – H.263 SQCIF (128×96 @30Hz), QCIF (176×144 @30Hz), CIF (352×288 @30Hz), 4CIF (704×576 @30Hz)
VIDEO – MJPEG 1920×1080 @60Hz (48×48 pixel)
IMAGE – JPG, JPEG (JFIF – FORMAT 1.02) 96 x 32 to 817 x 8176 pixels
IMAGE – BMP, GIF, PNG, WEBP No limitation


Android Board Spec

Android OS Ver. 11.0.
CPU Quad-core ARM A55 processor @1.8 GHz
RAM / Storage 1 GB / 16 GB


Interface

HDMI 2.0 In / Out 1 / 1
USB 3.0 In 1 (Type-A)
COM 1 / COM 2 1 (4G Antenna) / 1 (GPS Antenna)
WiFi / Ethernet (RJ-45) 1 / 1 (Control)
Audio Out / Reset 1 / 1
Sensor 2 (Brightness/Temperature & Humidity)
Switch 1 (To switch Synchronous & Asynchronous Mode)
SIM Card Slot / USB In 1 / 1 (Type-B)


Dimensions & Weight

Dimensions ( W x D x H ) 10.79 x 5.47 x 1.57” / 274.3 x 139.0 x 40.0 mm
Net Weight 2.71 lbs / 1.23 kg
Gross Weight 3.63 lbs / 1.65 Kg


General Summary

Power – Electrical Ratings AC 100 ~ 240V, 50/60 Hz / 0.6 A
Power – Consumption 18 W
Operating Temperature 32 ~ 122°F / -20 ~ 60°C
Storage Temperature -4 ~ 140°F / -40 ~ 80°C
Operating Humidity 0% ~ 80% RH
Storage Humidity 0% ~ 80% RH
Regulations FCC(A), CE, RoHs
Accessories Power Cable x1, WiFi Antenna x1, Manual x1
