VZ-IBX-T series can unleash new and exciting possibilities at the touch of a finger. These large size 4k monitors are touch screen, making them perfect for school and presentation digital whiteboards while also catering to digital signage and security application. The future is now with IBX series touch screen monitors.
- 74.5” LED ULTRA HD Monitor
- Supports 4K (3840X2160) Resolution
- 20-Point Multi Touch Interactive Screen
- USB – Built in Media Player
- Variable Inputs Support (HDMI, YPbPr, AV, VGA)
- HDMI & AV Loop-through
- Content Sharing
- Wide Viewing Angle (IPS Panel)
- Universal Wall Mounting & Auto Source Recovery
- Built to run 24/7/365
- NDAA Compliant
Specification | Dimension | Download
Series : IBX-T | Key Features : 4K Touch Screen NDAA Compliant
Compatible Mounts & Accessories
Product Features

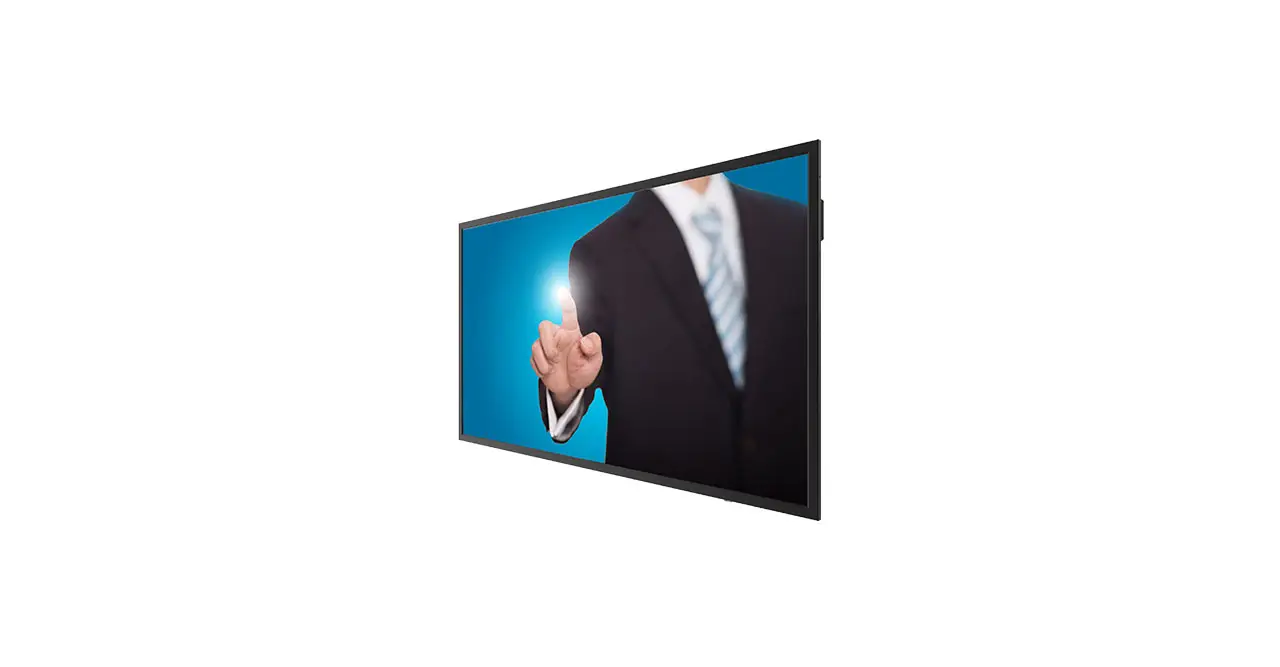

- Model Number: VZ-75IBX-T
- 74.5″ LED UHD Panel
- Supports 4K (3840X2160) Resolution
- Supports HDMI (2.0), YPbPr, AV, VGA
- Supports Touch Screen
- 20-Point touch interactive panel
- Wide Viewing Angle (IPS Panel)
- Digital & Analog Inputs, HDMI & AV Loop-through
- Universal Wall Mounting & Auto Source Recovery
- USB – Media Player
- Built to run 24/7/365
- NDAA Compliant
Display
| Screen Size | 74.5″ |
| Max Resolution | 3840 x 2160 @60Hz |
| Pixel Pitch | 0.429 mm x 0.429 mm |
| Brightness | 350 cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 9 (1.78 : 1) |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.07G |
| Response Time | < 8ms |
Interface
| HDMI (2.0) In / Out | 3 / 1 |
| DP In | 1 |
| YPbPr In | 1 |
| CVBS (Composite) In / Out | 1 / 1 |
| VGA In (15Pin D-Sub) | 1 |
| SPDIF (Optical) Out | 1 |
| RS232 (RJ-45) In | 1 |
| USB In (Android) | 2 |
| USB In (OPS/Android) | 2 |
| USB In (Touch) | 2 |
| RJ45 (10/100M) In | 2 |
| Audio Out | 1 |
| PC Audio In | 1 |
Android Board Spec
| Android OS | Ver 8.0 |
| CPU | Quad Core, ARM A73+A53, 1.5GHz |
| RAM | 3GB DDR4 |
| Storage | 32GB (Nand-Flash) |
| GPU | MaliG51 (Nand-Flash) |
Special Features
| Image Retention | YES |
Media Player
| VIDEO Codec | MPEG1/2, MPEG4, DivX 3.11/4.12/5.x/5, XviD, H.263, H.264, MVC, AVS, WMV3, VC1, Motion JPEG, VP8/9, RV30/40 |
| VIDEO Format | MPEG, AVI, MOV, MP4, MKV, RM, 3GP, FLV, WebM, ASP |
| Audio Format | mp3, mp4, wma |
| Image Format | JPEG, PNG, BMP |
Touch
| Sensor Type | Infrared Touch Frame |
| Surface Protection | 4 mm Toughened Glass |
| Response Time | < 10 ms |
| Touch Accuracy | 90% ± 1 mm |
| Output Mode | HID Standard |
| Theory Clicks | Unlimited |
| Minimum Touch Object | ≥ 1.6 mm (Single touch) | ≥ 3 mm (Multi touch) |
| Infrared Touch | 20 Points |
Refresh Rate
| HDMI (2.0) In | 3840 x 2160 @ 60Hz |
| DP In | 3840 x 2160 @ 60Hz |
| VGA In (15Pin D-Sub) | 1920 x 1080 @ 60 Hz |
Audio
| Built in Speaker | 15W x 2 |
Dimensions & Weight
| Outline Dimension (W x H x D) | 68.34” x 40.72” x 4.08” / 1735.98 mm x 1034.52 mm x 103.75 mm |
| Net Weight | 127.86 lbs / 58.0 kg |
| Gross Weight | 173.72 lbs / 78.8 kg |
Mount
| Universal Wall Mount | 600 x 400 mm / M8 x 4 |
General Summary
| Transmitter – IR Remote Control | Yes |
| Housing | Sheet Black Aluminum / Metal |
| Power – Electrical Ratings | AC 100-240V (50/60Hz) |
| Power – Consumption | ≤ 400 W / ≤ 0.5 W (Standby) |
| Regulations | FCC(A), NDAA, WEEE |
| Operating Temperature | Humidity | 32 ~ 104°F / 0 ~ 40°C | 20 ~ 80% RH |
| Storage Temperature | Humidity | 14 ~ 140°F / -10 ~ 60°C | 10 ~ 80% RH |
| Language (OSD) | English |
| Accessories | Manual (1pc), Power Cable (1pc), USB A-B Cable (1pc), Remote Controller (1pc), Wall Mount (1set), Touch Pen (2pc), HDMI Cable (1pc), Mobile Stand (Option) |
Product Dimension & Weight
Click below to enlarge
