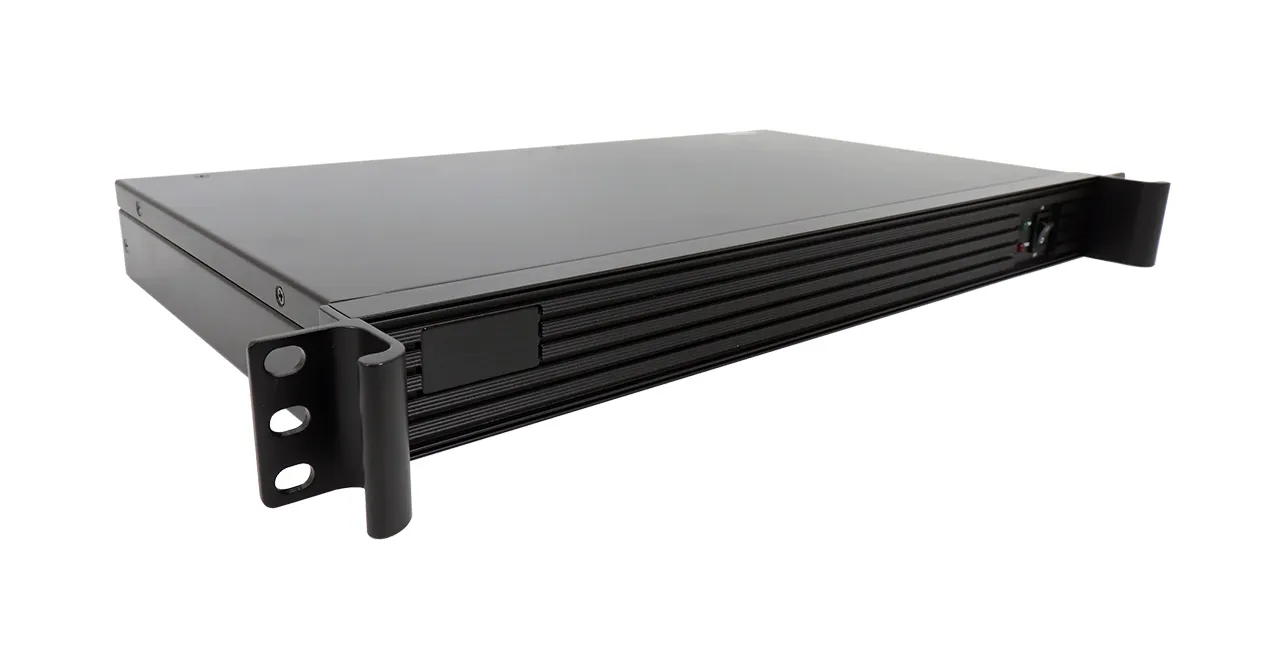

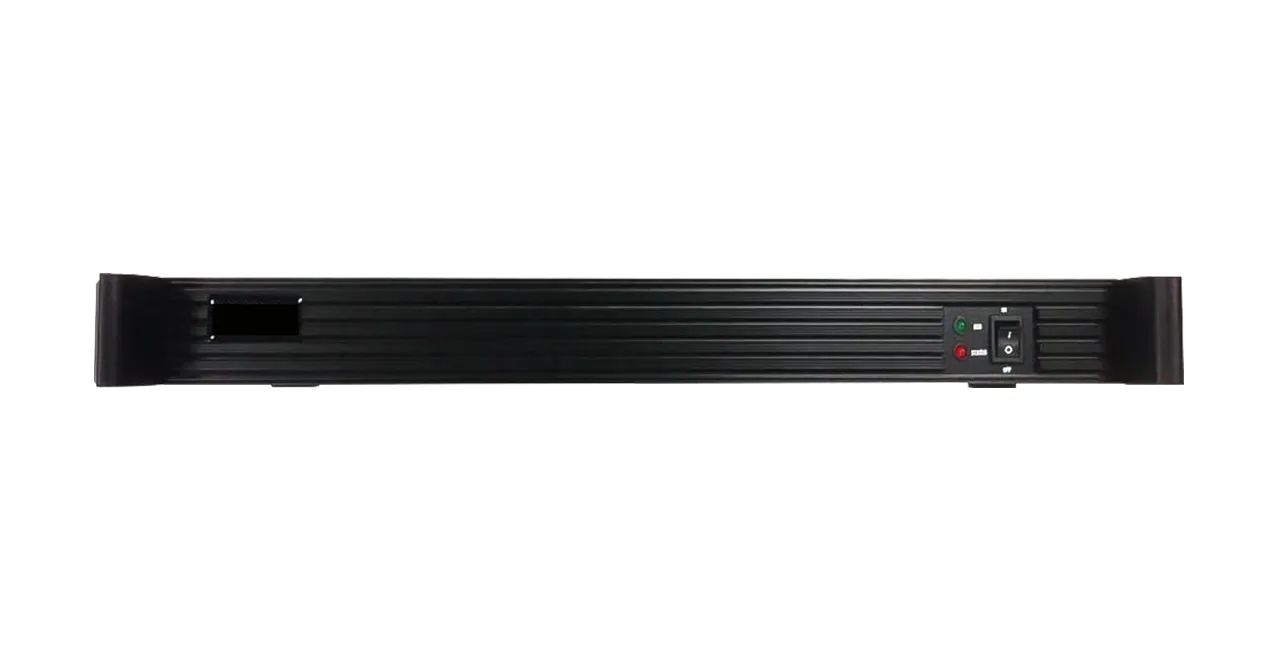

VZ-SB700 is a video controller that supports 1x DVI input, 1x HDMI input, 1x audio input, and 6x Ethernet outputs. A single unit can load 1920x1200@60Hz. Point-to-point calibration can further enhance the image quality when using the provided software to reduce any color discrepancies, and ensure uniform brightness.
- SL-DVI (Loop-through), HDMI 1.3 (Loop-through) & Audio Inputs
- 8 bit Video Source Loading Capacity of 1920 x 1200 @ 60Hz
- 12 bit Video Source Loading Capacity of 1440 x 900 @ 60Hz
- RS232 In & RS232 Out Control Interfaces for Device Cascading
- 2 Channels of 100M Network Port, with Square Port USB Interface & Device Cascading
- UART In / Out – Control Ports for Cascading upto Max. 20 units
- Point to Point Brightness & Color Calibration
- Pixel Level Brightness & Chroma Calibration
Specification | Dimension | Spec & Manual
Series : SB | Key Features : Video Wall Controller
Compatible LED Module & Accessories
Product Features
- Model Number: VZ-SB700
- SL-DVI (Loop-through), HDMI 1.3 (Loop-through) & Audio Inputs
- 8 bit Video Source Loading Capacity of 1920 x 1200 @ 60Hz
- 12 bit Video Source Loading Capacity of 1440 x 900 @ 60Hz
- RS232 In & RS232 Out Control Interfaces for Device Cascading
- 2 Channels of 100M Network Port, with Square Port USB Interface & Device Cascading
- UART In / Out – Control Ports for Cascading upto Max. 20 units
- Point to Point Brightness & Color Calibration
- Pixel Level Brightness & Chroma Calibration
- Built to run 24/7/365
- 3 year Warranty
Video Format
| HDMI 1.3 / 8bit / RGB 4:4:4 | 1920×1200 @60Hz |
| DVI / 8bit / RGB 4:4:4 | 1920×1200 @60Hz |

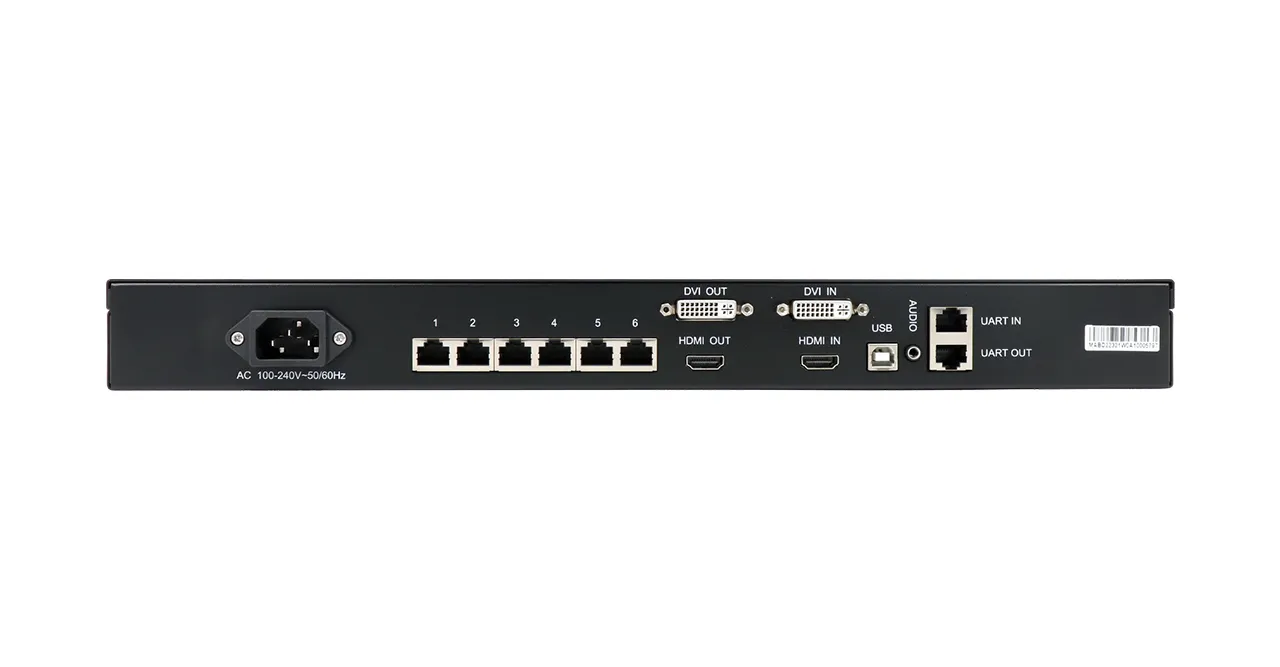

Interface
| AUDIO In | 1 |
| DVI In / Out | 1 / 1 |
| HDMI 1.3 In / Out | 1 / 1 |
| Ethernet (RJ-45) Out | 6 |
| 100 Mbps Ethernet (RJ-45) In / Out | 1 / 1 ( Control, UART ) |
| USB In | 1 (Type-B) |
Dimensions & Weight
| Dimensions ( W x D x H ) | 19” x 9.84” x 1.74” / 482.6 x 250.0 x 44.4 mm |
| Net Weight | 5.73 lbs / 2.6 kg |
Mount
| Server Chassis | 1U (19”) |
General Summary
| Power – Electrical Ratings | AC 100 ~ 240V, 50/60 Hz |
| Power – Consumption | 12 W |
| Operating Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Operating Humidity | 10% ~ 90% RH |
| Regulations | FCC(A), CE, RoHs |
| Accessories | Power Cable x1, DVI Cable x1, USB Cable x1 |
