The ViewZ VZ-MV401 4ch Multiviewer is a simple, cost-effective video scaler designed to enable a 4K@60Hz, HD, SD computer display device, virtually handling any input resolution up to 4K@60Hz. It provides 4 HDMI inputs, 1 analog audio output, and 1 HDMI output.
- Handles HDMI® signals with Deep Color and HDCP 1.4 / 2.2
- Supports scaling up to 4K @60Hz, 4:4:4 color sampling
- Supports 14 screen layouts – 6 preset and 8 customized screen layouts
- 4ch Multi-Viewing Processor Featuring Up-Conversion 4K 3840×2160 Resolution and User-Defined Custom Layouts
- Supports input/output resolution up to 4K@60Hz, 4:4:4 color sampling
- Fast switching among input channels and combined multiple images
on single monitor - NDAA Compliant
Specification | Dimension | Spec & Manual
Series : Multiviewer | Key Features : 4K NDAA Compliant
Compatible Monitors, Mounts & Accessories
Product Features
- Model Number: VZ-MV401
- Fast switching among input channels and combined multiple images
on single monitor - Handles HDMI® signals with Deep Color and HDCP 1.4 / 2.2
- Supports input/output resolution up to 4K@60Hz, 4:4:4 color sampling
- Supports scaling up to 4K@60Hz, 4:4:4 color sampling
- Supports 14 screen layouts – 6 preset and 8 customized screen layouts
- Rotation (R90⁰ and L90⁰) when input resolution up to 1080p or flip output in full screen layout

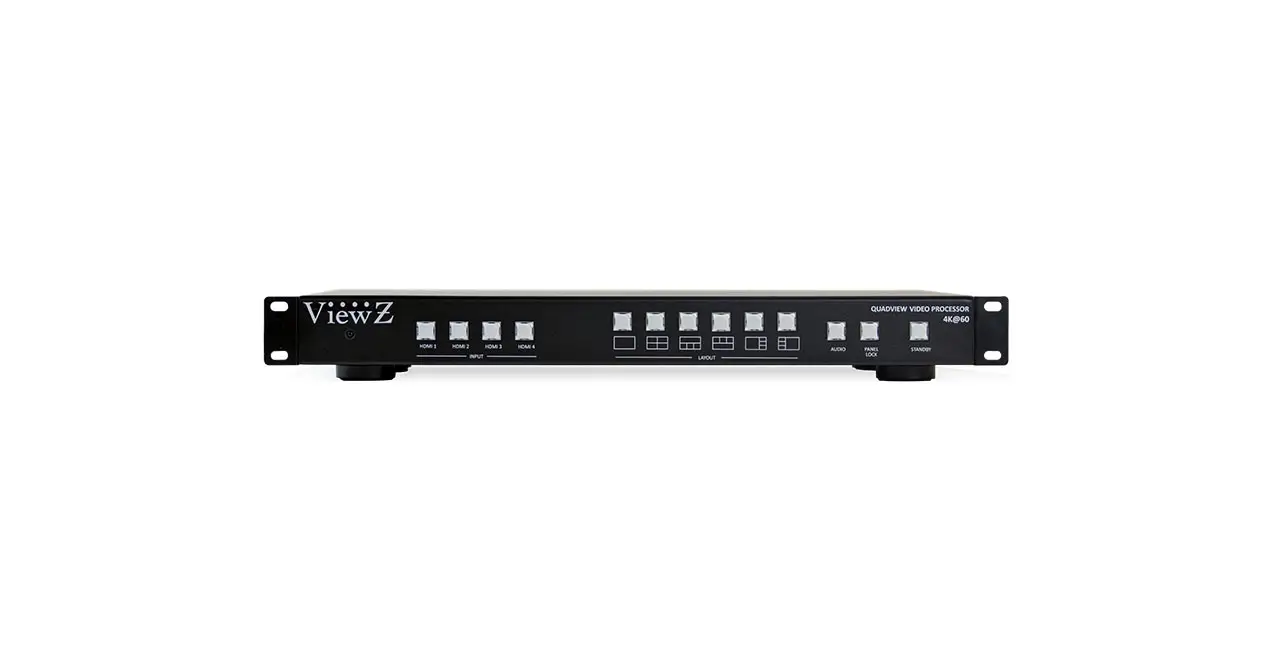

- Supports front panel button, IR remote control, RS232 and Web UI
- Supports stereo audio output
- NDAA Compliant
- 2-Year Warranty
*HDCP compatibility is required for playing content from HDCP-encrypted devices such as Blue-ray and DVD players.
Specification
| HDMI® signals with Deep Color and HDCP | 1.4 / 2.2 |
| Input Resolution | Up to 4K@60Hz, 4:4:4 Color Sampling |
| Output Resolution | Up to 4K@60Hz, 4:4:4 Color Sampling |
| Scaling | Up to 4K@60Hz, 4:4:4 Color Sampling |
| PIP & POP | Support |
| Custom Layout | 14 Layout ( 6 preset & 8 custom ) |
| Rotation | Support ( R 90° & L 90° ) – On 1080p Input |
| Flip | Support |

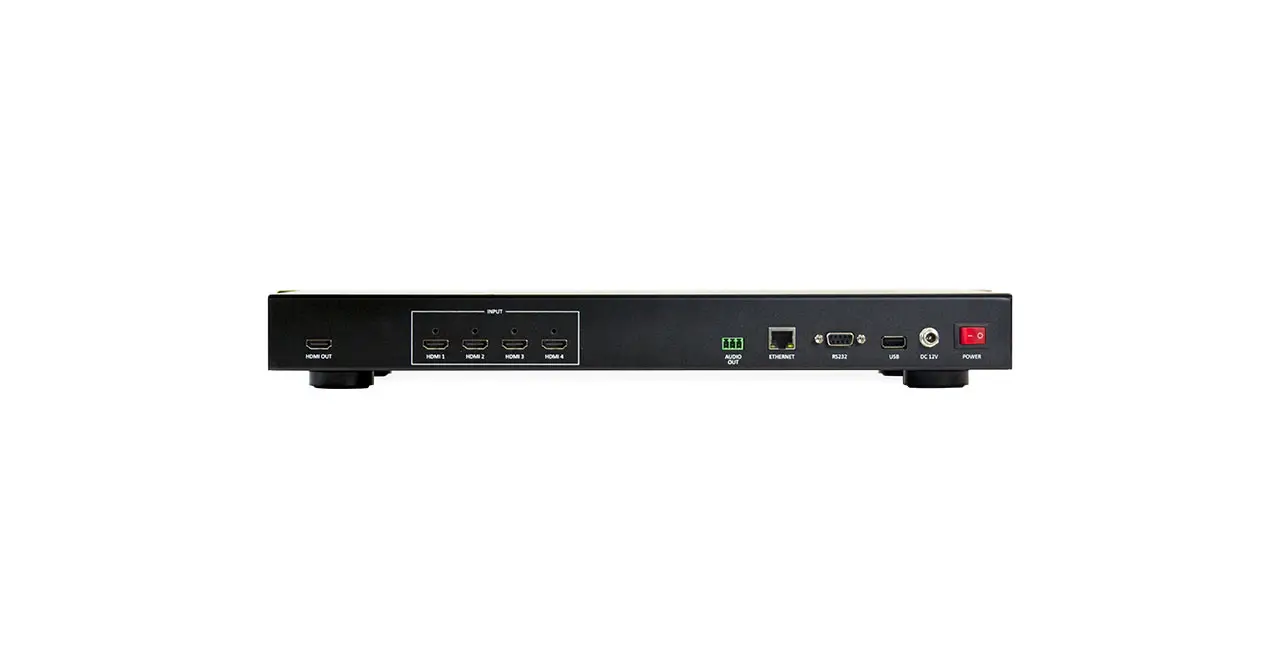

Interface
| HDMI Input | 4 |
| HDMI Output | 1 |
| Audio R/L | 1 |
| USB 2.0 | 1 – Firmware |
| Network (RJ-45) | 1 – 10/100/1000 Base-T |
| Serial Port (RS-232) | 1 |
Resolution
| Video Output | 4096 x 2160 @60Hz, 4:4:4 Color Sampling |
Dimensions & Weight
| Outline Dimension (W x H x D) | 17.33 x 9.05 x 1.77″ / 440.4 x 230 x 45 mm |
| Net Weight | 5.99 lbs / 2.72 Kg |
Mount
| Server Chassis | 1U (19″) |
General Summary
| Transmitter – IR Remote Control | YES | |||
| Power – Electrical Ratings | DC 12V/2A, locking barrel connector | |||
| Power – Consumption | 15W | |||
| Operating / Storage Temperature | 32 ~ 113°F ( 0 ~ 45°C ) / -4 ~ 140°F (-20 ~ 60°C ) | |||
| Operating Humidity | 20 % ~ 90 % RH | |||
| LED Indicator Color | Input, Layout, Input Swap, Lock – Blue Standby On – Red Standby Off – Green |
|||
| Regulations | FCC (A), CE, NDAA | |||
