23″ IP PVM-N

product Description
Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image...

Full HD Resolution, Built-in 2MP IP Camera compatible with many leading VMS's and NVRs and packed with a long list of other great surveillance and digital signage featured

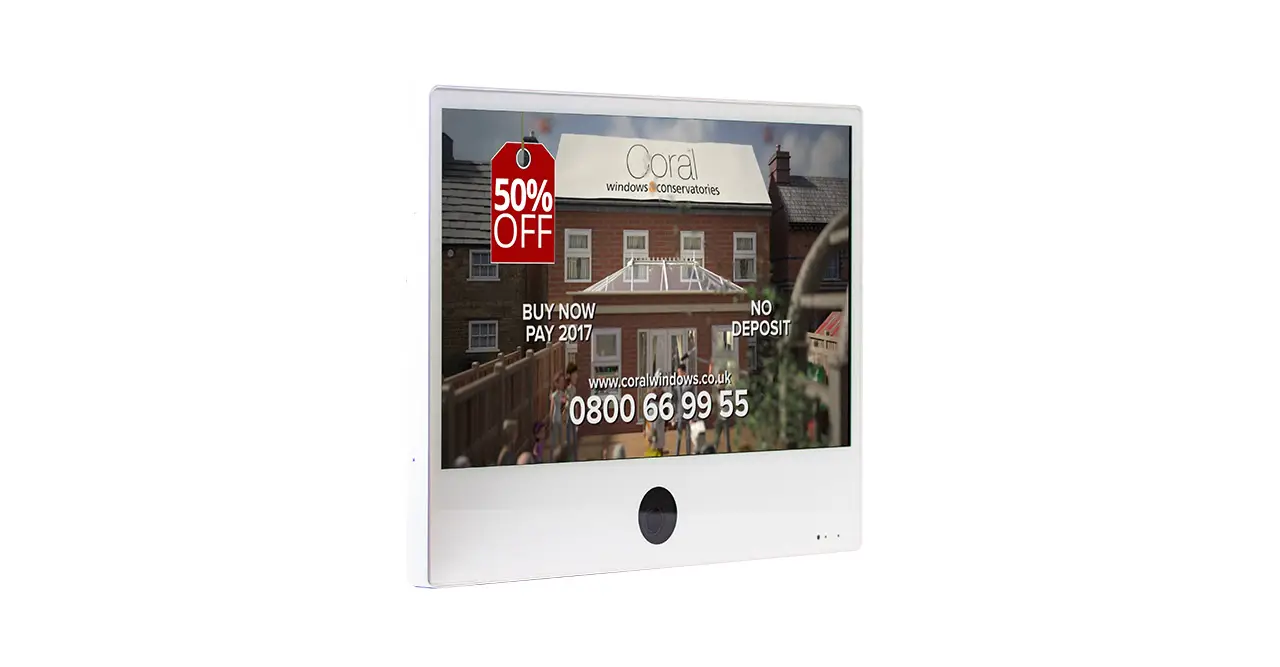

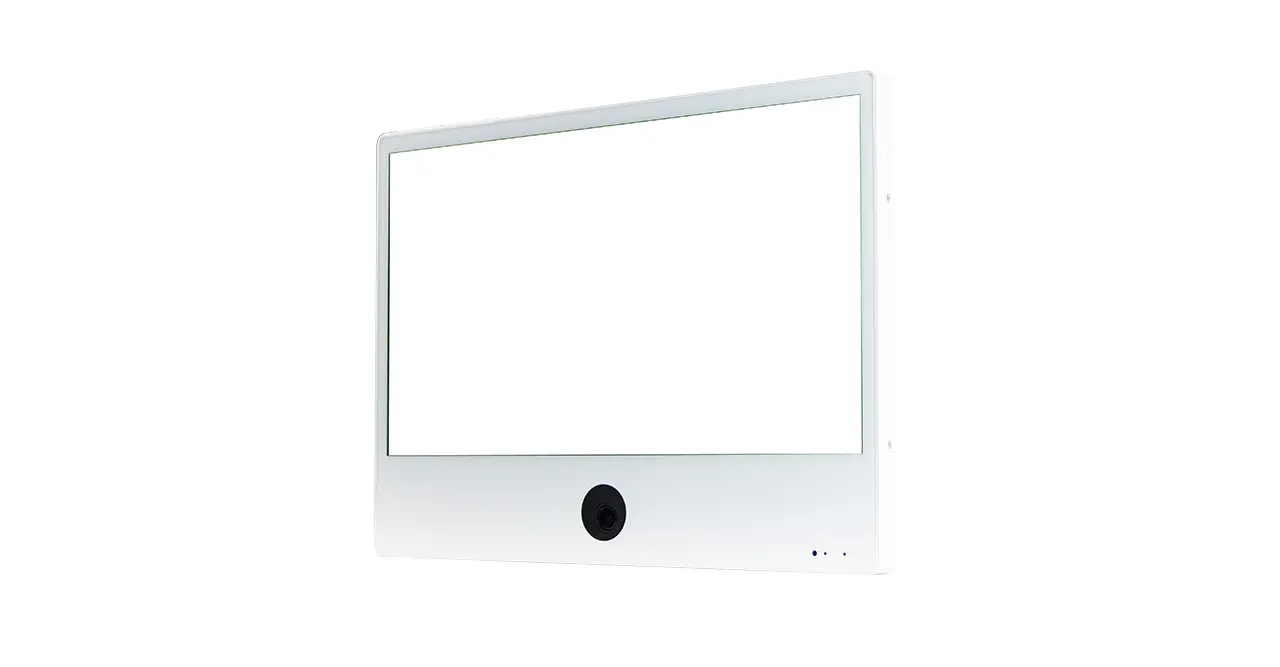

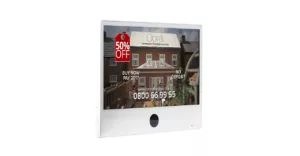

  • 23” Mega Pixel Full HD 1080p IP Public View Monitor
  • Onvif Profile-S Compliant
  • Protective Glass & IPS Panel for Wider Viewing Angle – 178°/178°
  • 2 MP Camera & DC Auto Iris 2.8-12 mm Varifocal Lens
  • Blinking Message – “Recording in Progress”
  • Camera Motion Sensor & Time Interval Based Source Switching
  • Auto Power / Source Recovery
  • Supports Dual Voltage (110V AC and 24V DC)

Compatible Mounts & Accessories

Product Features

  • Model Number: VZ-PVM-I2 _ _ N
  • 23″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
  • Full HD 1920×1080 / 16:9
  • 1920×1080 2 Mega Pixel HD D-WDR Camera
  • DC Auto Iris 2.8-12 mm Varifocal Lens
  • 720×480 Camera BNC Output
  • Motion Sensor and Time Interval based Source Switching
  • Alert Text / Multi-Color Blinking LED
  • HDMI In / VGA In / AV(Composite) In / Camera (CVBS) Out /
    Audio In-Out
  • 3D Comb Filter / De-Interlace
  • Camera and Monitor OSD / Remote Control
  • PIP / PBP
  • Auto Source Switching
  • Auto Power & Source Recovery
  • VESA Wall Mount 100 x 100 / 200 x 200
  • AC 110~240V or DC 24V Dual Voltage
  • 3-Year Warranty

Ordering Information : Parts #

Model Features Family Series Size Color Voltage
23″, Black, AC 110V / DC 24V VZ-PVM- I 2 B 3 N
23″, White, AC 110V / DC 24V VZ-PVM- I 2 W 3 N



  • Series: Z (HD PVM) , I (IP PVM)
  • Size: 1 (10inch) , 2 (23inch) , 3 (27inch) , 4 (32inch)
  • Color: B (Black) , W (White)
  • Voltage: 1 (AC110V) , 2 (AC24V), 3 (AC110V / DC24V), 4 (PoE)

Display

Screen Size 23″
Max Resolution 1920 x 1080 @60Hz
Pixel Pitch 0.2715mm x 0.2715mm
Brightness 250cd/m²(Typical)
Contrast Ratio 3000 : 1
Aspect Ratio 16 : 9
Viewing Angle (H/V) 178°/178°
Display Color 16.7 Million
Response Time < 20ms

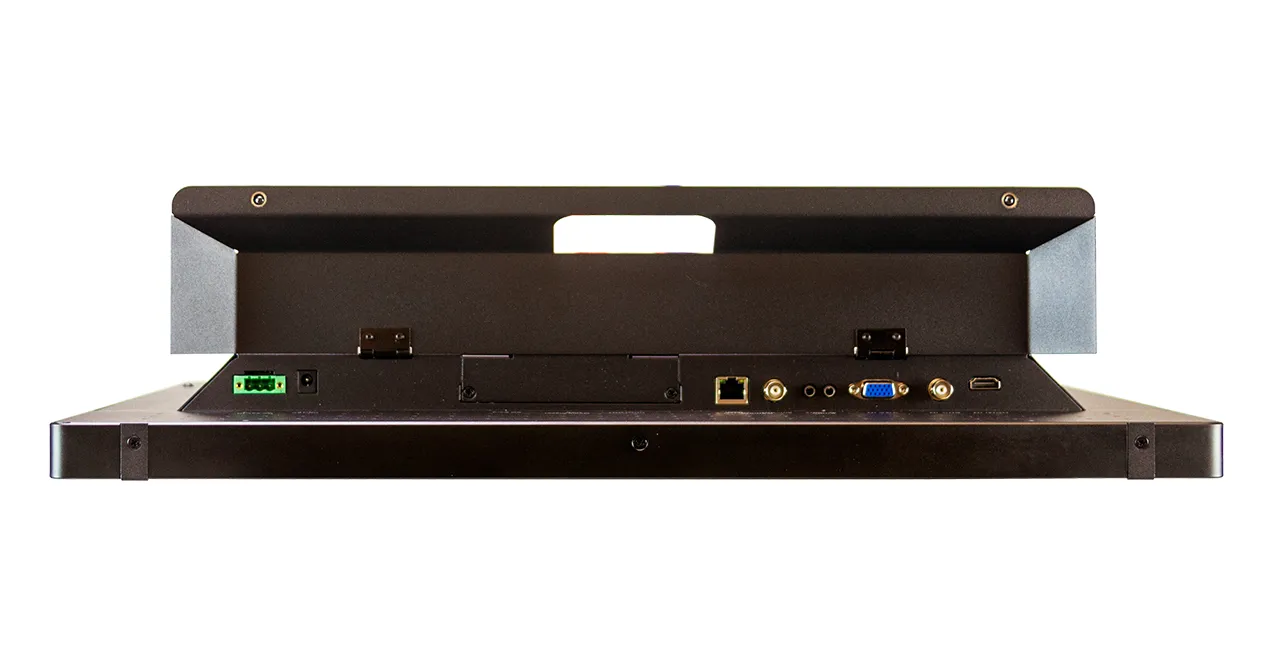

Interface

AV (Composite) In 1
Camera (CVBS) Out 1 ( 720×480 )
Ethernet 10 / 100 1
RGB In (15pin D-Sub) 1
HDMI In 1
Audio In/Out 1/1


IP Features

Ethernet Interface 10/100Base-T
Web Client Protocol TCP / IP
Supported Protocol TCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP


Special Features

Multi Display Function PIP / PBP
Filter Type 3D Comb filter / De-Interlace
Blinking Message “Recording” Yes
Timed Switching Capabilities between two cameras Yes
Multi-Lingual Language English, Spanish, French, Russian, Portuguese


Dimensions

Outline Dimension (W x H x D) 21.71” x 16.05” x 2.17” / 551.6mm x 407.90mm x 55.3mm
Net Weight 22.04 lbs / 10.00 kg
Gross Weight 29.76 lbs / 13.5 kg

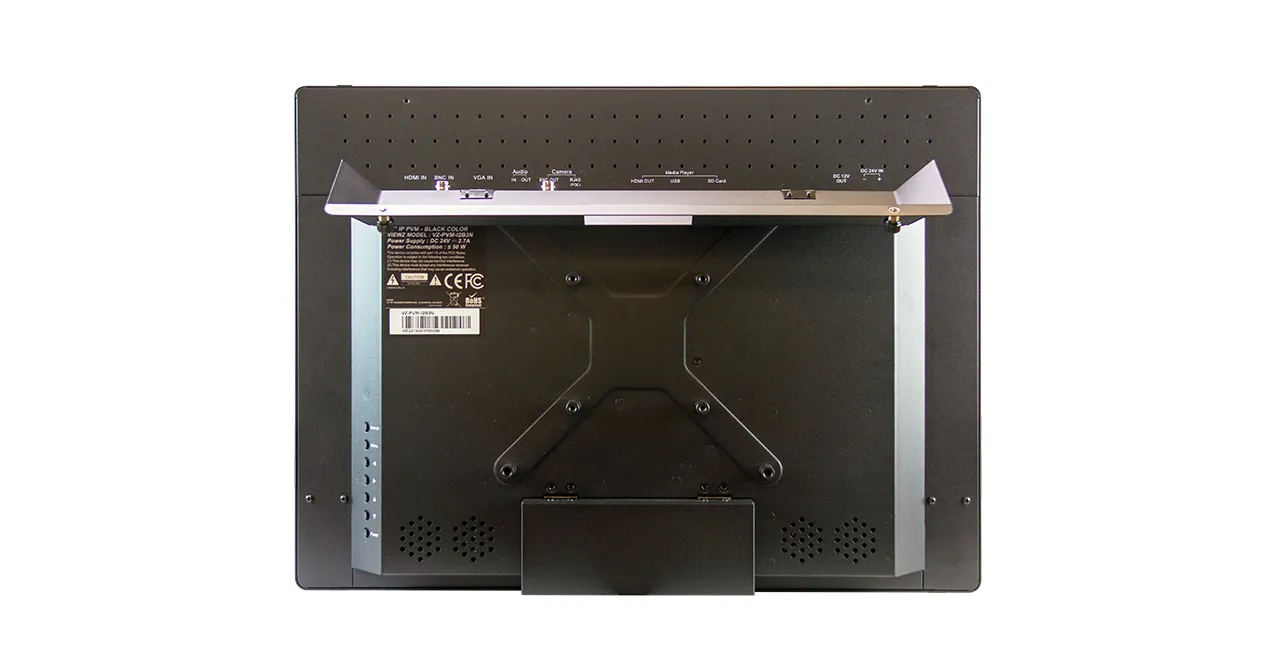

Mount

Vesa 200mm x 200mm / M6 x L8 Screws
100mm x 100mm / M4 x L10 Screws


Camera

Sensor Type 1/3″ SONY 2M Progressive C-MOS
Lens DC Auto Iris , 2.8mm~12mm
Active Pixels 1920(H) x 1080p(V) 30p
Min Illumination 0.5 Lux@50IRE, F1.2
Function 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, D/N, WDR, AGC, AWB
Video Compression H.264, MJPEG, CBR, VBR support
Video Out 1ch CVBS (NTSC/PAL) / 1ch RJ-45 output
Motion Detection Support
Support Protocol TCP/IP, UDP, SMTP, HTTP, FTP, DHCP, DNS, DDNS, UPNP, PPPoE, RTP, RTSP
Ethernet Port 10 / 100 Base-T
Webclient Connection TCP / IP Protocol
Dynamic IP Dedicated dynamic IP service using www.ipcctvdns.com


Media Card Reader - Optional Feature

Support Type Photo, Music, Video
External Storage Support SD/SDHC CARD, USB 2.0 HOST
Output VIDEO – HDMI(1080p) / AUDIO – L/R, HDMI
Video File Format RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4
Video Resolution 1080P @60Hz
Audio File Format MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM
Image File Format JPEG, TIF, PNG, BMP
VIDEO Play Control AUTO, REPEAT, ZOOM, RESUME, TIME


General Summary

Transmitter – IR Remote Control Yes
Dual Voltage Power – Electrical Ratings 110V AC (50/60Hz) / 24V DC ( 2A )
Power – Consumption ≤ 36 W
Warranty – Parts / Labor 3 Year / 3 Year
Operating Temperature 32 – 104°F / 0 – 60°C
Compatible Mounts – Wall VZ-AM02, VZ-WM50
Compatible Mounts – Ceiling VZ-CMKiT-01, VZ-CMKiT-02
Regulation FCC(A), CE


Product Dimension & Weight

Click below to enlarge
