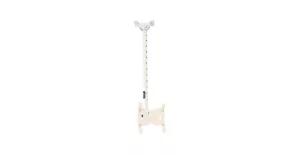

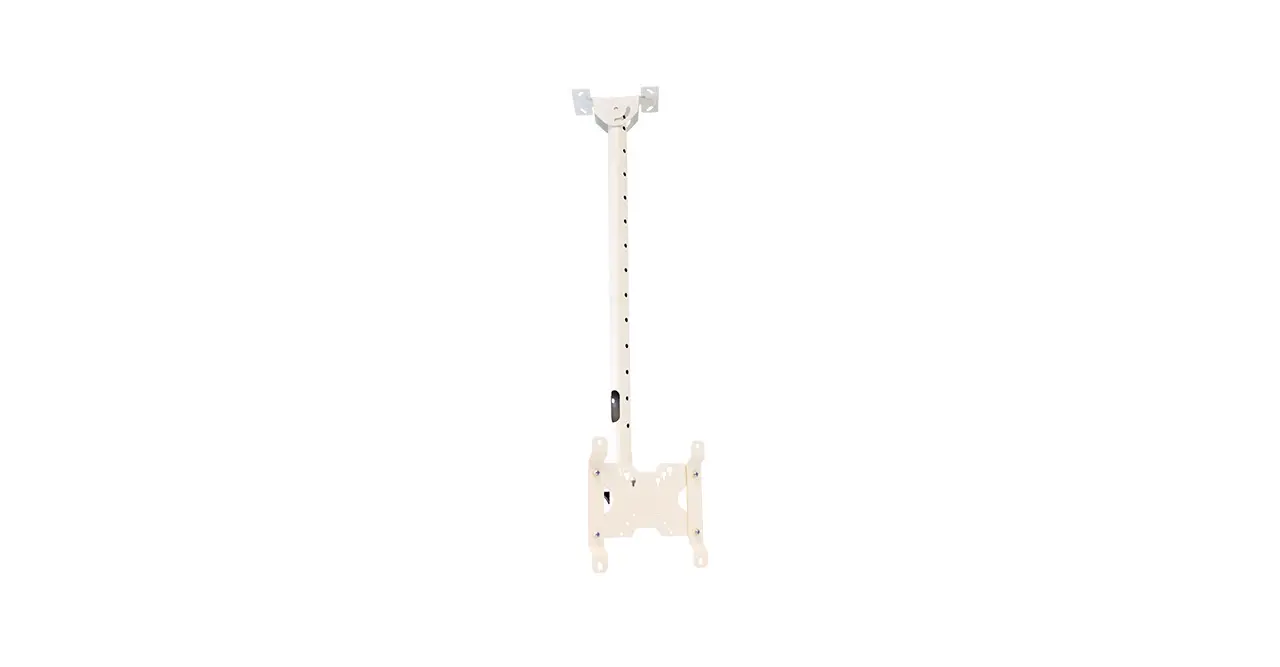

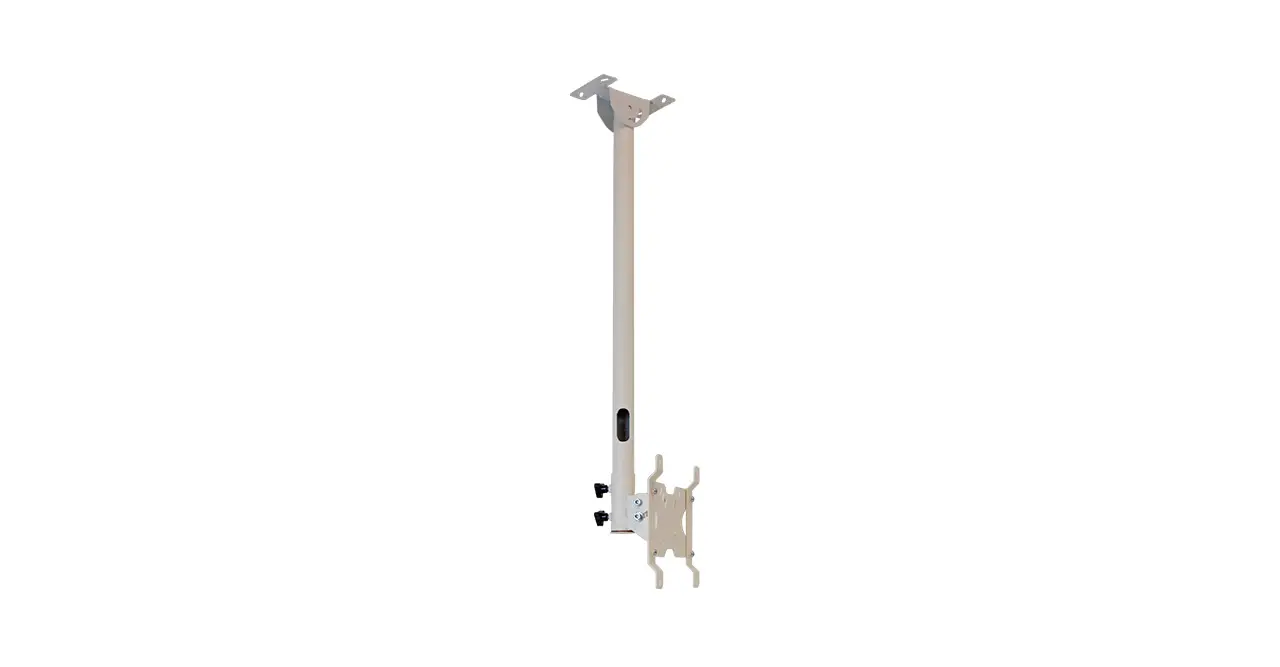

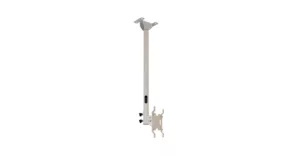

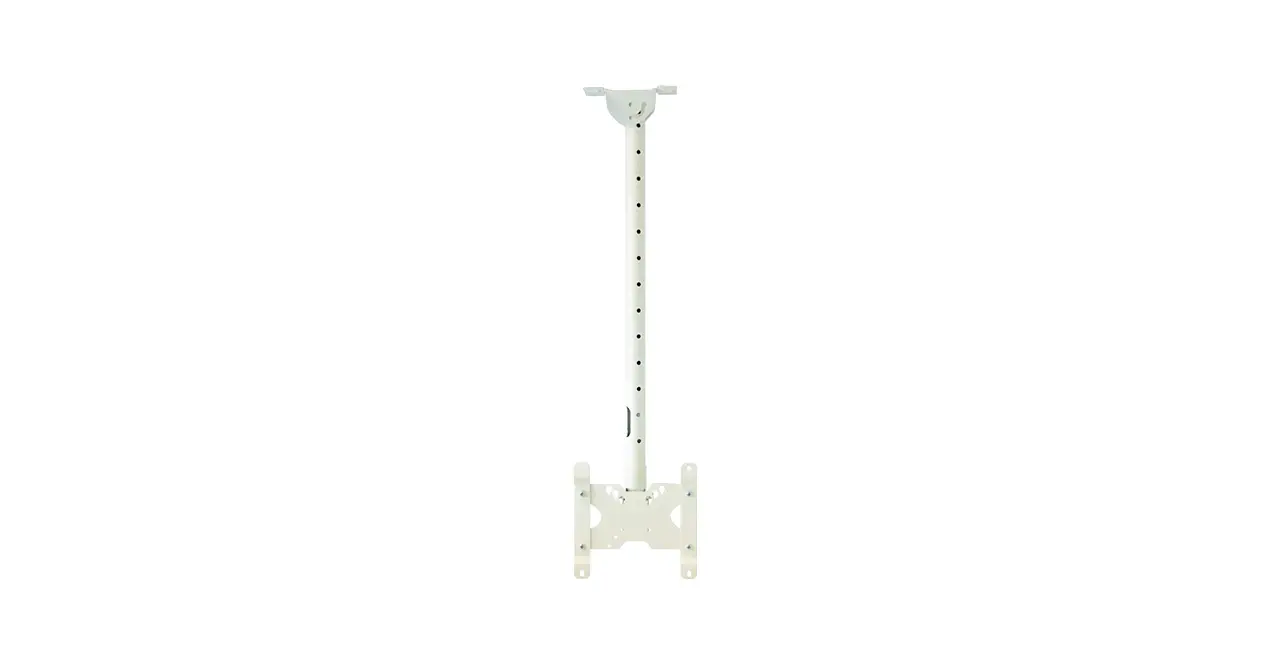

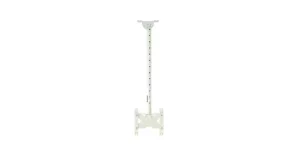

- Mounting Head for 17″ to 43″ CCTV & Video Wall Monitors
- Load Capacity is 66.1 lbs / 30 kg
- VESA Standard – 50 x 50 , 75 x 75, 100 x 100, 200 x 100 and 200 x 200 mm (Optional 400 x 400 available)
- Adjust from 3’ to 8’ for perfect placement and viewing

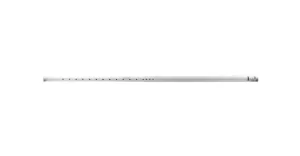

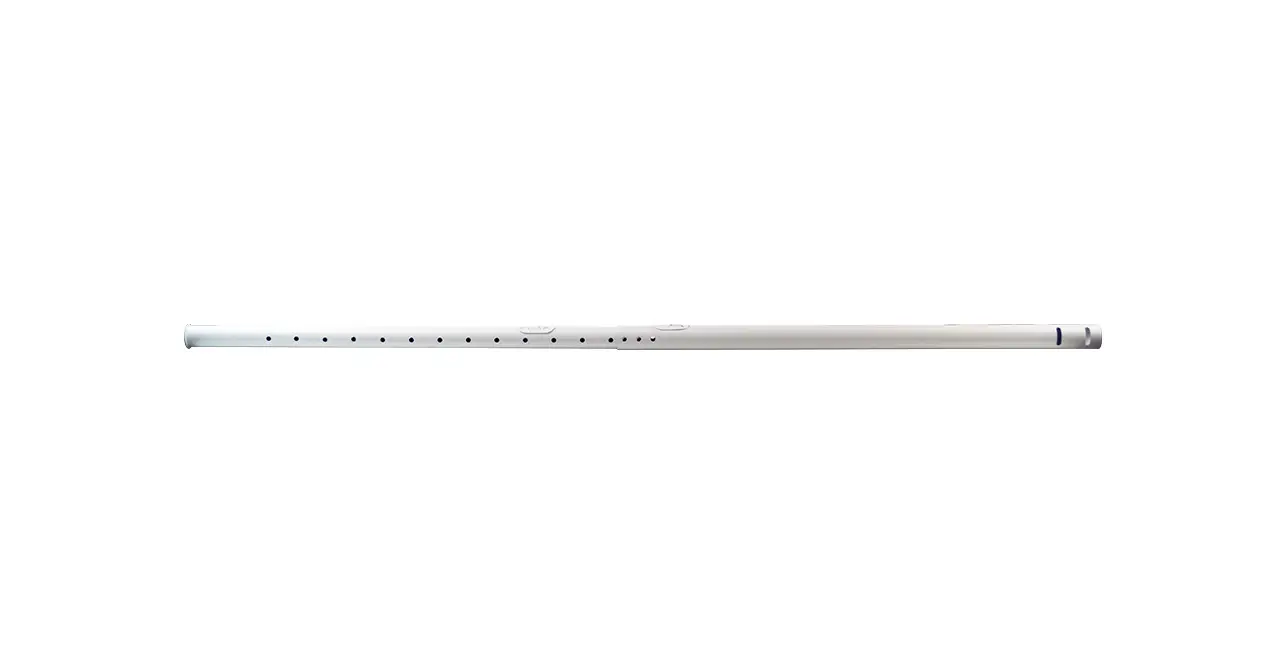

- Optional VZ-CM-EW/EB Extension Pole (5.6 ft) is available up to 18 ft
- The Telescopic Ceiling Mount (CM) Series allows quick and precise adjustment for installations ranging from 3’ to 8′

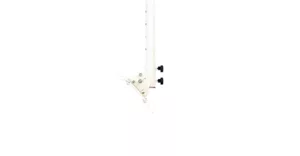

- -5° Tilt Up and 45° Tilt Down Adjustment along with 360° Pan Rotation For Achieving that Perfect Viewing Angle
Specification | Dimension | Spec & Manual
Series : Ceiling Mount | Key Features : Telescopic Ceiling Mount
Compatible Monitors
Product Features
- The Telescopic Ceiling Mount (CM) Series allows quick and precise adjustment for installations ranging from 3’ to 8′

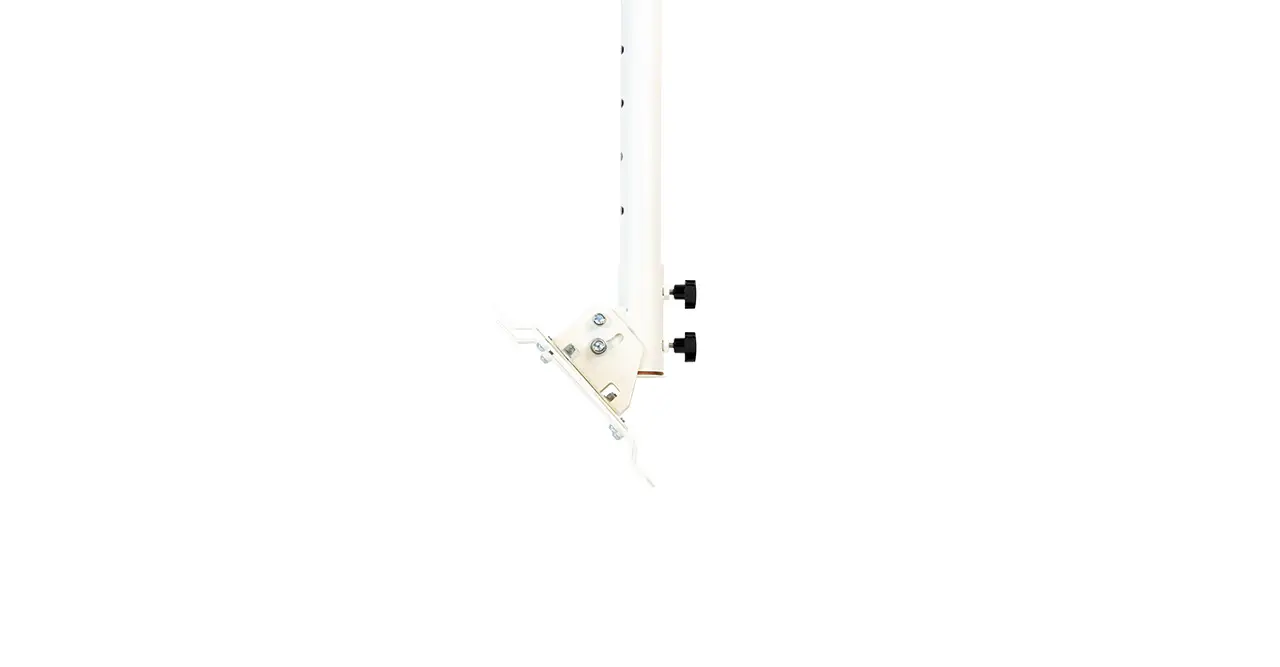

- Additional features allow -5° ~ 45° tilt adjustment as well a 360° pan rotation for achieving that perfect viewing angle
- Compatible with Standard Mounting Hole (VESA) 50 x 50 , 75 x 75, 100 x 100, 200 x 100 and 200 x 200 mm mounting patterns (Optional 400 x 400 available)
- Adjust from 3’ to 8’ for perfect placement and viewing
- Built-in cable management hides unsightly cable clutter and prevents cable pinching when used in low-voltage applications
- Optional VZ-CM-EW/EB Extension Pole (5.6 ft) is available up to 18 ft
- MAX Load Capacity 66 lbs
Specification
| Display Range | 17″ ~ 43″ |
| Weight Capacity | 66.1 lbs / 30 kg |
| Tilt Capability | -5° ~ 45° |
| PAN Rotation | 360° |
| Installation Range | 3ft ~ 8 ft / 0.94 ~ 2.45 m |
| Installation Range (Optional) | 3ft ~ 18 ft / 0.94 ~ 5.48 m |
| Mounting Pattern Type | VESA |
| Mounting Patterns | 50 x 50 , 75 x 75, 100 x 100, 200 x 100 and 200 x 200 mm mounting patterns (Optional 400 x 400 available) |
Dimensions & Weight
| Mount Plate (W x H x D) | 108 mm x 173.7 mm x 68 mm / 4.25” x 6.83” x 2.67” |

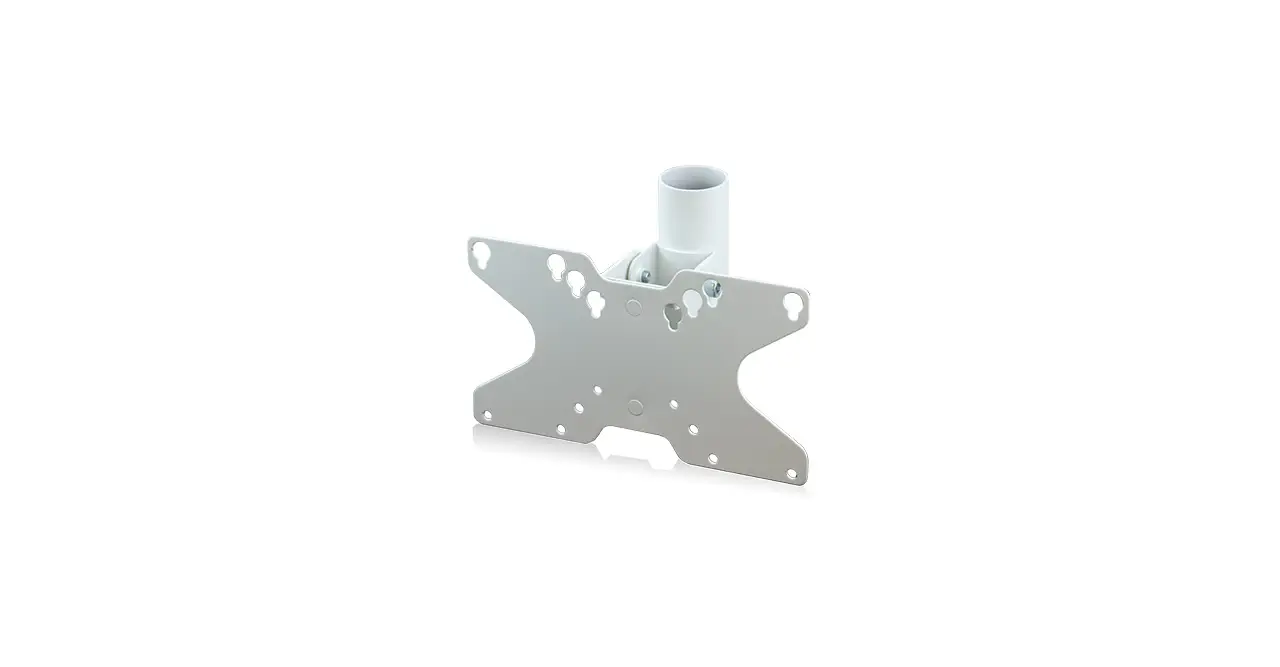

| Vesa Plate (W x H x D) | 230 mm x 220 mm x 142 mm / 9.05″ x 8.66″ x 5.59″ |

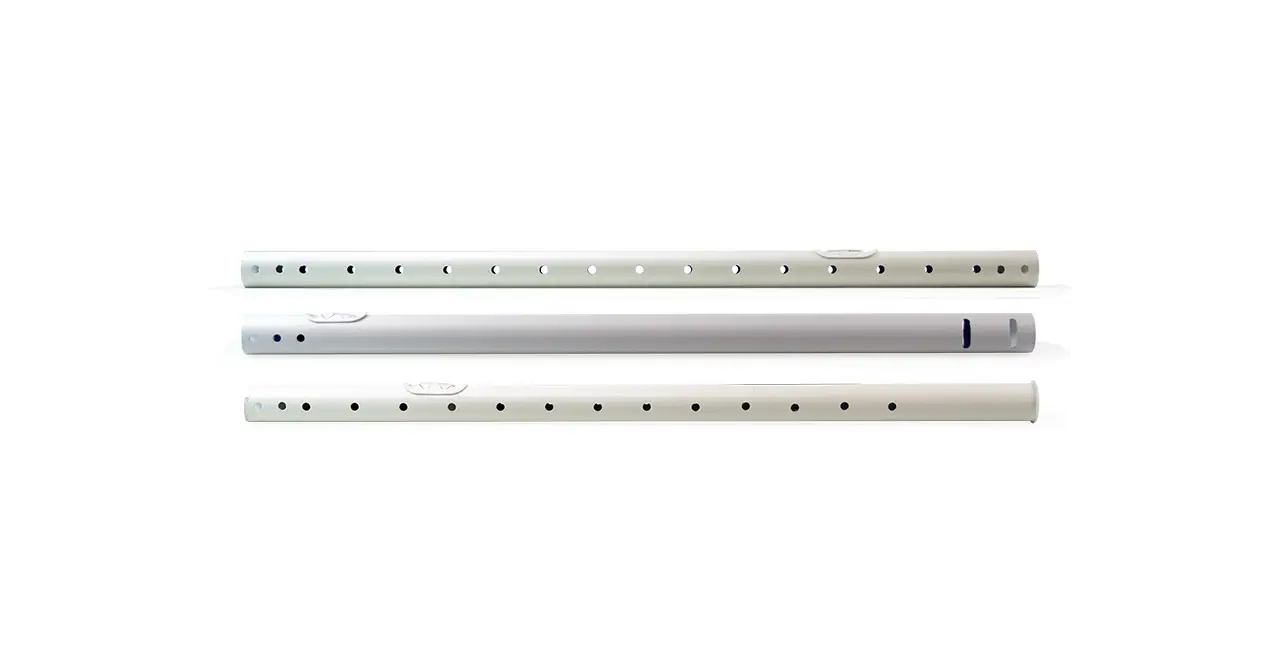

| Top Pole ( R x Length ) | Ø 38.0 x 830 mm / Ø 1.49″ x 32.67″ |
| Middle Pole ( R x Length ) | Ø 42.0 x 845 mm / Ø 1.65″ x 33.26″ |
| Bottom Pole ( R x Length ) | Ø 38.0 x 827 mm / Ø 1.49″ x 32.55″ |
| Net Weight | 7.27 lbs / 3.29 kg |
| Gross Weight | 8.59 lbs / 3.89 kg |
Product Dimension & Weight
Click below to enlarge
