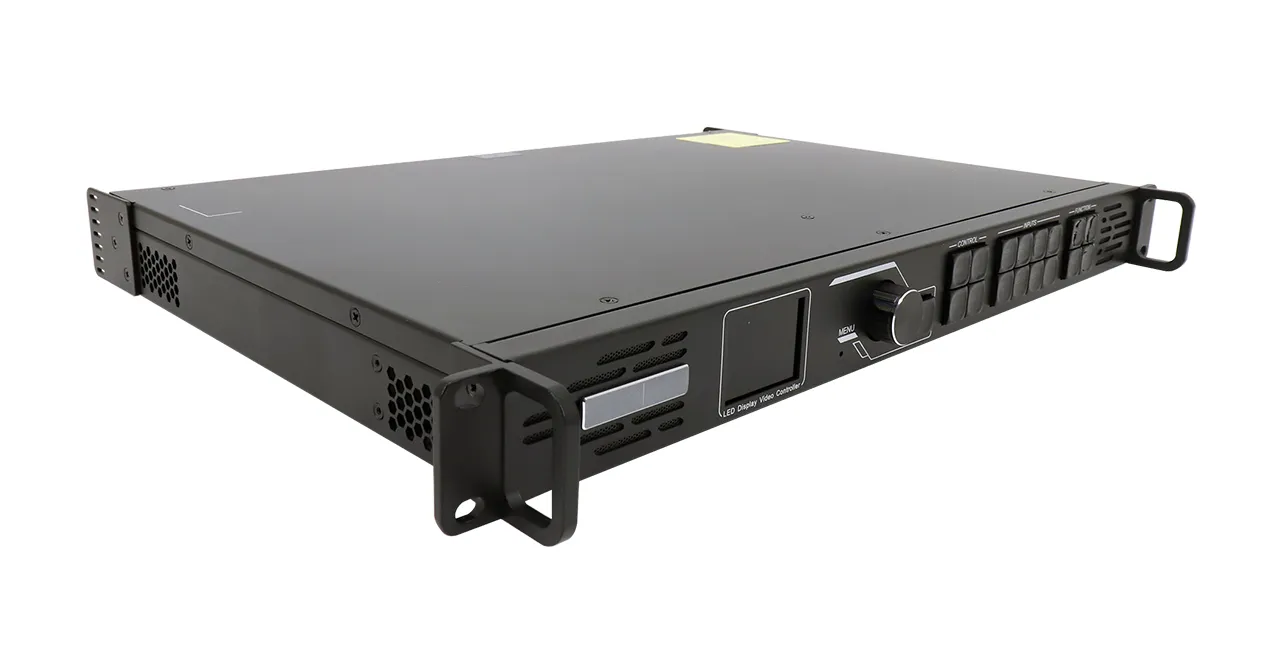

The VZ-SB600 is ViewZ’s new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video control, fiber conversion, and bypass working modes. A VZ-SB600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8,192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.
- 3.9M Pixels (HDMI 1.3 / DVI / 3G-SDI + Loop, 10G OPT)
- 3G-SDI (Loop-through), HDMI 1.3 (Loop-through), DVI (Loop-through) & OPT (Loop-through)
- 3 Independent Layers – 1 x (4K x 2K) Main Layers, 2 x (2K x 1K) PIP (PIP 1 & PIP 2), Adjustable Layer Priorities
- Full Screen and 10 Preset-Multiview Layouts
- Front Panel Buttons & Knob Control with LCD Display
- Pixel to Pixel, Full Screen and Custom Scaling
- All-Round Color Adjustment – Input Source & LED Screen Color Adjustment Supported – Brightness, Contrast, Saturation, Hue & Gamma
- 3 Working Mode – Video Controller, Fiber Converter & Bypass
- Pixel Level Brightness & Chroma Calibration
- Mosaic Input Source – 2 Sources (2K x 1K@60Hz) Cascaded for Image Mosaic Upto 4 Units
- Low Latency
Specification | Dimension | Spec & Manual
Series : SB | Key Features : 4K Support Video Wall Controller
Compatible LED Module & Accessories
Product Features
- Model Number: VZ-SB600
- 3.9M Pixels (HDMI 1.3 / DVI / 3G-SDI + Loop, 10G OPT)
- 3G-SDI (Loop-through), HDMI 1.3 (Loop-through), DVI (Loop-through) & OPT (Loop-through)
- 3 Independent Layers – 1 x (4K x 2K) Main Layers, 2 x (2K x 1K) PIP (PIP 1 & PIP 2), Adjustable Layer Priorities
- Full Screen and 10 User-Defined Presets

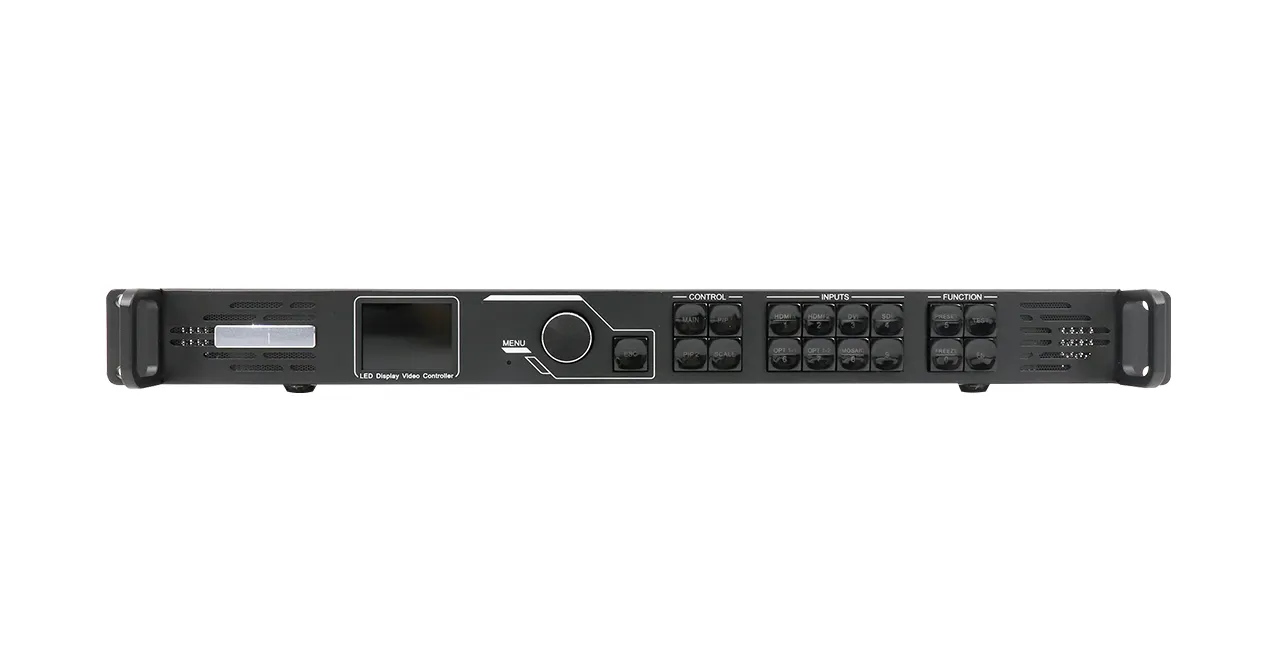

- Front Panel Buttons & Knob Control with LCD Display
- Pixel to Pixel, Full Screen and Custom Scaling
- All-Round Color Adjustment – Input Source & LED Screen Color Adjustment Supported – Brightness, Contrast, Saturation, Hue & Gamma
- 3 Working Mode – Video Controller, Fiber Converter & Bypass
- Pixel Level Brightness & Chroma Calibration
- Mosaic Input Source – 2 Sources (2K x 1K@60Hz) Cascaded for Image Mosaic Upto 4 Units
- Low Latency
- Built to run 24/7/365
- 3 year Warranty
Video Format
| HDMI 1.3, DVI, OPT 1 / 8bit / RGB 4:4:4 | 3840×2160 @60Hz (Standard) |
| HDMI 1.3, DVI, OPT 1 / 8bit / YCbCr 4:4:4 | 3840×2160 @60Hz (Custom) |
| HDMI 1.3, DVI, OPT 1 / 8bit / YCbCr 4:2:2 | 3840×2160 @60Hz (Forced) |
| HDMI 1.3, DVI, OPT 1 / 8bit / YCbCr 4:2:0 | Not Support |
| HDMI 1.3, DVI, OPT 1 / 10/12bit | Not Support |
| 3G-SDI | Max. Input Resolution: 1920×1080@60Hz |
| 3G-SDI / ST-424 (3G) | Support |
| 3G-SDI / ST-292 (HD) | Support |
| 3G-SDI / ST-259 (SD) | Support |

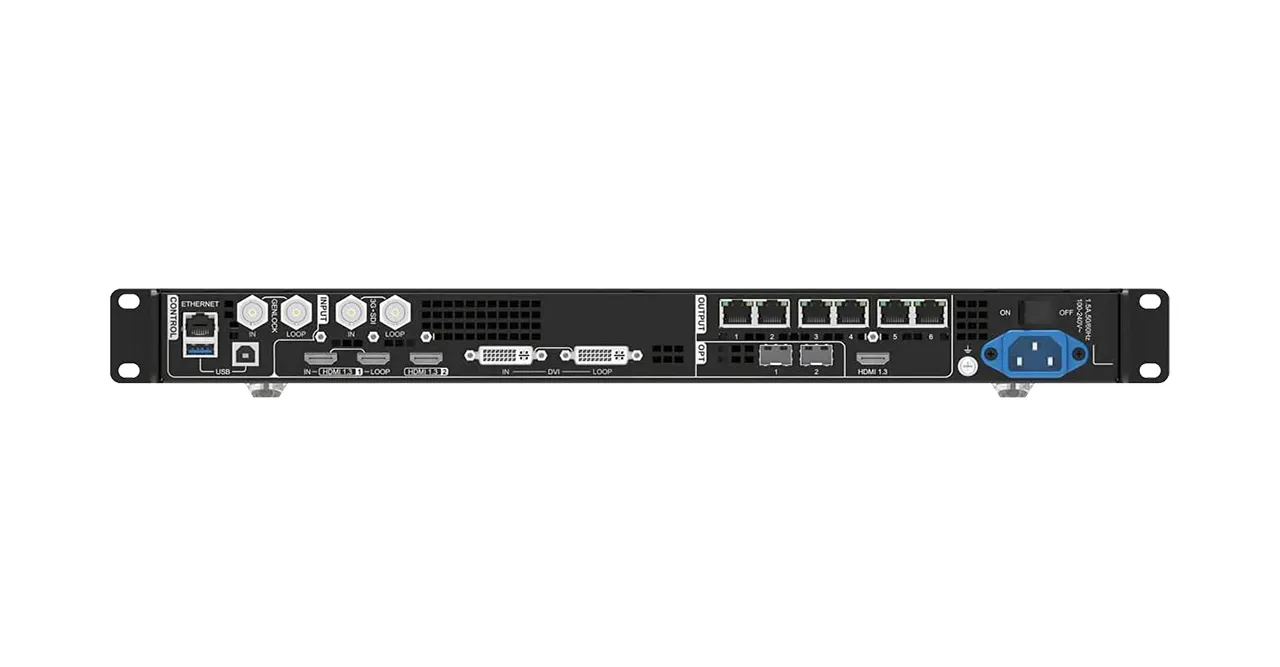

Interface
| 3G-SDI In / Out (Loop-through) | 1 / 1 |
| Genlock In / Out (Loop-through) | 1 / 1 |
| HDMI 1.3 In / Out (Loop-through) | 1 / 1 |
| HDMI 1.3 In | 1 |
| HDMI 1.3 Out | 1 |
| DVI In / Out (Loop-through) | 1 / 1 |
| Ethernet (RJ-45) Out | 6 |
| Ethernet (RJ-45) In | 1 (Control) |
| OPT In / Out | 1 / 1 |
| USB In | 1 (Type-A) / 1 (Type-B) |
Dimensions & Weight
| Dimensions ( W x D x H ) | 19” x 13.82” x 1.97” / 482.6 x 351.2 x 50.1 mm |
| Net Weight | 8.81 lbs / 4.0 kg |
| Gross Weight | 14.99 lbs / 6.8 Kg |
Mount
| Server Chassis | 1U (19”) |
General Summary
| Power – Electrical Ratings | AC 100 ~ 240V, 50/60 Hz / 1.5 A |
| Power – Consumption | 28 W |
| Operating Temperature | 32 ~ 113°F / 0 ~ 45°C |
| Storage Temperature | -4 ~ 158°F / -20 ~ 70°C |
| Operating Humidity | 20% ~ 90% RH |
| Storage Humidity | 10% ~ 95% RH |
| Regulations | FCC(A), CE, RoHs |
| Accessories | Power Cable x1, Ethernet x1, USB Cable x1, HDMI to DVI Cable x1, HDMI Cable x1, Manual x1 |
Product Dimension & Weight
Click below to enlarge
