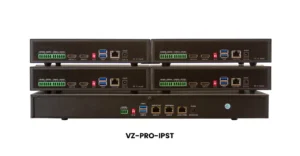

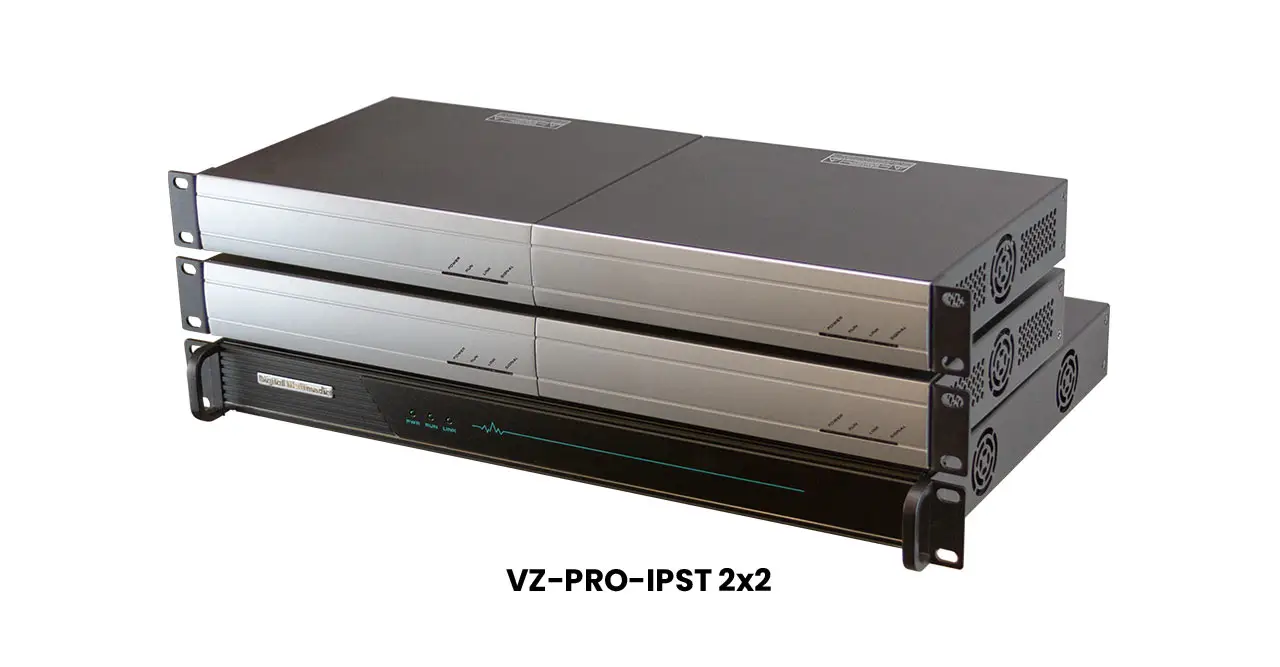

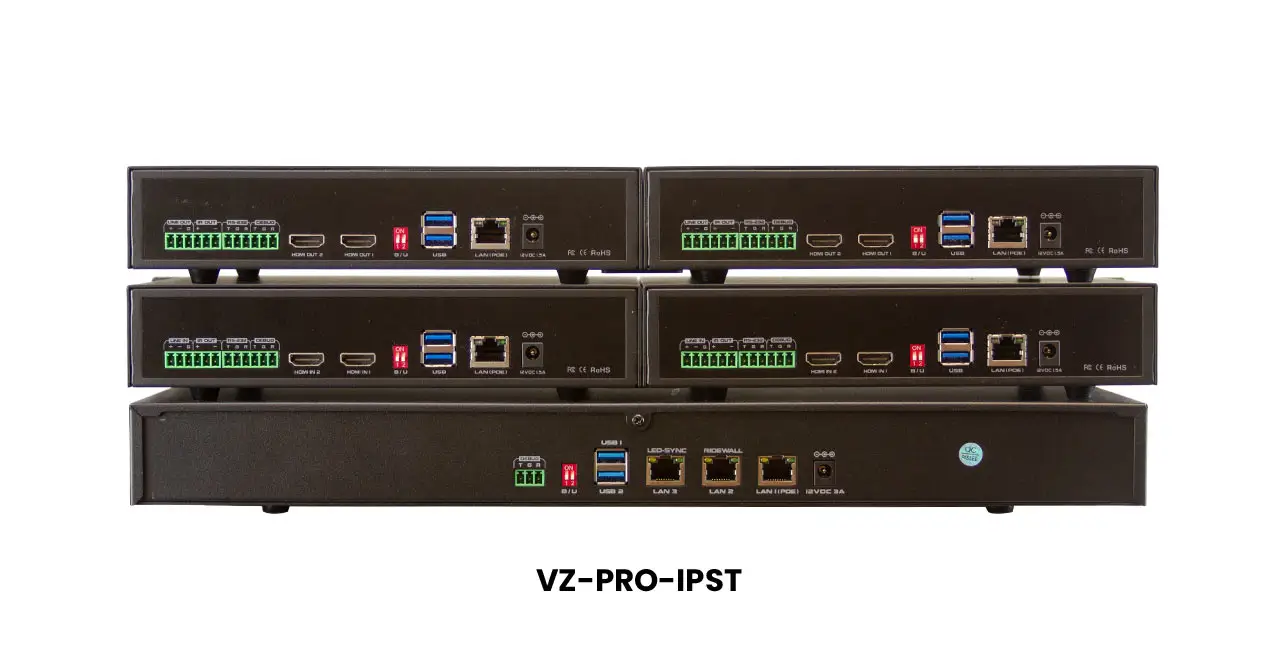

VZ-PRO-IPST
The VZ-PRO-IPST is the IP Based Full HD Controller that consists of the Input Node (VZ-PRO-100E), the Output Node (VZ-PRO-100D) and the System Server (VZ-PRO-1070). This system offers Multi-Viewer, Wall Controller and Matrix Switcher Functions. With this PRO-IPST system, the video source can be accessed in the LAN, distributed in the LAN, preview in the control panel or on the webpage and presented on the video wall with the features of slicing, overlapping, windowing and stretching the video across all the displays.
- Full HD interface with integrated input and output structure design
- Support audio and video synchronization acquisition, ensured synchronized audio and video transmission
- Image Rotation Capability – The control software is capable to rotate the image like 90°, 180° and 270°.
- Integrated central control function, standard programmable serial peripheral interface
- Support video stream unlimited distribution
- Support single-screen or multi-screen splicing display, accurate splicing synchronization
- Built to run 24/7/365
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : PRO | Key Features : Video Wall Controller IP Based NDAA Compliant
Compatible Monitors, Mounts & Accessories
Product Features
- Model Number: VZ-PRO-IPST
- Full HD interface with integrated input and output structure design
- Support audio and video synchronization acquisition, ensured synchronized audio and video transmission
- Integrated central control function, standard programmable serial peripheral interface
- Support video stream unlimited distribution
- Support real-time signal preview echo, what you see is what you get
- Support single-screen or multi-screen splicing display, accurate splicing synchronization
- This system can create more than one account and can be controlled via iPad or windows PC
- Image Rotation Capability – The control software is capable to rotate the image like 90°, 180° and 270°
- This system can support multiple video walls
- Built to run 24/7/365
- NDAA Compliant
- 3 year Warranty
*HDCP compatibility is required for playing content from HDCP-encrypted devices such as Blue-ray and DVD players.
VZ-PRO-1070 - Specification
| System Capacity | Upto 200 pcs encoders / decoders |
| Video Slicing | Upto 48 separate v |
| LED Sync. | LED sender box frame synchronization |
VZ-PRO-1070 - Interface
| Ethernet (RJ-45) In | 2 |
| Ethernet (RJ-45/PoE) In | 1 |
| USB | 2 |
VZ-PRO-1070 - Dimensions & Weight
| Outline Dimension (W x D x H) | 17.1875 x 11 x 1.73” / 436.56 x 279.4 x 44 mm |
| Net/Gross Weight | 5.02 lbs (2.28 kg) / 7.31 lbs (3.32 kg) |
VZ-PRO-1070 - Mount
| Server Chassis | 1U (19”) |
VZ-PRO-1070 - Remote Control
| Remote Control Software for TCP/IP | Upto 8 Users |
| Remote Control Software for WiFi | Upto 4 Users |
VZ-PRO-1070 - General Summary
| Power Input | DC12V, 3A |
| P.o.E. | Support |
| Regulation | FCC(A), CE, NDAA |

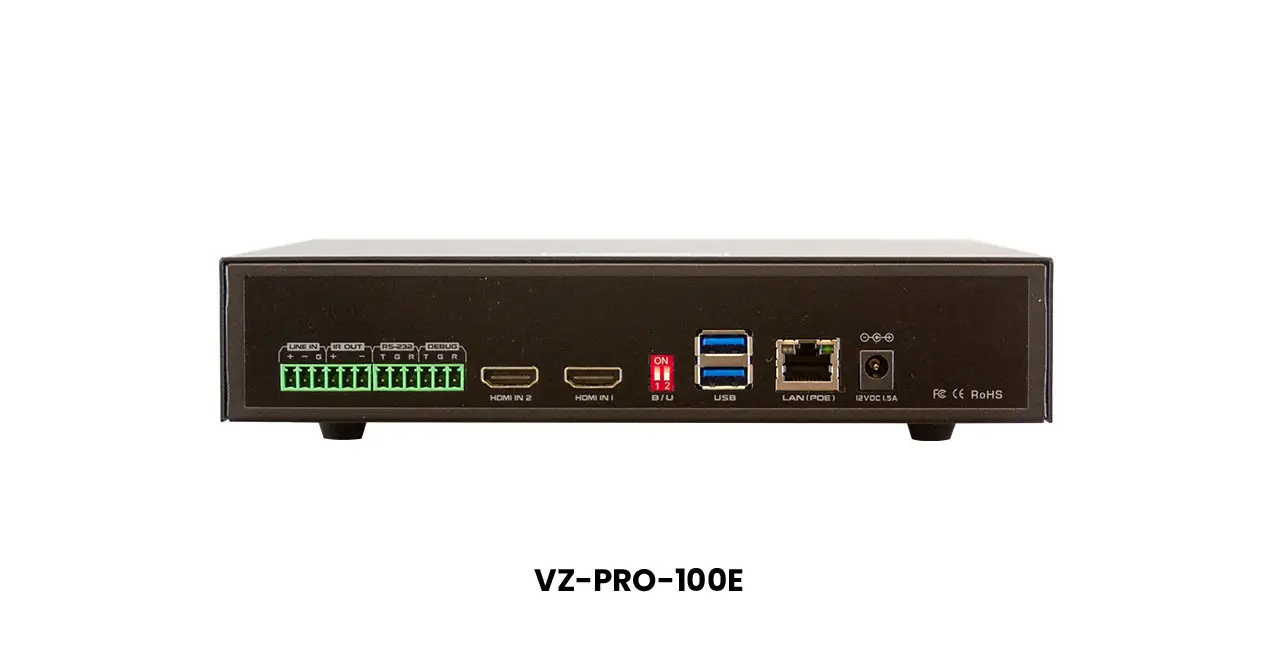

VZ-PRO-100E (Encoder) - Interface
| Ethernet (RJ-45/PoE) In | 1 |
| HDMI In | 2 |
| Audio In (MIC) | 1 |
| USB (KVM) | 2 |
| RS232 (Green Terminal | 1 (Control Port) |
| IR OUT (Green Terminal) | 1 (Control Port) |
| Debug (Green Terminal) | 1 (Control Port) |
VZ-PRO-100E (Encoder) - Dimensions & Weight
| Outline Dimension (W x D x H) | 8.625 x 7.5 x 1.73” / 219.075 x 190.5 x 44 mm |
| Net Weight | 3.1 lbs / 1.4 kg |
VZ-PRO-100E (Encoder) - General Summary
| Power Input / P.o.E. | DC12V, 3A / Support |
| Max. Resolution | 1920 x 1200 @60Hz |
| Video Decoding Format | H.264 |
| Regulation | FCC(A), CE, NDAA |

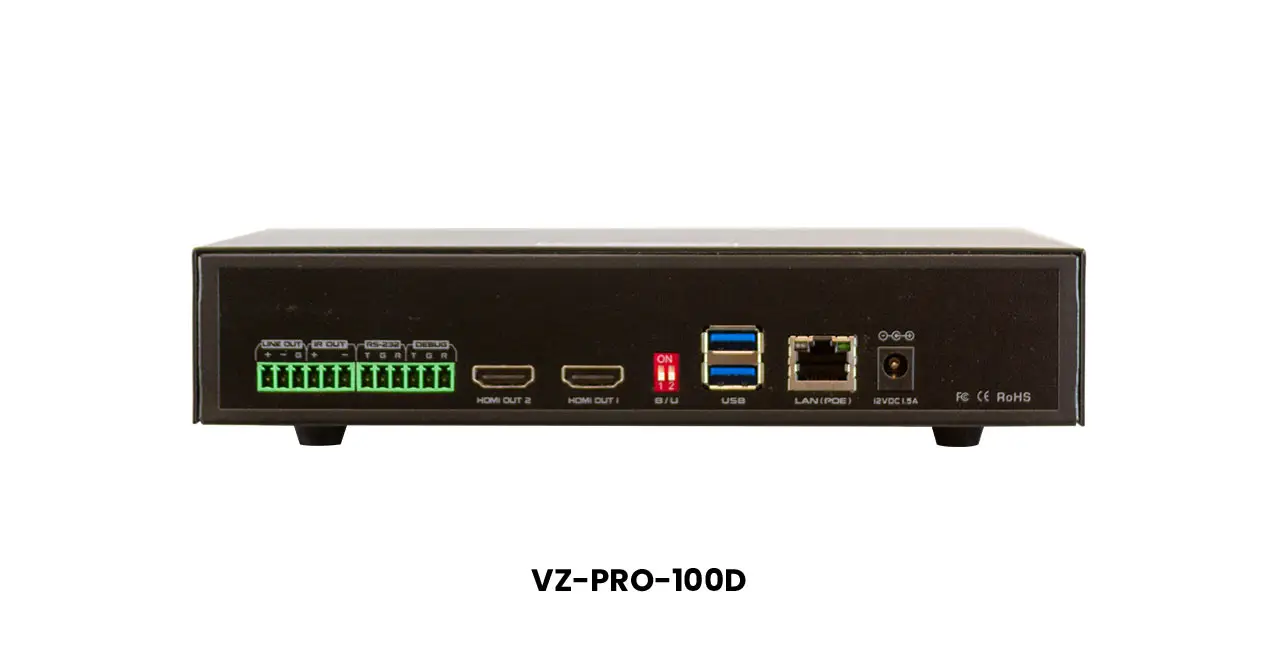

VZ-PRO-100D (Decoder) - Interface
| Ethernet (RJ-45/PoE) In | 1 |
| HDMI Out | 2 |
| Audio Out (MIC) | 1 |
| USB (KVM) | 2 |
| RS232 (Green Terminal | 1 (Control Port) |
| IR OUT (Green Terminal) | 1 (Control Port) |
| Debug (Green Terminal) | 1 (Control Port) |
VZ-PRO-100D (Decoder) - Dimensions & Weight
| Outline Dimension (W x D x H) | 8.625 x 7.5 x 1.73” / 219.075 x 190.5 x 44 mm |
| Net Weight | 3.1 lbs / 1.4 kg |
VZ-PRO-100D (Decoder) - General Summary
| Power Input / P.o.E. | DC12V, 3A / Support |
| Max. Resolution | 1920 x 1200 @60Hz |
| Video Decoding Format | H.264 |
| Regulation | FCC(A), CE, NDAA |
Product Dimension & Weight

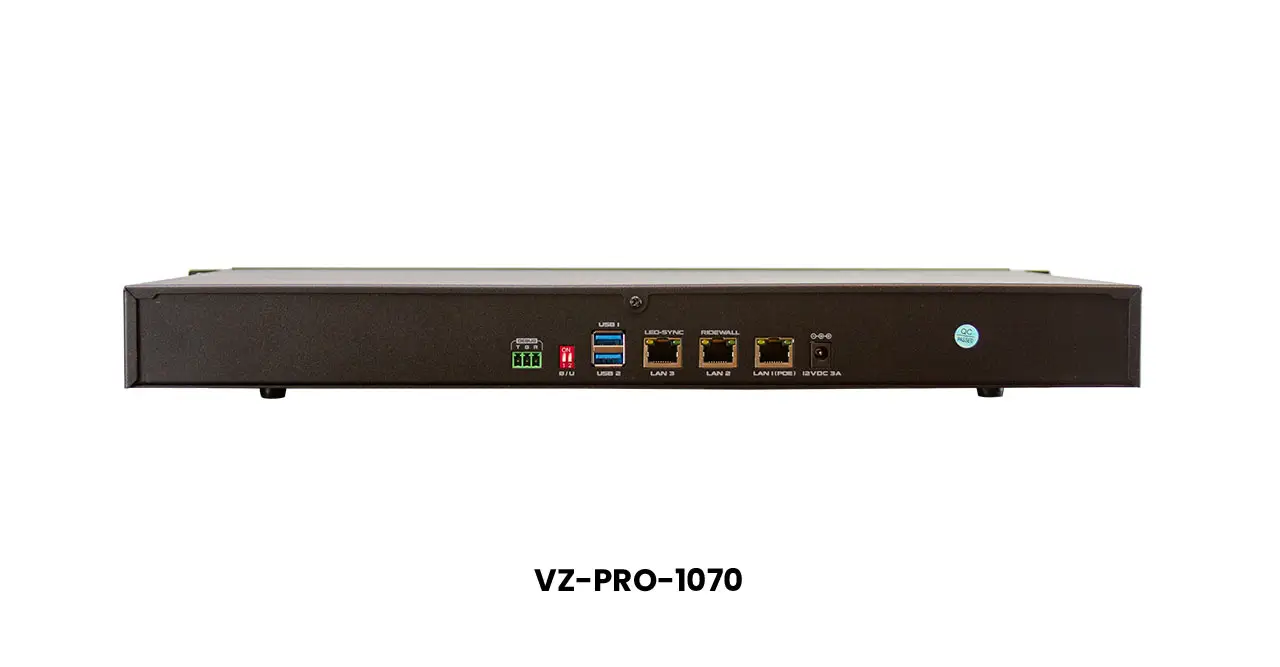

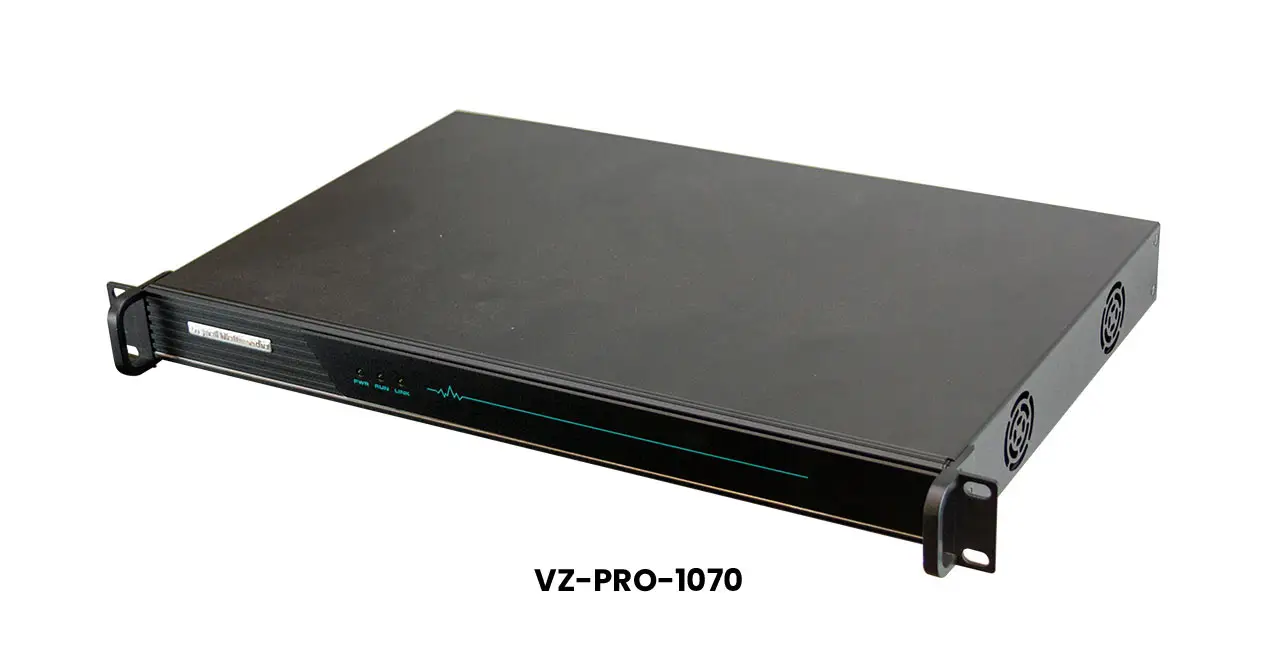

VZ-PRO-1070

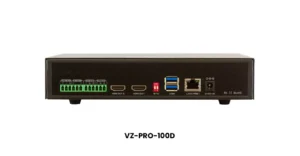

VZ-PRO-100D (Decoder)

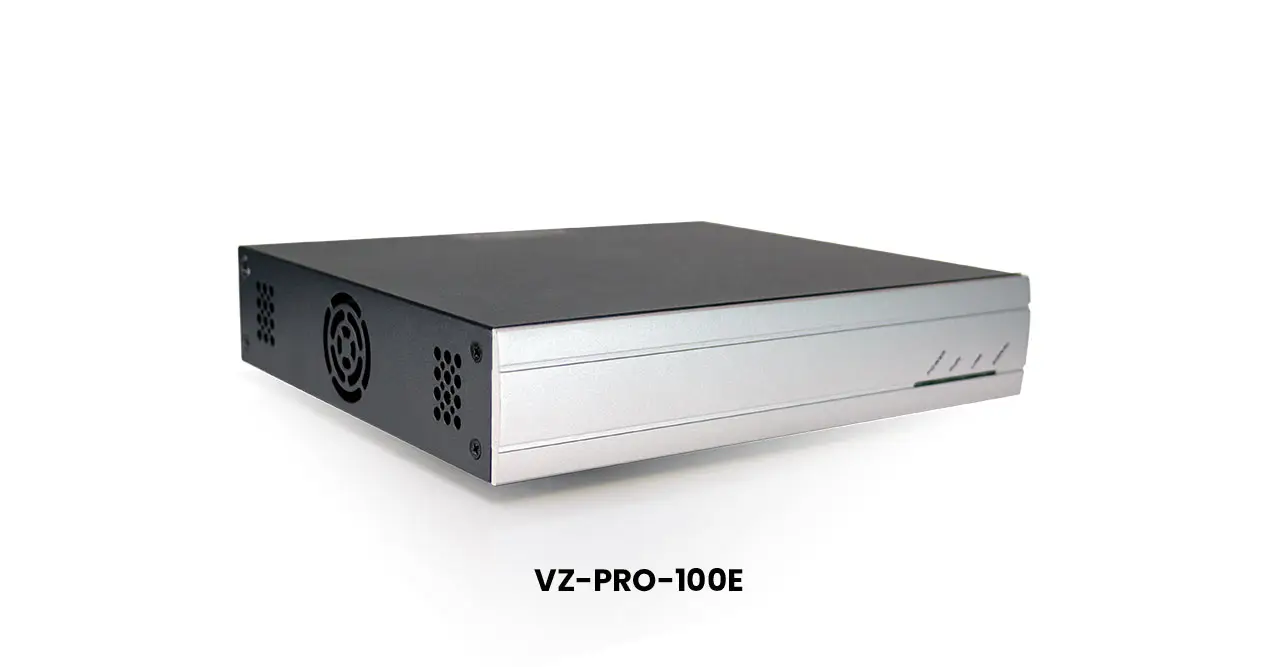

VZ-PRO-100E (Encoder)
