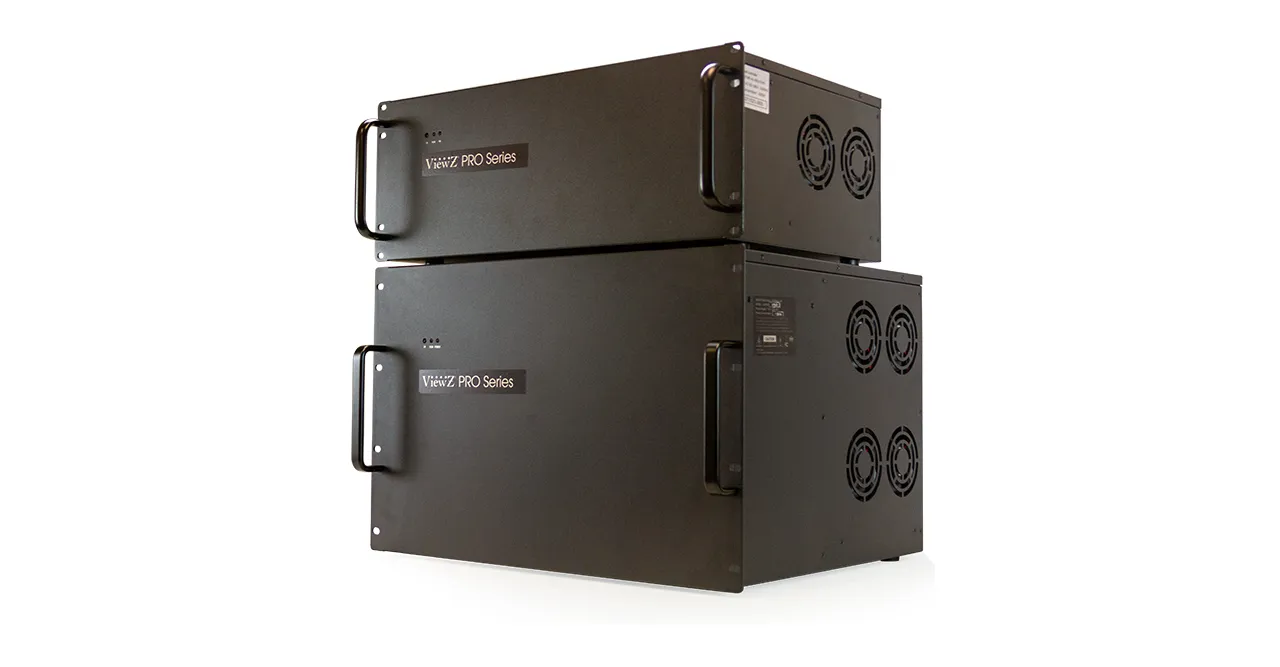

ViewZ PRO series CCTV video wall controllers are built to deliver maximum performance, reliability and user-friendliness. PRO series controllers can be controlled remotely from a central location via controller software that also has the ability for multi system/site management.
- Maximum Input and Output at 144/72 @1080p
- Multiple inputs and outputs interfaces available upon request (HDMI, DVI, SDI or IP)

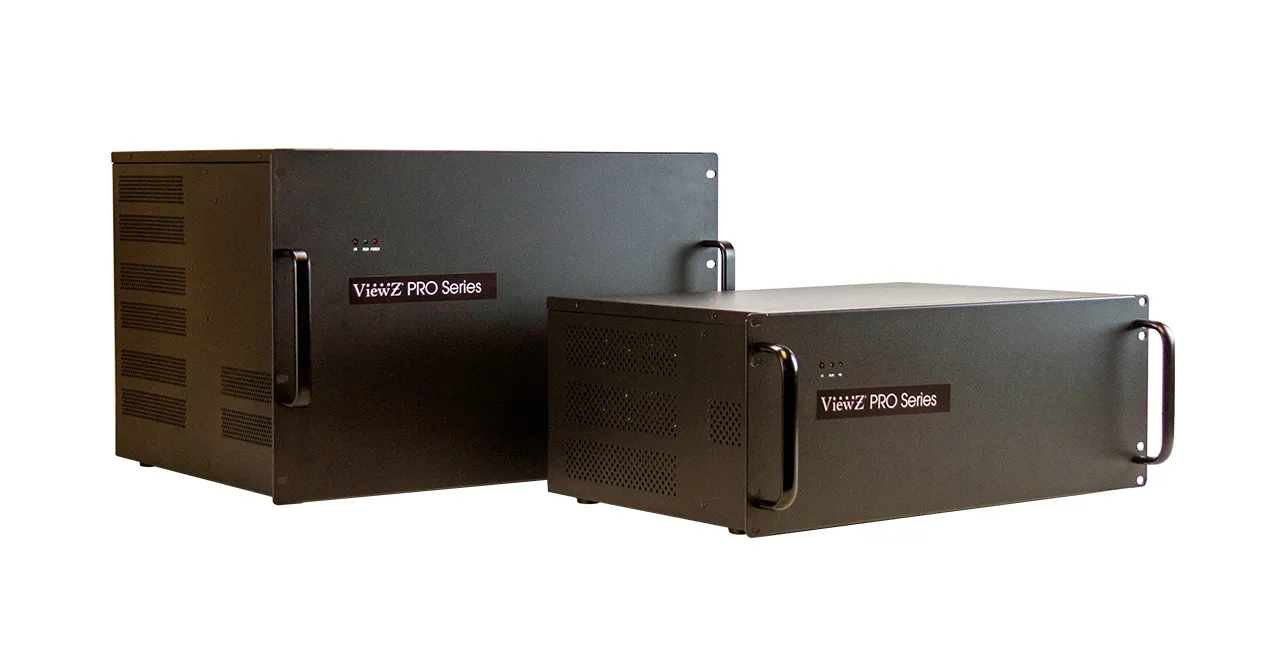

- Hot-Pluggable Structure and High Integration Chassis – 4RU/7.5RU/10RU/15RU
- Pure Hardware Structure, no Operating System and High Stability
- Advanced Remote Control Software via TCP/IP
- NDAA Compliant
- Redundant Power Supply
Specification | Dimension | Spec & Manual
Series : PRO | Key Features : 4K Support Video Wall Controller NDAA Compliant
Compatible Monitors, Mounts & Accessories
Product Features

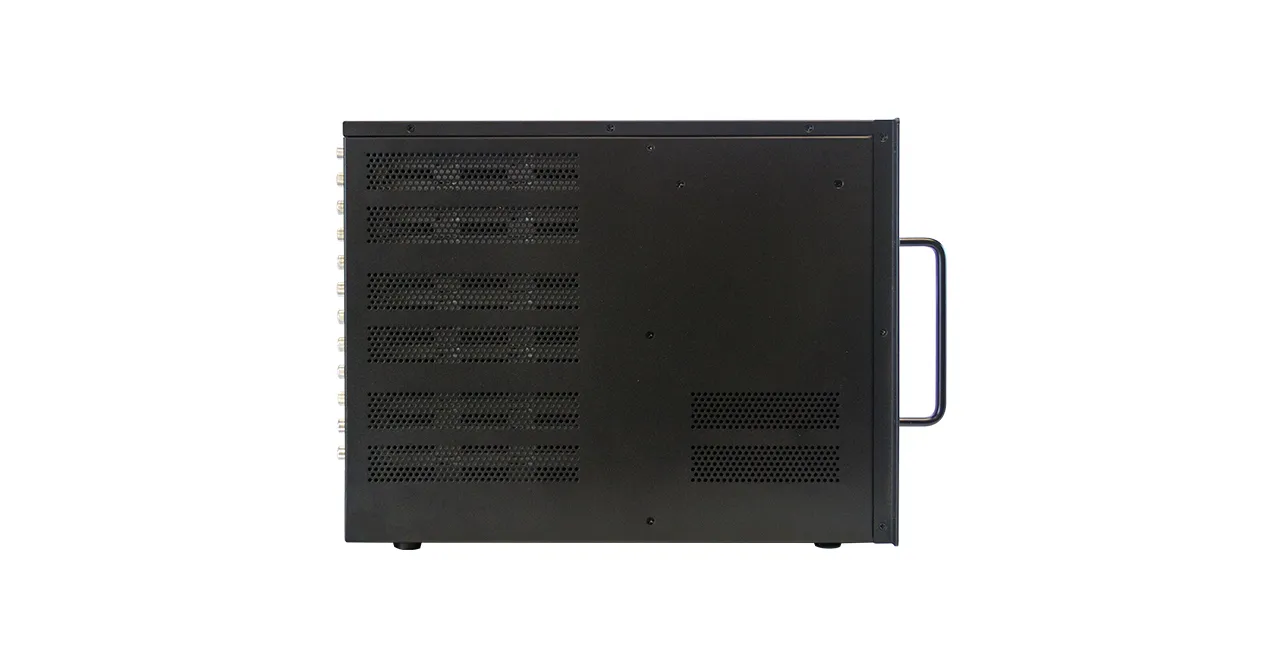

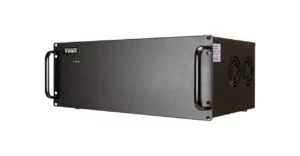

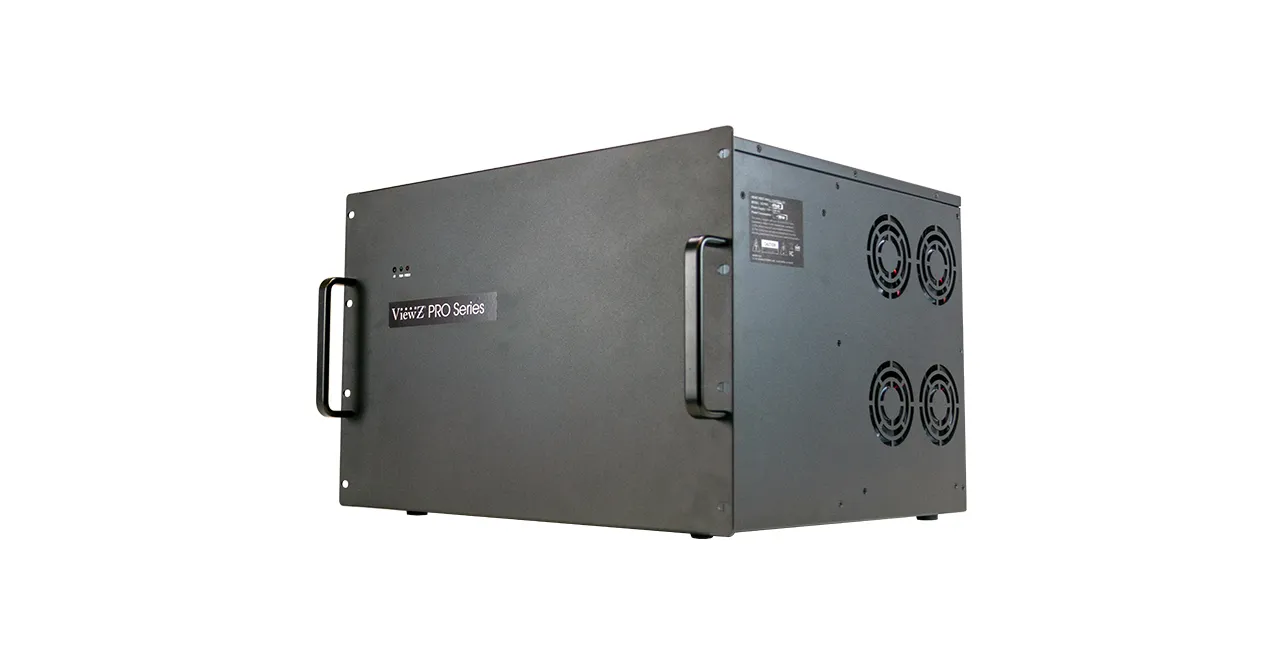

VZ-PRO Series is a FPGA-design professional high-performance image processing video wall controller. It can display multiple images on multiple screens in real time without loss of frames for full function multi-window splicing. This advanced control device provides an ideal image processing solution for security operations centers, traffic control centers and other similar applications.
This wall controller adopts the large-scale high performance FPGA array and high speed digital switching technology architecture and combined with full digital hardware design concept, provides a CPU-free operation and offers powerful processing capabilities such as broadband video signal acquisition and real-time high resolution digital image processing. VZ-PRO uses digital multibus paralleling and digital multibus data switching processing mechanism that can fundamentally ensure all the input signal sources are processed with real-time processing and data consistency without delay, discretization and frame loss.
This wall controller adopts the large-scale high performance FPGA array and high speed digital switching technology architecture and combined with full digital hardware design concept, provides a CPU-free operation and offers powerful processing capabilities such as broadband video signal acquisition and real-time high resolution digital image processing. VZ-PRO uses digital multibus paralleling and digital multibus data switching processing mechanism that can fundamentally ensure all the input signal sources are processed with real-time processing and data consistency without delay, discretization and frame loss.
- Model Number: VZ-PRO-ST
- Maximum Input and Output at 144/72 @1080p
- Multiple inputs and outputs interfaces available upon request (HDMI, DVI, SDI or IP)
- Hot-Pluggable Structure and High Integration Chassis – 4RU/7.5RU/10RU/15RU
- Pure Hardware Structure, no Operating System and High Stability
- Advanced Remote Control Software via TCP/IP
- Redundant Power Supply
- Serial Control RS-232C Available
- Optional Text and Logo
- Built to run 24/7/365
- NDAA Compliant
- 3 year Warranty
*HDCP compatibility is required for playing content from HDCP-encrypted devices such as Blue-ray and DVD players.
Specification
| 4RU | 7.5RU | 10RU | 15RU | |
| Frame Number | VZ-ST4U-C1 | VZ-ST7.5U-C2 | VZ-ST10U | VZ-ST15U-C2 |
| Total Card Support | 12 | 25 | 36 | 56 |
| Max Input Card | 4 | 10 | 27 | 36 |
| Max Output Card | 8 | 15 | 18 | 36 |

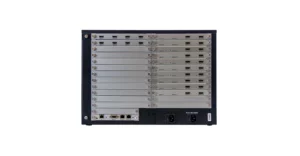

Interface

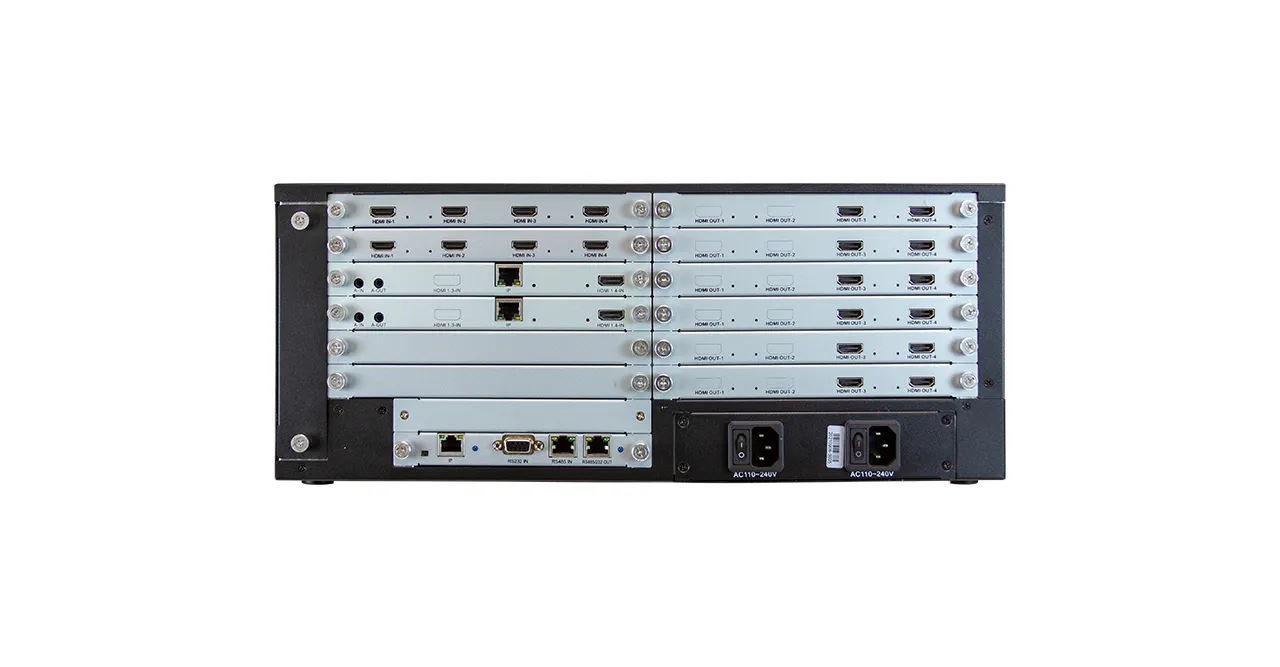

| Input Card – HDMI HD Card (VZ-H2K-IN4-60) | HDMI 1.3 – 4 inputs I Up to 1920×1080/60 |
| Input Card – DVI HD Card (VZ-D2K-IN4-60) | DVI-D – 4 inputs I Up to 1920×1080/60 |
| Input Card – IP Decoder Card (VZ-IP-IN1) | RJ45 x 1 H.264/H.265 4ch-4K/16ch-1080p/32ch-720p |
| Output Card – HDMI HD Card (VZ-H2K-OUT2-60) | HDMI 1.3 – 2 outputs I Up to 1920×1080/60 |
| Output Card – DVI HD Card (VZ-D2K-OUT2-60) | DVI-I – 2 outputs I Up to 1920×1080/60 |
| Output Card – Preview Card (VZ-Preview) | Visual Echo Function/Preview Function |
| Ethernet (RJ-45) In | 1 (Remote Control) |
| RS 232 In | 1 (Serial Control/IR Receiver) |
| RS485 (RJ-45) In | 1 |
| RS232 (RJ-45) Out | 1 (Feature Use) |
Resolution
| Max Resolution | 1920 x 1080 @60Hz |
| Max Bit Rate | 3.2 Gbps per system |
| Support Layers | Up to 4 layers per output card |
| Max Preset | 32 per group |
| Max Group | 4 |
| Background Picture & Subtitle | Option |
Remote Control
| Serial Control (RS232C) | Network | Yes (DB9 Connector) | TCP/IP (RJ45) |
| Remote Control Software for TCP/IP | DIMP Client Software (Compatible with Windows XP/7/8/10) |
Dimensions & Weight
| 4RU | 7.5RU | 10RU | 15RU | |
| Outline Dimension (W x D x H) | 19″ x 7″ x 12″ / 482.6 x 177.8 x 305 mm | 19″ x 12.79″ x 12″ / 482.6 x 325 x 305 mm | 19″ x 17.32″ x 15.94″ / 482.6 x 440 x 404.5 mm | 19″ x 26.29″ x 15.92″ / 482.6 x 668 x 404.5 mm |
| Net Weight | 44 lbs / 20 Kg | 66 lbs / 30 Kg | 77 lbs / 35 Kg | 110 lbs / 50 Kg |
Mount
| 4 RU | 7.5 RU | 10 RU | 15 RU | |
| Server Chassis | 4U (19”) | 7.5U (19”) | 10U (19”) | 15U (19”) |
General Summary
| 4RU | 7.5RU | 10RU | 15RU | |
| Power Input | 100 – 240V AC | |||
| Power Consumption (Full load) | 200 Watts | 300 Watts | 500 Watts | 600 Watts |
| Redundant Power Supply | Support | Support | Support | Support |
| Operating Temperature | 32°F ~ 122°F / 0°C ~ 50°C | |||
| Operating Humidity | 5% – 95% Non-Condensing | |||
| Cooling Fan | Built-in | |||
| Regulations | FCC (A), NDAA | |||

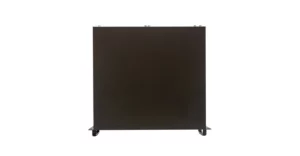

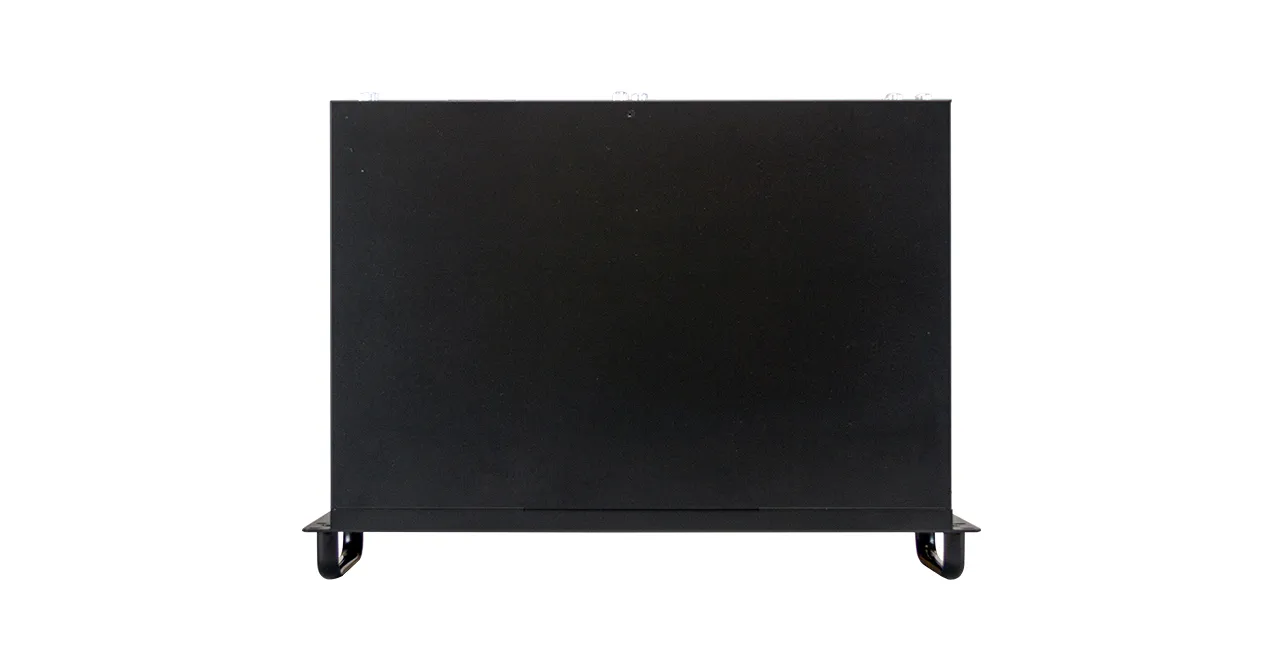

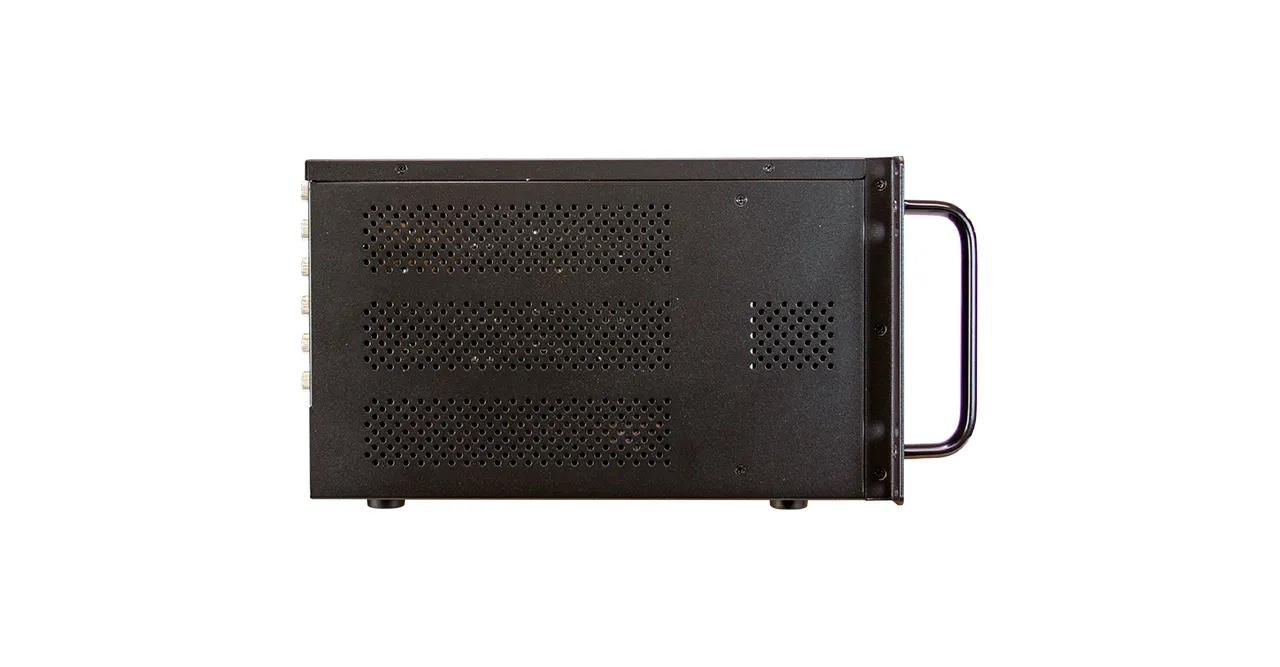

Product Dimension & Weight
