55″ SNB Video Wall Monitor

product Description

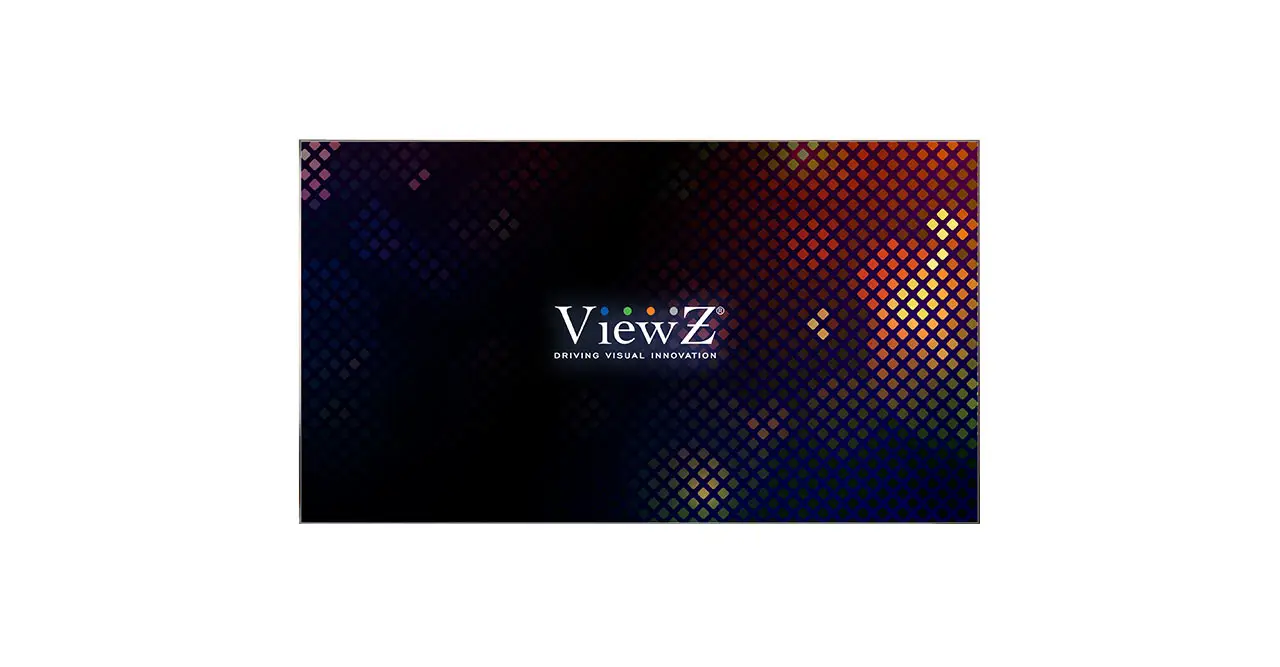

vz55snb_1
vz55snb_2

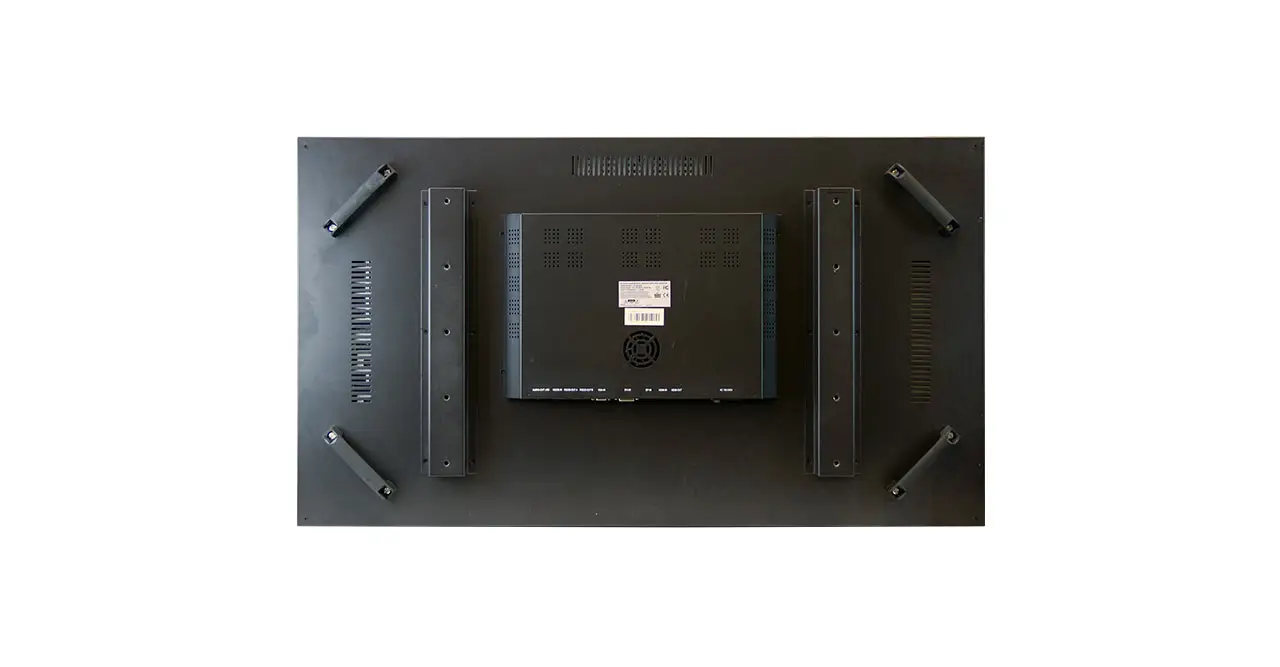

vz55snb_5

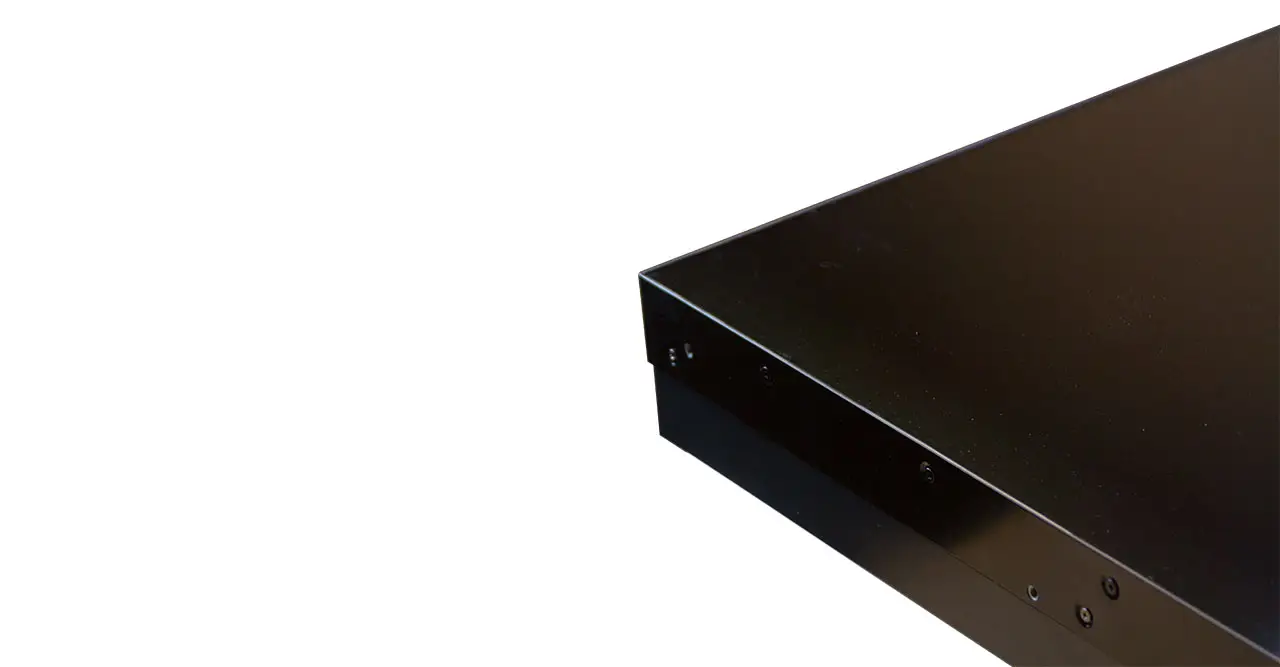

vz55snb_4

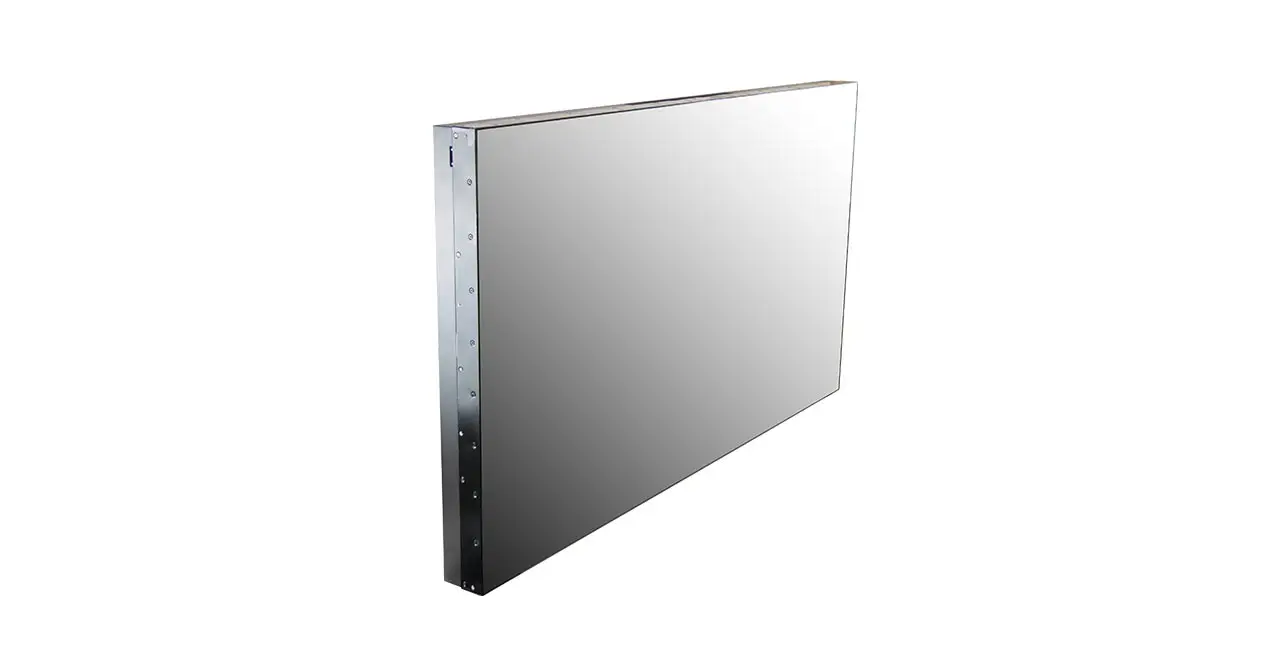

vz55snb_3
vz55snb_6

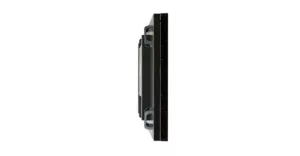

vz55snb_7
vz55snb_1 vz55snb_2 vz55snb_5 vz55snb_4 vz55snb_3 vz55snb_6 vz55snb_7

With an astonishingly thin 0.44 mm bezel, the ViewZ SNB security video wall monitors display brilliant HD images across multiple screens with virtually seamless gaps in-between. Designed to work with ViewZ PRO video wall processor series.

  • Full HD 1080p CCTV LED Monitor / IPS Panel
  • Super-narrow 0.44 mm Metal Bezel
  • Digital & Analog Inputs
  • USB – Media Player
  • Auto Source & Power Recovery
  • 3D Comb-Filter & De-Interlace
  • Prevents Pixel Burn-In
  • 3-Year Warranty

Specification | Dimension | Download

Series : SNB | Key Features : Narrow Bezel

Compatible Mounts & Accessories

Product Features

  • Model Number: VZ-55SNB
  • 55″ Flat Panel Widescreen LED A Commercial-Grade Monitor
  • 55″ Black All Metal 0.44 mm Super-narrow Seamless Bezel
  • IPS Panel (10 bit)
  • Full HD 1920×1080 / 16:9
  • HDMI / DVI / VGA / USB / AV (composite) / RS-232 IN & OUT
  • 3D Comb Filter / De-Interlace
  • Auto Power and Source Recovery
  • 10W Speaker x 2
  • AC100 ~ 240V(50/60Hz)
  • 3-Year Warranty

Display

Screen Size 55″
Max Resolution 1920 x 1080 @60Hz
Pixel Pitch 0.630 mm x 0.630 mm
Brightness 500 cd/m²(Typical)
Contrast Ratio 3500 : 1
Aspect Ratio 16 : 9
Viewing Angle (H/V) 178°/178°
Display Color 1.06 B (10 Bit)
Response Time < 8ms


Interface

VGA In (15Pin D-Sub) 1
BNC (Composite) In 1
DVI-D In 1 ( Support 3480 x 2160 @30hz )
HDMI In 1 ( Support 3480 x 2160 @60hz )
DP In 1 ( Support 3480 x 2160 @30hz )
USB In 1
RS232 (RJ-45) In / Out 1 / 2


Special Features

Bezel Width – TOP and LEFT Side 0.017” / 0.44 mm
Bezel Width – BOTTOM and RIGHT Side 0.017” / 0.44 mm
Bezel Width – ACTIVE to ACTIVE AREA 0.034” / 0.88 mm (Bezel to Bezel)
Image Retention YES


Dimensions & Weight

Outline Dimension (W x H x D) 47.65” x 26.81” x 4.66” / 1210.51 mm x 681.22 mm x 118.5 mm
Net Weight 66.13 lb / 30 kg
Gross Weight 89.50 lb / 40.6 kg


Mount

Vesa 600 x 400 (100×4) mm / M6 x L12 screws


General Summary

Transmitter – IR Remote Control Yes
Power – Electrical Ratings AC 100-240V, 50/60Hz
Power – Consumption ≤ 250 W (Max) / 2.0 W (Standby)
Regulations FCC(A), RoHS
Operating Temperature | Humidity 32°F ~ 120°F / 0°C ~ 50°C | 20% ~ 80% RH
Storage Temperature 32°F ~ 140°F / 0°C ~ 60°C
Compatible Mounts – Wall VZ-XMS, VZ-WM71
Compatible Mounts – Ceiling VZ-CMK04, VZ-CMKiT-04
Package Includes Manual x 1, Power Cable x 1, HDMI Cable x 1, CAT5 Cable x 1, Serial Adapter (RS232 to RJ45) x 1, Remote Control x 1, IR Receiver x 1


Product Dimension & Weight

Click below to enlarge
product Details
