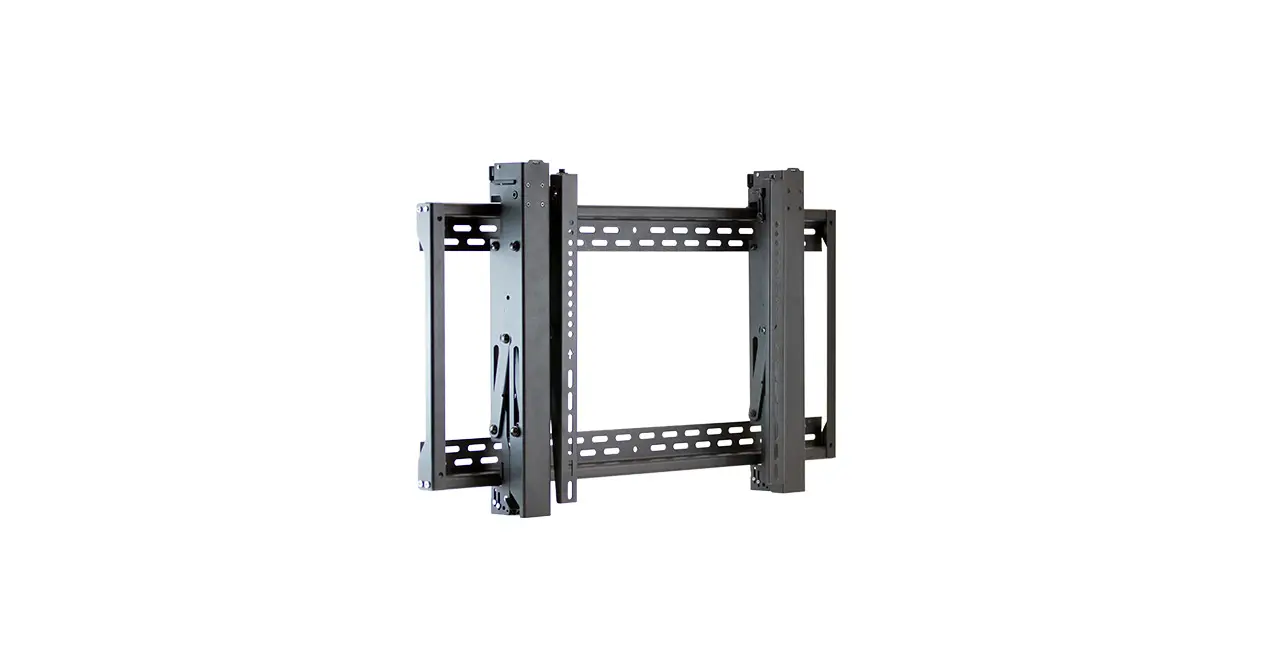

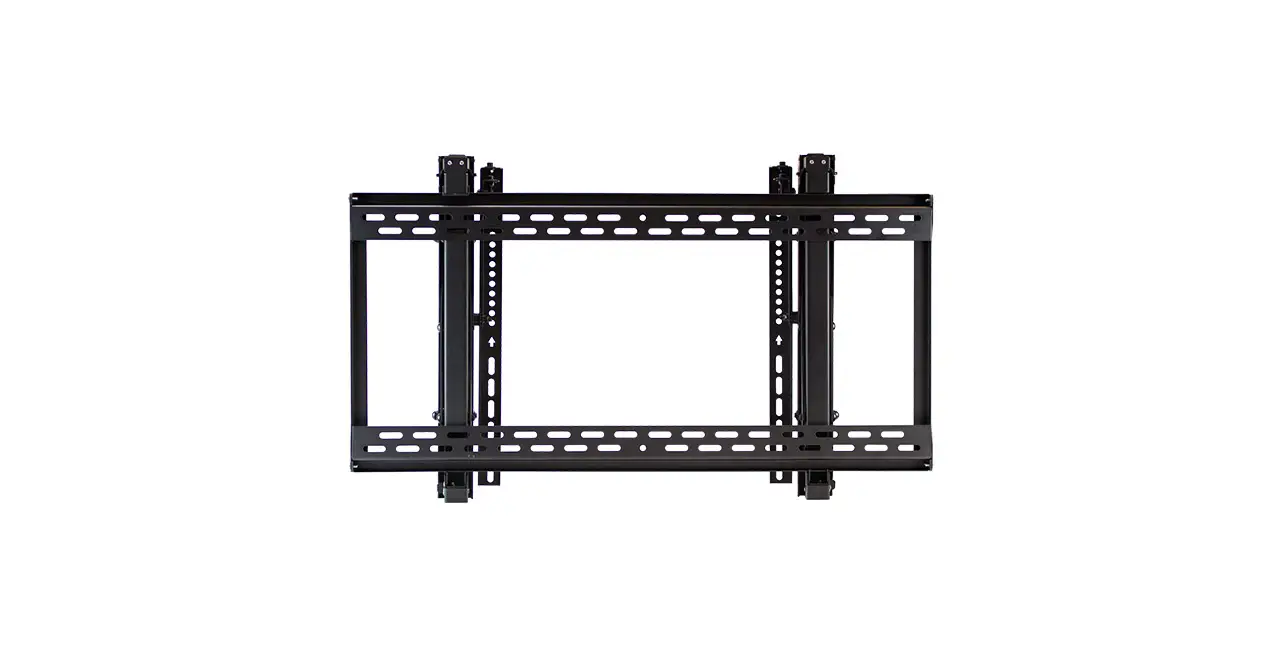

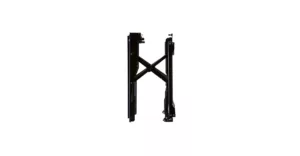

The ViewZ XMS mount is a customizable CCTV video wall extending flat-panel mount for displays weighing up to 154 lb. 70 kg with a mounting pattern of 200 x 200 to 800 x 400 mm. It features multi-monitor stacking, open design, custom spacers, top adjustable mounting brackets and straight scissor-style extension.
- 43″ to 65″ Video Wall Monitors
- Load Capacity is 154 lbs / 70.0 kg
- Universal Mounting – 200 x 200 (Min) ~ 800 x 400 (Max) mm
- Multi-monitor stacking
- Spring-loaded release, open design, custom spacers
- Top adjustable mounting brackets

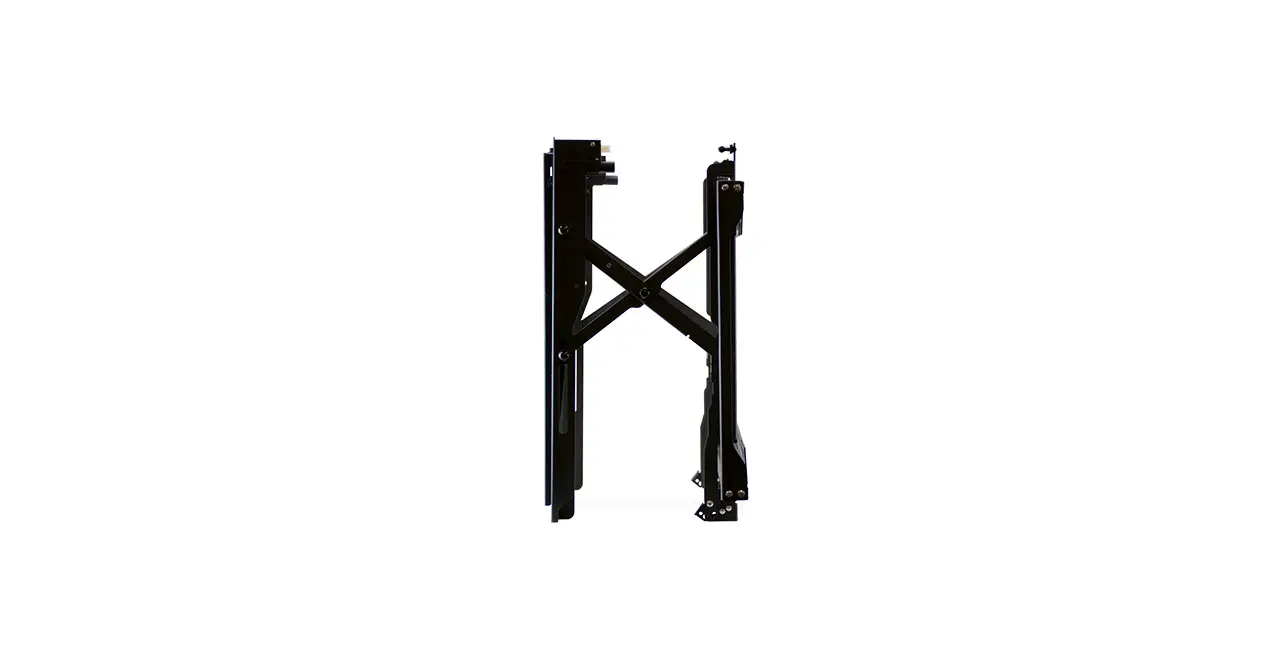

- Straight scissor-style extension
- Optional Wall Plate Alignment Spacer Kit (for 49″ & 55″)
Specification | Dimension | Spec & Manual
Series : Wall Mount | Key Features : Compatible for 42-80″
Compatible Monitors
Product Features
- Model Number: VZ-XMS
- 43″ ~ 65″ Flat Video Wall Mount
- Pop-out Landscape CCTV Video Wall Mount

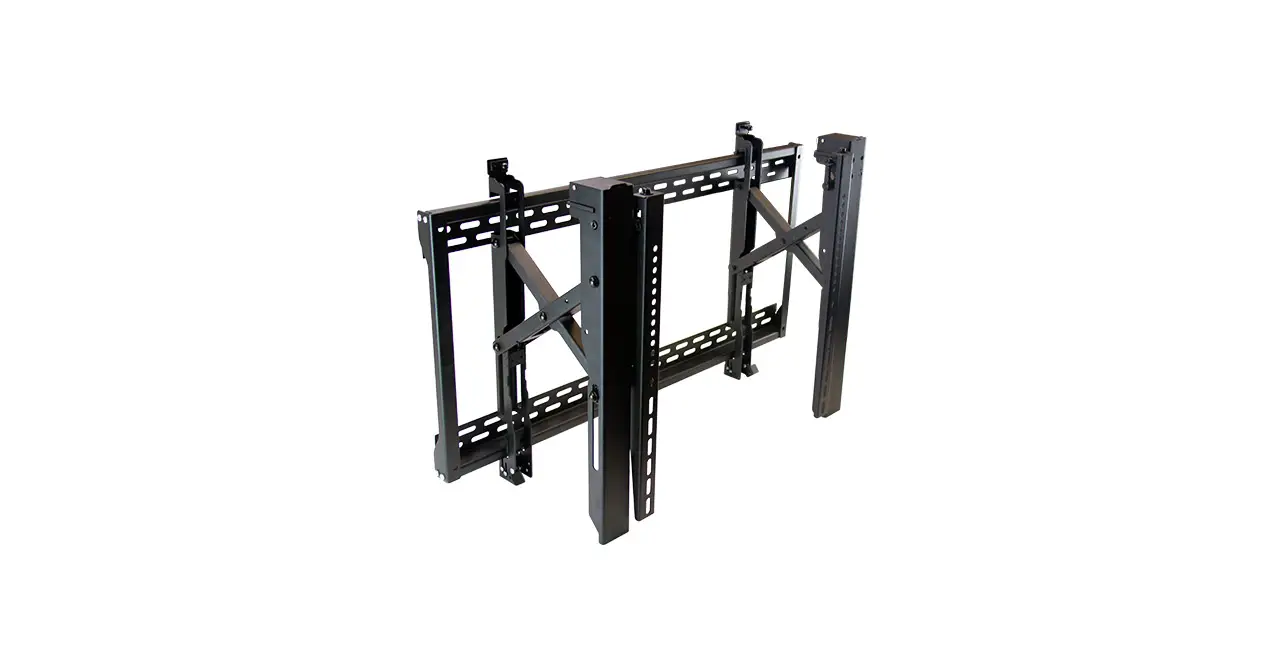

- Pop-out extension easily pulls out for installation and maintenance

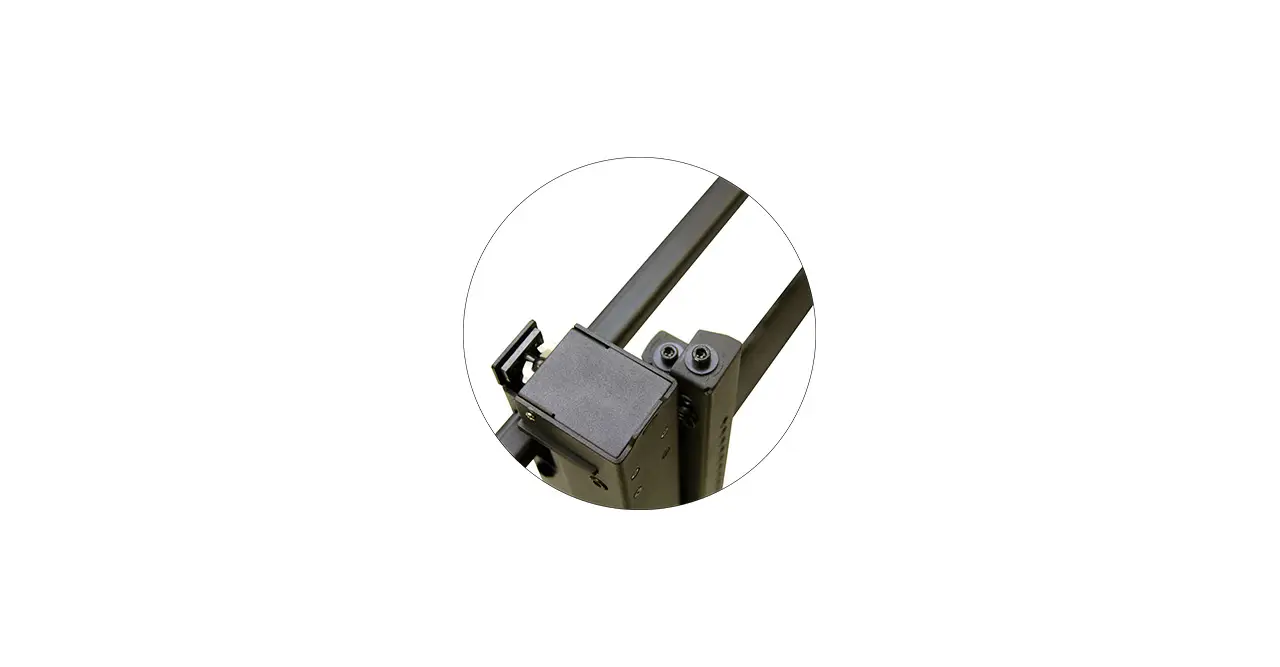

- Spring loaded and X, Y and Z axis fine tune adjustment system for easy and accurate installation

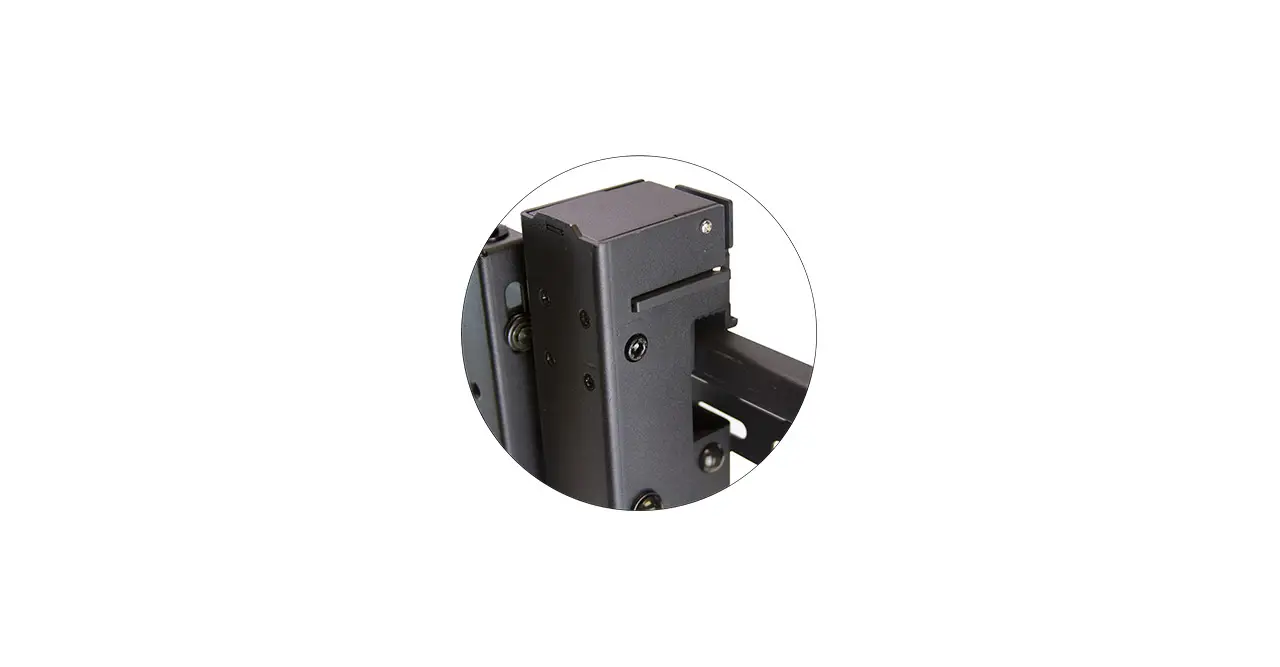

- Quick-release latch easily activates lock & unlock mode to secure displays in place firmly
- Anti-theft design offers an additional insurance against theft (a padlock required)
- Scissor design and compact mounting arms allow for extension in one smooth motion
- “Click-it” locking feature confirms display is secure through an audible noise
Specification
| Display Range | 43″ ~ 65″ |
| Weight Capacity | 154 lbs / 70 kg |
| Height Adjustment | 0.98″ / 25 mm |
| Depth Adjustment | 0.78″ / 20 mm |
| Tilt | -2° ~ 4° (Vertical) / ± 3° (Horizontal) |
| Mounting Pattern Type | VESA, Universal |
| Mounting Patterns | 200 x 200 (Min), 400 x 200 (Max) mm |
Dimensions & Weight
| Dimension (W x H x D) | 1134 mm x 519 mm x 95 ~ 285 mm / 44.64″ x 19.01″ x 3.74 ~ 11.22″ |
| DIM Size (W x H x D) | 870 mm x 415 mm x 33 mm / 34.25″ x 16.33″ x 1.29″ |
| Net Weight | 25 lbs / 11.3 kg |
| Gross Weight | 27.1 lbs / 12.29 kg |
Product Dimension & Weight
Click below to enlarge
