Maximize viewing resolution for your digital signage
- 65” LED ULTRA HD Monitor
- Narrow 5.9 mm Bezel

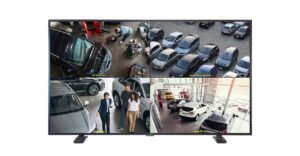

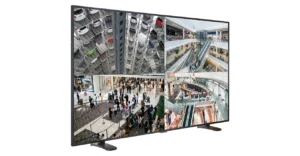

- Supports Quad View Mode
- Supports Landscape & Portrait Mode
- Supports 4K (3840X2160) Resolution
- Supports HDMI 2.0 / 1.4 & DP In
- USB, SD Card – Media Player
- OPS Slot – Optional Windows OPS Available
- Auto Source Detection / Auto Power Recovery
- Wide Viewing Angle (IPS Panel)
- Built-to Run 24/7/365
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : 4K Monitor | Key Features : 4K Media Player NDAA Compliant
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-65UHD
- 65″ 4K UHD LED Panel
- 4K Resolution – 3840 x 2160 / 16:9
- Quad View Mode
- Landscape & Portrait Mode
- USB, SD Card – Media Player
- OPS Slot – Optional Windows OPS available
- Wide Viewing Angle (IPS Panel)
- Auto Source Detection / Auto Power Recovery
- Supported HDMI (2.0, 1.4) & DP In/Out
- Built to run 24/7/365
- NDAA Compliant
Display
| Screen Size | 65″ |
| Max Resolution | 3840 x 2160 @60Hz |
| Pixel Pitch | 0.372 mm x 0.372 mm |
| Brightness | 350 cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 9 (1.78 : 1) |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.07G |
| Response Time | < 8 ms |
Interface
| HDMI (2.0) In | 1 |
| HDMI (1.4) In | 1 |
| DP In / Out | 2/1 |
| RS-232(RJ-45) In/Out | 1/1 |
| Audio Out | 1 |
| USB In | 1 (Media Player) / 1 (OPS Only) |
| SD Card In | 1 (Media Player) |
| OPS In (Option) – USB Type C | 1 |
| OPS In (Option) – USB 2.0 Type A | 2 |
| OPS In (Option) – USB 3.0 Type A | 2 |
| OPS In (Option) – Ethernet (RJ-45) In | 1 |
| OPS In (Option) – HDMI Out | 1 |
| OPS In (Option) – Mic. In / Audio Out | 1/1 |
Special Features
| Quad View | Support |
| Landscape & Portrait | Support |
| Bezel Width – TOP and LEFT Side | 0.44″ / 11.4 mm |
| Bezel Width – BOTTOM and RIGHT Side | 0.44″ / 11.3 mm |
| Bezel Width – ACTIVE to ACTIVE AREA | 0.88″ / 22.7 mm |
Refresh Rate
| HDMI (2.0) In | 3840 x 2160 @ 60Hz |
| HDMI (1.4) In | 3840 x 2160 @ 30Hz |
| DP (1.2) In | 3840 x 2160 @ 60Hz |
USB Media Player
| Video Codec | WMA/WMV, AAC, AC3, DIVX, MPEG, H264, VC1, AVS, FLV, RM/RMVB |
| Video Format | AVI,MXF, MP4, FLV, MKV, ASF, DAT, RM, RMVB, AMV, F4V, M4V, H.265, VOB, ISO, M2TS, 3GP, 3G2, M2V, MOV, MPG, WMV, MTV, OGV, TS, WEBM, DV, SWF |
| Music Format | WMA/WMV, AAC, AC3, DIVX, MPEG, H264, VC1, AVS, FLV, RM/RMVB |
| Video Format | MP3, FLAC, APE, WAV, WMA, DTS, AAC, M4R, MKA, MP2, AMR, WV, M4A, AC3, AU, AIFF, M4B |
| Image Format | JPEG, JPG, BMP, GIF |
| Text Format | TXT (raw text file only) |
| Capacity | MAX 16 GB |
Audio
| Built in speaker | 5W x 2 |
Dimensions & Weight
| Outline Dimension (W x H x D) without stand | 56.95 x 32.39 x 2.66” / 1446.7 x 822.9 x 67.8 mm |
| Outline Dimension (W x H x D) with stand | 56.95 x 34.01 x 7.08” / 1446.7 x 864.1 x 180.0 mm |
| Net Weight | 73.85 lb / 33.5 kg |
| Gross Weight | 95.01 lb / 43.1 kg |
Mount
| Universal Wall Mount | 600 x 400 mm (M6 x4) |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V (50/60Hz)w |
| Power – Consumption | ≤ 210 W |
| Regulations | FCC(A), CE, NDAA, RoHS |
| Operating Temperature | Humidity | 32 ~ 104°F / 0 ~ 40°C | 20 ~ 85% RH |
| Storage Temperature | Humidity | 50 ~ 140°F / 10 ~ 60°C | 10 ~ 90% RH |
| Language (OSD) | English |
| Compatible Mounts – Wall | VZ-AM03, VZ-WM71, VZ-XMS |
| Compatible Mounts – Ceiling | VZ-CMKiT-04 |
| Accessories | Stand (1set), Manual (1pc), Power Cable (1pc), Remote Control (1pc) |
Product Dimension & Weight
Click below to enlarge
