86`` Indoor Totem LCD Display
- IP 20 Tough Safety Glass Totem Monitor
- Built-in Android 14 with Free Cloud Based CMS
- Support Preset Schedule, Scheduled On/Off & User Management
- Slim Body, Internal Lock, Built-in Speakers
- Support Multiple Media Formats (Built-in Media Player)
- Support 10(IR) or 20 (PCAP) Points Touch Interactive Panel (Option)
Specification | Dimension | Download
Series : IIP-T | Key Features : Indoor LCD Monitor | Indoor Totem LCD Monitor
Product Features
- Model Number: VZ-86IIP-T
- 86” 4K Resolution
- IP 20 Tough Safety Glass Totem Monitor
- Built-in Android 14 with Free Cloud Based CMS
- Support Preset Schedule, Scheduled On/Off & User Management
- Convenient and Efficient Remote Control & System Management
- Slim Body, Internal Lock, Built-in Speakers
- Support Multiple Media Formats (Built-in Media Player) – Images, Videos, Webpages, Text, Database, MS Office Files & etc
- Support 10(IR) or 20 (PCAP) Points Touch Interactive Panel (Option)
- Windows OS (Option)
- Auto Source & Power Recovery
- NDAA Compliant, Built-to Run 24/7/365, 2-Years Limited Warranty
Display
| Resolution | 2160 x 3840 @60Hz |
| Active Area | 1055 x 2300 mm |
| Brightness | 500 cd/m² (Typical) |
| Aspect Ratio | 16 : 9 / 9 : 16 |
| Viewing Angle (H/V) | 178° / 178° |
| Display Colors | 16.7 M |
| Contrast Ratio | 1200:1 |
OPERATION SYSTEM - GOOGLE ANDROID
| Operating System | Android 14 |
| CPU | Rockchip® RK3576 |
| ROM / RAM | 32G / DDR3 4G |
| Network | WIFI / RJ45 (LAN) |
OPERATION SYSTEM INTERFACE - GOOGLE ANDROID
| RJ-45 (Ethernet) 10/100 In | 1 |
| TF Card In / HDMI In | 1 / 1 |
| Audio Out (L/R) | 1 |
| WiFi / USB In | 1 / 2 |
OPERATION SYSTEM (OPTION) - WINDOW OS
| Operating System | Window 11 |
| CPU | Intel® Core™ i3 11th Generation |
| RAM / SSD | DDR3 16G / SSD 512G |
| Network | WIFI / RJ45 (LAN) |
OPERATION SYSTEM (OPTION) INTERFACE - WINDOW OS
| RJ-45 (Ethernet) 10/100 In | 1 |
| HDMI In | 1 |
| WiFi / USB In | 1 / 3 |
Special Features
| Touch (Option) Sensor Type | IR / PCAP touch |
| Touch Infrared Touch | 10 Points / 20 Points |
| Response Time | ≤ 10m-sec |
| Built in speaker | 5W (8Ω) x 2 |
| Protection Glass | IP 20 Tough Safety Glass |
| Screen Position | Landscape / Portrait |
Dimensions & Weight
| Dimension (W x H x D) | 44.6 x 93.11 x 23.62” / 1133 x 2365 x 600 mm |
| Net Weight | 165.34 lbs / 75 kg |
General Summary
| Power – Electrical Ratings | AC 100 – 240V, 50/60Hz |
| Power – Consumption | ≤ 380 W |
| Operating Temperature | -32 ~ 131°F / 0 ~ 55°C |
| Operating Humidity | 10 ~ 80% (Non-Condensing) |
| Regulations | FCC(A), CE, RoHs |
| Package | PE Film x1, Foam Corner Protector x1, Honeycomb Box x1, Manual x1 |

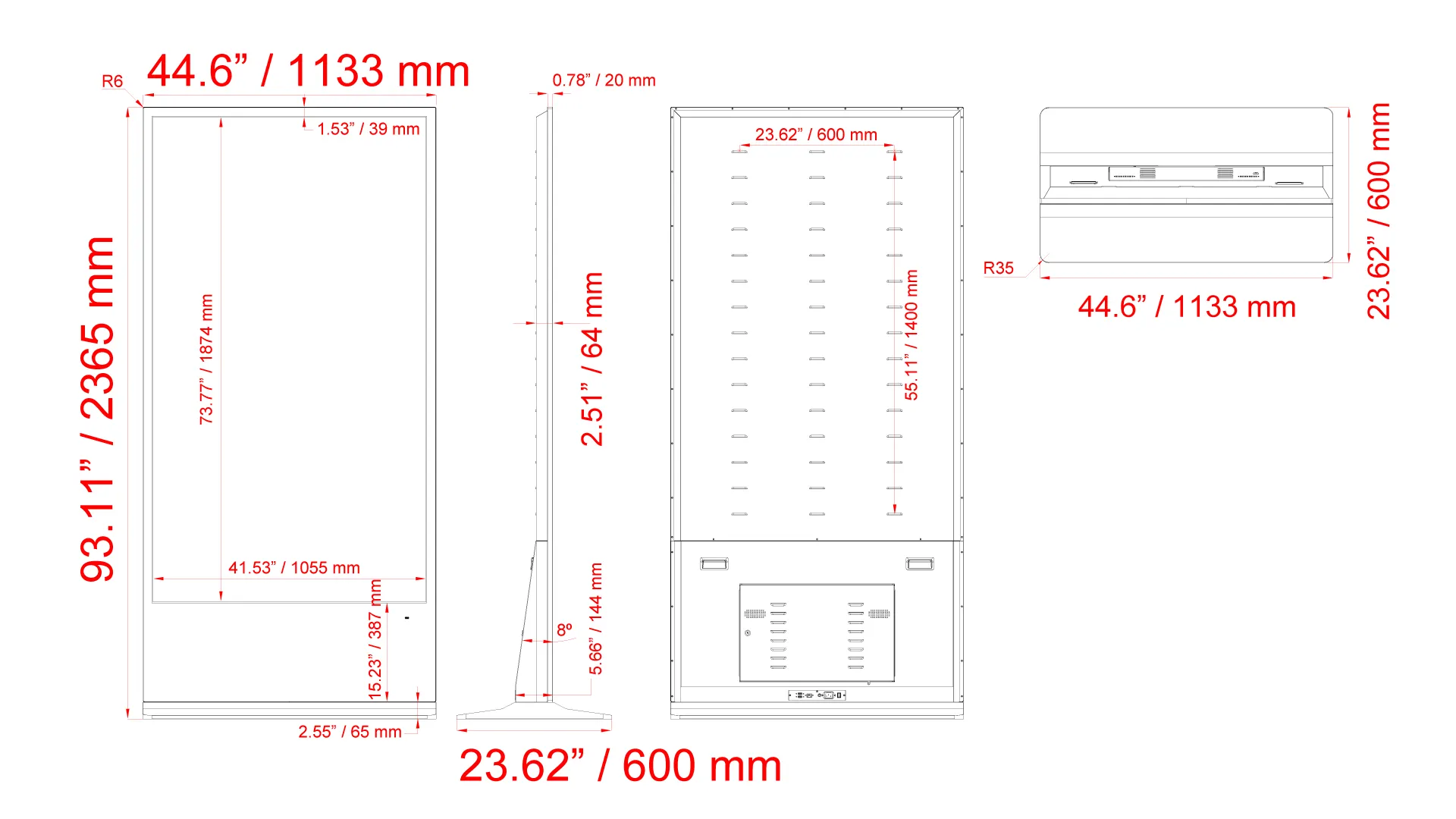

Product Dimension & Weight
Click below to enlarge
