13.3″ Smart AD PVM

product Description

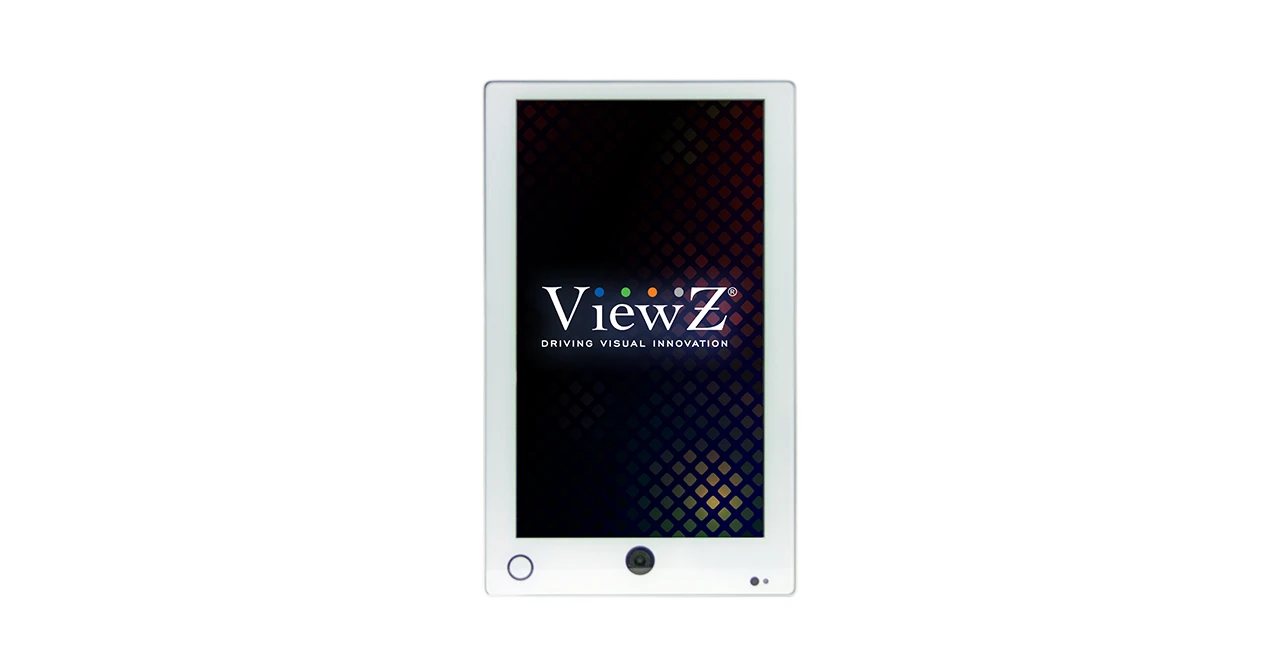

vzpvmp1w3_1

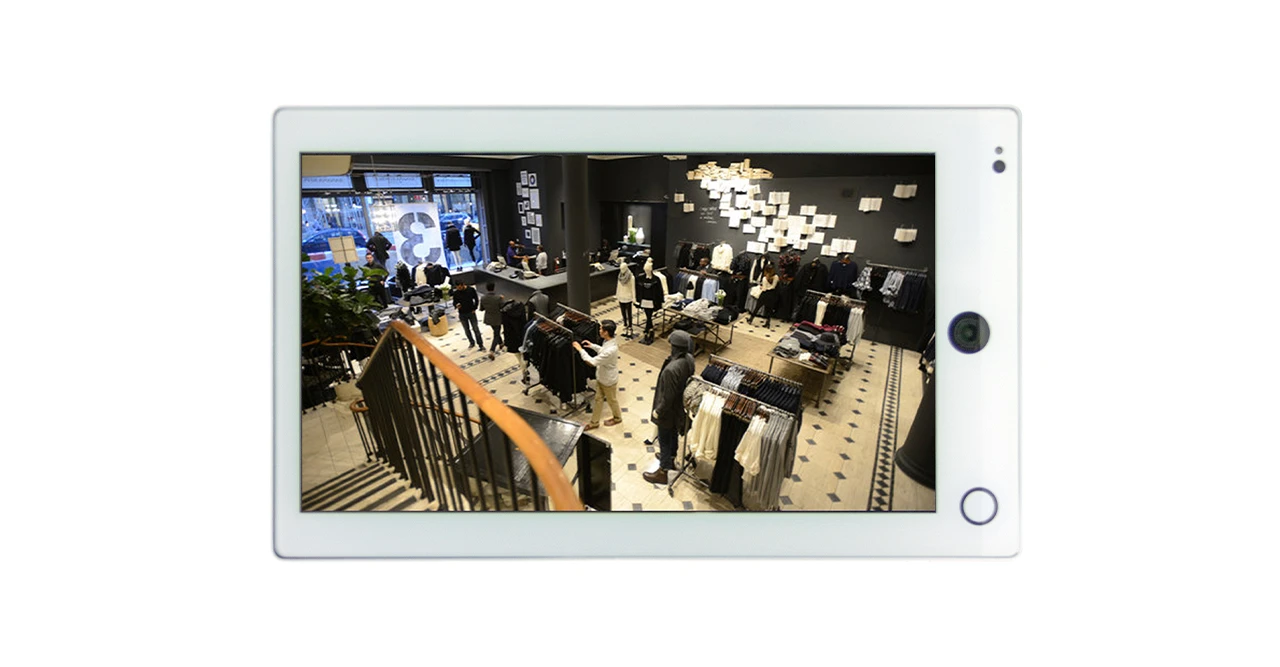

vzpvmp1w3_10
vzpvmp1w3_6

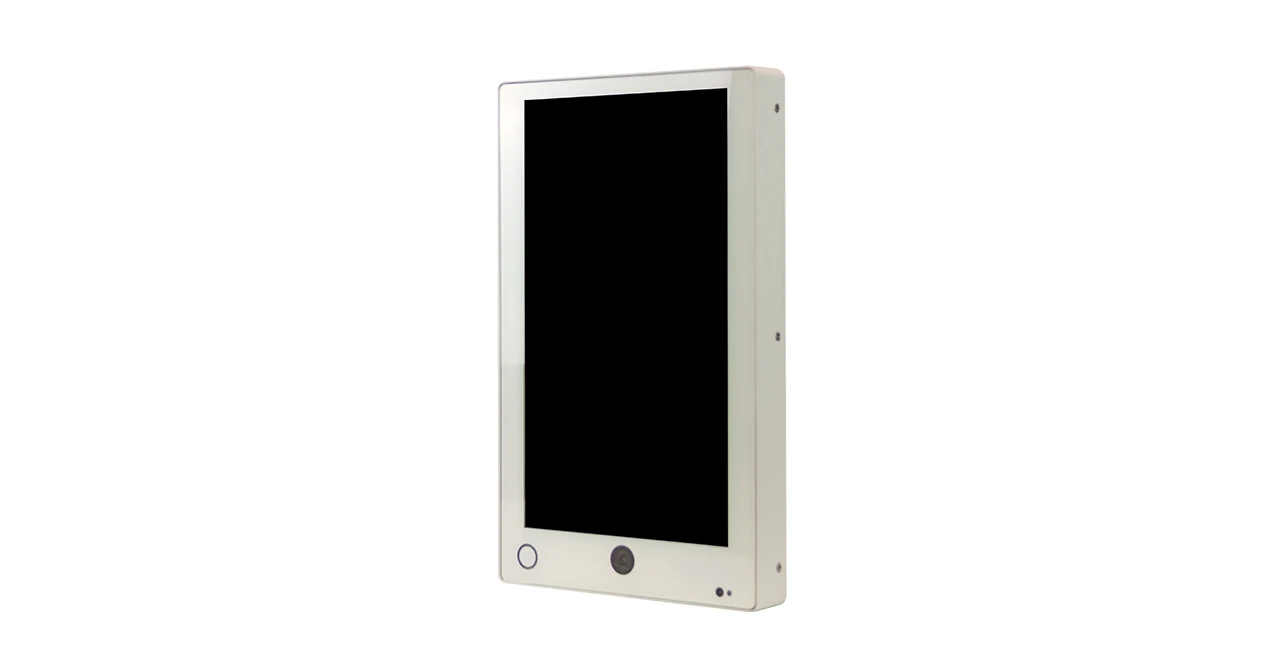

vzpvmp1w3_4

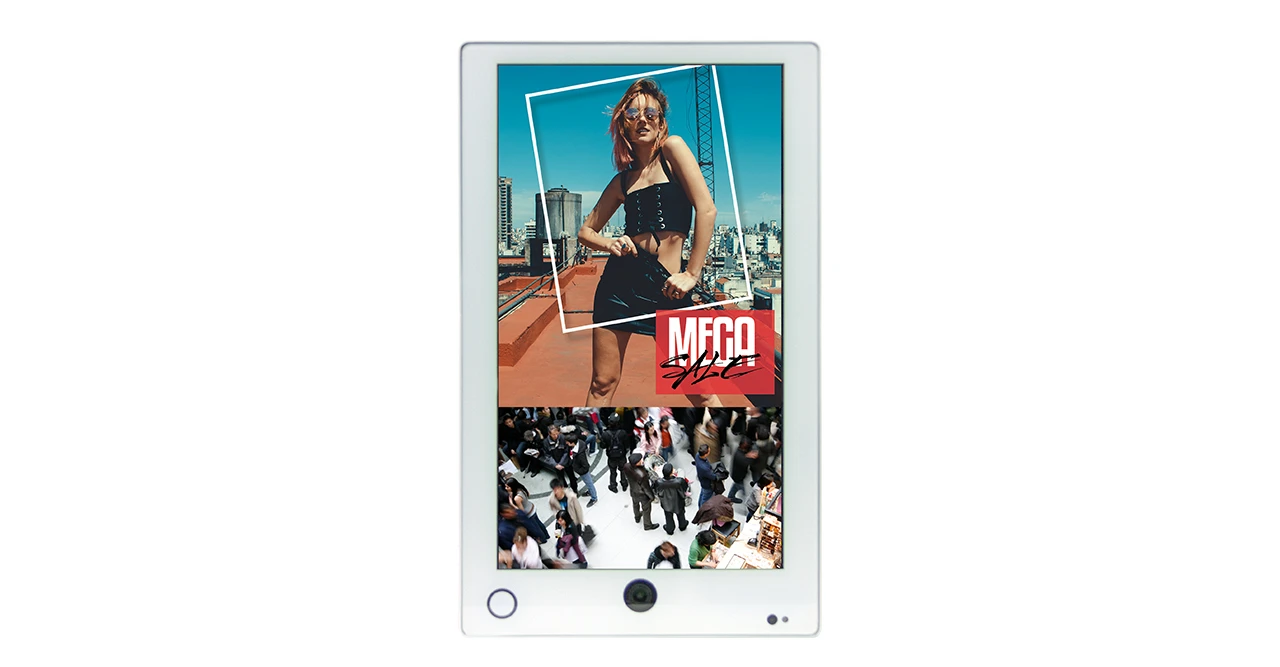

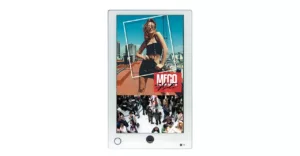

vzpvmp1w3_9

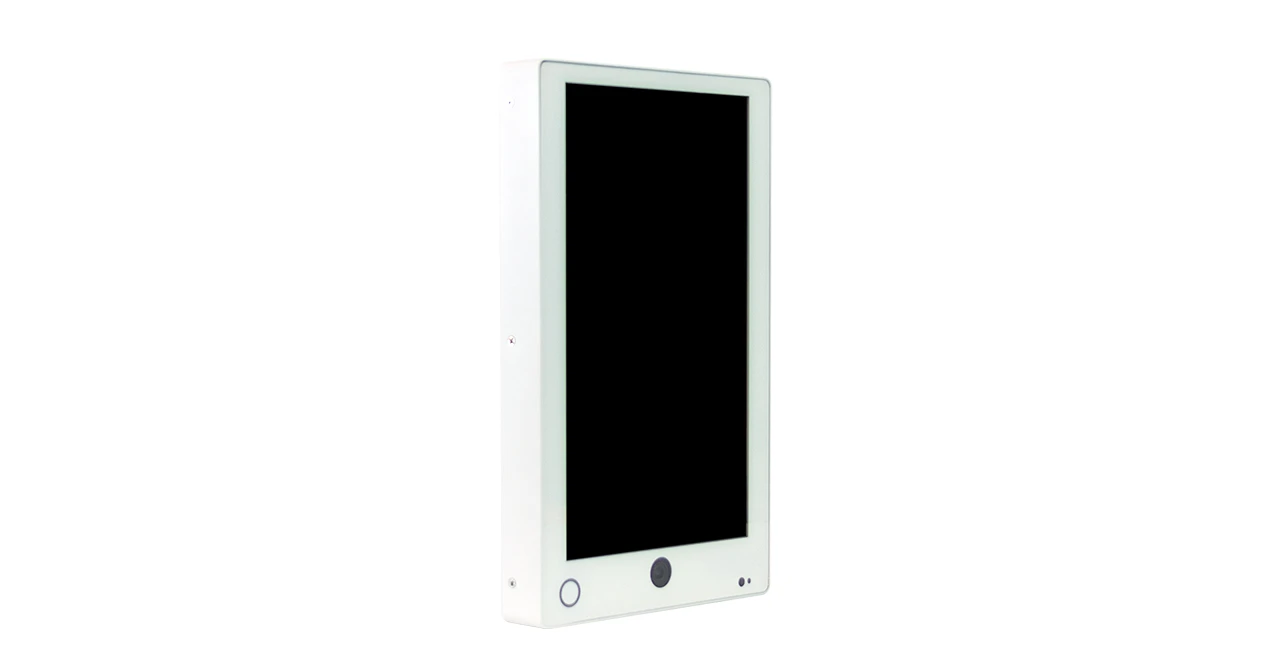

vzpvmp1w3_2

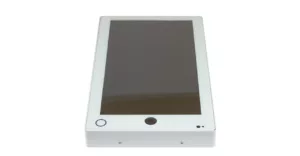

vzpvmp1w3_8

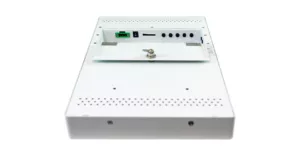

vzpvmp1w3_7
vzpvmp1w3_1 vzpvmp1w3_10 vzpvmp1w3_6 vzpvmp1w3_4 vzpvmp1w3_9 vzpvmp1w3_2 vzpvmp1w3_8 vzpvmp1w3_7

Smart AD PVM by ViewZ is a CMS capable PVM solution with advanced digital signage features designed for multi-location retails that rely on central management of signage contents.

  • 13.3” Mega Pixel IP Full HD 1080p Resolution
  • Built-in Android OS w/CMS for Digital Signage
  • CMS will operate via Cloud Server or Intranet Server System
  • Onvif Profile-S Compliant
  • Camera Motion Sensor
  • Auto Power Recovery
  • Built-in 2 Mega Pixel Camera / 720 TV Line – Analog Video Resolution
  • BNC(NTSC/PAL), RJ-45, Audio
  • Supports Dual Voltage (P.o.E and 12V DC)
  • Built to run 24/7/365

Compatible Mounts & Accessories

Product Features

  • 13.3” Mega Pixel IP Full HD 1080p Resolution
  • Onvif Profile S Compliant
  • Built-in Android OS w/CMS for Digital Signage
  • Built-in 2 Mega Pixel Camera / 720 TV Line – Analog Video Resolution
  • Supports Dual Voltage (P.o.E and 12V DC)
  • BNC(NTSC/PAL), RJ-45, Audio
  • Camera Motion Sensor
  • Auto Power Recovery
  • “A“ Commercial Grade LED
  • Built to run 24/7/365
  • 3-Year Warranty

Ordering Information : Parts #

Model Features Family Series Size Color Voltage
13.3″, Black, P.o.E. / DC 12V VZ-PVM- P 1 B 3
13.3″, White, P.o.E. / DC 12V VZ-PVM- P 1 W 3



  • Series: P (Portrait IP PVM)
  • Size: 1 (13.3inch) , 2 (15inch) , 4 (32inch) , 5 (43inch)
  • Color: B (Black) , W (White)
  • Voltage: 3 (P.o.E./ DC12V), 4 (PoE)

Powerful Content Management System for Remote Control
One Server Control Unlimited Smart AD PVMs

ViewZ Smart AD PVM Content Management Software(CMS) allows the administrator to control every Smart AD PVM in the organization’s Intranet or Internet. From a centralized location, the signage contents that reside on a centralized server would be distributed to multiple units/locations either manually or automatically based on a set schedule.

Introduction

CMS Software

Spec Overview

Smart AD PVM - Creating a Group

Smart AD PVM - Registering a Device

Smart AD PVM - Adding Contents

Smart AD PVM - Creating an Advertising

Smart AD PVM - Setting a Schedule

Smart AD PVM - Usage Report

Display

Screen Size 13.3″
Max Resolution 1080 x 1920 @60Hz
Pixel Pitch 0.153 mm x 0.153 mm
Brightness 250 cd/m²(Typical)
Contrast Ratio 800 : 1
Aspect Ratio 9 : 16
Viewing Angle (H/V) 170°/170°
Display Color 262 k
Response Time < 30ms


Interface

CVBS (Camera) Out 1
RJ 45 (TCP/IP) 2 (CMS, IP Camera)
Audio Out 1
Micro SD Card In 1
USB In 3


IP Features

Ethernet Interface 10/100Base-T
Web Client Protocol TCP / IP
Supported Protocol TCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP


Special Features

Multi Display Function PIP / PBP
Filter Type 3D Comb filter / De-Interlace
Blinking Message “Recording” Yes
Timed Switching Capabilities between two cameras Yes
Multi-Lingual Language English, Spanish, French, Russian, Portuguese


Android Board Spec

Android OS Ver. 6.1.
CPU RTD1295 Quad Core, ARM Cortex-A53 64bit
RAM 2GB DDR4
Flash Memory 32GB


Dimensions

Outline Dimension (W x H x D) 8.33” x 13.78” x 1.38” / 211.8 mm x 350.1 mm x 35.3 mm
Net Weight 5.4 lbs / 2.45 kg
Gross Weight 7.93 lbs / 3.6 kg


Mount

Vesa 100 mm x 100 mm / M8 x L10 Screws


Camera

Camera Type 2.1 Mega Pixel IP Camera
Lens 2.8 mm Fixed Lens
Active Pixels 1080(H) x 1920p(V) 30 fps
Image Sensor / Encoder Chipset SONY IMX290 / Hi3516D
Function 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, D/N, WDR, AGC, AWB
Video Compression H.264, MJPEG, CBR, VBR support
Video Out 1ch CVBS (NTSC/PAL) / 1ch RJ-45 output
Motion Detection Support
Support Protocol TCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP
Ethernet Port 10 / 100 Base-T
Web Application IE 6 ~ 11, Firefox
Integration Protocol ONVIF 2.6 (supported)


General Summary

Transmitter – IR Remote Control Yes
Dual Voltage Power – Electrical Ratings P.o.E. / 12 V DC (3A)
Power – Consumption ≤ 12 W
Warranty – Parts / Labor 3 Year / 3 Year
Operating Temperature 32 – 122°F / 0 – 50°C
Compatible Mounts – Wall VZ-AM02-A, VZ-SM01
Compatible Mounts – Ceiling VZ-CM308
Regulation FCC(A), CE, RoHS
