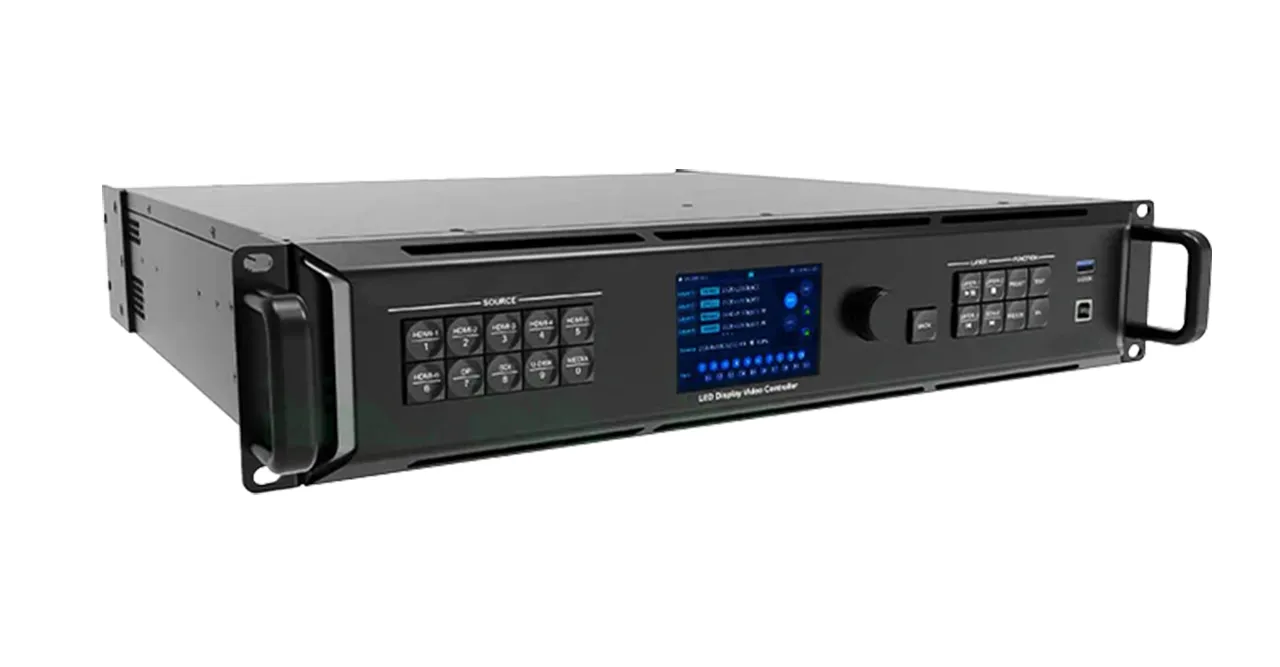

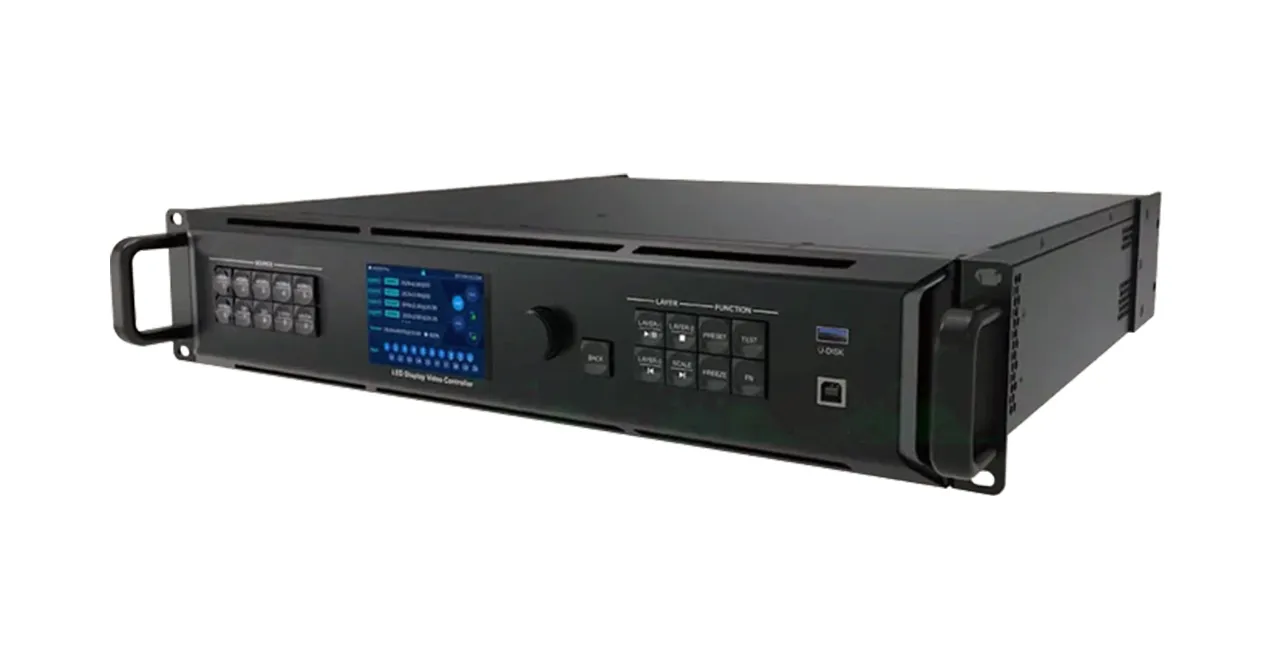

VZ-SB2000Pro is an all-in-one controller combining video processing and video control functionalities into a single device. Equipped with 20 Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 13 million pixels, the VZ-SB20000Pro can output at a maximum width of 16,384 pixels and a height of 8,192 pixels, making it perfectly suited for controlling ultra-wide and ultra-high LED screens on-site.
- Self-Adaptive OPT 1/2
- Max Pixels per LED Output: 650,000 pixels @8bit
- 3 Independent Layers – 1 x (4K x 1K) @60 Hz
- 12G-SDI (Loop-through), HDMI 1.3 / 2.0, DP 1.2, USB (Media Play) & OPT (Loop-through)
- HDMI Mosaic upto 4 HDMI Input Sources & Fiber Mosaic
- Image Mosaic – connects upto 4 x VZ-SB2000 Pro controller
- Free Layout, Low Latency Output, Easy Preset Saving & Loading
- Output Synchronization, Multiple Layer Display, BKG Settings
- EDID Management, 3D Function, Personalized Image Scaling
- Multiple Layer Display – supports 12x 2K x 1K resources and creates 3 different layers (4Kx2K, 4Kx1K & 2Kx1K)
- Color Adjustment, Pixel Level Brightness & Chroma Calibration
Specification | Dimension | Spec & Manual
Series : SB | Key Features : Video Wall Controller
Compatible LED Module & Accessories
Product Features
- Model Number: VZ-SB2000 Pro
- Self-Adaptive OPT 1/2
- Max Pixels per LED Output: 650,000 pixels @8bit
- 12G-SDI (Loop-through), HDMI 1.3 / 2.0, DP 1.2, USB (Media Play) & OPT (Loop-through
- HDMI Mosaic upto 4 HDMI Input Sources & Fiber Mosaic
- Image Mosaic – connects upto 4 x VZ-SB2000 Pro controller
- Front Panel Buttons & Knob Control with LCD Display
- Free Layout, Low Latency Output, Easy Preset Saving & Loading
- Output Synchronization, Multiple Layer Display, BKG Settings
- EDID Management, 3D Function, Personalized Image Scaling
- Multiple Layer Display – supports 12x 2K x 1K resources and creates 3 different layers (4Kx2K, 4Kx1K & 2Kx1K)
- 3 Working Mode – Video Controller, Fiber Converter & Bypass
- Color Adjustment, Pixel Level Brightness & Chroma Calibration
- Pixel Level Brightness & Support Data Saving after Power-Failure & Backup Design, Stable & Reliable
Feature
| Max. Input Resolution | 4096 x 2160 @60Hz (via HDMI 2.0 |
| Max. Output Resolution | 16384 x 8192px @60Hz |
| Display Color | 13 M (8/10/12 bit) |
| Windows / Layers | 12 (2K x 1K) |
| Presets | 256 |
Video Format
| HDMI2.0, DP1.2 / 4K x 2K / RGB YCbCr 4:4:4 / 12bit | 3840×2160p (24 / 25 / 30) |
| HDMI2.0, DP1.2 / 4K x 2K / RGB YCbCr 4:4:4 / 10bit | 3840×2160p (24 / 25 / 30) |
| HDMI2.0, DP1.2 / 4K x 2K / RGB YCbCr 4:4:4 / 8bit | 3840×2160p (24 / 25 / 30 / 48 / 50 / 60) |
| HDMI2.0, DP1.2 / 4K x 2K / YCbCr 4:2:2 / 8/10/12bit | 3840×2160p (24 / 25 / 30 / 48 / 50 / 60) |
| HDMI2.0, DP1.2 / 4K x 1K / RGB YCbCr 4:4:4 / 12bit | 3840×1080p (24 / 25 / 30) |
| HDMI2.0, DP1.2 / 4K x 1K / RGB YCbCr 4:4:4 / 10bit | 3840×1080p (24 / 25 / 30 / 48 / 50) |
| HDMI2.0, DP1.2 / 4K x 1K / RGB YCbCr 4:4:4 / 8bit | 3840×1080p (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75) |
| HDMI2.0, DP1.2 / 4K x 1K / YCbCr 4:2:2 / 8/10/12bit | 3840×1080p (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75) |
| HDMI2.0, DP1.2 / 2K x 1K / RGB YCbCr 4:4:4 / 12bit | 1920×1080p (24 / 25 / 30) |
| HDMI2.0, DP1.2 / 2K x 1K / RGB YCbCr 4:4:4 / 10bit | 1920×1080p (24 / 25 / 30 / 48 / 50) |
| HDMI2.0, DP1.2 / 2K x 1K / RGB YCbCr 4:4:4 / 8bit | 1920×1080p (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75) |
| HDMI2.0, DP1.2 / 2K x 1K / YCbCr 4:2:2 / 12/10/8bit | 1920×1080p (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75) |
| HDMI 1.3 / 2K x 1K / RGB YCbCr 4:4:4 / 12bit | 1920×1080p (24 / 25 / 30) |
| HDMI 1.3 / 4K x 1K / RGB YCbCr 4:4:4 / 10bit | 3840×1080p (24 / 25 / 30 / 48 / 50) |
| HDMI 1.3 / 2K x 1K / RGB YCbCr 4:4:4 / 8bit | 1920×1080p (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75) |
| HDMI 1.3 / 2K x 1K / YCbCr 4:2:2 / 8/10/12bit | 1920×1080p (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75) |
| 12G-SDI / 4K x 2K / YCbCr 4:2:2 / 10bit | 3840×2160p (24 / 25 / 30 / 48 / 50 /60) |
| 12G-SDI / 4K x 1K / YCbCr 4:2:2 / 10bit | 3840×1080p (24 / 25 / 30 / 48 / 50 /60) |
| 12G-SDI / 2K x 1K / YCbCr 4:2:2 / 10bit | 1920×1080p (24 / 25 / 30 / 48 / 50 /60) |

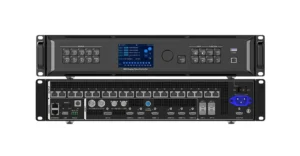

Interface
| 12G-SDI In / Out | 1 / 1 |
| Genlock In / Out | 1 / 1 |
| 10G Optical Fiber In / Out | 2 / 4 |
| HDMI 1.3 In / Out | 4 / 1 |
| HDMI 2.0 In | 2 |
| DP 1.2 In | 1 |
| DVI (HDMI 1.4) In | 1 |
| Ethernet (RJ-45) Out | 20 (Video Display) |
| Audio In / Out | 1 / 1 |
| Ethernet (RJ-45) | 2 (Control & Controller cascading ) |
| RS232 | 1 (Control) |
| 3D (Effect) / Light Sensor | 1 / 1 |
| USB 2.0 (Type-B) / USB 2.0 (Type-A) In | 1 / 1 (Firmware / Control) |
| USB 3.0 (Type-A) In | 1 |
Dimensions & Weight
| Dimensions ( W x D x H ) | 17.32 x 16.1 x 3.46” / 440 x 409 x 88.1 mm |
| Net Weight | 15.43 lbs / 7.0 kg |
| Gross Weight | 22.04 lbs / 10.0 kg |
Mount
| Server Chassis | 1U (19”) |
General Summary
| Power – Electrical Ratings | AC 100 ~ 240V, 50/60 Hz / 1.5 A |
| Power – Consumption | 82 W |
| Operating Temperature | 32 ~ 122°F / 0 ~ 50°C |
| Operating Humidity | 5 ~ 85% RH |
| Storage Temperature | 14 ~ 140°F / -10 ~ 60°C |
| Operating Humidity | 5% ~ 95% RH |
| Regulations | CE, FCC, IC, RCM, EAC, UL, CB, KC, RoHS |
| Accessories | Power Cable x1, Ethernet x1, USB Cable x1, HDMI Cable x1, Phoenix Connector x1, Silicone dustproof plugs x4, Manual x1 |

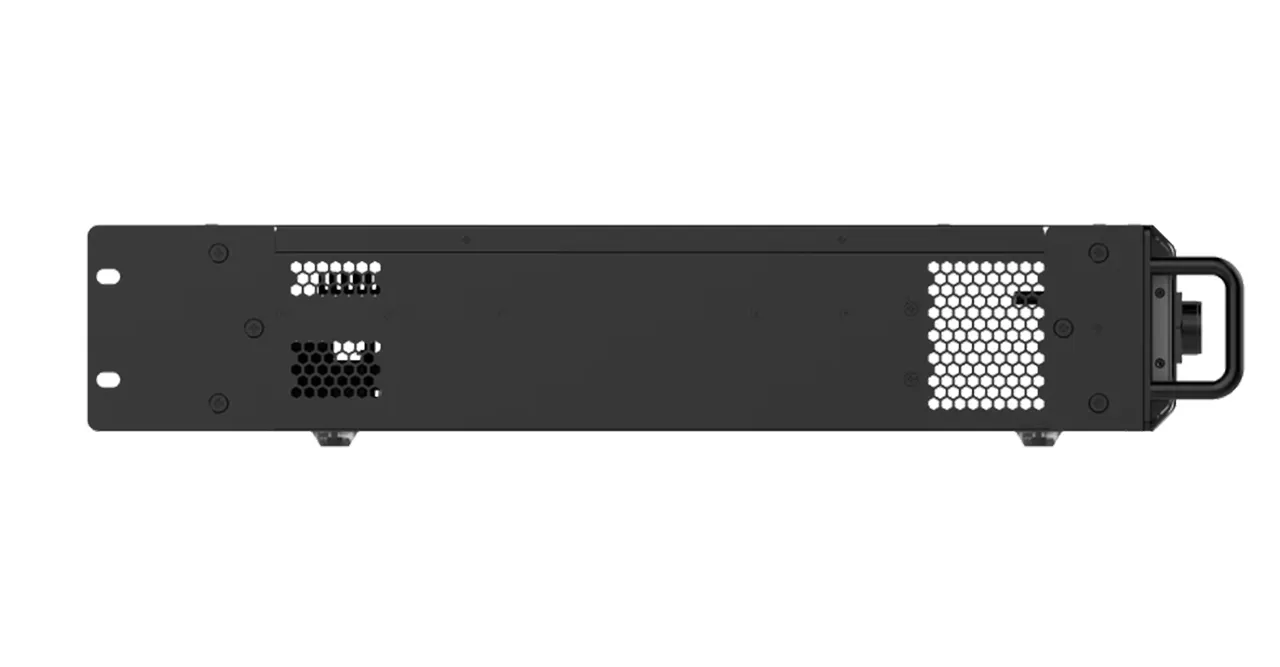

Product Dimension & Weight
Click below to enlarge
