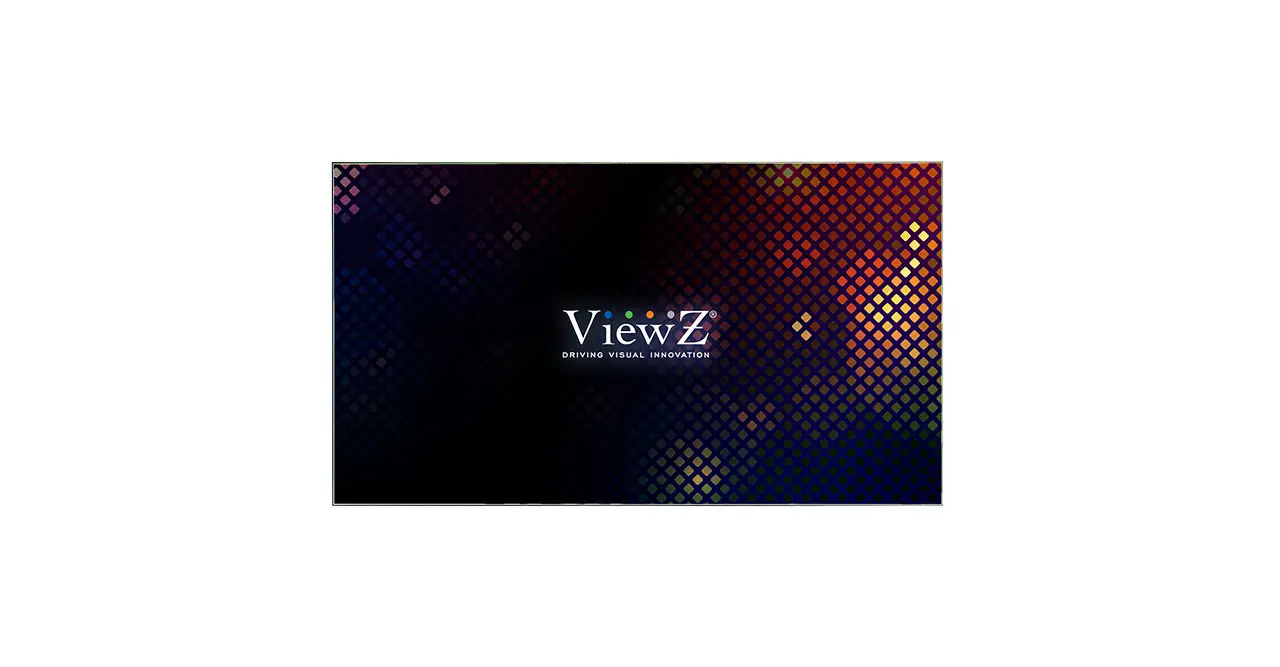

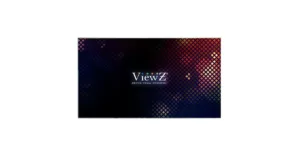

With an astonishingly thin 0.9 mm bezel and boasting 700 nits brightness, the ViewZ EHB security video wall monitors display brilliant HD images across multiple screens with virtually seamless gaps in-between. Designed to work with ViewZ PRO video wall processor series.
- Full HD 1080p CCTV LED Monitor / 1.07B color IPS Panel
- Extreme-narrow 0.9 mm Metal Bezel
- Supports 4K (3840×2160) Resolution & HDCP 1.4 / 2.2
- Daisy Chain System – HDMI up to 15 x 15
- Landscape or Portrait mode selectable
- Multi Window Display (PBP, PIP, Triple or Quad)
- HDMI (2.0) In/Out, DVI-D In, DP In
- Mullion Compensation Applied
- Auto Source & Power Recovery
- Advanced Heat Management
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Specification | Dimension | Download
Series : EHB | Key Features : Narrow Bezel High Brightness Built In Media Player NDAA Compliant
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-55EHB
- 55″ Flat Panel Widescreen LED A Commercial-Grade Monitor
- 55″ Black All Metal 0.9 mm Extreme-narrow Seamless Bezel
- 700 cd/m² High Brightness
- 1.07 Billion Color IPS Panel (10 bit) / HDCP 1.4 / 2.2
- Supports Max 4K (3840×2160)/60 Video Signal & Serial Control Software
- Daisy Chain System – HDMI up to 15 x 15
- Landscape or Portrait mode selectable
- Multi Window Display (PBP, PIP, Triple or Quad)
- HDMI (2.0) In/Out, DVI-D In, DP In
- Color Gamut 72%
- Auto Power and Source Recovery
- Mullion Compensation Applied
- Advanced Heat Management
- AC100 ~ 240V(50/60Hz)
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Display
| Screen Size | 55″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.630 mm x 0.630 mm |
| Brightness | 700 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.06 B (10 Bit) |
| Response Time | < 8ms |
| Active Display area ( H x V ) | 1209.6 mm × 680.35 mm |
| Color Gamut | 72 % |
Interface
| DVI-D In | 1 |
| DP In | 1 |
| HDMI (1.4) In | 1 |
| HDMI (2.0) In / Out (Daisy Chain) | 1 / 2 |
| USB In (Upgrade) | 1 |
| RS-232 (RJ-45) In | 1 (Serial Control / IR Receiver) |
| RS-232 (RJ-45) Out | 1 (Serial Control) |
| Audio Out | 1 |
Support Refresh Rate
| HDMI 1 (1.4) In | 3840 x 2160 @ 30Hz |
| HDMI 2 (2.0) In / Out | 3840 x 2160 @ 60Hz |
| DP (1.2) In | 3840 x 2160 @ 50Hz |
| DVI-D In | 1920 x 1080 @ 60Hz |
Special Features
| Bezel Width – TOP and LEFT Side | 0.035” / 0.9 mm |
| Bezel Width – BOTTOM and RIGHT Side | 0.035” / 0.9 mm |
| Bezel Width – ACTIVE to ACTIVE AREA | 0.070” / 1.8 mm (Bezel to Bezel) |
| Advanced Anti-Image Residual Function | Support |
| Landscape or Portrait mode selectable | Support |
| Multi Window Display (PBP, PIP, Triple or Quad) | Support |
| Language | English, Spanish, French and Portuguese |
Dimensions & Weight
| Outline Dimension (W x H x D) | 47.72 x 26.89 x 4.69” / 1212.26 x 683.06 x 119.35 mm |
| Net Weight | 65.91 lb / 29.9 kg |
| Gross Weight | 88.18 lb / 40.0 kg |
Mount
| Vesa | 600 x ( 100 x 4 ) mm / M8 x L10 mm |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz |
| Power – Consumption | ≤ 180 W (Max) / 0.5 W (Standby) |
| Regulations | FCC(A), NDAA, RoHS |
| Operating Temperature | Humidity | 14 ~ 149°F / -10 ~ 65°C | 5 ~ 95% RH |
| Storage Temperature | 32 ~ 140°F / 0 ~ 60°C |
| Compatible Mounts – Wall | VZ-XMS, VZ-WM71 |
| Compatible Mounts – Ceiling | VZ-CMKiT-04, VZ-CMKiT-07 |
| Package Includes | Manual x 1, Power Cable x 1, HDMI Cable x 1, CAT5 Cable x 1, Converter (RJ45 to RS232) x 1, Remote Control x 1, IR Receiver x 1 |
Product Dimension & Weight
Click below to enlarge
