32″ IP PVM-N

product Description

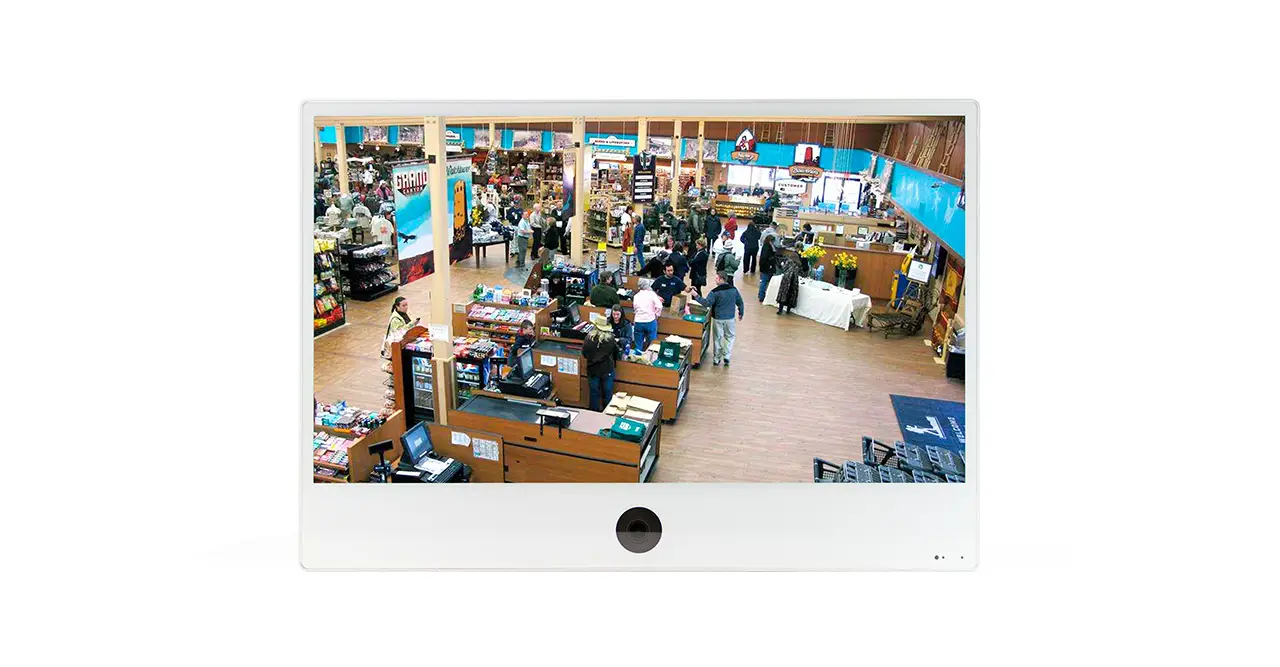

vzpvmi4w3n1
vzpvmi4w3n6
vzpvmi4b3n3
vzpvmi4b3n2
vzpvmi4w3n7
vzpvmi4w3n4
vzpvmi4b3n4

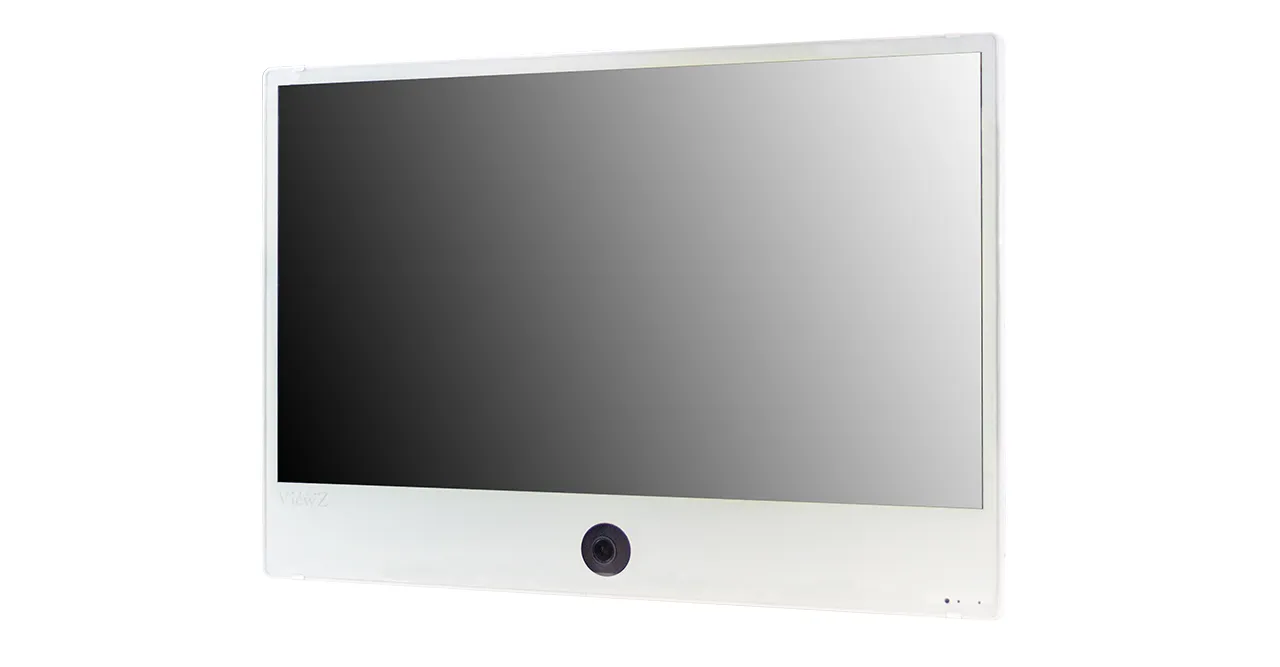

vzpvmi4w3n9
vzpvmi4w3n10
vzpvmi4w3n1 vzpvmi4w3n6 vzpvmi4b3n3 vzpvmi4b3n2 vzpvmi4w3n7 vzpvmi4w3n4 vzpvmi4b3n4 vzpvmi4w3n9 vzpvmi4w3n10

Full HD Resolution, Built-in 2MP IP Camera compatible with many leading VMS's and NVRs and packed with a long list of other great surveillance and digital signage featured

  • 32” Mega Pixel IP Full HD 1080p Resolution
  • Onvif Profile-S Compliant
  • Recording Available with Micro SD / People Count
  • PoE Protocol: IEEE 802.3 bt
  • NDAA Compliant
  • Protective Glass & IPS Panel for Wider Viewing Angle – 178°/178°
  • Camera Motion Sensor & Time Interval Based Source Switching
  • Auto Power / Source Recovery
  • Built-in 2 Mega Pixel Camera / 600 TV Line – Analog Video Resolution
  • BNC(NTSC/PAL), VGA, HDMI, RJ-45, Audio, DC 12V Out
  • 3D Comb-filter, De-interlace
  • Supports Dual Voltage (PoE and 24V DC)

Compatible Mounts & Accessories

Product Features

  • Model Number: VZ-PVM-I4 _ _ N
  • 32” Mega Pixel IP Full HD 1080p Resolution
  • Onvif Profile S Compliant
  • NDAA Compliant
  • Recording Available with Micro SD
  • People Count
  • PoE Protocol: IEEE 802.3 bt
  • Protective Glass / IPS Panel for Wider Viewing Angle – 178° / 178°
  • Auto Power / Source Recovery
  • Supports Dual Voltage (PoE and 24V DC)
  • Camera Motion Sensor & Time Interval Based Source Switching
  • Built-in 2 Mega Pixel Camera / 600 TV Line – Analog Video Resolution
  • BNC(NTSC/PAL), VGA, HDMI, RJ-45, Audio, DC 12V Out
  • 3D Comb-filter, De-interlace
  • “A” Commercial Grade LED
  • Built to run 24/7/365
  • 3-Year Warranty

Ordering Information : Parts #

Model Features Family Series Size Color Voltage
32″, Black, AC 110V / DC 24V VZ-PVM- I 4 B 3 N
32″, White, AC 110V / DC 24V VZ-PVM- I 4 W 3 N



  • Series: Z (HD PVM) , I (IP PVM)
  • Size: 1 (10inch) , 2 (23inch) , 3 (27inch) , 4 (32inch)
  • Color: B (Black) , W (White)
  • Voltage: 1 (AC110V) , 2 (AC24V), 3 (AC110V / DC24V), 4 (PoE)

Display

Screen Size 32″
Max Resolution 1920 x 1080 @60Hz
Pixel Pitch 0.36375mm x 0.36375mm
Brightness 250 cd/m²(Typical)
Contrast Ratio 4000 : 1
Aspect Ratio 16 : 9
Viewing Angle (H/V) 178°/178°
Display Color 16.7 Million
Response Time < 6.5 ms


Interface

AV (Composite) In 1
Camera (CVBS) Out 1
Micro SD In (Recording) 1
VGA In (15pin D-Sub) 1
HDMI In 1
Audio In/Out 1/1
Ethernet 10 / 100 (PoE) 1
DC12V Out (Camera Use) 1/1


IP Features

Ethernet Interface 10/100Base-T
Web Client Protocol TCP / IP
Supported Protocol TCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP


Special Features

People Count Support
Filter Type 3D Comb filter / De-Interlace
Blinking Message “Recording” Support
Timed Switching Capabilities between two cameras Yes
Multi-Lingual Language English, Spanish, French, German, Italian, Portuguese, Dutch


Dimensions

Outline Dimension (W x H x D) 28.86” x 20.01” x 2.17” / 733.2mm x 508.3mm x 55.3mm
Net Weight 33.06 lbs / 15.0 kg
Gross Weight 39.68 lbs / 18.0 kg


Mount

Vesa 200mm x 200mm / M6 x L8 Screws


Camera

Camera Type 2 Mega Pixel IP Camera
Image Sensor / Encoder Chipset SONY IMX307 / NT98520
Lens DC Auto Iris 2.8~12mm Vari-focal Lens
Total / Effect Pixel 1920(H) x 1080p(V) 30fps
Video Compression H.264 (Main profile), H.265, MJPEG, CBR, VBR
Video Out 1ch CVBS (NTSC/PAL) / 1ch RJ-45 output
Motion Detection Support
Ethernet Port 10 / 100 Base-T
Web Application Support IE 11, Firefox, Chrome, Edge
Network Protocol IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL
Integration Protocol ONVIF 2.6 (supported), SDK, CGI
Function 2D/3D NR, HLC/BLC, Defog, WDR, White Balance, Gain, Noise Reduction, Aisle Mode, Smart IR, Mirror, Privacy Masking, Digital Zoom, Day/Night (Auto ICR), True WDR, Removal Optical Filter
MAX. User Access 10 Users
Intelligent Detection Perimeter, Single Virtual Fence, Loiter, Converse,
Double Virtual Fences, Signal Bad
Recording Capacity TF Card (EXT4 format, MAX256G)
Recording Capacity (2MP – H.265 w/256G) 30fps (11 days) / 15fps (15 days)
Recording Capacity (2MP – H.264 w/256G) 30fps (5 days) / 15fps (7 days)


Media Card Reader - Optional Feature

Support Type Photo, Music, Video
External Storage Support SD/SDHC CARD, USB 2.0 HOST
Output VIDEO – HDMI(1080p) / AUDIO – L/R, HDMI
Video File Format RM,RMVB(RV30/RV40), VOB(MPEG-2), HDMOV, AVI(DviX, Xvid, MJPEG;MPEG-4 SP/ASP, H.264), DVIX, MPG (MPEG-1, MPEG-2), M4V, PMP, AVC, FLV, MP4 (MPEG-4 SP/ASP, H.264/H.263; Motion JPEG; H.265(720P)), DAT(MPEG-1), MPEG, MOV/MKV(MPEG-4 SP/ASP, H.264/H.263), TS (MPEG-2, H.264, Avs, Avs+), M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4
Video Resolution 1080P @60Hz
Audio File Format MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM
Image File Format JPEG, JPG, PNG, BMP
VIDEO Play Control AUTO, REPEAT, ZOOM, RESUME, TIME


General Summary

Transmitter – IR Remote Control Yes
Dual Voltage Power – Electrical Ratings PoE (48V DC) | 24V DC / 2A (AC110V-240V (with DC adaptor))
Power – Consumption ≤ 65 W
Warranty – Parts / Labor 3 Year / 3 Year
Operating Temperature 14 ~ 122°F / -10 ~ 50°C
Compatible Mounts – Wall VZ-AM02-A, VZ-WM05, VZ-WM50
Compatible Mounts – Ceiling VZ-CMKiT-01, VZ-CMKiT-02, VZ-CM308
Regulation FCC(A), CE, NDAA
