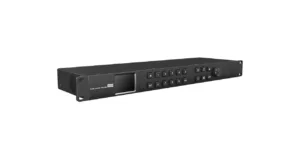

vzmv1602-4

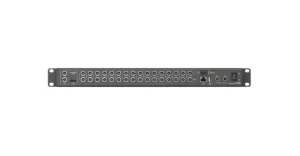

vzmv1602-3

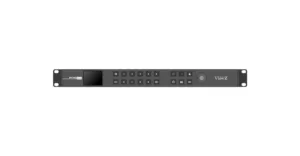

vzmv1602-1

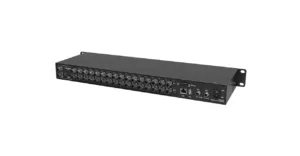

vzmv1602-2
vzmv1602-5
vzmv1602-4 vzmv1602-3 vzmv1602-1 vzmv1602-2 vzmv1602-5

16ch 3G-SDI Mutiviewer & Switcher

  • 16ch Multiviewer and 16×16 Matrix Switcher
  • 16 x SD/HD/3G-SDI Auto-detected Inputs
  • Full Screen and 20 Preset-Multiview Layouts with Clock Display
  • Multiviewer Mode SDI Compliance – SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 352M, SMPTE 296M
  • Multiviewer Mode SDI Color Space & Precision – YUV 4:2:2/4:4:4, RGB 4:4:4 (SDI Inputs), YUV 4:2:2 (SDI&HDMI Inputs)
  • Switcher Mode SDI Compliance – SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 372M, DVB-SDI
  • Switcher Mode SDI Color Space & Precision – YUV 4:2:2/4:4:4 10/12bit, RGB 4:4:4 10/12bit, XYZ 4:4:4 12bit
  • Time Code, UMD, Signal Status & Audio Meter Overlay
  • Dual Power Design
  • NDAA Compliant
  • Front Panel Buttons & Knob Control with LCD Display

Compatible Monitors, Mounts & Accessories

Product Features

  • Model Number: VZ-MV1602
  • Dual Modes : 16ch Multiviewer and 16×16 Matrix Switcher
  • 16 x SD/HD/3G-SDI Auto-detected Inputs
  • 2 x SDI & 1 x HDMI Multiview Scaling Outputs with Audio
  • Full Screen and 20 Preset-Multiview Layouts with Clock Display
  • Time Code, UMD, Signal Status & Audio Meter Overlay
  • Front Panel Buttons & Knob Control with LCD Display
  • Free PC Control S/W via Network, 16CH SDI Loop-through
  • Multiviewer Mode SDI Compliance – SMPTE 292M, SMPTE 259M, SMPTE 424M, SMPTE 352M, SMPTE 296M
  • Multiviewer Mode SDI Color Space & Precision -YUV 4:2:2/4:4:4, RGB 4:4:4 (SDI Inputs), YUV 4:2:2 (SDI&HDMI Inputs)
  • Switcher Mode SDI Compliance – SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 372M, DVB-SDI
  • Switcher Mode SDI Color Space & Precision – YUV 4:2:2/4:4:4 10/12bit, RGB 4:4:4 10/12bit, XYZ 4:4:4 12bit
  • Dual Power Design
  • NDAA Compliant

Multiviewer Mode - Input/Output Format

SDI In – HD 1920 x 1080p | 60,59.95,50,30,29.97,25,24,23.98
1920 x 1080psf | 30,29.97,25,24,23.98
1920 x 1080i | 60,59.94,50
1280 x 720p | 60,59.94,50,30,25
1280 x 720p | 30,29.97,25,24,23.98
SDI In – SD 625i / 50 | 525i / 59.94
SD, HDMI OUT 1920 x 1080p | 60,50,30,25,24
1080i / 60,50 | 720p / 60,50


Switcher Mode - Input/Output Format

SDI – 2K 2048 x 1080p | 30,29.97,25,24,23.98
2048 x 1080psf | 30,29.97,25,24,23.98
SDI – HD 1920 x 1080p | 60,59.95,50,30,29.97,25,24,23.98
1920 x 1080psf | 30,29.97,25,24,23.98
1920 x 1080i | 60,59.94,50
1280 x 720p | 60,59.94,50,30,25
1280 x 720p | 30,29.97,25,24,23.98
SDI – SD 625i / 50 | 525i / 59.94


Interface

SDI In / Out 16 / 16
HDMI Output (Multiview) 1
SDI Out (Multiview) 2
RJ45 (SW Control & Update) 1
RS422 (SW Control) 1
Power Connector 2


Dimensions & Weight

Outline Dimension (W x H x D) 17.45 x 5.27 x 1.73″ / 443.3 x 134 x 44 mm
Net Weight 4.4 lbs | 2 kg
Gross (with case) Weight 8.37 lbs | 3.8 kg


Mount

Server Chassis 1U (19″)


General Summary

Power – Electrical Ratings DC 12~24V, 5A
Power – Consumption ≤ 36W
Transmitter – IR Remote Control Yes
Operating Temperature 32 – 140°F / 0 – 60°C
Operating Humidity 0 ~ 90% RH
Storage Temperature -22 – 158°F / -30 – 70°C
Package Include 16ch Multiviewer x 1, Manual x 1, DC 12V 5A Power Adapter x 2
Regulations FCC (A), CE, NDAA


Product Dimension & Weight
