108” Full HD LED All-In-One Display
- 0.049”/1.25mm Pixel Pitch
- High Brightness & Contrast
- Multiple inputs and outputs interfaces available upon request HDMI, Line, USB or IP
- Supports a remote control to achieve various functions such as power on/off, screen switching, and menu settings
- Both the module board and the OPS computer support front maintenance, eliminating the need to reserve a maintenance passage
- Supports the NFC screen projection function, allowing you to project the screen from your mobile phone with just a touch
- The front lock connecting pieces are used to level the cabinets, making installation easy
- Modular Maintenance & IR Remote Controller
Specification | Dimension | Download
Series : LTAD | Key Features : LED Tile LED Display
Product Features
- Model Number: VZ-108LTAD-C
- 0.049”/1.25 1mm Pixel Pitch
- All-In-One Display
- Support Stand set
- High Brightness & Contrast
- Multiple inputs and outputs interfaces available upon request HDMI, Line, USB or IP
- Supports a remote control to achieve various functions such as power on/off, screen switching, and menu settings
- Both the module board and the OPS computer support front maintenance, eliminating the need to reserve a maintenance passage
- Supports the NFC screen projection function, allowing you to project the screen from your mobile phone with just a touch
- The front lock connecting pieces are used to level the cabinets, making installation easy
- Modular Maintenance & IR Remote Controller
Display
| LED Type | COB |
| Pixel Pitch | 0.049″ x 0.049″ / 1.25 mm x 1.25 mm |
| Brightness | 600 cd/m² (Typical) |
| Display Size | 2400 x 1350 |
| Max Resolution | 1920 x 1080 @3840Hz |
| Viewing Angle (H/V) | 160°/160° |
| Contrast Ratio | 20,000 : 1 |
| Gray Scale Processing | 14 bit |
| Pixel Density | 640,000 dots/m² |
| Color Temperature (K) | 6,500 K |
Interface
| HDMI In / Out | 1 / 1 |
| Line Out | 1 |
| SPDIF Out | 1 |
| USB | 4 |
| Ethernet (RJ-45) | 1 |
Built-In System
| CPU | 4 x A55 |
| GPU | Mali-G52 |
| System Ver. | Android OS 11.0 |
| RAM | 4 GB |
| ROM | 32 GB |
Dimensions & Weight
| Dimension (W x H x D) | 95.03 x 89.25 x 33.85” / 2414 x 2267 x 860 mm |
| Net Weight | TBD |
General Summary
| Power – Electrical Ratings | AC 100-240V, 50/60Hz |
| Power – Consumption | 1300 W/m2 (Avg) |
| Maintenance Mode | Front Maintenance |
| Stand | Support |
| Operating Temperature | 14 ~ 104°F / -10 ~ 40°C |
| Operating Humidity | 10 ~ 80% Non-Condensing |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Storage Humidity | 10 ~ 85% Non-Condensing |
| Accessories | 110V AC Power Cable x1, Remote Control x1, Quick Start Guide x1, Remote Control x1, Wireless Screen Casting Device x1, Wall-Mounted Bracket x1 |

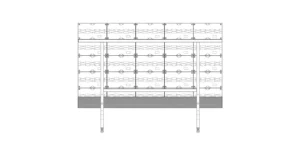

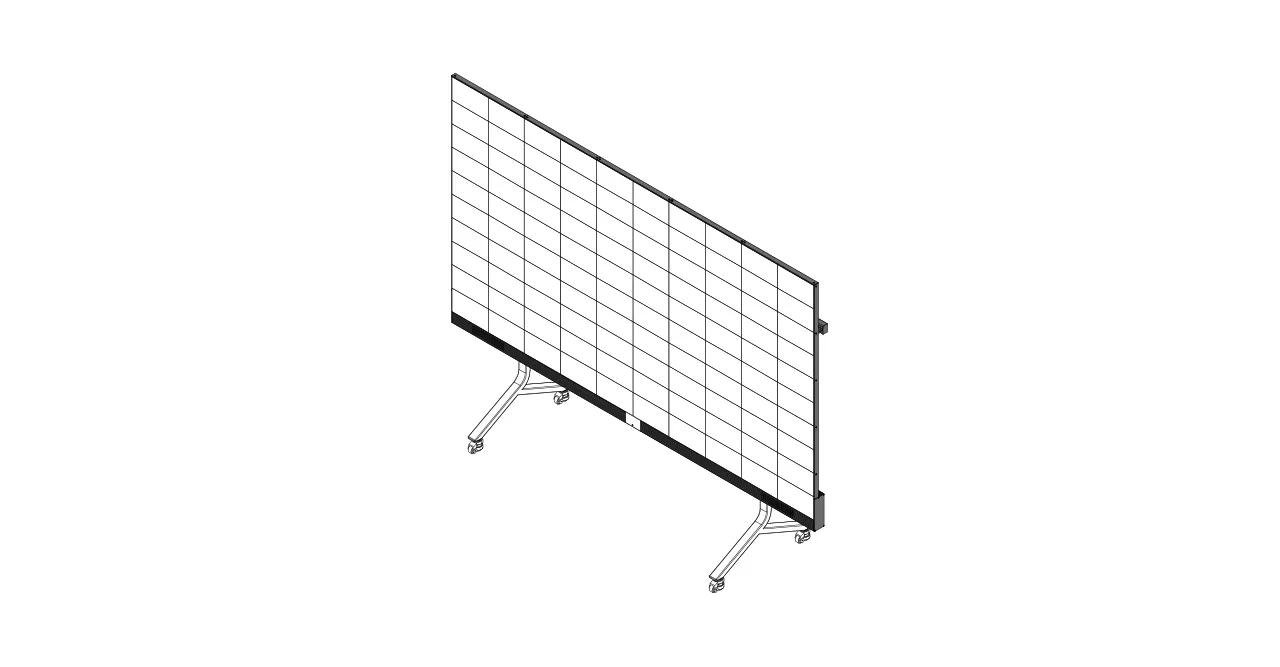

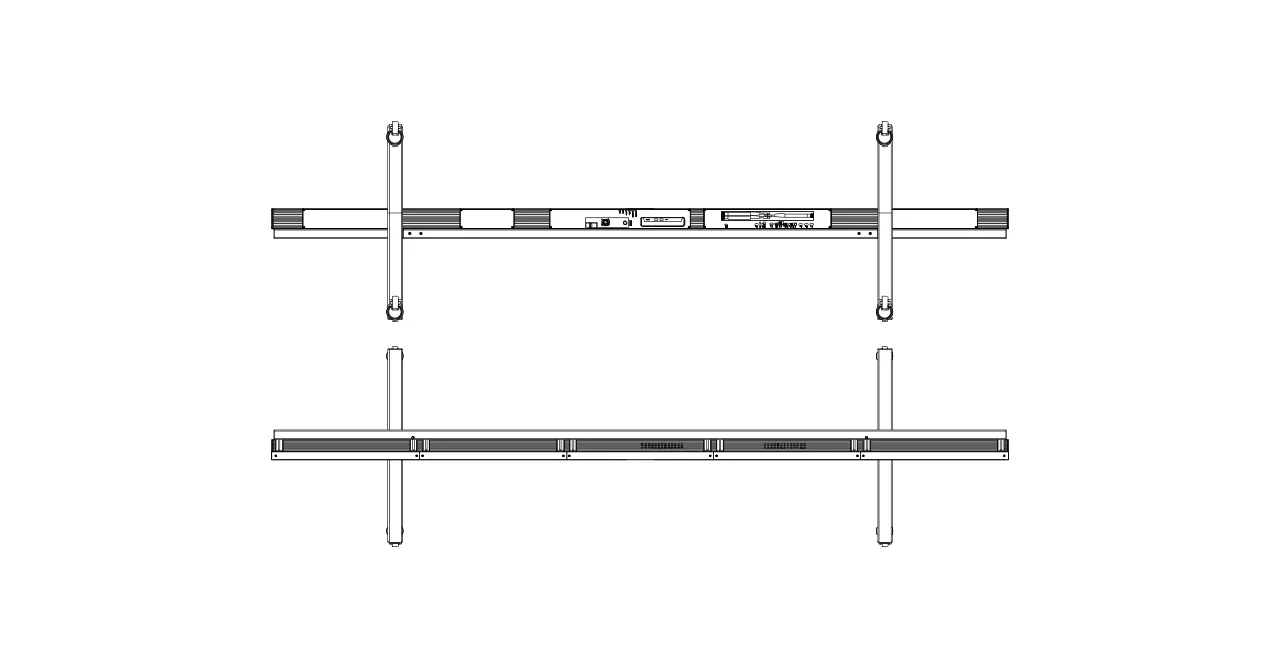

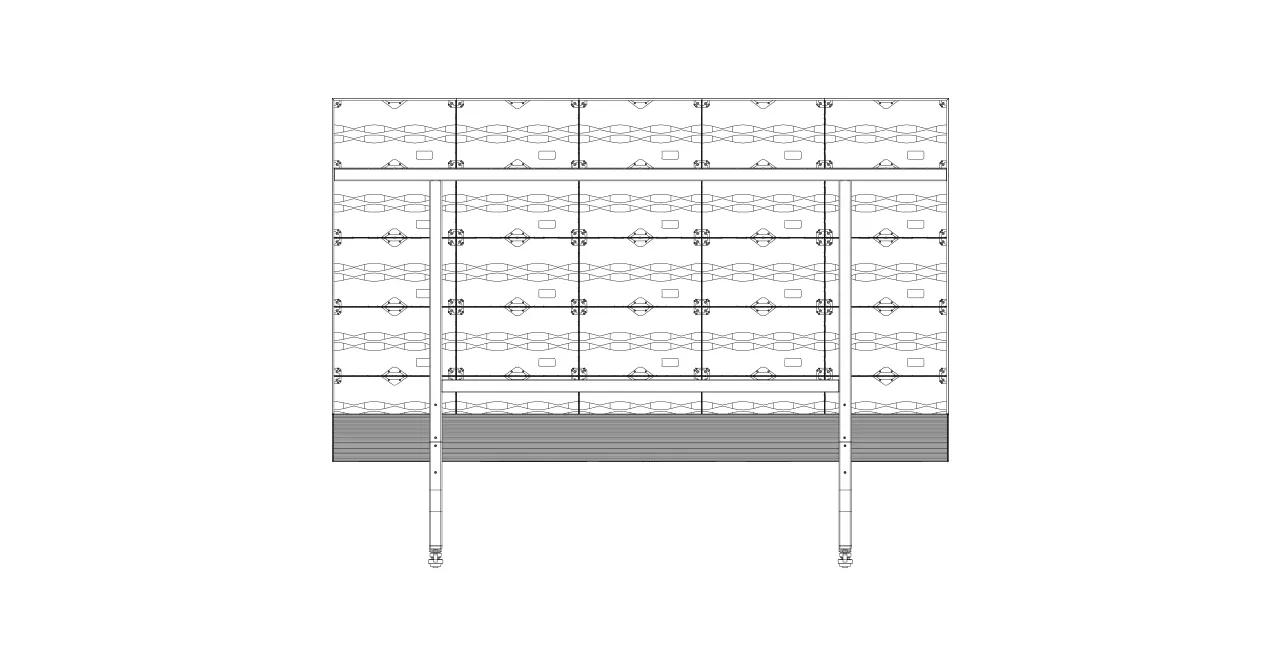

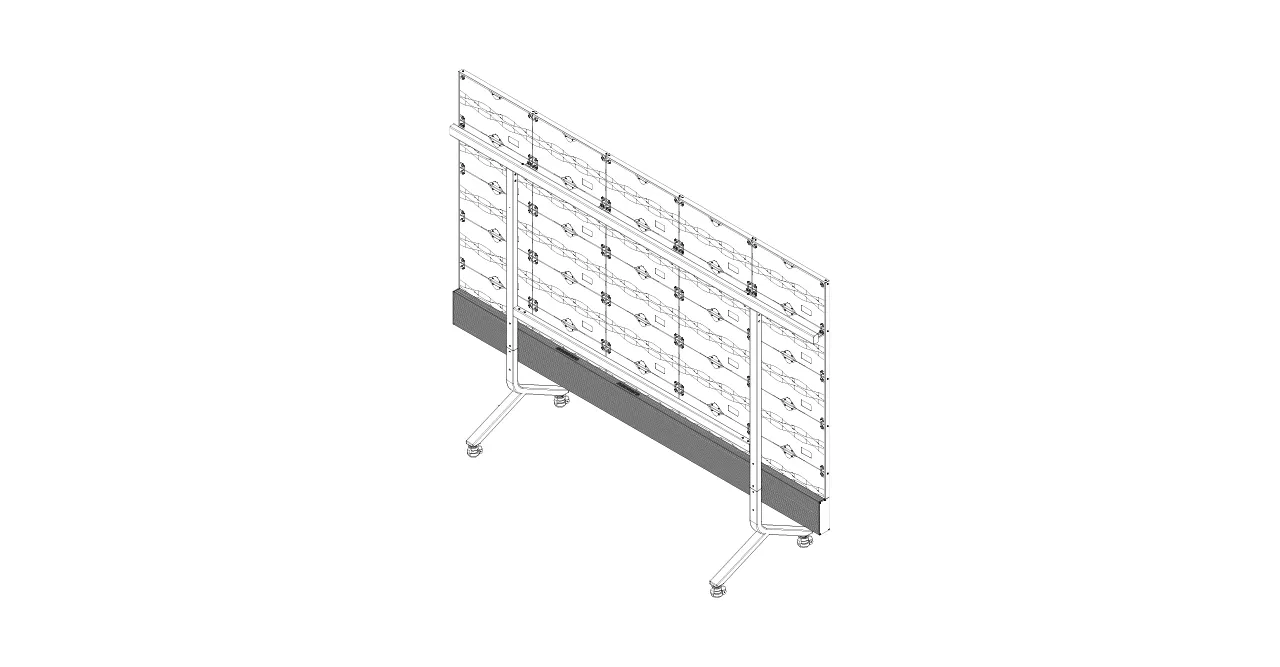

Product Dimension & Weight
Click below to enlarge
