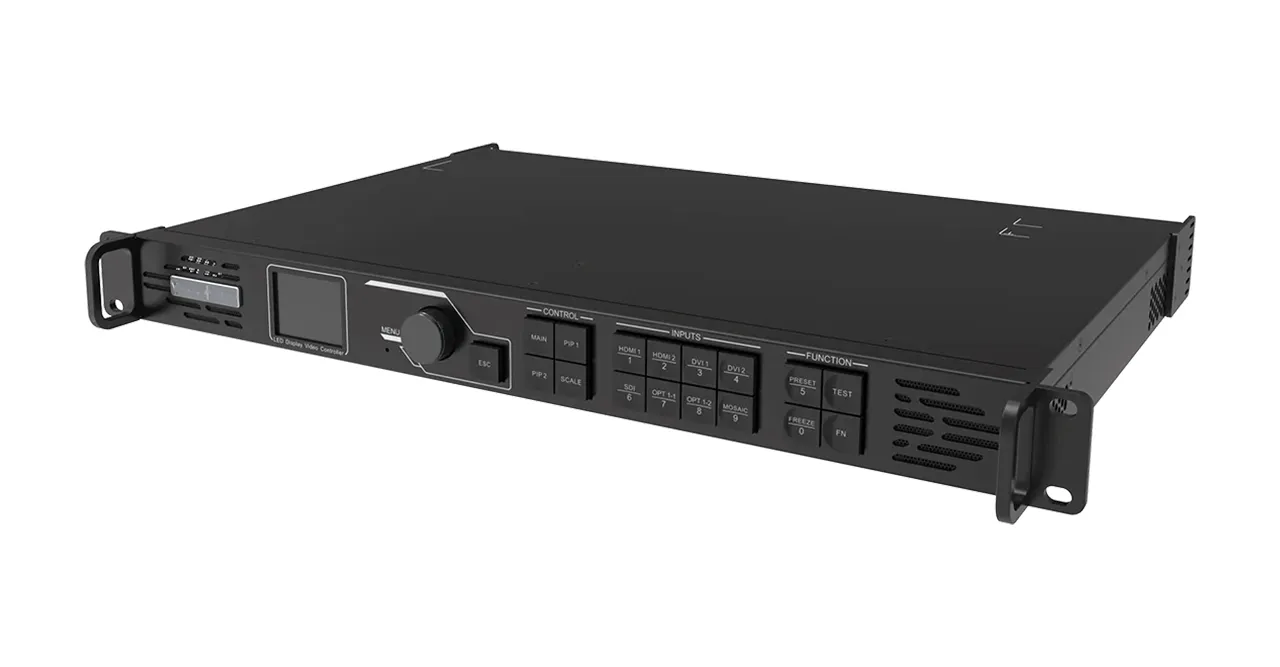

The VZ-SB1000 is ViewZ’s new all-in-one controller that conveniently integrates video processing and video control all into one box. It features 10 Ethernet ports and it supports video controller, fiber converter, and bypass working modes. One VZ-SB1000 unit can drive up to 6.5 million pixels, with a maximum output width and height up to 10,240 pixels and 8,192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screen applications.
- 6.5M pixels (HDMI 1.4 / DVI / 3G-SDI + Loop, 10G OPT)
- 3G-SDI (Loop-through), HDMI 1.3 (Loop-through), DVI (Loop-through) & OPT (Loop-through)
- 3 Independent Layers – 1 x (4K x 1K) @60 Hz
- Full Screen and 10 User-Defined Presets
- Front Panel Buttons & Knob Control with LCD Display
- Pixel to Pixel, Full Screen and Custom Scaling
- All-Round Color Adjustment – Input Source & LED Screen Color Adjustment Supported – Brightness, Contrast, Saturation, Hue & Gamma
- 3 Working Mode – Video Controller, Fiber Converter & Bypass
- Pixel Level Brightness & Chroma Calibration
- Mosaic Input Source – Cascaded for Image Mosaic Upto 4 Units
- Low Latency
Specification | Dimension | Spec & Manual
Series : SB | Key Features : Video Wall Controller
Compatible LED Module & Accessories
Product Features
- Model Number: VZ-SB1000
- 6.5M pixels (HDMI 1.4 / DVI / 3G-SDI + Loop, 10G OPT)
- 3G-SDI (Loop-through), HDMI 1.3 (Loop-through), DVI (Loop-through) & OPT (Loop-through)
- 3 Independent Layers – 1 x (4K x 1K) @60 Hz
- Full Screen and 10 User-Defined Presets
- Front Panel Buttons & Knob Control with LCD Display
- Pixel to Pixel, Full Screen and Custom Scaling
- All-Round Color Adjustment – Input Source & LED Screen Color Adjustment Supported – Brightness, Contrast, Saturation, Hue & Gamma
- 3 Working Mode – Video Controller, Fiber Converter & Bypass
- Pixel Level Brightness & Chroma Calibration
- Mosaic Input Source – Cascaded for Image Mosaic Upto 4 Units
- Low Latency
- Built to run 24/7/365
- 3 year Warranty
Video Format
| HDMI 1.4, DVI, OPT 1 / 8bit / RGB 4:4:4 | 3840×2160 @60Hz (Standard) |
| HDMI 1.4, DVI, OPT 1 / 8bit / YCbCr 4:4:4 | 3840×2160 @60Hz (Custom) |
| HDMI 1.4, DVI, OPT 1 / 8bit / YCbCr 4:2:2 | 3840×2160 @60Hz (Forced) |
| HDMI 1.4, DVI, OPT 1 / 8bit / YCbCr 4:2:0 | Not Support |
| HDMI 1.4, DVI, OPT 1 / 10/12bit | Not Support |
| 3G-SDI | Max. Input Resolution: 1920×1080@60Hz |
| 3G-SDI / ST-424 (3G) | Support |
| 3G-SDI / ST-292 (HD) | Support |
| 3G-SDI / ST-259 (SD) | Support |
Interface
| 3G-SDI In / Out | 1 / 1 |
| Genlock In / Out | 1 / 1 |
| HDMI 1.4 In / Out | 1 / 1 |
| HDMI 1.4 In | 1 |
| HDMI 1.3 Out | 1 |
| DVI (HDMI 1.4) In / Out | 1 / 1 |
| DVI (HDMI 1.4) In | 1 |
| Ethernet (RJ-45) Out | 10 |
| Ethernet (RJ-45) In | 1 (Control) |
| OPT In / Out | 1 / 1 |
| USB In | 1 (Type-A) / 1 (Type-B) |
Dimensions & Weight
| Dimensions ( W x D x H ) | 19” x 13.82” x 1.97” / 482.6 x 351.2 x 50.1 mm |
| Net Weight | 8.81 lbs / 4.0 kg |
| Gross Weight | 13.88 lbs / 6.3 kg |
Mount
| Server Chassis | 1U (19”) |
General Summary
| Power – Electrical Ratings | AC 100 ~ 240V, 50/60 Hz / 1.5 A |
| Power – Consumption | 28 W |
| Operating Temperature | 14 ~ 140°F / -10 ~ 60°C |
| Operating Humidity | 20% ~ 90% RH |
| Operating Temperature | -4 ~ 158°F / -20 ~ 70°C |
| Operating Humidity | 10% ~ 95% RH |
| Regulations | FCC(A), CE, RoHS |
| Accessories | Power Cable x1, Ethernet x1, USB Cable x1, HDMI to DVI Cable x1, HDMI Cable x1, DAC Cable x1, Manual x1 |
Product Dimension & Weight
Click below to enlarge
