IFX 2.9mm Indoor Fixed LED

product Description

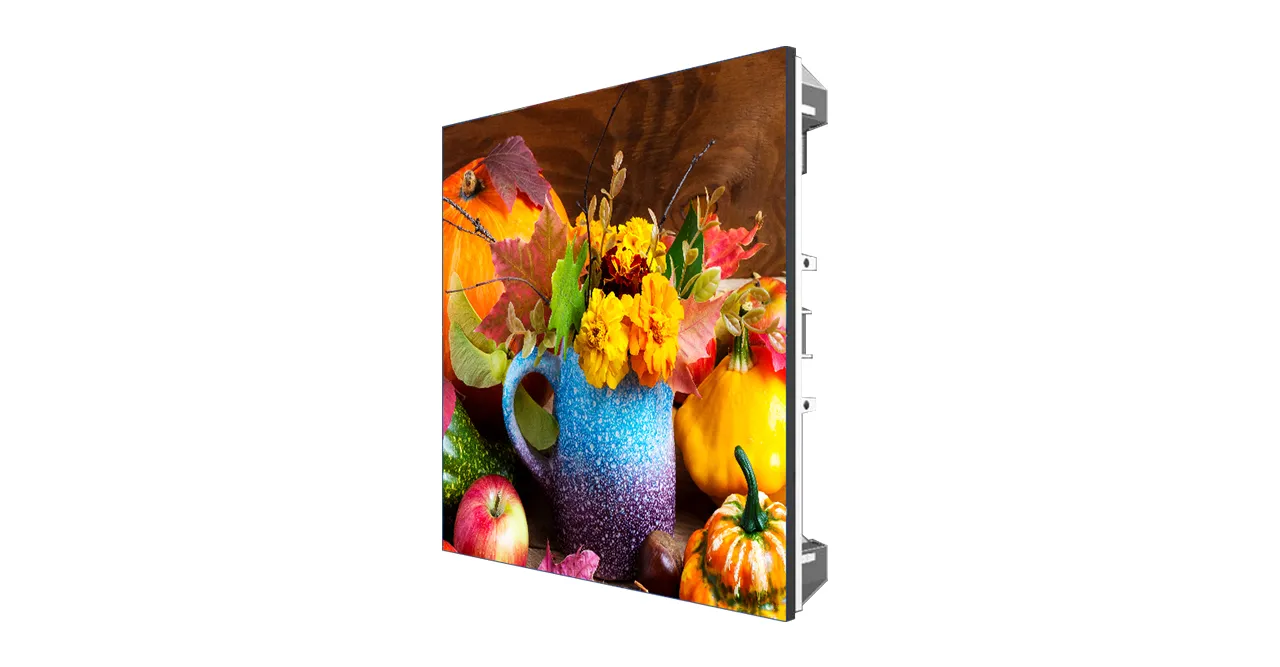

vzifx2829-1
vzifx2829-1

28” Square Type & Wall Mount Available LED Module

  • 0.11”/2.9mm Pixel Pitch
  • High Visual Uniformity
  • Vivid Color Display (HDR Processing)
  • Clearly Visible under Low Brightness
  • Delicate & Smooth Video
  • Higher Reliability – Optional Power & Data Redundancy
  • Convenient Maintenance
  • Front/Rear Maintenance & Industrial Grade LED Module
  • 3-Year Warranty

Specification | Dimension | Download

Series : IFX | Key Features : LED Module Indoor LED

Product Features

  • Model Number: VZ-IFX2829
  • 0.11”/2.9mm Pixel Pitch
  • High Visual Uniformity – Pixel by pixel calibration technology eliminates the difference in brightness & chromaticity within & between panels, improves the uniformity of display
  • Vivid Color Display (HDR Processing) – HDR processing technology enhances image quality & vivid color display
  • Clearly Visible under Low Brightness – High grayscale level under low brightness ensures the detail of the image are clearly visible
  • Delicate & Smooth Video – 3840 Hz high refresh rate eliminates streaks on the screen, enhances the clarity & contrast of the image, making the video picture delicate and smooth
  • Higher Reliability – Optional Power & Data Redundancy
    Optional dual receiving cards & dual power supply, the product ensures continuity of information transmission without power or signal loss, particularly for control room & studio scenarios
  • Convenient Maintenance – Fast front & rear maintenance of module & power box
  • Front/Rear Maintenance & Industrial Grade LED Module
  • 28” Square Type & Wall Mount Available
  • 3-Year Warranty

Display

LED Type SMD
Pixel Pitch 0.11” x 0.11” / 2.9 mm x 2.9 mm
Brightness 800 cd/m² (Typical)
Module Resolution 84 x 84 @3840Hz
Cabinet Resolution 168 x 168 @3840Hz
Viewing Angle (H/V) 160°/140°
Contrast Ratio 5000 : 1
Gray Scale Processing 14 bit
Video System NTSC / PAL
Control System / Receiving Card Novastar A5s Plus
Driver IC Chipone ICN2153 PWM


Dimensions & Weight

Module Dimension (W x H) 9.84″ x 9.84″ / 250 mm x 250 mm
Cabinet Dimension (W x H x D) 19.68″ x 19.67″ x 2.75″ / 500 mm x 500 mm x 70 mm
Net Weight (Cabinet) 15.43 lbs / 7 kg


General Summary

Power – Electrical Ratings AC 100-240V, 50/60Hz
Power – Consumption 164 W/m2 (Avg) / 490 W/m2 (Max)
Maintenance Mode Front / Rear Maintenance
Regulations FCC(A), CE, RoHs
Protection Level IP30
Cabinet Material Die-Cast Aluminum


Product Dimension & Weight
