10″ HD PVM-N

product Description
vzpvmz1w5n10
vzpvmz1w5n18
vzpvmz1w5n19
vzpvmz1w5n14
vzpvmz1w5n12
vzpvmz1w5n13
vzpvmz1w5n17
vzpvmz1w5n15
Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image... Loading image...

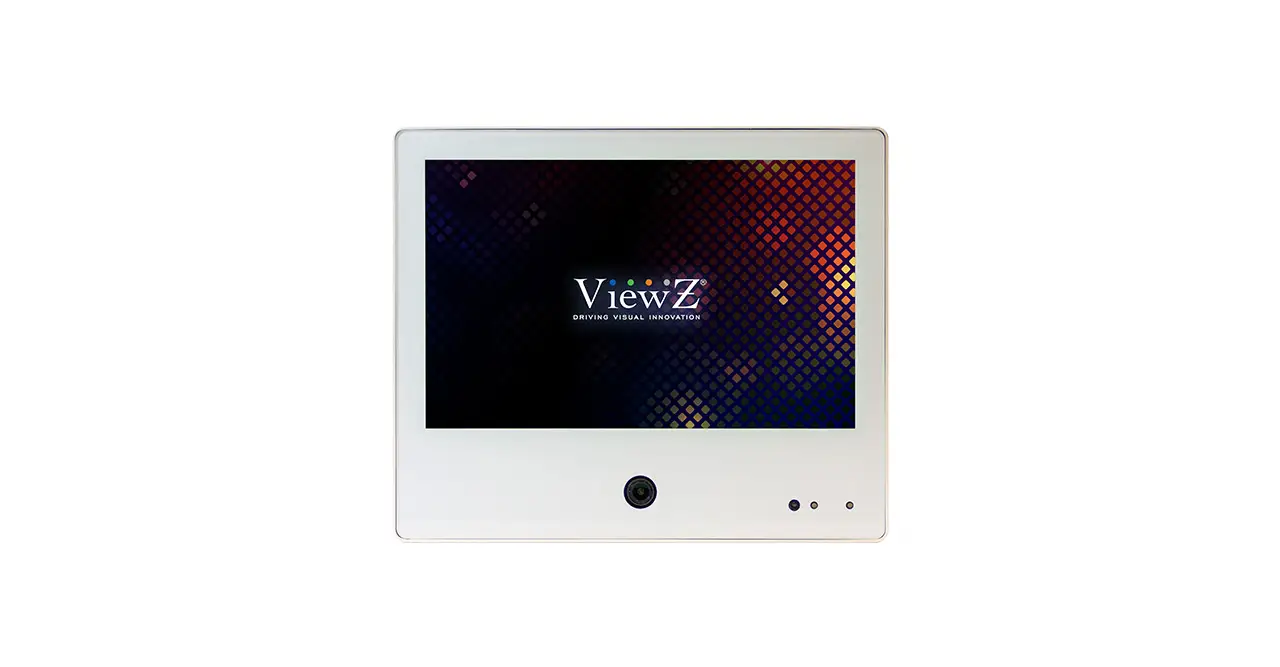

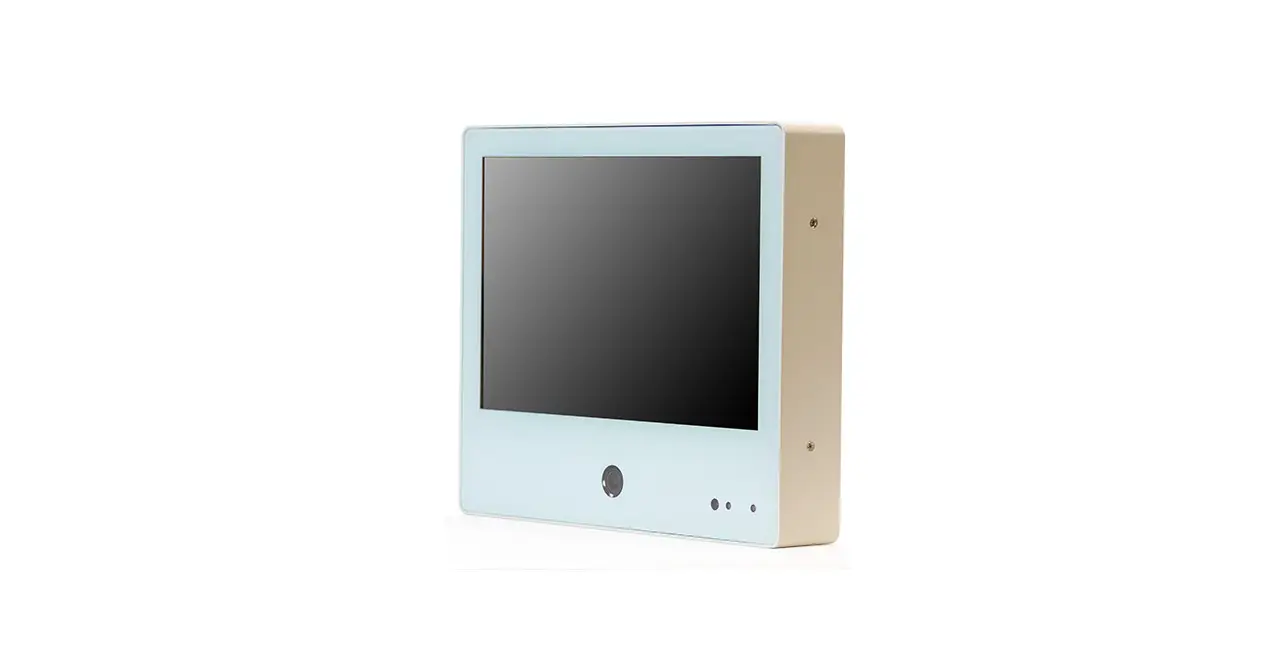

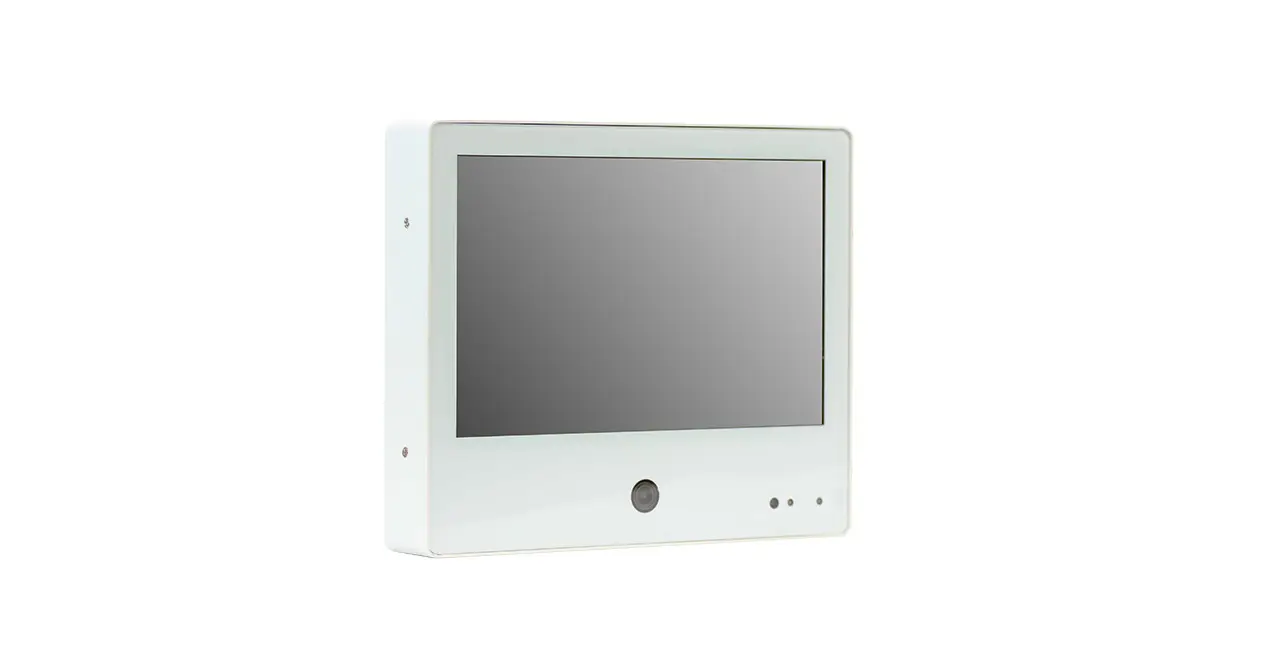

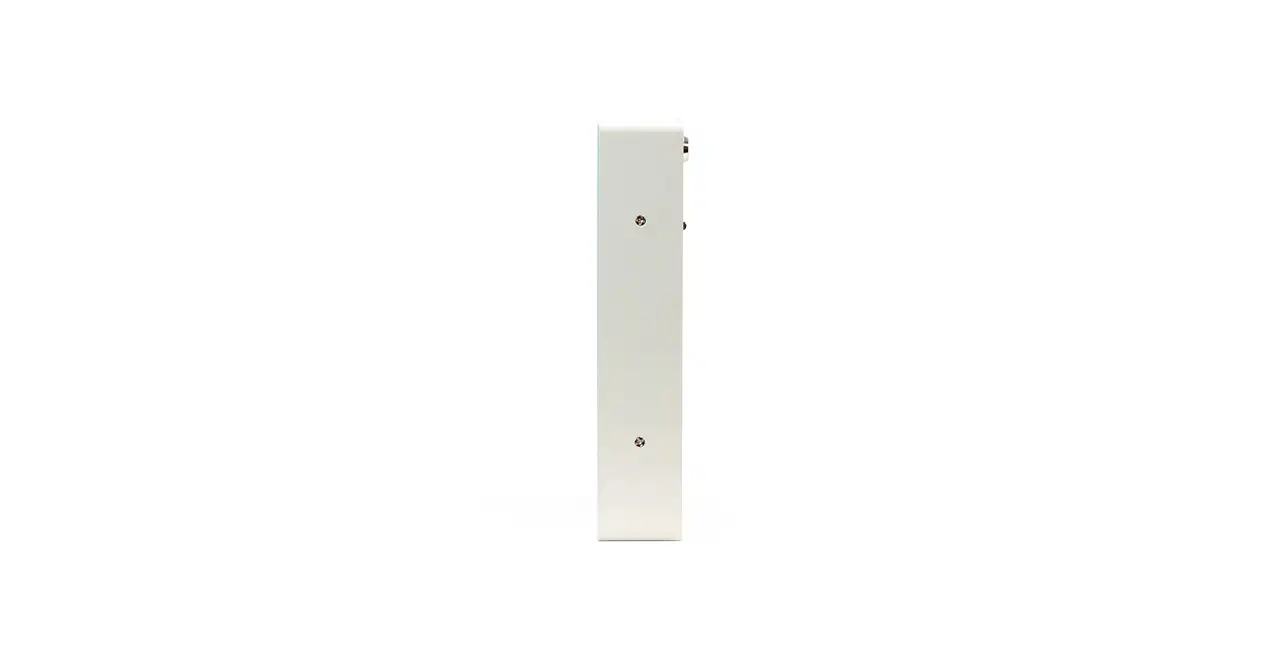

Public View Monitor with HD Resolution

  • 10.1” HD Public View Monitor
  • Video Loss / Door Open Alarm
  • Camera Motion Sensor
  • Blinking Indicator LED (Blue, Red, Purple)
  • Blinking Message “Recording”
  • Auto Power & Source Recovery
  • DC 12V / Built-in 2 Mega Pixel Camera / 960 TV Line – Analog Video Resolution

Compatible Mounts & Accessories

Product Features

  • Model Number: VZ-PVM-Z1W5N
  • 10.1” HD Public View Monitor
  • Built-in 2 Mega Pixel Camera / 960 TV Line – Analog Video Resolution
  • “A“ Commercial Grade LED
  • Blinking Indicator LED (Blue, Red, Purple)
  • Blinking Message “Recording”
  • Camera Motion Sensor
  • Video Loss / Door Open Alarm
  • Auto Power & Source Recovery
  • 3-Year Warranty
  • DC 12V

Display

Screen Size 10.1″
Max Resolution 1280 x 800 @60Hz
Pixel Pitch 0.1695 mm x 0.1695 mm
Brightness 300cd/m²(Typical)
Contrast Ratio 1000 : 1
Aspect Ratio 16 : 10
Viewing Angle (H/V) 170°/170°
Display Color 16.7 Million
Response Time < 25ms


Interface

Camera (CVBS) Out 1
SD Card In 1


Dimensions & Weight

Outline Dimension (W x H x D) 9.88” x 8.31” x 1.80” / 251.2 x 211.2 x 45.9 mm
Net Weight 4.62 lbs / 2.1 kg
Gross Weight 7.05 lbs / 3.2 kg


Mount

Vesa 100 mm x 100 mm / M4 x L10 Screws


Audio

Built in speaker 2W x 2


Camera

Camera Type 2 Mega Pixel Camera
Lens 2.8 mm Fixed Lens
Total / Effect Pixel 1920(H) x 1080p(V) 30fps
Video Out CVBS (960H) / 1.0 Vp-p Composite (75Ω)
Motion Detection Support
Image Sensor / Encoder Chipset 1/2.8” CMOS MN34227 / Nextchip NVP2440
Function 2D/3D NR, HLC/BLC, Defog, D/N, DWDR, AGC, AES, AWB, Privacy Masking (4 zone)
Min Illumination Color:1.0 lux, BW: 0.5 lux, Color: DSS:0.017 lux, BW DSS:0.0008 lux


Media Card Reader

Support Type Photo, Music, Video
External Storage Support SD CARD (Max.64GB), USB (2TB)
Video File Format RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4
Video Resolution 1080P @60Hz
Audio File Format MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM
Image File Format JPEG, TIF, PNG, BMP


General Summary

Transmitter – IR Remote Control Yes
Power – Electrical Ratings DC 12V, 2A
Power – Consumption 12 W
Warranty – Parts / Labor 3 Year / 3 Year
Operating Temperature 32 – 104°F / -10 – 50°C
Operating Humidity 5% – 90%RH
Regulation CE, FCC(A), RoHS
Compatible Mounts – Wall VZ-WM05, VZ-WM11, VZ-AM01, VZ-SCM, VZ-SM01


Product Dimension & Weight

Click below to enlarge
product Details
