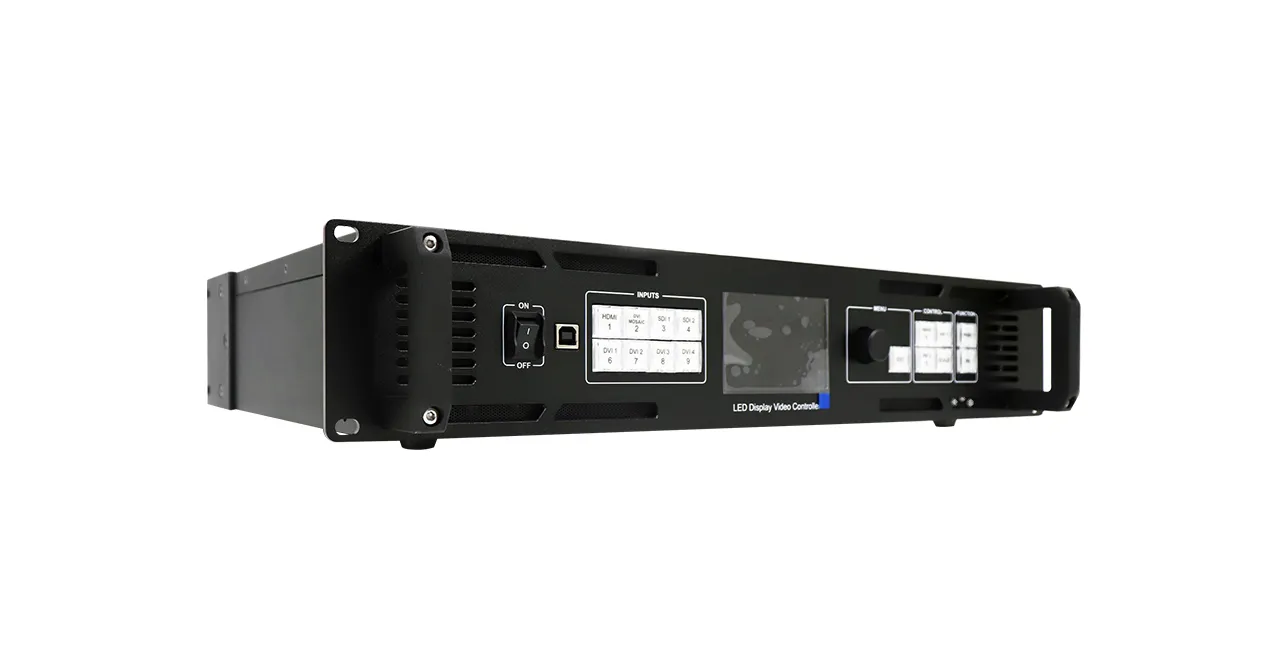

The VZ-SB165 is ViewZ’s new all-in-one controller that integrates video processing, video control and LED screen configuration into one unit. Together with ViewZ’s V-Can video control software, it enables richer image mosaic effects and easier operations. The VZ-SB165 supports a variety of video signals, Ultra HD 4K×2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels. Thanks to its powerful image processing and sending capabilities, the VZ-SB165 can be widely used in applications such as stage control systems, conferences, events, exhibitions, high-end rental and fine-pitch displays.
- 3G-SDI x2, HDMI 2.0 x1, SL-DVI x4 Inputs
- 3 Independent Layers – 1 x (4K x 2K) Main Layers, 2 x (2K x 1K) PIP (PIP 1 & PIP 2), Adjustable Layer Priorities
- Full Screen and 10 Preset-Multiview Layouts
- DVI Mosaic Overlay
- Front Panel Buttons & Knob Control with LCD Display
- Pixel to Pixel, Full Screen and Custom Scaling
- Decimal Frame Rate – 23.98 Hz, 29.97 Hz, 47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz
- EDID Management – Custom & Standard
- Device Backup Design – when signal is lost from primary input, the backup input will be simultaneously replaced
Specification | Dimension | Spec & Manual
Series : SB | Key Features : 4K Support Video Wall Controller
Compatible LED Module & Accessories
Product Features
- Model Number: VZ-SB165
- 3G-SDI x2, HDMI 2.0 x1, SL-DVI x4 Inputs
- 3 Independent Layers – 1 x (4K x 2K) Main Layers, 2 x (2K x 1K) PIP (PIP 1 & PIP 2), Adjustable Layer Priorities
- Full Screen and 10 Preset-Multiview Layouts
- DVI Mosaic Overlay
- Front Panel Buttons & Knob Control with LCD Display
- Pixel to Pixel, Full Screen and Custom Scaling
- Decimal Frame Rate – 23.98 Hz, 29.97 Hz, 47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz
- EDID Management – Custom & Standard
- Device Backup Design – when signal is lost from primary input,
the backup input will be simultaneously replaced - Built to run 24/7/365
- 3 year Warranty
Video Format
| HDMI 2.0 / 8bit / RGB 4:4:4 | 3840×2160 @60Hz |
| HDMI 2.0 / 8bit / YCbCr 4:4:4 | 3840×2160 @60Hz |
| HDMI 2.0 / 8bit / YCbCr 4:2:2 | 3840×2160 @60Hz |
| HDMI 2.0 / 8bit / YCbCr 4:2:0 | Not Support |
| HDMI 2.0 / 8bit / RGB 4:4:4 | 3840×2160 @60Hz |
| HDMI 2.0 / 8bit / YCbCr 4:4:4 | 3840×2160 @60Hz |
| HDMI 2.0 / 8bit / YCbCr 4:2:2 | 3840×2160 @60Hz |
| HDMI 2.0 / 8bit / YCbCr 4:2:0 | Not Support |
| SL-DVI / 8bit / RGB 4:4:4 | 1920×1080@60Hz |
| 3G-SDI | Max. Input Resolution: 1920×1080@60Hz |

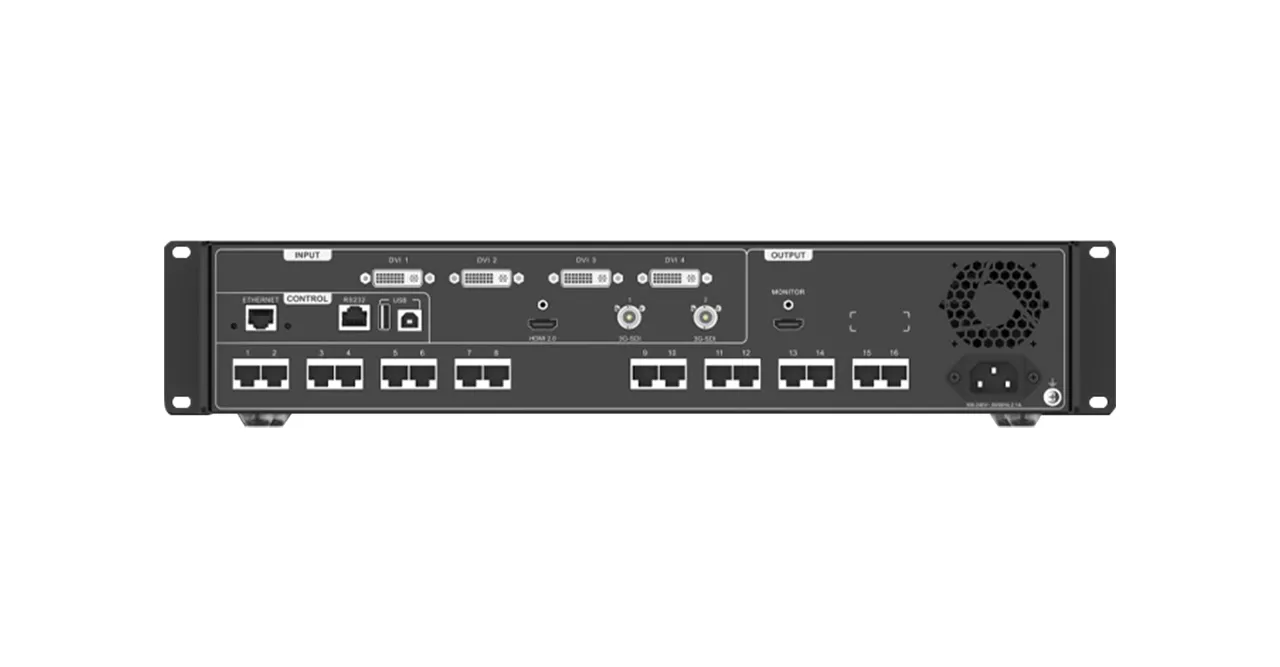

Interface
| 3G-SDI In | 2 |
| HDMI 2.0 In / Out | 1 / 1 |
| DVI In | 4 |
| Ethernet (RJ-45) Out | 16 |
| Ethernet (RJ-45) In | 1 (Control) |
| RS 232 In | 1 (Control) |
| USB In | 1 (Type-A) / 2 (Type-B) |
Dimensions & Weight
| Dimensions ( W x D x H ) | 19” x 14.66” x 3.72” / 482.6 x 372.5 x 94.6 mm |
| Net Weight | 4.4 lbs / 6.22 kg |
| Gross Weight | 8.37 lbs / 9.37 Kg |
Mount
| Server Chassis | 1U (19”) |
General Summary
| Power – Electrical Ratings | AC 100 ~ 240V, 50/60 Hz / 2.1 A |
| Power – Consumption | 70 W |
| Operating Temperature | 32 ~ 122°F / 0 ~ 50°C |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Operating Humidity | 20% ~ 85% RH |
| Storage Humidity | 10% ~ 85% RH |
| Regulations | FCC(A), CE, RoHs |
| Accessories | Power Cable x1, Ethernet x1, USB Cable x1, DVI Cable x1, HDMI Cable x1, Manual x1 |

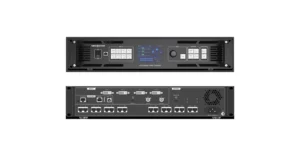

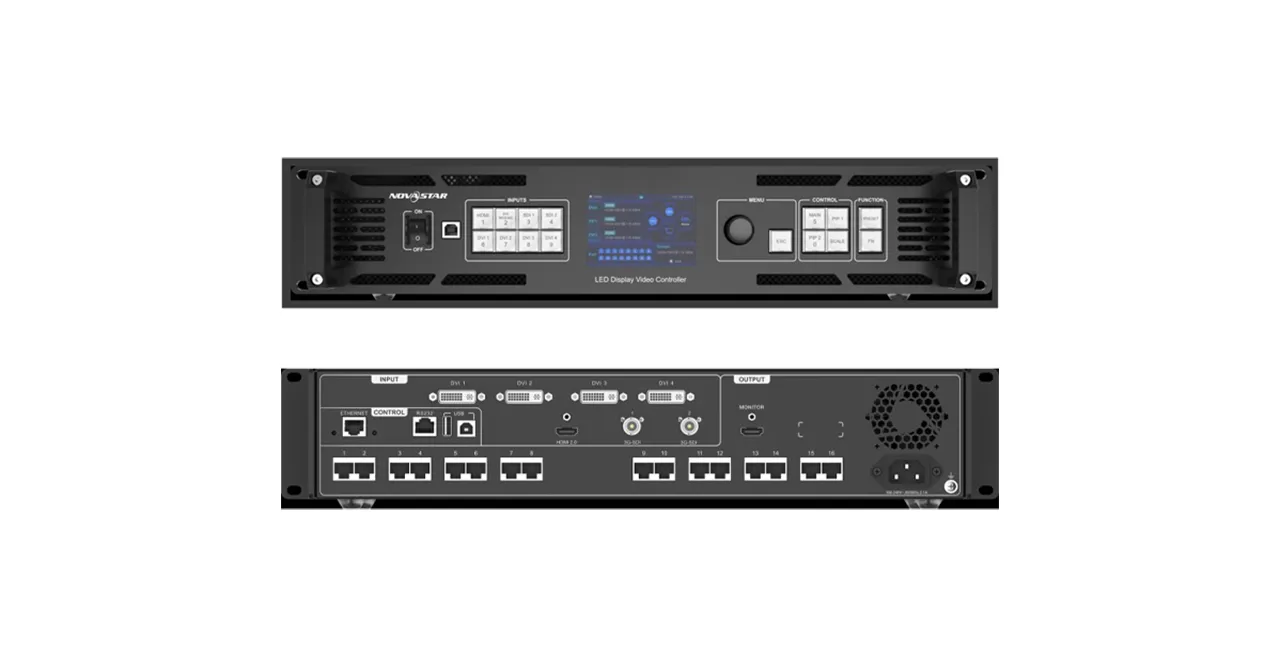

Product Dimension & Weight
Click below to enlarge
