75`` Outdoor Totem LCD Display
- IP 66 Weather-proof Outdoor Totem Monitor
- 3000 nit Industry Grade Panel & Anti-Glare Glass
- Support Preset Schedule, Scheduled On/Off & User Management
- Built-in Light Sensor & High Temperature Resistance
- Built-in Android 14 with Free Cloud Based CMS
- 6mm AG Vandal Proof Tempered-Glass
- Support 10 (PCAP) Points Touch Interactive Panel (Option)
Specification | Dimension | Download
Series : OIP-T | Key Features : Outdoor LCD Monitor | Outdoor Totem LCD Monitor
Product Features
- Model Number: VZ-75OIP-T
- 75” Outdoor Totem 4K Digital Signage Monitor
- IP 66 Weather-proof Outdoor Totem Monitor
- 3000 nit Industry Grade Panel & Anti-Glare Glass
- Built-in Android 14 with Free Cloud Based CMS
- Vandal-proof IK10 Level Protection
- Support Preset Schedule, Scheduled On/Off & User Management
- Convenient and Efficient Remote Control & System Management
- Built-in Light Sensor & High Temperature Resistance
- Slim Body, Internal Lock, Unified Backend Management
- 6mm AG Vandal Proof Tempered-Glass
- Support 10 (PCAP) Points Touch Interactive Panel (Option)
- Windows OS (Option)
- Support Multiple Media Formats (Built-in Media Player) – Images, Videos, Webpages, Text, Database, MS Office Files & etc
- Auto Source & Power Recovery
- NDAA Compliant, Built-to Run 24/7/365, 2-Years Limited Warranty
Display
| Resolution | 3840 x 2160 @60Hz |
| Active Area | 1651 x 930 mm |
| Brightness | 3000 cd/m² (Typical) |
| Aspect Ratio | 16 : 9 / 9 : 16 |
| Viewing Angle (H/V) | 178° / 178° |
| Display Colors | 16.7 M |
| Contrast Ratio | 1200:1 |
OPERATION SYSTEM - GOOGLE ANDROID
| Operating System | Android 14 |
| CPU | Rockchip® RK3576 |
| ROM / RAM | 32G / DDR3 4G |
| Network | WIFI / RJ45 (LAN) |
OPERATION SYSTEM INTERFACE - GOOGLE ANDROID
| RJ-45 (Ethernet) 10/100 In | 1 |
| TF Card In / Audio Out | 1 / 1 |
| HDMI In | 1 |
| USB In | 2 |
OPERATION SYSTEM (OPTION) - WINDOW OS
| Operating System | Window 11 |
| CPU | Intel® Core™ i3 11th Generation |
| RAM / SSD | DDR3 16G / SSD 512G |
| Network | WIFI / RJ45 (LAN) |
OPERATION SYSTEM (OPTION) INTERFACE - WINDOW OS
| RJ-45 (Ethernet) 10/100 In | 1 |
| HDMI In | 1 |
| USB In | 3 |
OPERATION SYSTEM (OPTION) - HDMI MODEL
| HDMI Processor | TV53 / 4K03 |
Special Features
| Touch (Option) Sensor Type | PCAP touch (G+G/G+F/G+FF) |
| Touch Infrared Touch | 10 Points |
| Response Time | ≤ 10m-sec |
| IP Rating | IP 66 |
| Protection Glass | 6mm AG Tempered-Glass |
| Screen Position | Landscape / Portrait |
| Light Sensor | Support |
| Cooling System | Smart Cooling Fan |
| Shell Material | Aluminum Profile Sheet Body +, Surface Spray Special Outdoor Powder + |
Dimensions & Weight
| Monitor Dimension (W x H x D) | 38.66 x 89.91 x 9.86” / 982.2 x 2258.5 x 250.5 mm |
| Net Weight | 440.92 lbs / 200 kg |
General Summary
| Power – Electrical Ratings | AC 100 – 240V, 50/60Hz |
| Power – Consumption | ≤ 450 W |
| Operating Temperature | -22 ~ 203°F / -30 ~ 95°C |
| Blackening Defect Free | High TNI 230°F / 110°C |
| Operating Humidity | 10 ~ 80% (Non-Condensing) |
| Regulations | FCC(A), CE, RoHs |
| Package | PE Film x1, Foam Corner Protector x1, Manual x1 |

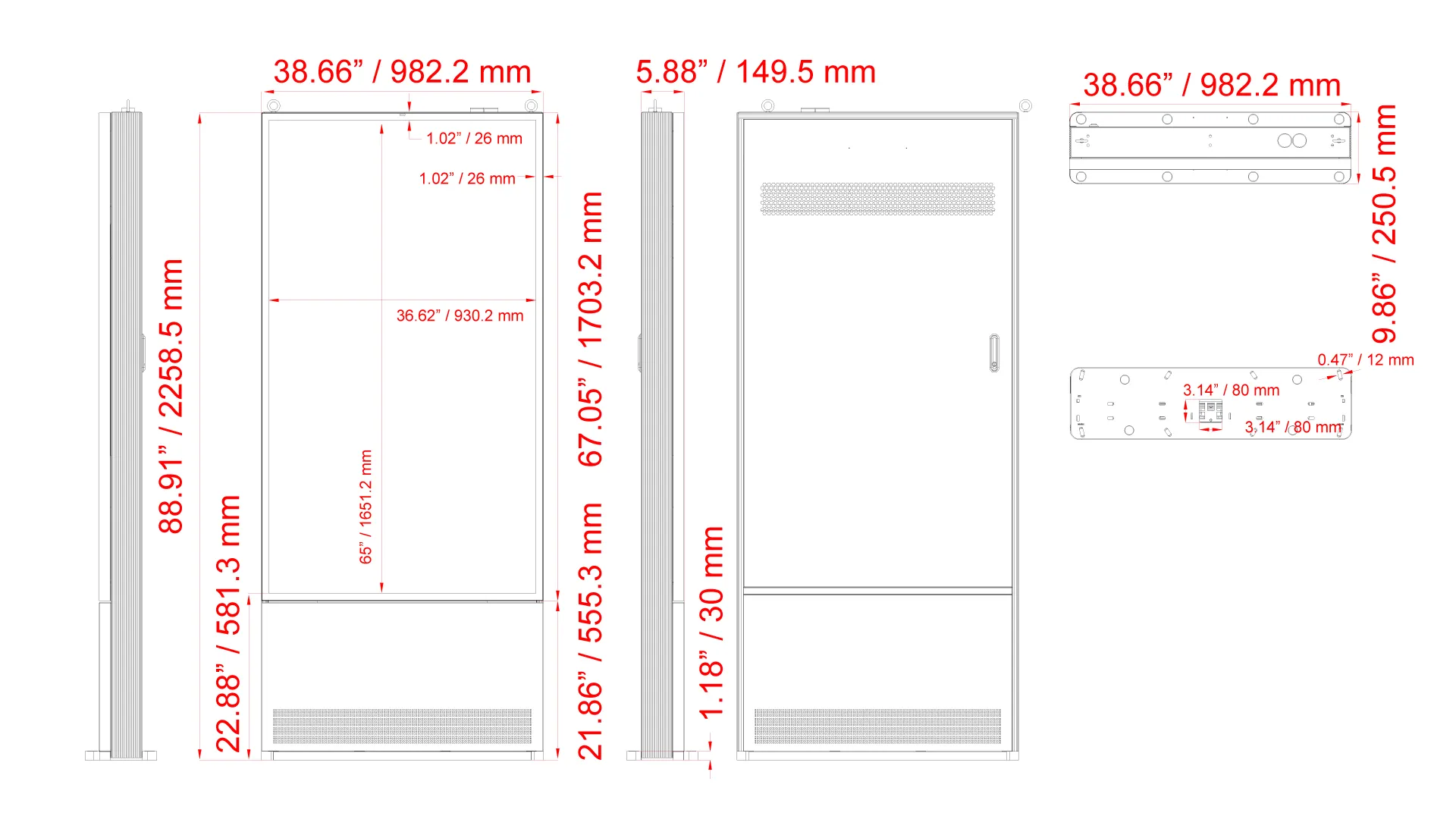

Product Dimension & Weight
Click below to enlarge
