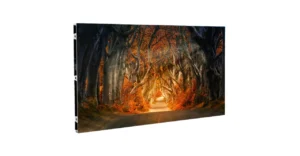

1.875 mm pixel pitch LED Tile
- 0.073”/1.875 mm Pixel Pitch
- High Visual Uniformity without Ghosting & Smearing
- Vivid Color Display (HDR Processing)
- Simple and stylish appearance, easy to install
- High brightness and contrast provide optimal images
- Delicate & Smooth Video
- Seamlessly splices images without black lines on the screen
- Color Temperature – 6500k to 9300k Adjustable
- Advanced grayscale gives detailed and realistic images
- Front maintenance & Waterproof – IP 30 (Front)
- Low failure rate and maintenance cost
- 3-Year Warranty
Specification | Dimension | Download
Series : IPX | Key Features : LED Tile Indoor LED
Product Features
- Model Number: VZ-IPX-2618
- 0.073”/1.875 mm Pixel Pitch
- High Visual Uniformity without Ghosting & Smearing – Pixel by pixel calibration technology eliminates the difference in brightness & chromaticity within & between panels, improves the uniformity of display
- Vivid Color Display (HDR Processing) – HDR processing technology enhances image quality & vivid color display
- Simple and stylish appearance, easy to install
- High brightness and contrast provide optimal images
- Takes up less space with a slim and compact design
- Low heat, excellent heat dissipation, no noise
- Ultra-wide viewing angle ensures satisfactory viewing experience from diversified angles
- High refresh rate and frame frequency provide high image quality without ghosting or smearing
- Low failure rate and maintenance cost
- Delicate & Smooth Video – 3840 Hz high refresh rate and frame frequency provide high image quality without ghosting or smearing
- Seamlessly splices images without black lines on the screen
- Advanced grayscale gives detailed and realistic images
- Color Temperature – 6500K to 9300K Adjustable
- Power supply with a wide input voltage range, strong adaptability
- Supports wall mount without reserving space for maintenance
- Front maintenance & Waterproof – IP 30 (Front)
- 3-Year Warranty
Display
| LED Type | SMD LED |
| Pixel Pitch | 0.073 x 0.073” / 1.875 x 1.875 mm |
| Brightness | 600 cd/m² (Typical) |
| Module Resolution | 160 x 90 @3840Hz |
| Cabinet Resolution | 320 x 180 @3840Hz |
| Viewing Angle (H/V) | 160°/140° |
| Contrast Ratio | 4000 : 1 |
| Gray Scale Processing | 14 bit |
| Color Uniformity | ± 0.003 Cx,Cy |
| Drive Mode | Constant Current Driving |
| Scanning Mode | 54 S |
| Color Temperature | 6500K ~ 9300K Adjustable |
| Pixel Density | 284,444 |
| Brightness Uniformity | ≥ 97% |
| Driver IC | Chipone ICN2018/FM7559 |
Dimensions & Weight
| Module Dimension (W x H) | 11.81 x 6.64” / 300 x 168.75 mm |
| Cabinet Dimension (W x H x D) | 23.62 x 13.27 x 1.27” / 600 x 337.5 mm x 32.3 mm |
| Net Weight (Cabinet) | 9.92 lbs / 4.5 kg |
General Summary
| Power – Electrical Ratings | AC 100-240V, 50/60Hz |
| Power – Consumption | 153 W/m2 (Avg) / 460 W/m2 (Max) |
| Maintenance Mode | Front Maintenance |
| Regulations | FCC(A), CE, RoHs |
| Protection Level | IP30 (Front) |
| Cabinet Material | Die-Cast Aluminum |
| Operating Temperature | Humidity | 14 ~ 104°F / -10 ~ 40°C | 10 ~ 80% RH |
| Storage Temperature | Humidity | -4 ~ 140°F / -20 ~ 60°C | 10 ~ 85% RH |
| Warranty | 3 Year |
Product Dimension & Weight
Click below to enlarge
