10 ~ 19″ Self Checkout Mount | VZ-SCM

product Description

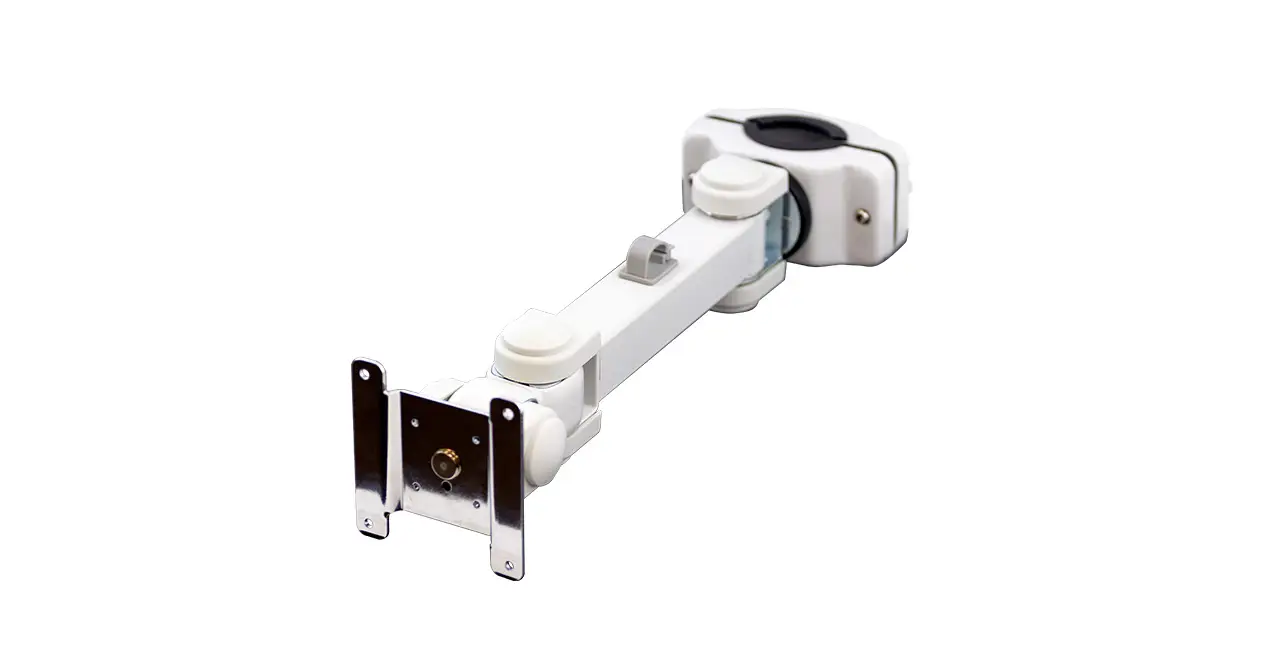

vzscm1
vzscm9

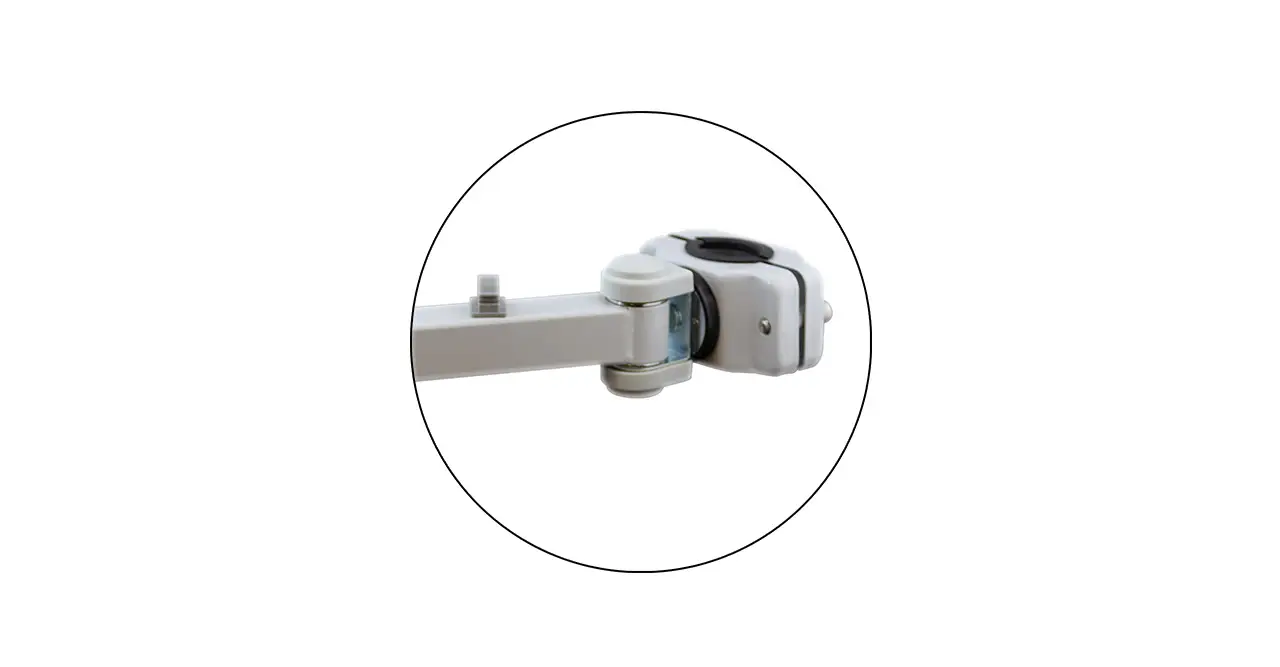

vzscm4
vzscm3

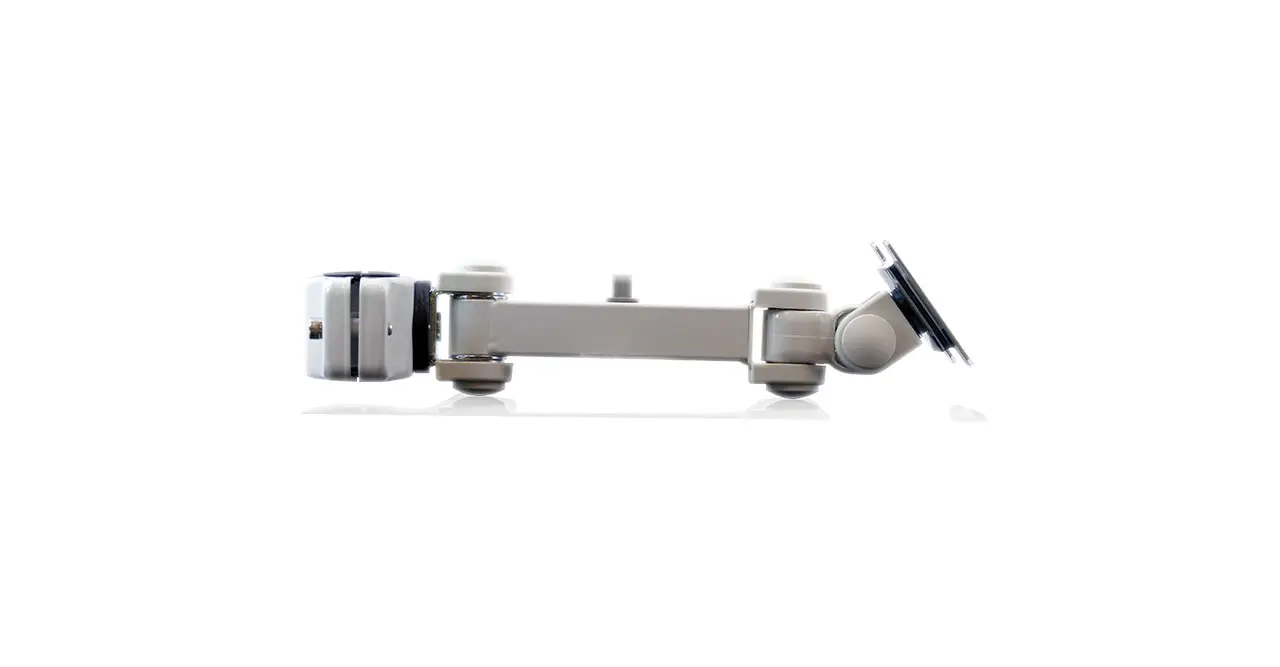

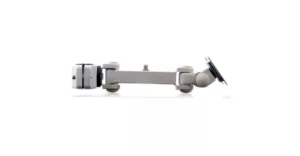

vzscm5
vzscm2

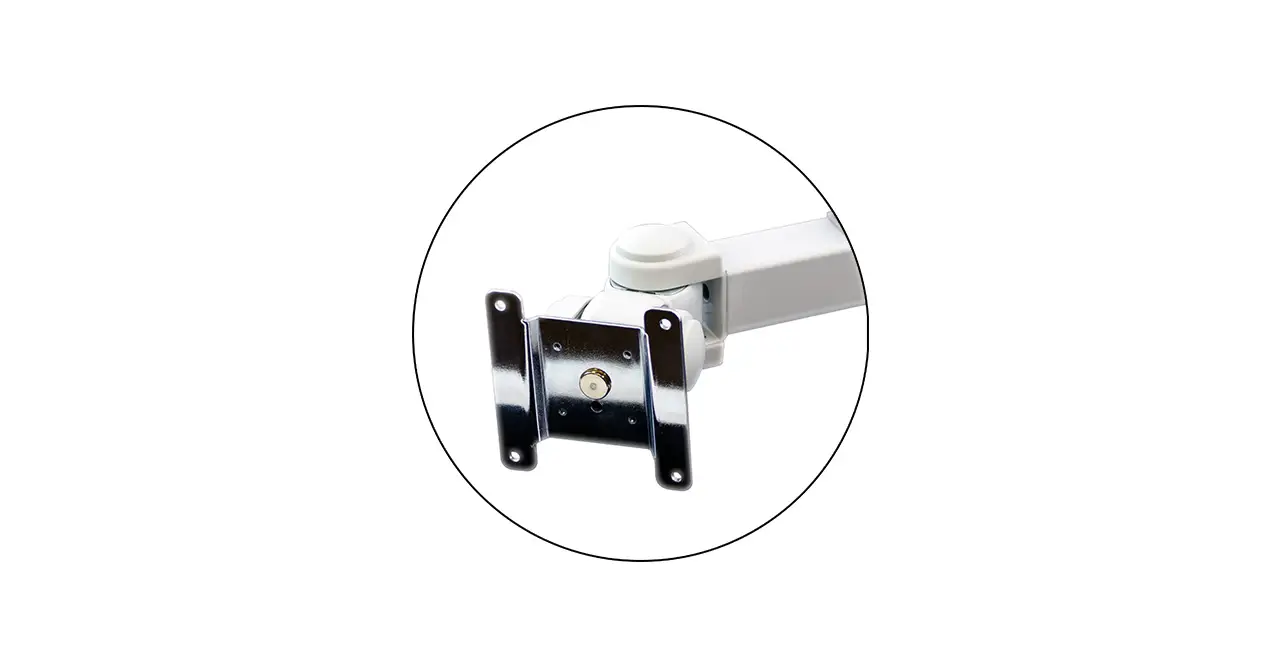

vzscm8

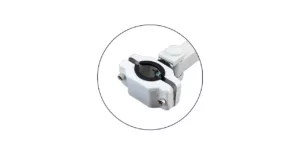

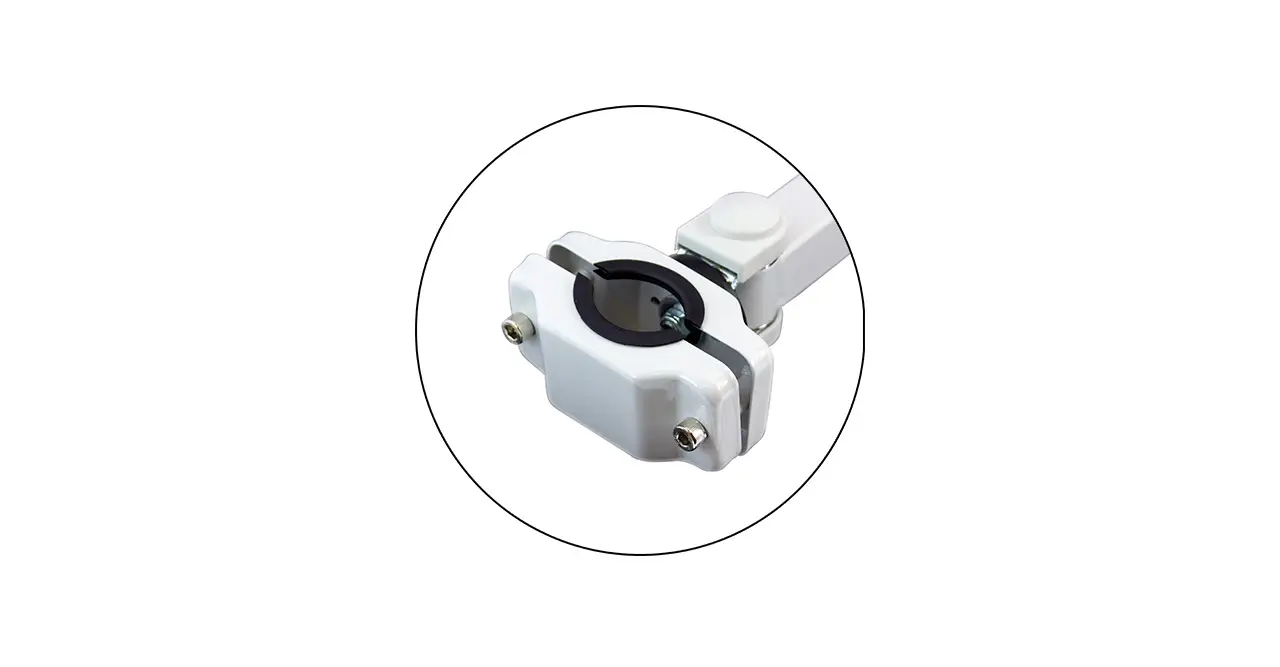

vzscm7
vzscm1 vzscm9 vzscm4 vzscm3 vzscm5 vzscm2 vzscm8 vzscm7

  • 10″ to 19″ ViewZ Monitors
  • Load Capacity is 22 lbs / 10 kg
  • VESA Compliant – 75×75
  • ±90° tilt, 180° swivel, 360° PAN Rotation

Compatible Monitors

Product Features

  • Model Number: VZ-SCM
  • 10″ ~ 19″ Tilt and Rotate Wall Mount
  • ±90° Tilt Up & Down, 360° Pan Rotation Adjustment along with Achieving that Perfect Viewing Angle
  • VESA Standard 75
  • Load Capacity is 22 lbs / 10 kg
  • White Metal

Specification

Display Range 10″ ~ 19″
Weight Capacity 22 lbs / 10 kg
Tilt -90° ~ +90°
Swivel 180°
Mounting Pattern Type VESA
Mounting Patterns 75×75


Dimensions & Weight

Plate Size (W x H x D) 120 x 90 x 82~392 mm / 4.72″ x 3.54″ x 3.22~15.41″
Net Weight 6.0 lbs / 2.72 kg


Product Dimension & Weight

Click below to enlarge
product Details
