40 ~ 55″ Swing/Tilt Wall Mount | VZ-AM03

product Description

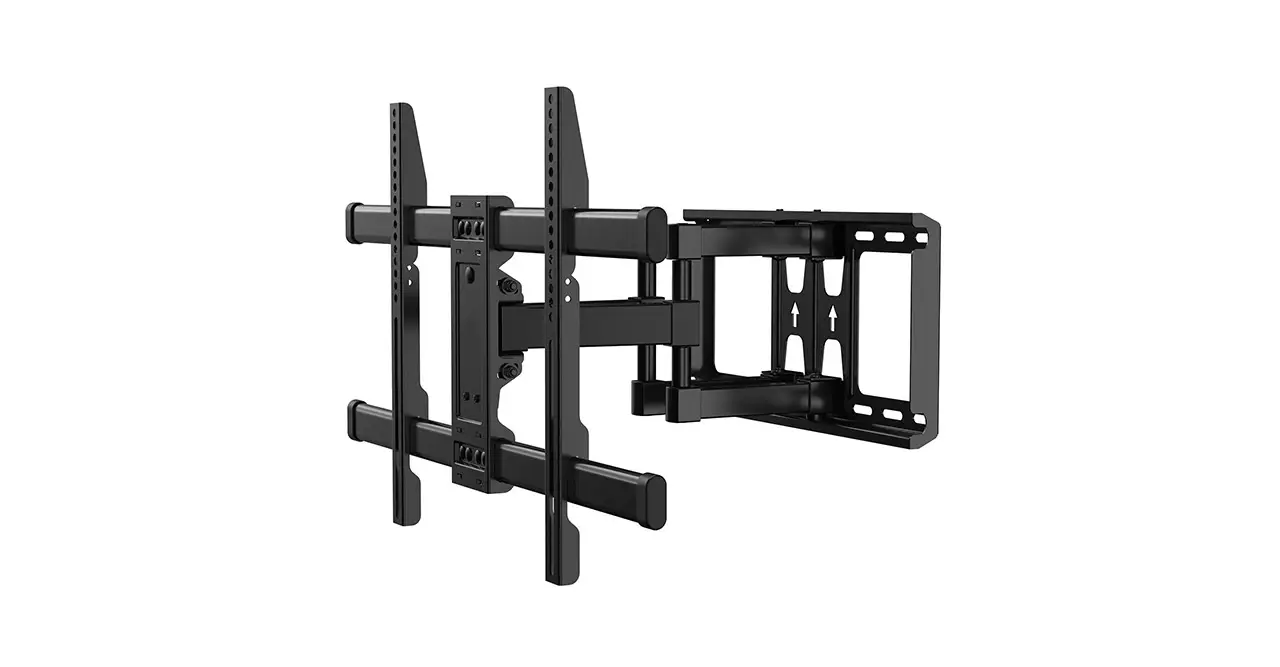

VZAM03_10

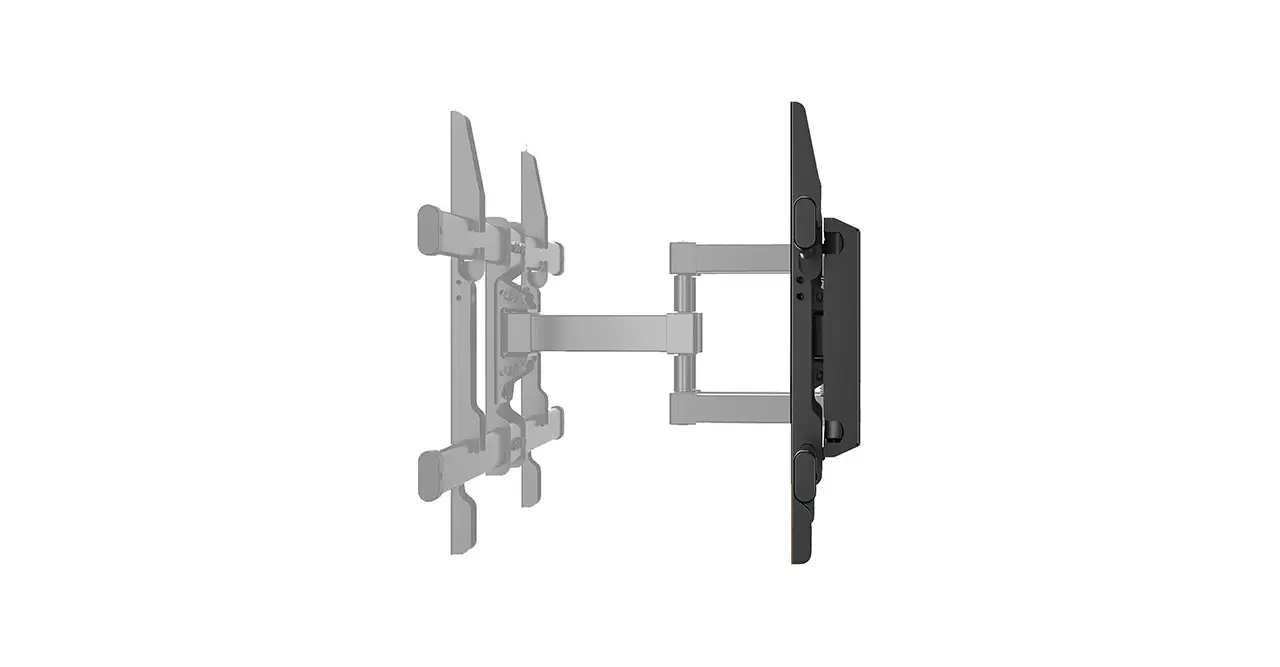

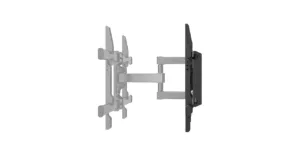

VZAM03_11
VZAM03_10 VZAM03_11

WALL MOUNT for 40” to 55” ViewZ Commercial Grade Displays

  • 40”~55” ViewZ Monitors
  • Load Capacity is 132 lbs / 60 kg
  • -15° ~ +15° tilt, ±60° swivel, 4.92” ~ 20.27” depth adjustment
  • Universal Mounting Hold Position
  • VESA Standard Mounting Hole : 200 x 200 mm ~ 800 x 400 mm

Compatible Monitors

Product Features

  • Model Number: VZ-AM03
  • 40″ ~ 55″ Swing Out Double Articulating Wall Mount
  • Load Capacity is 132 lbs / 60 kg
  • VESA Standard Mounting Hole : 200×200 ~ 800×400
  • Black Metal
  • 3-Year Warranty

Specification

Total Weight Capacity 132 lbs / 60 kg
Display Range 40″ ~ 55″
PAN Rotation (Swivel) ± 60°
Tilt Capability +15° ~ – 15°
Depth Adjustment 4.92″ ~ 20.27″ / 125 ~ 515 mm
Mounting Patterns Type Universal, VESA
Mounting Patterns 200×200 (Min) ~ 800×400 (Max)


Dimensions & Weight

Outline Dimension (W x H(with Arm/Without Arm) x D(Profile)) 33.77” x (17.32 / 8.03)” x (4.92~20.27)” / 431.8 mm x (440/204) mm x (125 ~ 515) mm
Net Weight 19.84 lbs / 9 kg
Gross Weight 21.5 lbs / 9.75 kg


Product Dimension & Weight

Click below to enlarge
product Details
