Eco-friendly Full HD CCTV monitor for professional security, digital signage and more
- Full HD 1080p Resolution
- 1 AV(Composite) Input / Output (Loop-through)
- 16:9 / 4:3 Ratio Available
- Auto Source & Power Recovery
- HDMI, VGA, PC/AV Audio
- 600 TV Line, 3D Comb-Filter, De-Iinterlace, Built-in Speakers
- 3-Year Warranty
Specification | Dimension | Spec & Manual
Series : CMP | Key Features : 16:9 / 4:3 Full HD
Compatible Mounts & Accessories
Product Features

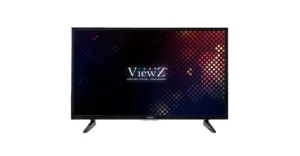

- Model Number: VZ-32CMP
- 32″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
- Full HD (1920×1080) / 16:9
- 1 CVBS (Composite) Inputs / 1 CVBS (Composite) Output (Loop-through)
- Analog Video Resolution (Max) – 600 TV Line
- 3D Comb-Filter / De-Interlace
- HDMI / VGA / Audio In/Out
- Auto Source & Power Recovery
- 5W Speaker x 2
- AC100 ~ 240V(50/60Hz) / Power Consumption ≤ 50 W
- 3-Year Warranty
Display
| Screen Size | 32″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.36375 mm x 0.36375 mm |
| Brightness | 220cd/m²(Typical) |
| Contrast Ratio | 3000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 14ms |

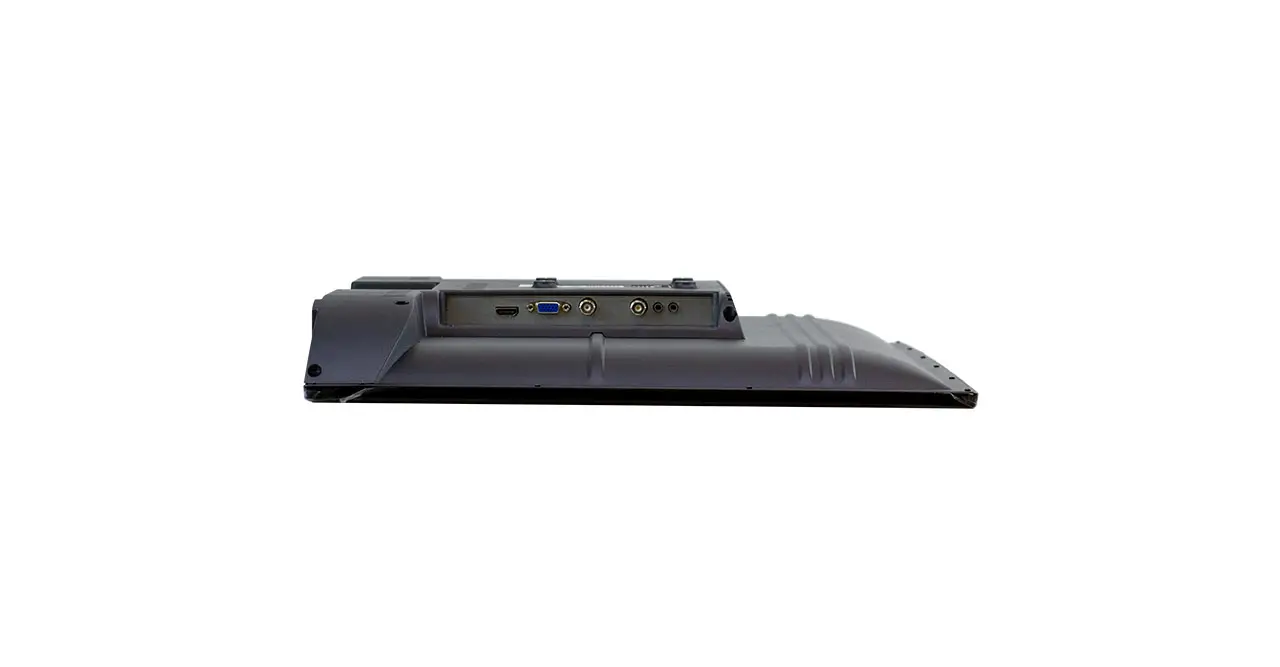

Interface
| HDMI In | 1 |
| CVBS (Composite) In / Out | 1 / 1 |
| VGA In (15Pin D-Sub) | 1 |
| PC Audio In / AV Audio In | 1 / 1 |
Audio
| Built in speaker | 3W x 2 |
Special Features
| Filter Type | 3D Comb-filter / De-Interlace |
| Multi-Lingual Language | English, Deutsche, French, Spanish, Italian |
Dimensions & Weight
| Outline Dimension (W x H x D) | 28.94” x 17.06” x 2.72” / 735.08 mm x 433.46 mm x 69.3 mm |
| Net Weight | 12.78 lbs / 5.8 kg |
| Gross Weight | 15.43 lbs / 7.0 kg |

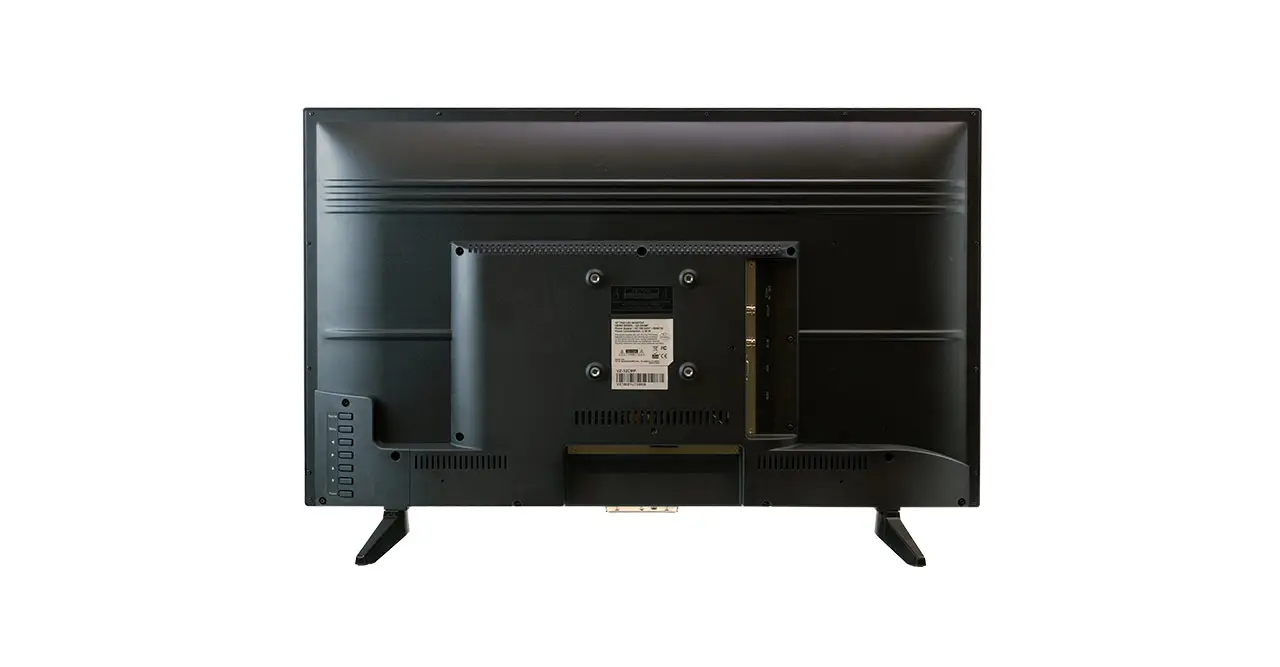

Mount
| Vesa | 100 mm x 100 mm / M4 x L8 mm |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz |
| Power – Consumption | ≤ 50 w |
| Regulations | FCC(A), CE, RoHS |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 20 ~ 70% RH |
| Compatible Mounts – Wall | VZ-WM50, VZ-AM12 |
| Compatible Mounts – Ceiling | VZ-CMKiT-01, VZ-CMKiT-02, VZ-CM308 |
