Output 12V DC/ 70 W AC/DC Power Converter

product Description

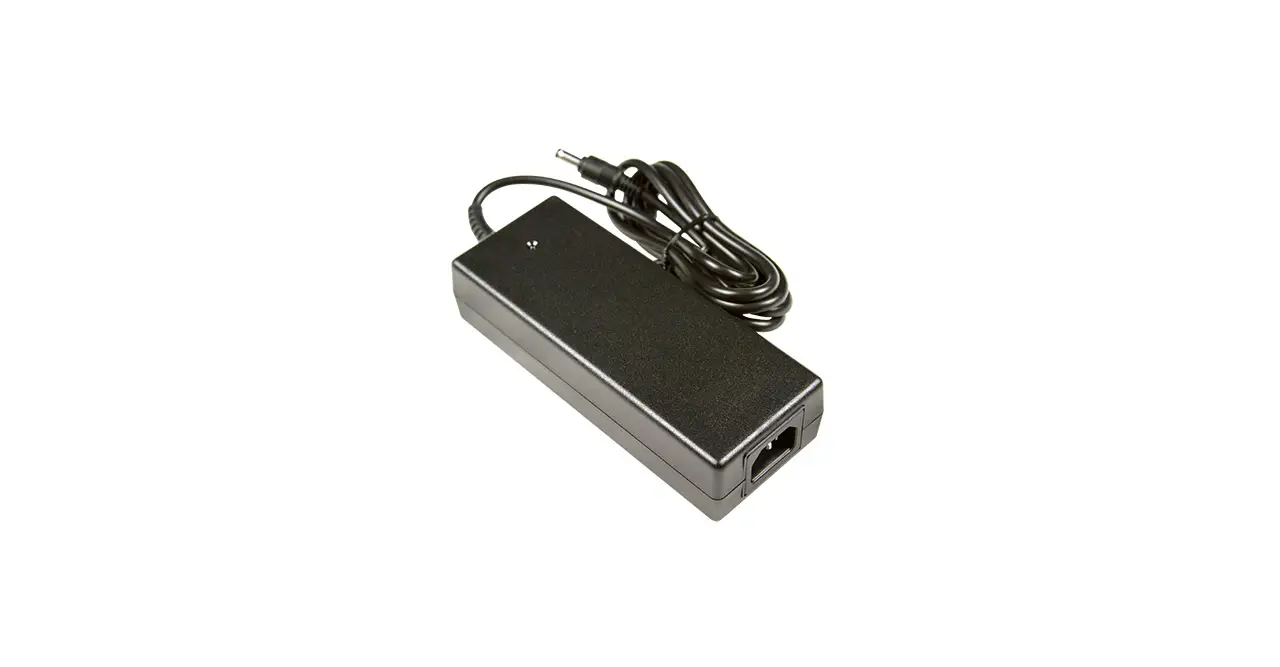

vzpsu3_1

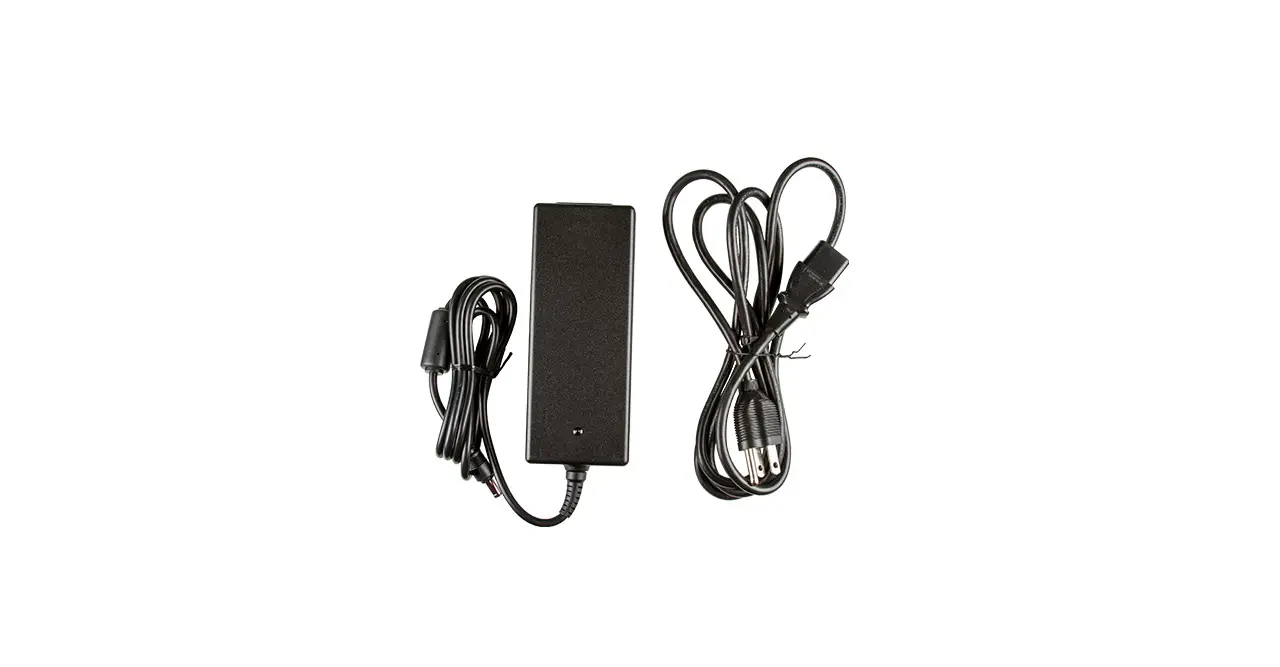

vzpsu3_2

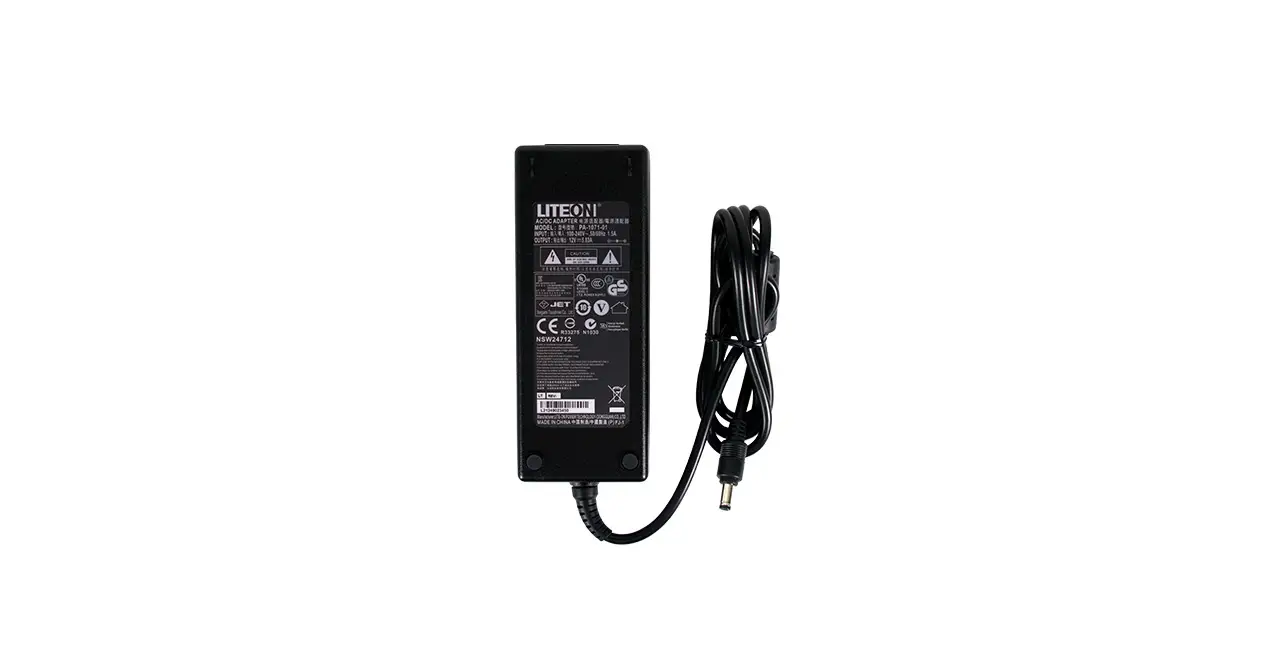

vzpsu3_4

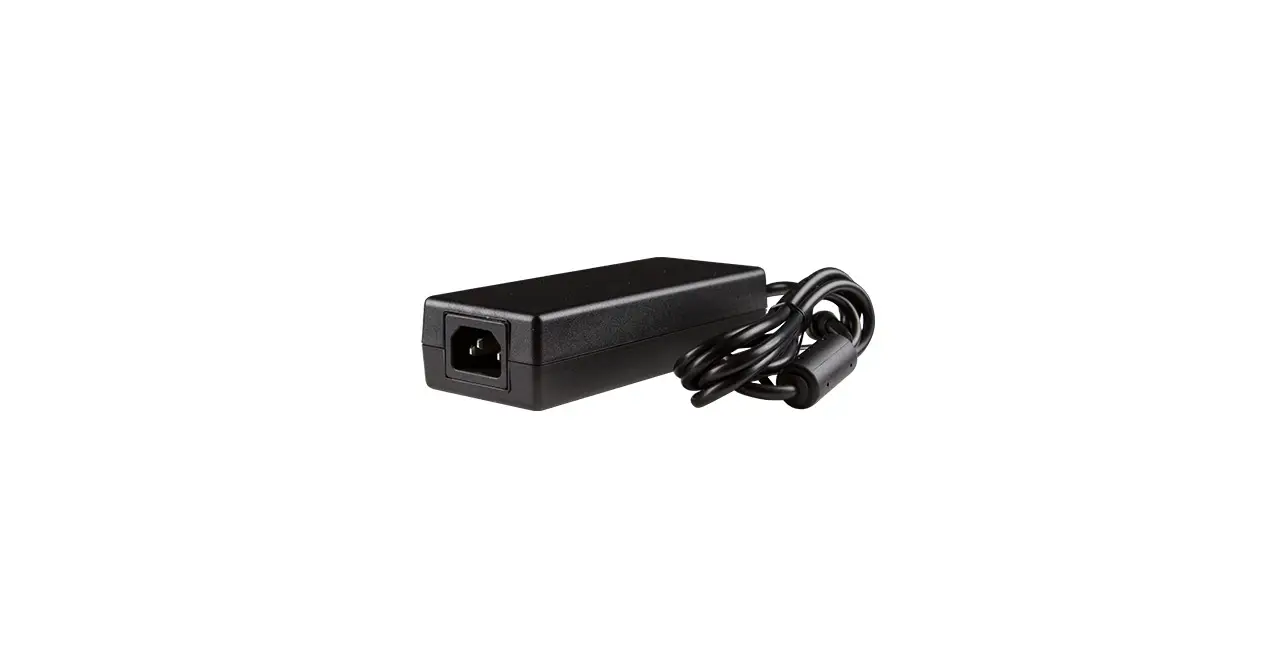

vzpsu3_3
vzpsu3_1 vzpsu3_2 vzpsu3_4 vzpsu3_3

AC 110V to DC 12V Adapter for 9.7 to 24” Monitors

  • Output : 12V DC / 5.83 A
  • Input : 100~ 240VAC / 50~60Hz / 1.5A
  • Fully tested for 10.1″ RTC, 17″ & 19″ RTN, 21.5″ LED-SN, 19″, 22″ & 24″ CME / CMP series
  • Smart Device Surge – Over-Voltage, Over-Heat, Overload, Over-Current and Short- Circuit Protection
  • Complies with International Safety Standards & Environmental Protection Requirements
  • Wide Voltage Compatibility

Compatible Monitors

Product Features

  • Model Number: VZ-PSU3
  • Fully testified for 101 RTC, 17″ & 19″ RTN, 19″ & 22″ & 24″ CMP / CME / CMX, 21.5″ LED-SN
  • DC 12V / 5.83A output
  • AC 100~240V / 50 or 60Hz / 1.5A input
  • Green Power On LED
  • Smart Device Surge – Over-Voltage, Over-Heat, Overload, Over-Current and Short- Circuit Protection
  • Safe & Reliable
  • Wide Voltage Compatibility
  • Complies with International Safety Standards
  • Compact & Light-Weight
  • Long product life, MTBF of 50,000 hours
  • Safety : UL, KCC, CCC, TUV/GS, BSMI, PSE, RCM
  • EMI : CE, FCC/UL

Specification

Input – Voltage range 100 ~ 240V AC, 50/60Hz
Output – Voltage 12V DC
Output – Watt 70 W
Output – Rated current 5.83 A


Protection

Short-Circuit Protection Short circuit protection with auto
recovery function
Over-Voltage Protection 18V DC maximum auto-recovery function
Over-Current Protection 9A maximum with auto-recovery function


Regulation - Safety & EMI Standards

Safety Standards UL/CUL(ULE132068 Level 3), RoHS, KC-MARK(KTL SU10528-12014), C-Tick (N1030), BSMI (R33275)
EMI STANDARDS FCC(PART15 CLASS B), VCCI (CLASS B), CISPR (Part 22, CLASS B)


Dimensions & Weight

Outline Dimension (W x H x D) 2.36″ x 5.9″ x 1.37″ / 60 mm x 150 mm x 35 mm
Net Weight 1.1 lbs / 0.5 kg


Interface

Input Plug Type IEC320 C14 AC PIN
Output Cord WIRE: 14 AWG /1571, 1500mm | PLUG: JACK PLUG 5.5*2.5*12.01 mm


General Summary

Construction PC material
Cable UL AWM Style 1571
Cooling Cooling shall be with natural convection cooling
Operating Temperature | Humidity 32°F ~ 104°F / 0°C ~ +40°C | 10 ~ 90% RH. Non-condensing
Storage Temperature | Humidity -40°F ~ 158°F / -40°C ~ +70°C | 10% ~ 90% RH. Non-condensing


Product Dimension & Weight
