Output 12V DC/ 36 W AC/DC Power Converter

product Description

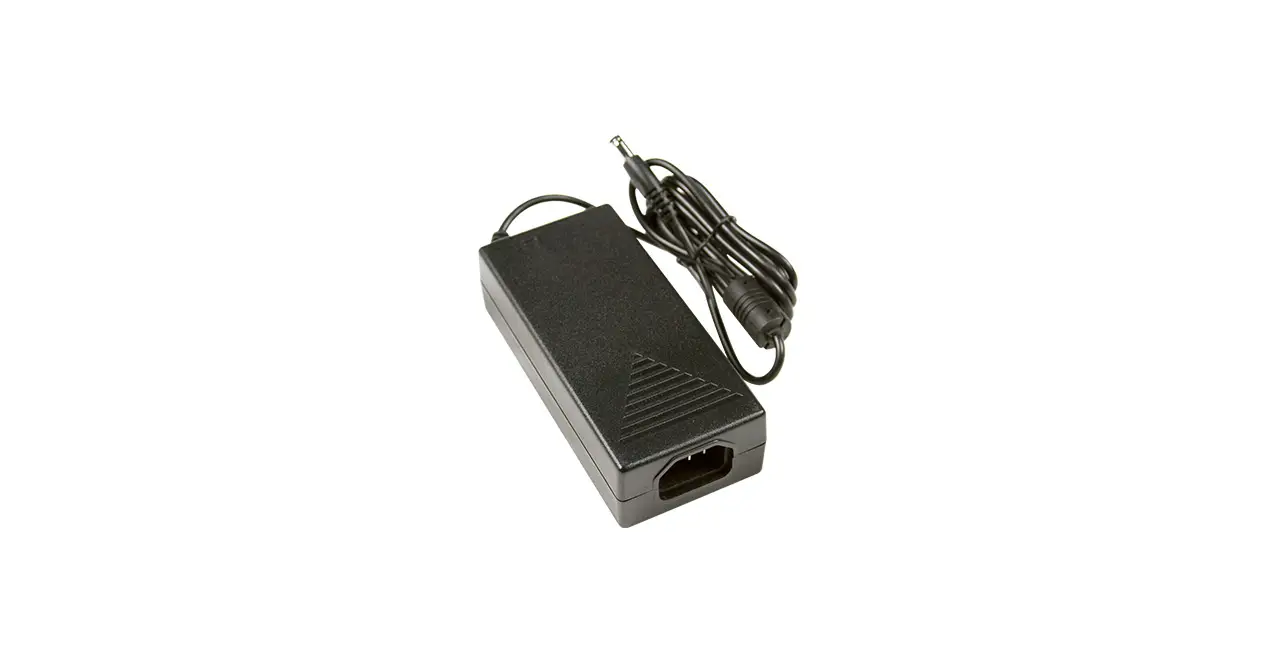

vzpsu2_1

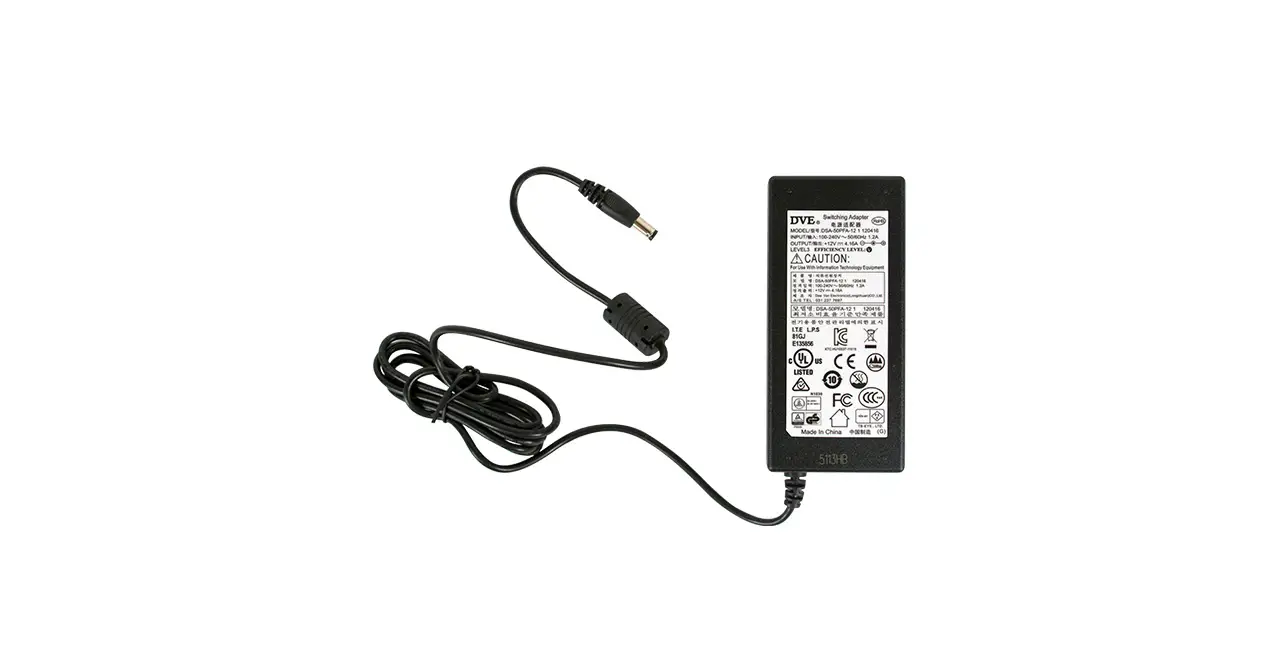

vzpsu2_4

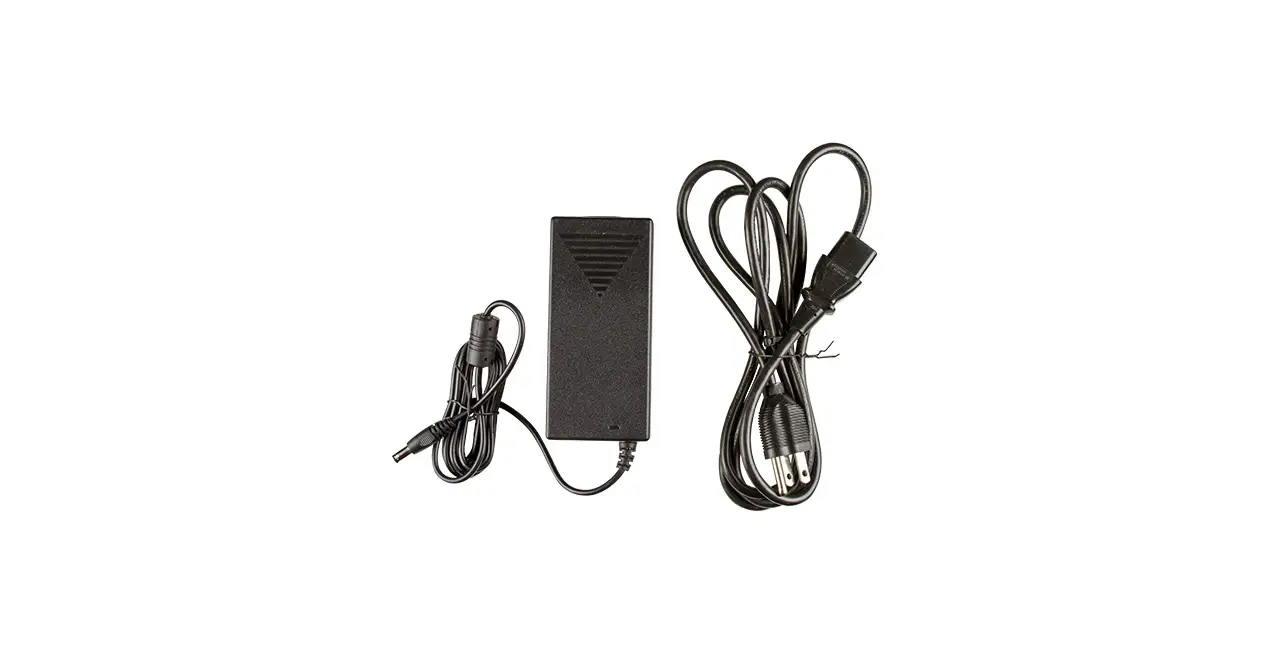

vzpsu2_2

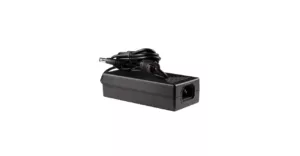

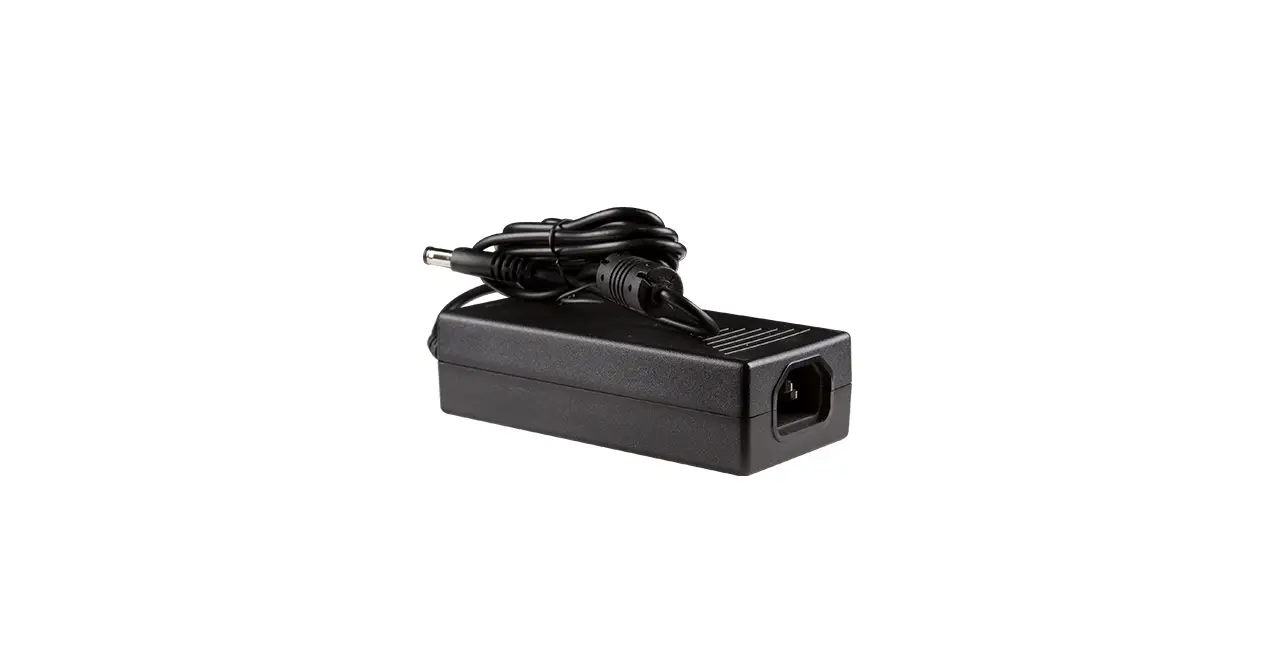

vzpsu2_3
vzpsu2_1 vzpsu2_4 vzpsu2_2 vzpsu2_3

AC 120V to DC 12V Adapter for 9.7 to 24” Monitors

  • Output : 12V DC / 3A
  • Input : 100~ 240VAC / 50~60Hz / 1.5A
  • Fully tested for 10.1″ RTC, 17″ & 19″ RTN, 21.5″ LED-SN,  LED-L1, 19″, 22″ & 24″ CME / CMP  series
  • Safe & Reliable
  • Complies with Environmental Protection Requirements
  • Long Product Life, MTBF of 50,000 hours

Compatible Monitors

Product Features

  • Model Number: VZ-PSU2-N
  • Fully testified for 101 RTC, 17″ & 19″ RTN, 19″ & 22″ & 24″ CMP / CME / CMX, 21.5″ LED-S
  • DC 12V / 3A output
  • AC 100~240V / 50 or 60Hz / 1.5A input
  • Green Power On LED
  • Energy Efficiency Rating: V
  • Compact & Light-Weight
  • Safe & Reliable
  • Complies with International Safety Standards & Environmental Protection Requirements
  • Over voltage / Overload / Over current / Short Circuit Protection
  • Complies with Environmental Protection Requirements
  • Wide Voltage Compatibility
  • Long Product Life, MTBF of 50,000 hours
  • EMC meets EN 55022/ EN 55024 / GB 9254 (CISPR 22) international standard
  • Safety : UL, KCC, CCC, TUV/GS, PSE, C-Tick
  • EMI : CE, FCC/cUL, CCC, PSE

Specification

Input – Voltage range | current 100 ~ 240V AC, 50/60Hz | 1.5A
Output – Voltage 12V DC
Output – Watt 36 W
Output – Rated current 3 A


Protection

Short-Circuit Protection The Power Supply will be auto recovered when short circuit faults remove.
Over-Current Protection The power supply will auto protected when output current over 120%-200% rate current.


Regulation - Safety & EMI Standards

Safety Standards UL/CUL(UL60950), TUV-GS(EN60950), PSE(J60950), CCC(GB4943), KCC, C-Tick
EMI STANDARDS FCC(PART15 CLASS B), CE(EN55022, EN55024), GB9254, GB17625.1, PSE(J55022)


Dimensions & Weight

Outline Dimension (W x H x D) 2.14″ x 4.72″ x 1.25″ / 54.5 mm x 120 mm x 32 mm
Net Weight 0.45 + 0.04 lbs / 0.205 ± 0.02 kg


Interface

Input Plug Type IEC320 C14 AC PIN
Output Cord WIRE: 18AWG / 1500 ± 50 mm | PLUG: JACK PLUG 5.5*2.1*10.5mm


General Summary

Construction PC, ABS, or equivalent
Cable 18 AWG/1C + SH
Cooling Cooling shall be with natural convection cooling
Operating Temperature | Humidity 32°F ~ 104°F / 0°C ~ +40°C | 10 ~ 90% RH. Non-condensing
Storage Temperature | Humidity 14°F ~ 131°F / -10°C ~ +55°C | 10% ~ 90% RH. Non-condensing


Product Dimension & Weight

Click below to enlarge
