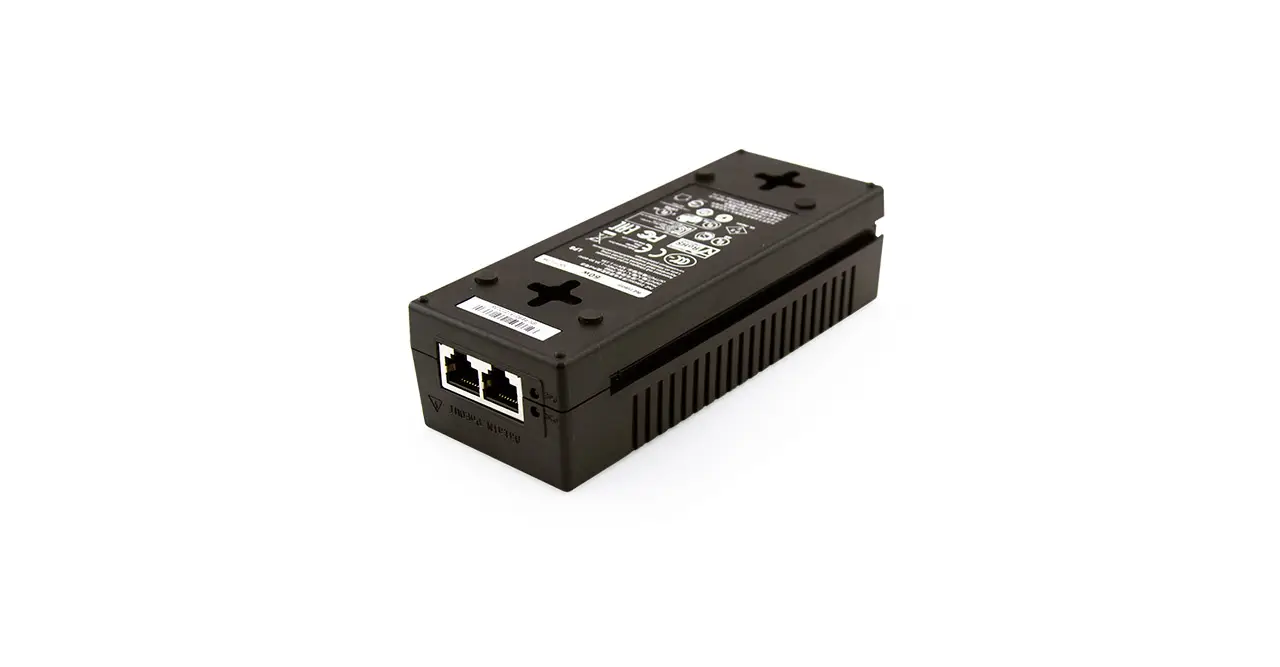

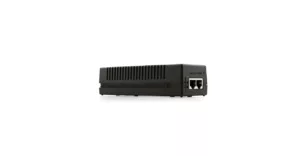

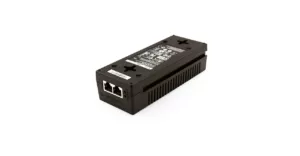

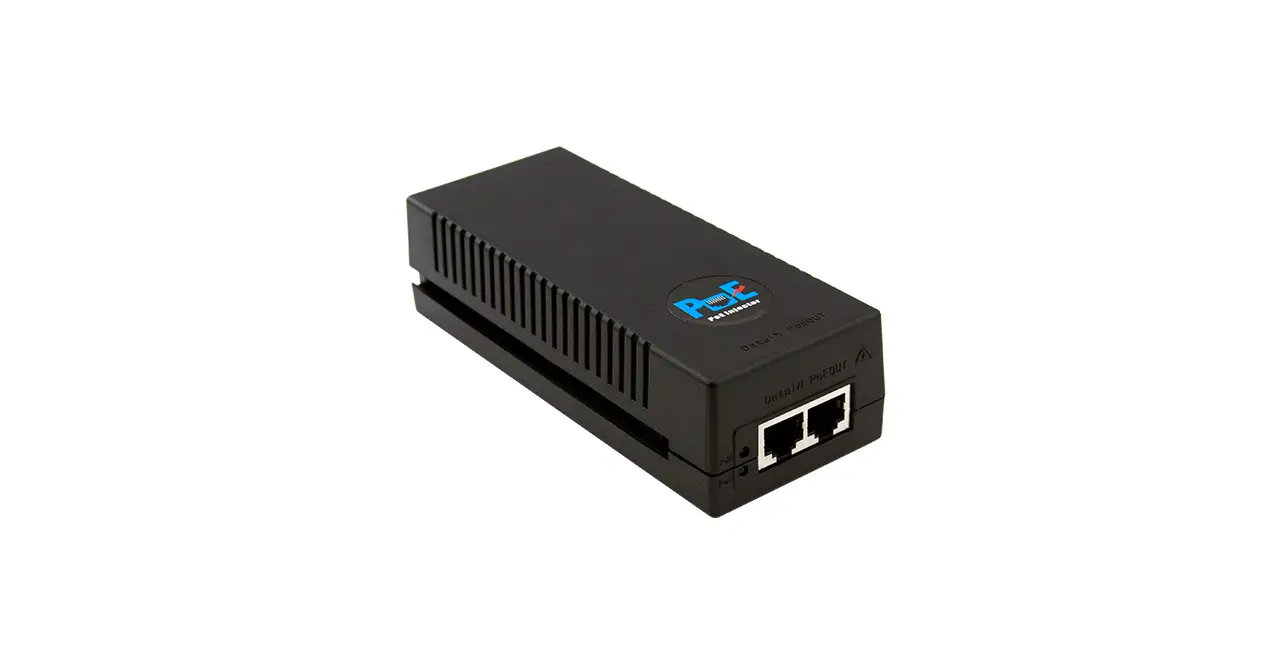

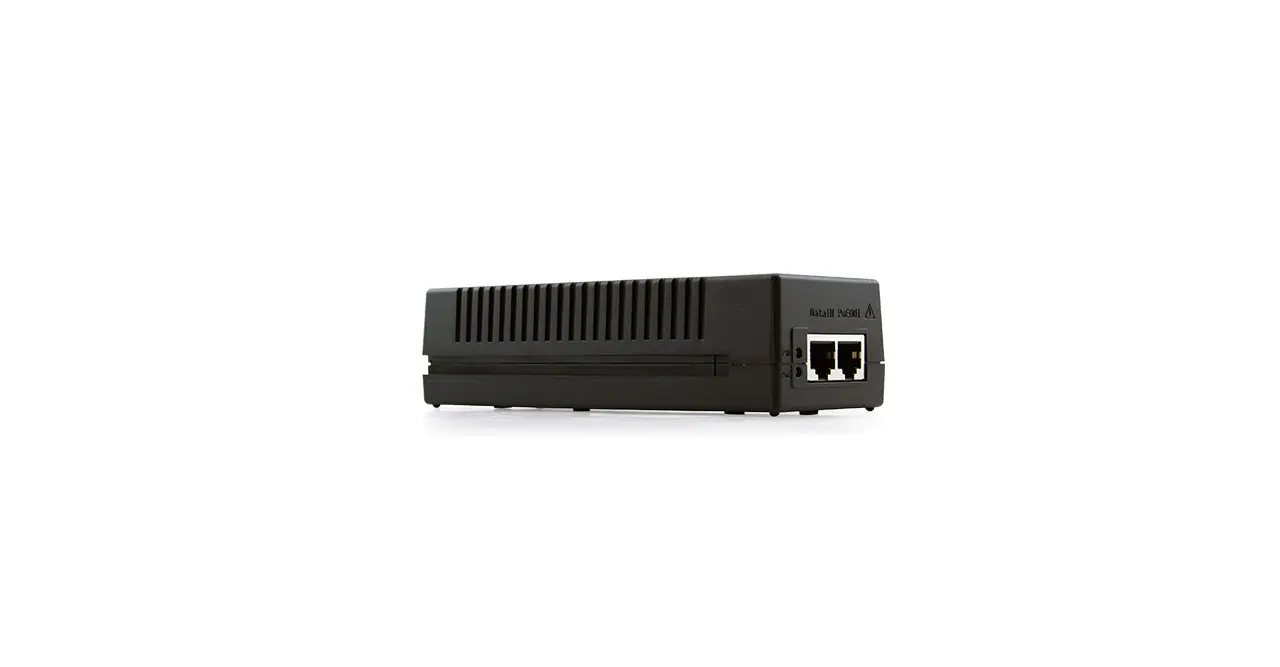

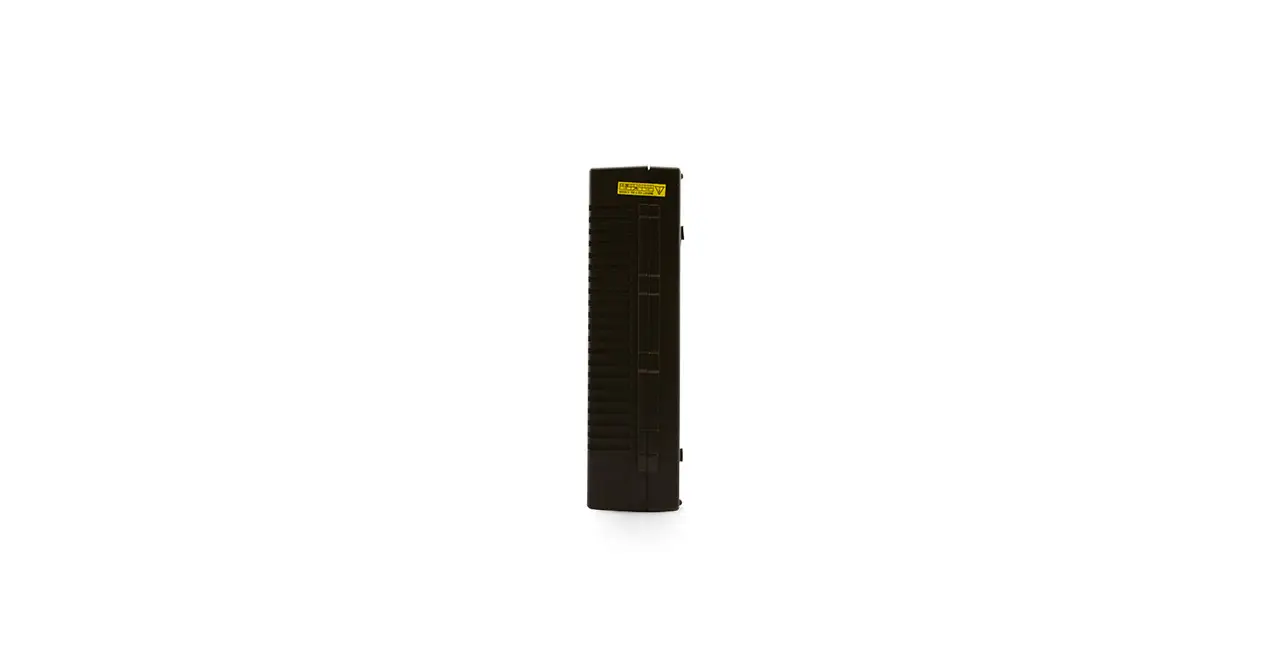

60W PoE Injector for VZ-PVM-I1W4N
- Single-port Gigabit PoE Midspan
- Output : 52V DC / 60W
- Automatic Detection and Protection of non–standard Ethernet terminals
- Full IEEE802.3af, IEEE802.3at, IEEE802.3at-4pair Compliant
- Safety : UL/cUL Per IEC 60950-1, GS
- EMI : FCC Part 15, Class B, EN 55022 Class B (Emissions), EN 55024 (Immunity), C-TICK – AN/NZS CISPR 22
Specification | Dimension | Spec & Manual
Series : Power Adapter | Key Features : P.o.E. Injector
Compatible Monitors
Product Features
- Model Number: PE60
- DC 52V / 60W output
- AC 100~240V / 50 or 60Hz
- Green Power On LED
- Single-port gigabit PoE midspan
- Full IEEE802.3af, IEEE802.3at, IEEE802.3at-4pair Compliant
- Auto-detect of POE IEEE802.3af, IEEE802.3at, IEEE802.3at-4pair equipment
- Supports 10/100/1000 Base-T applications
- Compatible with IEEE 802.3af devices and pre-standard devices
- Long product life, MTBF of 100,000 hours
- Safe: low power devices receive only the power they need
- Automatic detection and protection of non–standard ethernet terminals
- Compact design fits easily in WLAN access point and IP cameras installations
- Compact & Light-weight
- Safety : UL/cUL Per IEC 60950-1, GS
- EMI : FCC Part 15, CE Class B – EN 55022 Class B (Emissions), EN 55024 (Immunity), VCCI, RoHS Compliant
Specification
| Pass Through Data Rates | 10/100/1000 Mbps |
| Number of Ports | 1 |
| Input Power Requirements | AC Input Voltage: 100 to 240 V AC | AC Input Current: 0.8A @100-240V AC | AC Frequency: 50 to 60 Hz |
Power over Ethernet(PoE) Output
| Pin Assignment and Polarity | 1/2 (+), 3/6 (-) , 4/5 (+), 7/8 (–) |
| Output Power Voltage | 52V DC |
| User Port Power | 60 Watts (Guaranteed) |
Protection - Safety / EMI Standards
| Regulation – Safety Standards | UL/cUL Per IEC 60950-1, GS |
| Regulation – EMI Standards | FCC Part 15 – 47 CFR FCC Part 15, VCCI, CE Class B, EN 55024 (Immunity), EN 55022 Class B (Emissions), EN61000-2 |
| Regulation – Compliance | IEEE 802.3af (PoE,), IEEE 802.3at (PoE+), IEEE 802.3at-4pair (PoE++), C-TICK – AN/NZS CISPR 22, RoHS Compliant, WEEE Compliant |
Interface

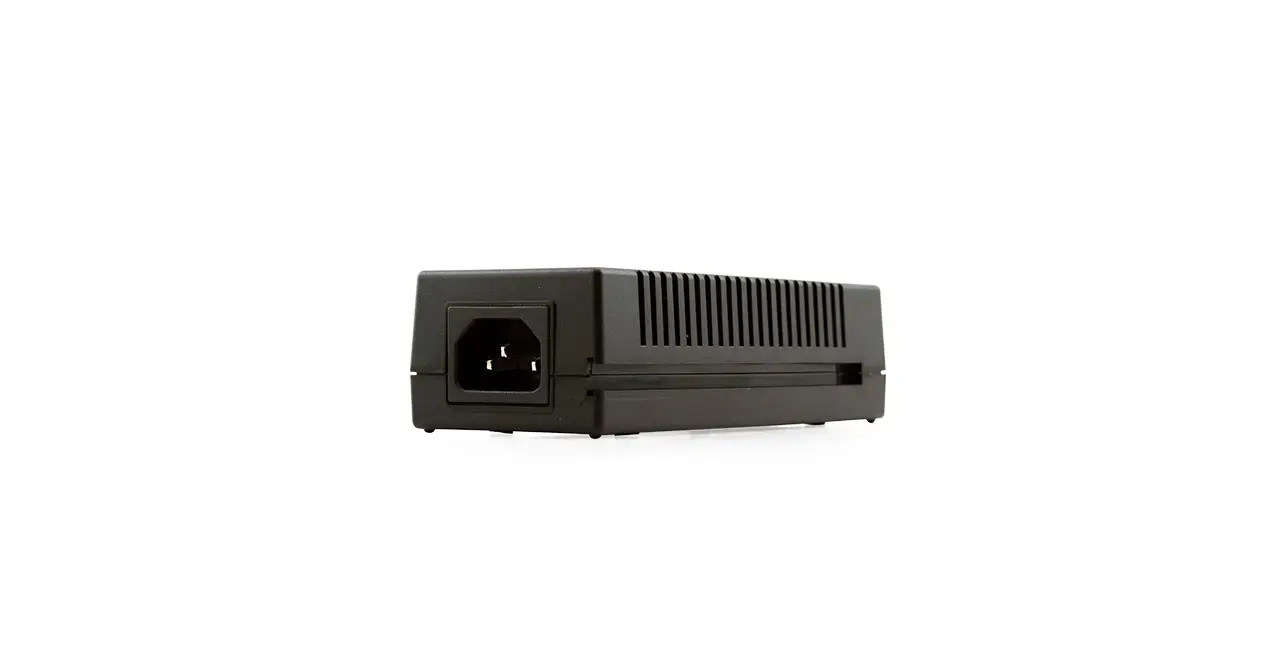

| Power Input | 100 to 240 V AC |
| Ethernet | Shielded RJ-45, EIA 568A and 568B |
Dimensions & Weight
| Outline Dimension (W x H x D) | 5.7″ x 2.36″ x 1.57″ / 145 mm x 60 mm x 40 mm |
| Net Weight | 0.44 lbs / 0.2 kg |
Recommended Wiring Distance - 10`` IP-PVM-N w/1 Monitor
| Monitor Model | VZ-PVM-I1W4N |
| Cable Type | Cat 6 / PoE |
| Ft / Meter | |
| 50 ft / 15.24 m | Tested |
| 100 ft / 30.48 m | Tested |
| 150 ft / 45.72 m | Tested |
| 200 ft / 60.96 m | Tested |
| 250 ft / 76.20 m | Tested |
| 300 ft / 91.44 m | Tested |
| 350 ft / 106.68 m | Not Recommended |
General Summary
| Construction | PC material |
| LED Indicators | AC Power (Green) / Channel Power (Green) |
| Temperature Coefficient | ±0.03%/°C ( 0°C ~ 50°C ) |
| Warranty – MTBF (Approx.) | Parts/ Labor | 100,000 Hours @ 77°F / 25°C | 2 Years |
| Operating Temperature | Humidity | 14°F ~ 113°F / -10°C ~ +45°C (@ 60W) | Maximum 90%, Non-condensing |
| Storage Temperature | Humidity | -4°F ~ 158°F / -20°C ~ +70°C | Maximum 95%, Non-condensing |
