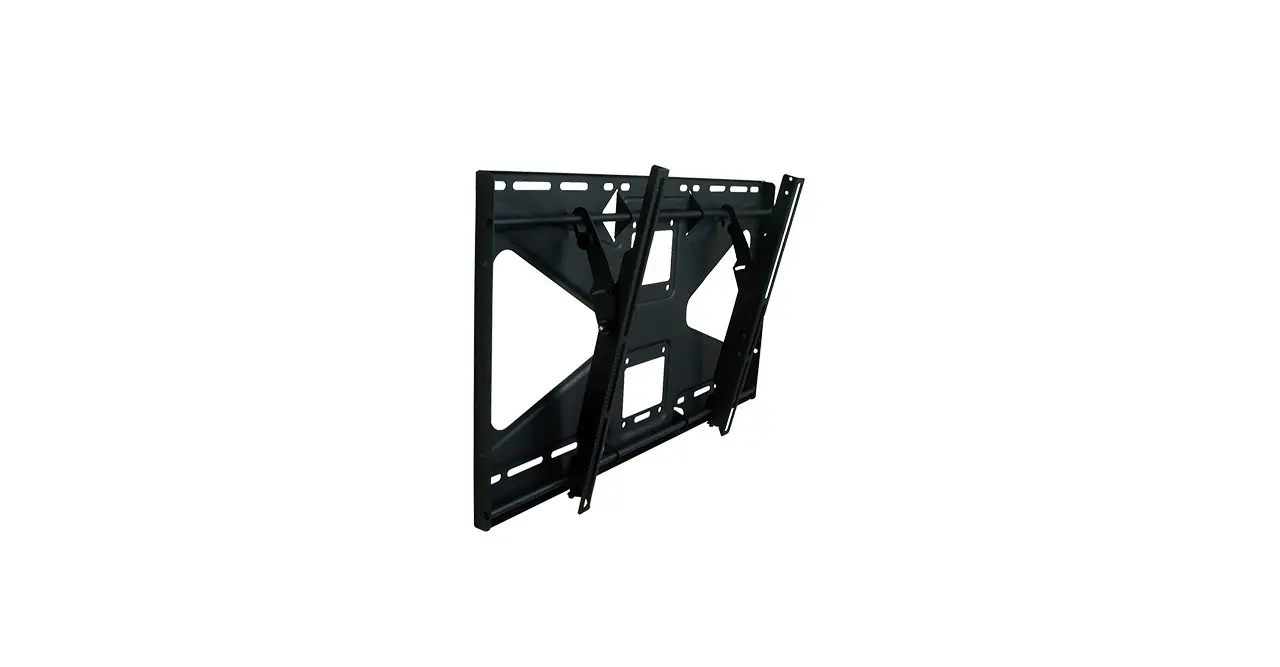

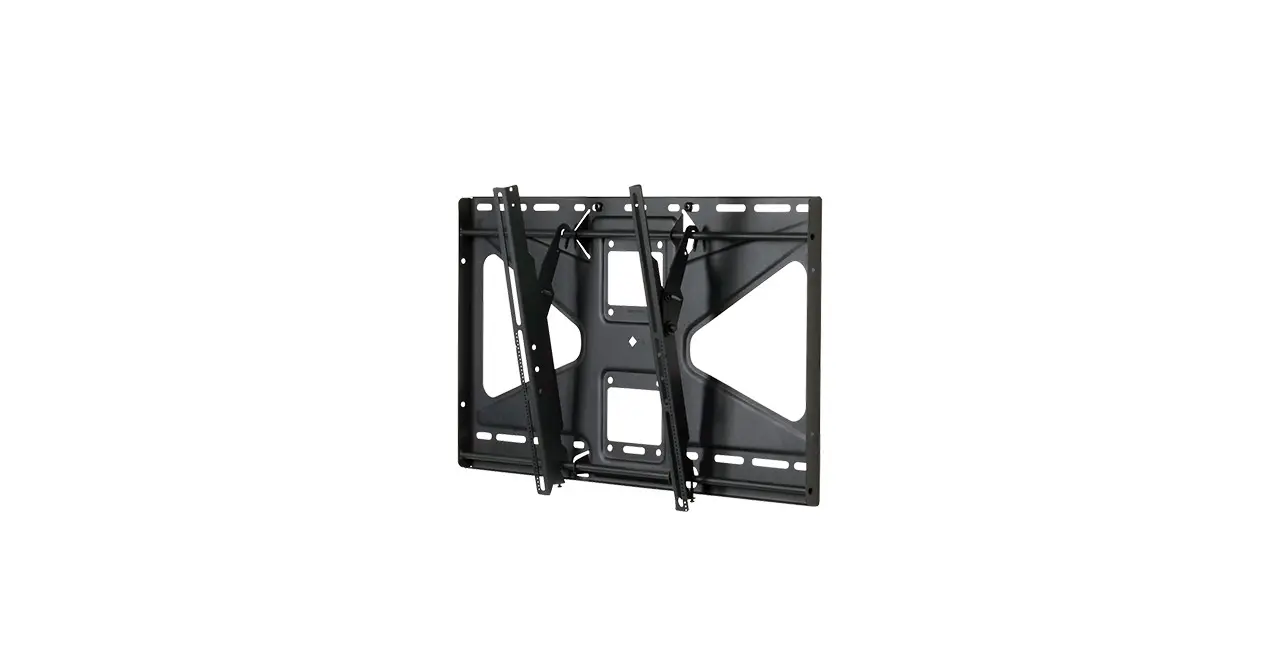

- Mounting Head for 43″ to 55″ CCTV & Video Wall Monitors
- Load Capacity is 160 lbs / 72.57 kg
- Universal Range- 200 x 200(Min) ~ 800 x 505(Max)
- Mounts to walls, floor stands, carts and ceiling adapters
- Features patented Clevis technology for effortless tilt
- Built-in lateral shift
- Three vertical height mounting options for carts and stands
- Extensive hardware pack including exclusive universal spacers
Specification | Dimension | Spec & Manual

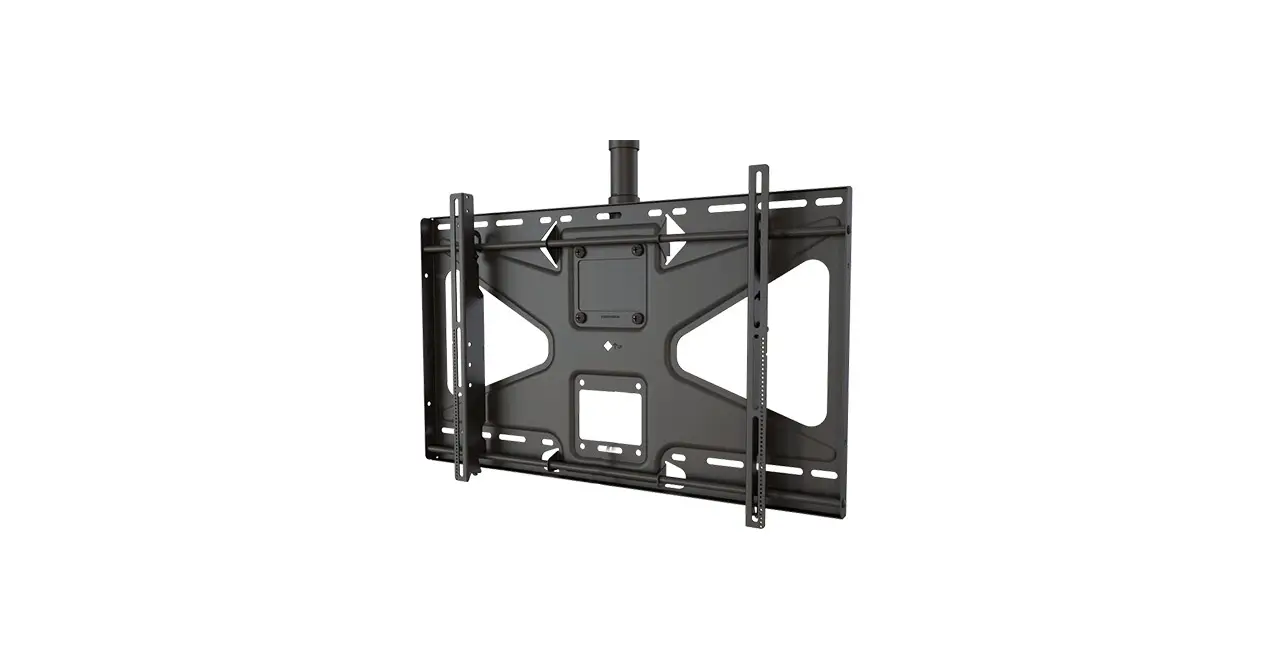

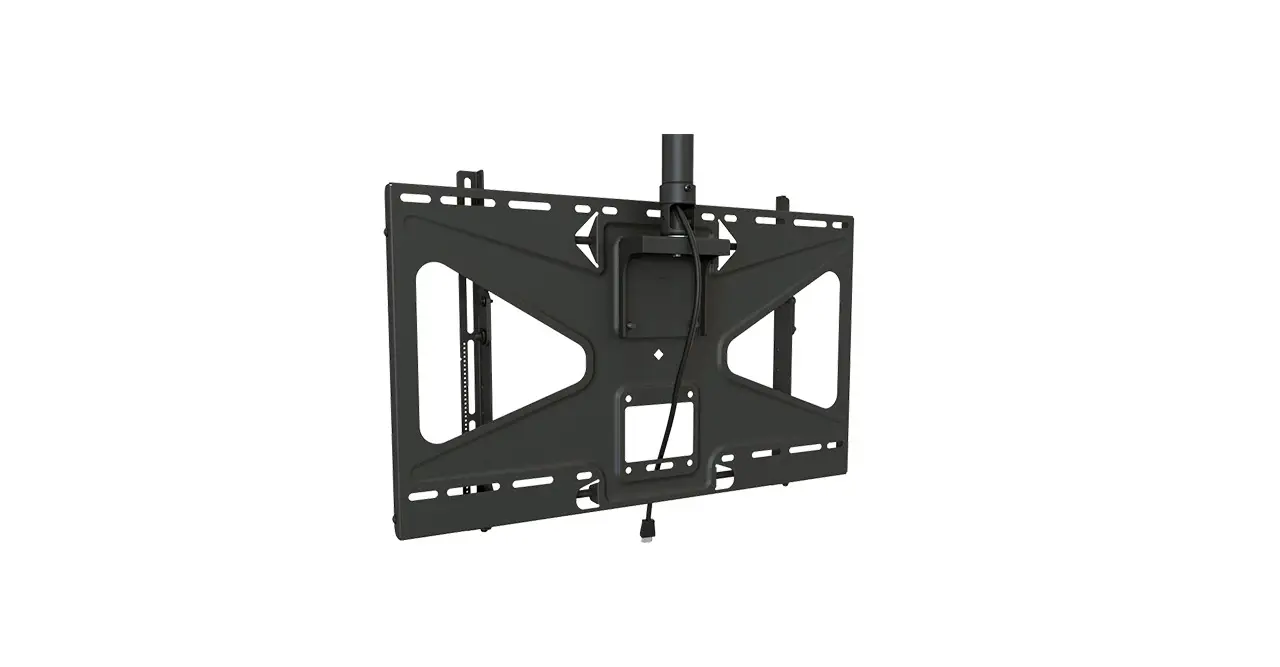

Series : Ceiling Mount Kit
Compatible Monitors
Product Features
- Model Number: VZ-CMK04
- Works with both flat-panel mounts and projector mounts
- Multiple attachment points adapt to a single stud or a 4.5″ bolt pattern
- Can be installed on a wood stud or concrete ceiling structure
- Allows 12° continuous tilt
- Adjusts from 24 – 46 in. (610-1168mm) in 1.25 in. increments
- Adapts to 1.5 in. NPT, Black Metal
Specification
| Display Range | 42″ ~ 55″ |
| Weight Capacity | 160 lbs / 72.57 kg |
| Tilt | 12° |
| Mounting Pattern Type | Range |
| Mounting Patterns | 200 x 200(Min) ~ 800 x 505(Max) |
Dimensions & Weight
| Plate Size (W x H x D) | 675.49 mm x 533.40 mm x 62.19 mm / 26.59″ x 21.0″ x 2.45″ |
| Pole ( R x Length ) | Ø 38.1 x 1116.50 mm / Ø 1.5 x 43.957″ |
| Net Weight | 40 lbs / 18.14 kg |
Product Dimension & Weight
Click below to enlarge
