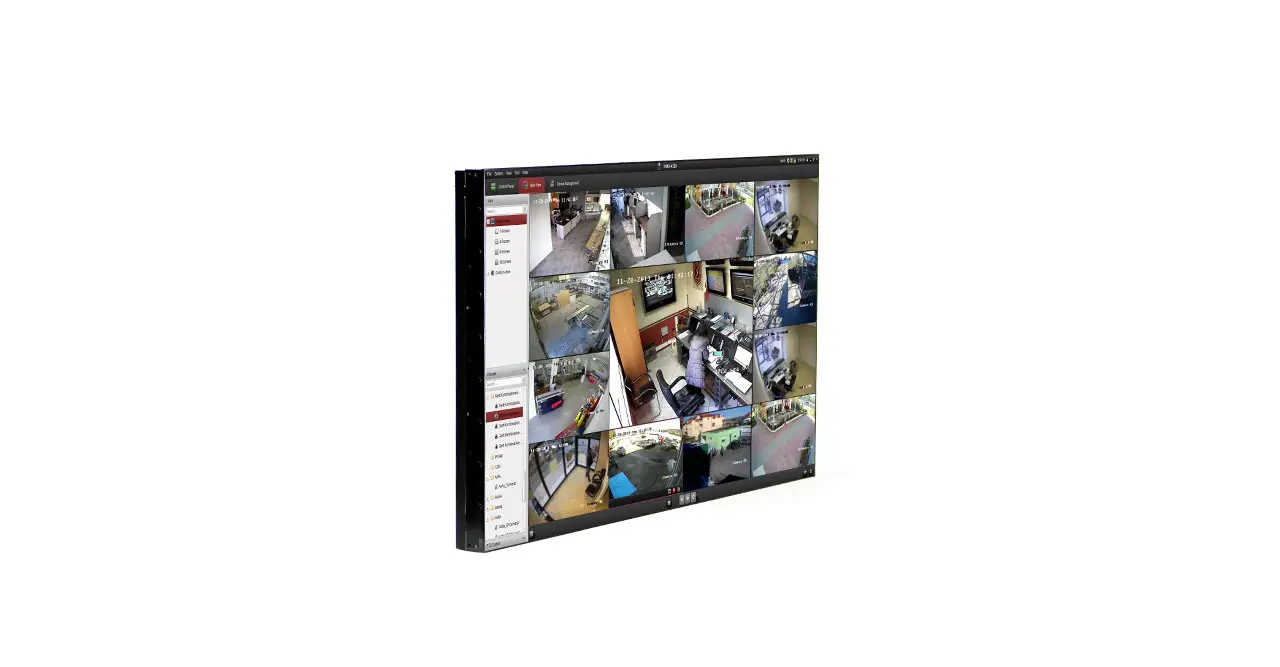

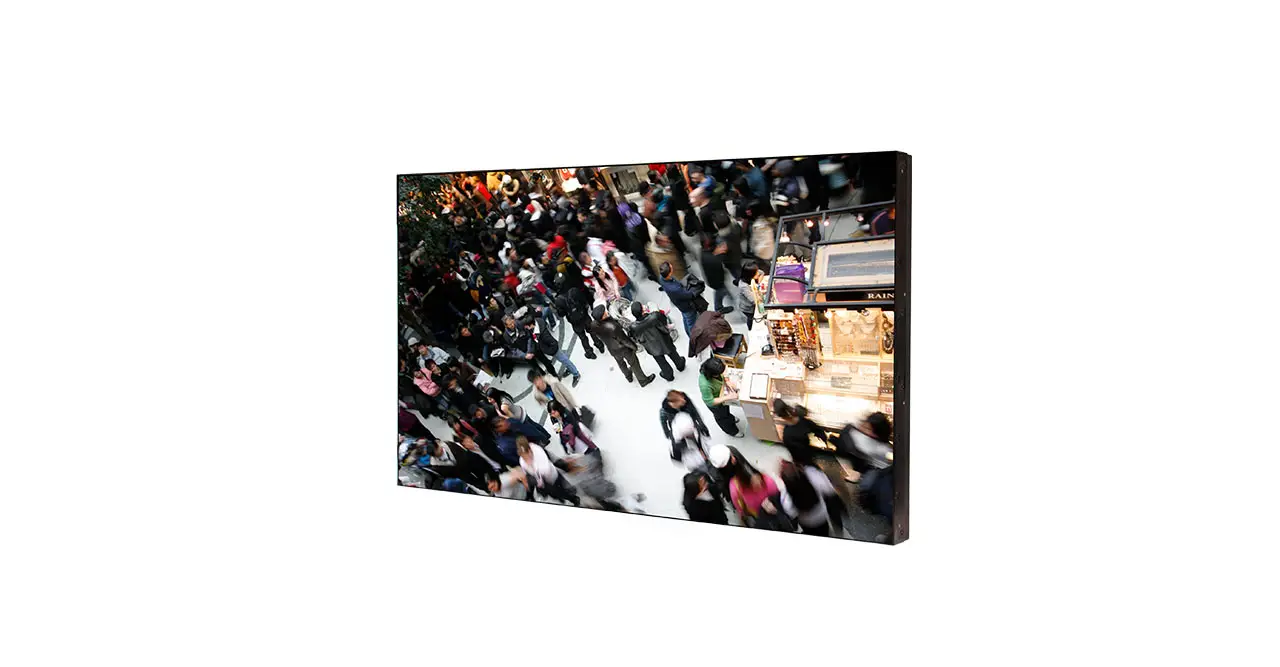

With an astonishingly thin 0.9 mm bezel, the ViewZ ENB security video wall monitors display brilliant HD images across multiple screens with virtually seamless gaps in-between. Designed to work with ViewZ PRO video wall processor series.
- Full HD 1080p CCTV LED Monitor / 1.07B color IPS Panel
- Extreme-narrow 0.9 mm Metal Bezel
- Supports 4K (3840×2160) Resolution & HDCP 1.4 / 2.2
- Daisy Chain System – HDMI up to 15 x 15
- Landscape or Portrait mode selectable
- Multi Window Display (PBP, PIP, Triple or Quad)
- HDMI (2.0) In/Out, DVI-D In, DP In
- Mullion Compensation Applied
- Auto Source & Power Recovery
- Advanced Heat Management
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Specification | Dimension | Download
Series : ENB | Key Features : Narrow Bezel Built In Media Player NDAA Compliant
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-55ENB
- 55″ Flat Panel Widescreen LED A Commercial-Grade Monitor
- 55″ Black All Metal 0.9 mm Extreme-narrow Seamless Bezel
- 500 cd/m² High Brightness
- 1.07 Billion Color IPS Panel (10 bit) / HDCP 1.4 / 2.2
- Supports Max 4K (3840×2160)/60 Video Signal & Serial Control Software
- Daisy Chain System – HDMI up to 15 x 15
- Landscape or Portrait mode selectable
- Multi Window Display (PBP, PIP, Triple or Quad)
- HDMI (2.0) In/Out, DVI-D In, DP In
- Color Gamut 72%
- Auto Power and Source Recovery
- Mullion Compensation Applied
- Advanced Heat Management
- AC100 ~ 240V(50/60Hz)
- Built to run 24/7/365
- 3-Year Warranty
- NDAA Compliant
Display
| Screen Size | 55″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.630 mm x 0.630 mm |
| Brightness | 500 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.06 B (10 Bit) |
| Response Time | < 8ms |
| Active Display area ( H x V ) | 1209.6 mm × 680.35 mm |
| Color Gamut | 72 % |
Interface
| DVI-D In | 1 |
| DP In | 1 |
| HDMI (1.4) In | 1 |
| HDMI (2.0) In / Out (Daisy Chain) | 1 / 2 |
| USB In (Upgrade) | 1 |
| RS-232 (RJ-45) In | 1 (Serial Control / IR Receiver) |
| RS-232 (RJ-45) Out | 1 (Serial Control) |
| Audio Out | 1 |
Support Refresh Rate
| HDMI 1 (1.4) In | 3840 x 2160 @ 30Hz |
| HDMI 2 (2.0) In / Out | 3840 x 2160 @ 60Hz |
| DP (1.2) In | 3840 x 2160 @ 50Hz |
| DVI-D In | 1920 x 1080 @ 60Hz |
Special Features
| Bezel Width – TOP and LEFT Side | 0.035” / 0.9 mm |
| Bezel Width – BOTTOM and RIGHT Side | 0.035” / 0.9 mm |
| Bezel Width – ACTIVE to ACTIVE AREA | 0.070” / 1.8 mm (Bezel to Bezel) |
| Advanced Anti-Image Residual Function | Support |
| Landscape or Portrait mode selectable | Support |
| Multi Window Display (PBP, PIP, Triple or Quad) | Support |
| Language | English, Spanish, French and Portuguese |
Dimensions & Weight
| Outline Dimension (W x H x D) | 47.72 x 26.89 x 4.69” / 1212.26 x 683.06 x 119.35 mm |
| Net Weight | 65.91 lb / 29.9 kg |
| Gross Weight | 88.18 lb / 40.0 kg |
Mount

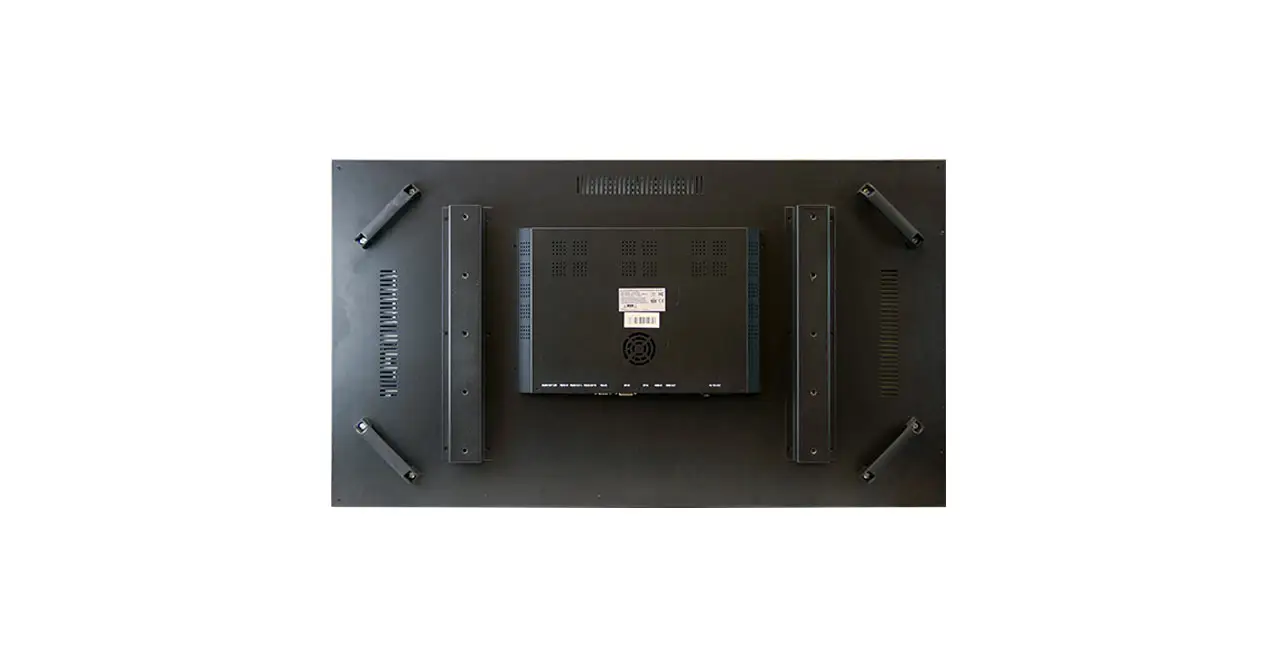

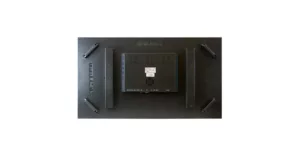

| Vesa | 600 x ( 100 x 4 ) mm / M8 x L10 mm |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | AC 100-240V, 50/60Hz |
| Power – Consumption | ≤ 180 W (Max) / 0.5 W (Standby) |
| Regulations | FCC(A), NDAA, RoHS |
| Operating Temperature | Humidity | 14 ~ 149°F / -10 ~ 65°C | 5 ~ 95% RH |
| Storage Temperature | 32 ~ 140°F / 0 ~ 60°C |
| Compatible Mounts – Wall | VZ-XMS, VZ-WM71 |
| Compatible Mounts – Ceiling | VZ-CMKiT-04, VZ-CMKiT-07 |
| Package Includes | Manual x 1, Power Cable x 1, HDMI Cable x 1, CAT5 Cable x 1, Converter (RJ45 to RS232) x 1, Remote Control x 1, IR Receiver x 1 |
Product Dimension & Weight
Click below to enlarge
