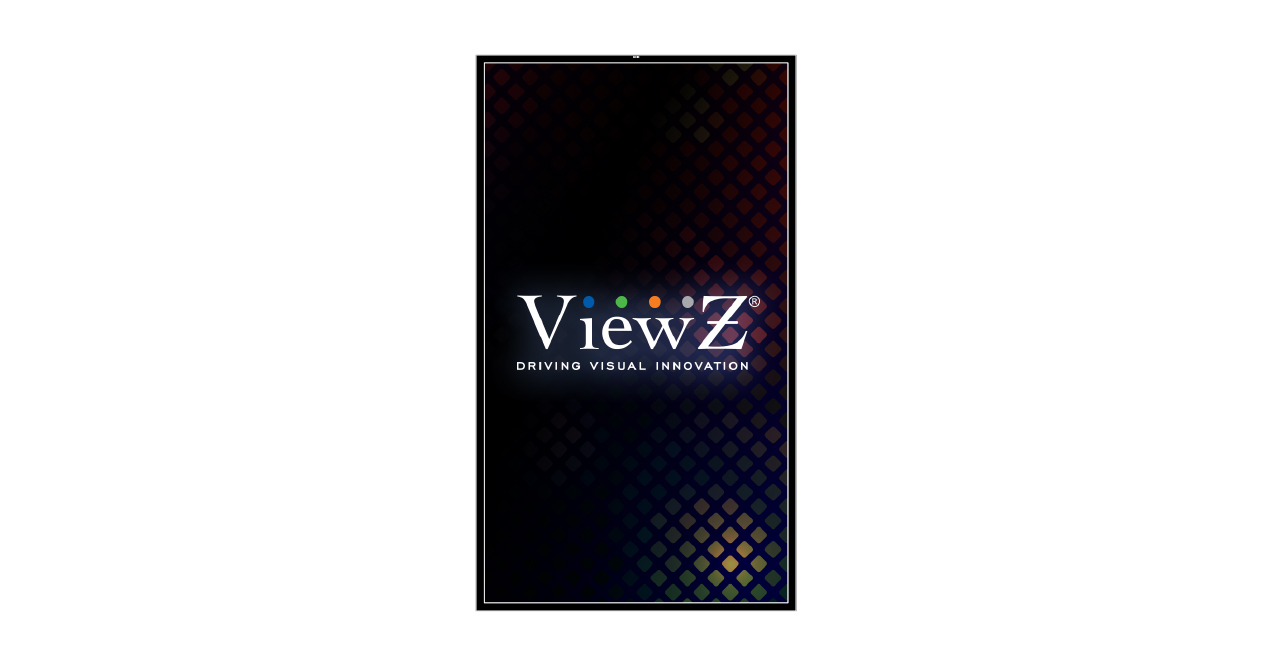

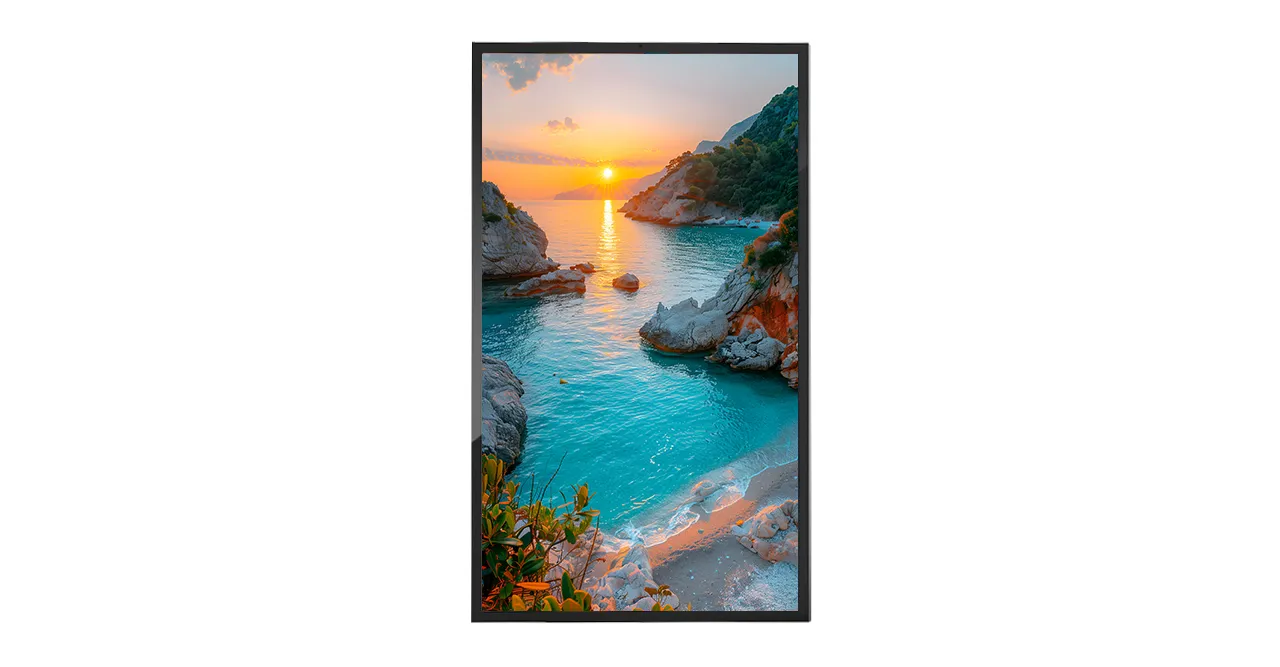

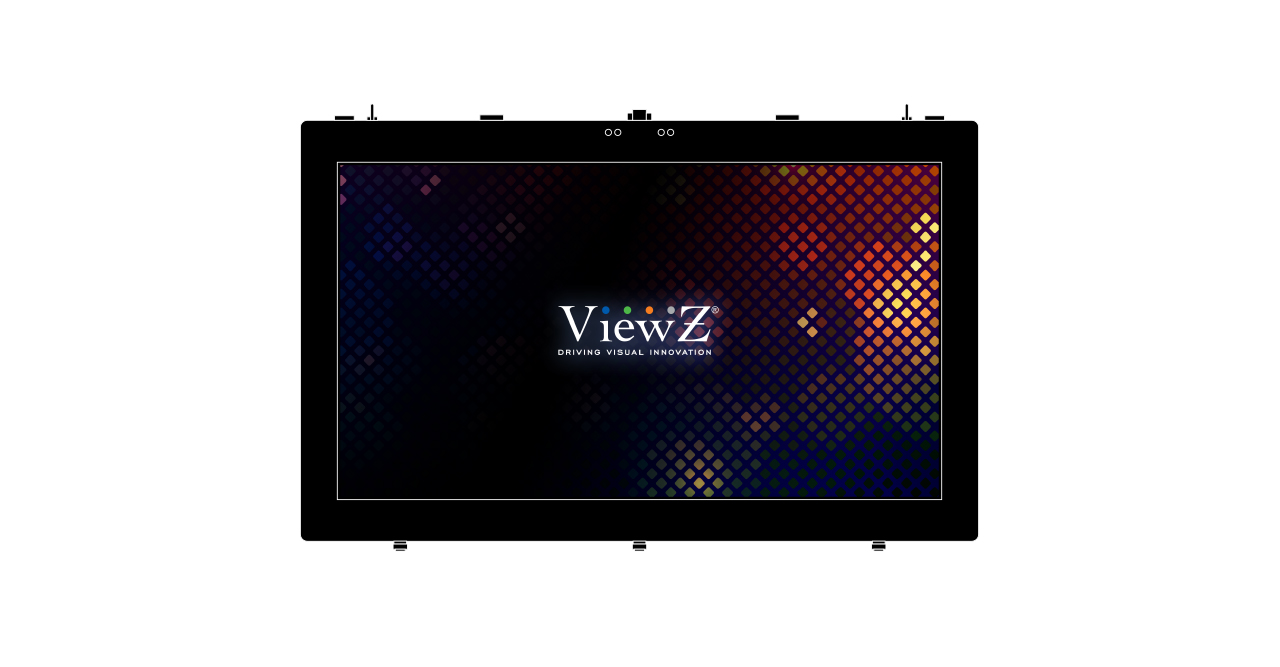

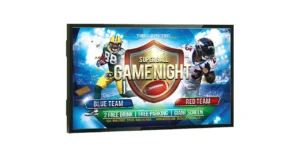

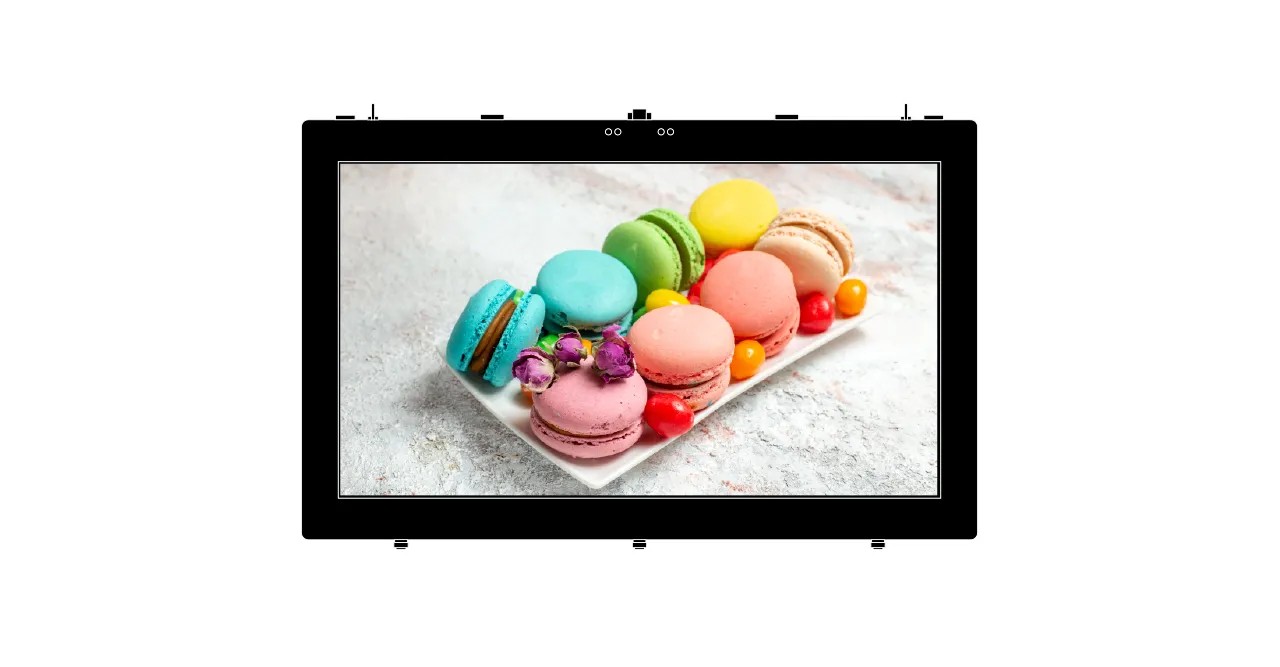

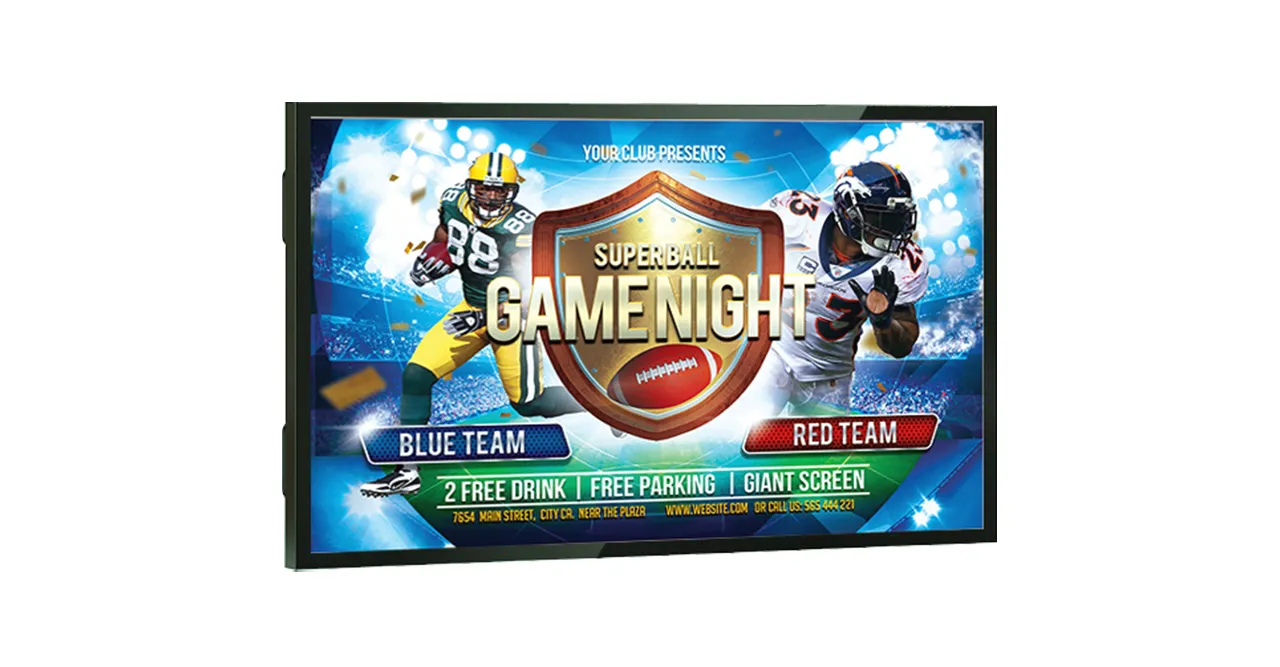

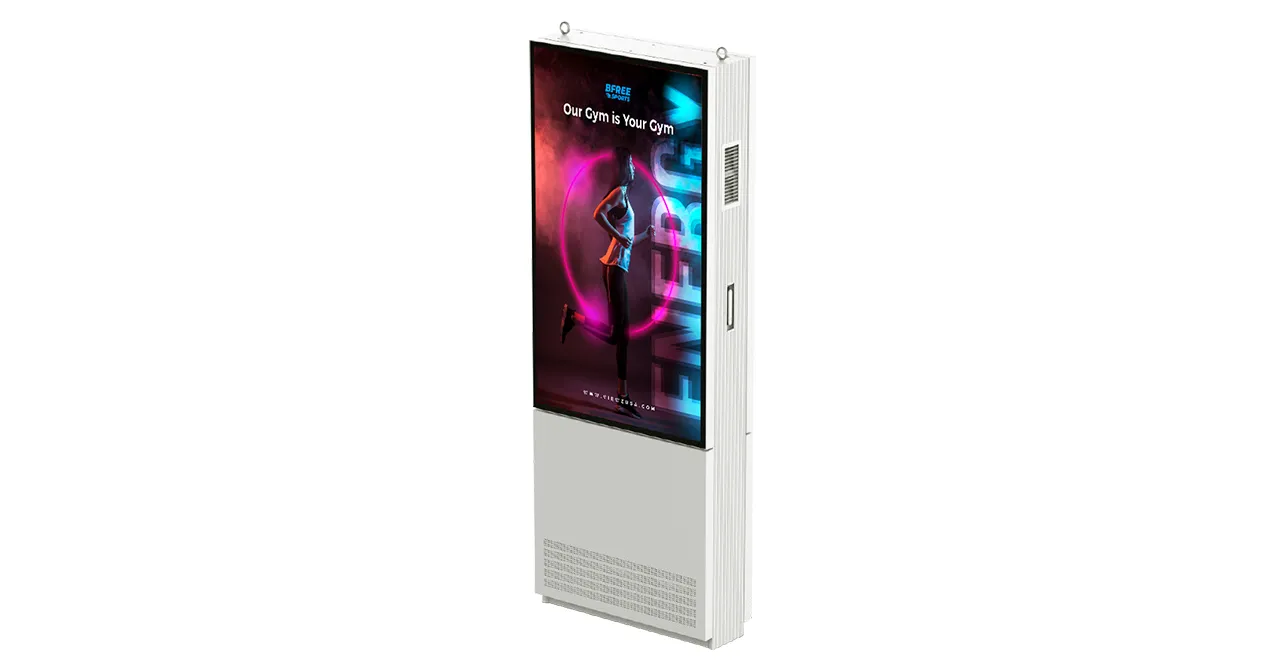

75`` Outdoor LCD Display
- High Brightness 2000 Nits Outdoor LCD Monitor
- Weatherproof IP55 Level Protection
- Optical Bonded with Anti-reflective Glass
- Wide Temperature Range Design
- Android OS & Built-In CMS Program
- High Temperature Design – No Blacken (upto 230°F / 110°C)
- Diversified Design – can be installed at ceiling, wall, stand & pole

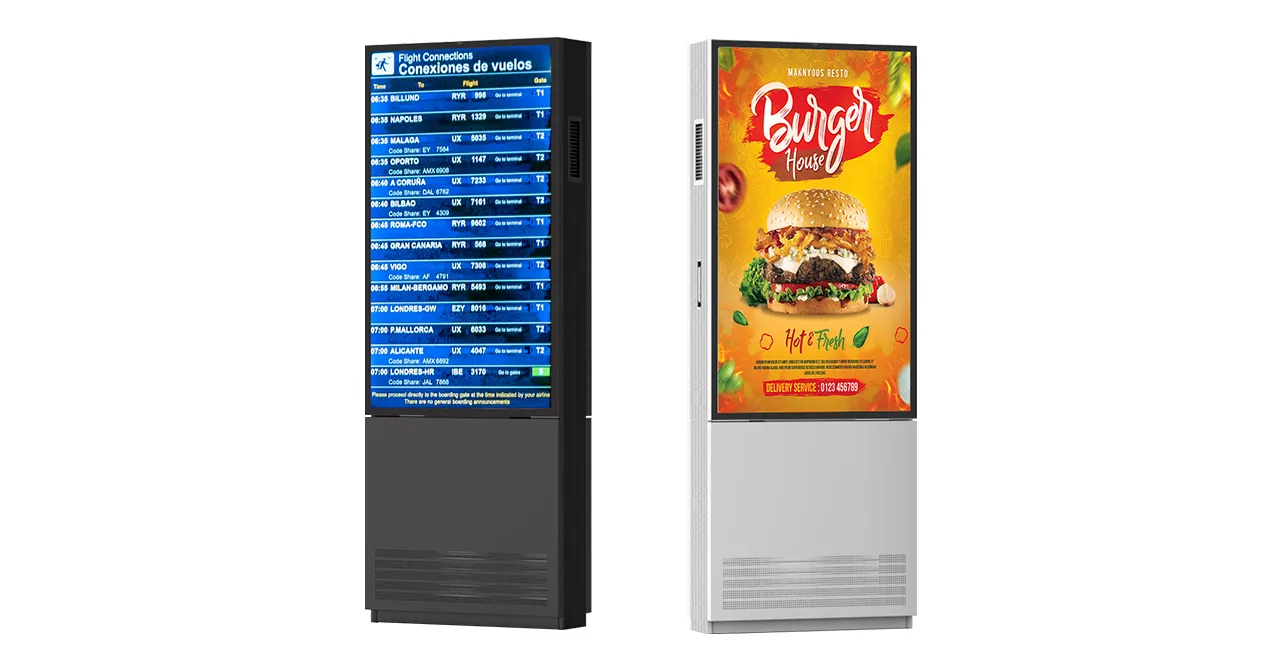

- Touch Screen & Floor Stand Model (Optional)
Specification | Dimension | Download
Series : OIP-U | Key Features : Outdoor LCD Monitor
Product Features
- Model Number: VZ-75OIP-U
- 75” Outdoor LCD Monitor
- Weatherproof IP55 Level Protection
- Optical Bonded with Anti-reflective Glass
- Wide Temperature Range Design
- Android OS & Built-In CMS Program
- High Brightness 2000 Nits
- High Temperature Design – No Blacken (upto 230°F / 110°C)
- Diversified Design – can be installed at ceiling, wall, stand & pole
- Touch Screen & Floor Stand Model (Optional)
Display
| Resolution | 3840 x 2160 @60Hz |
| Active Area | 1651 x 929 mm |
| Brightness | 2000 cd/m² (Typical) |
| Response Time | ≤ 8 ms |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178° / 178° |
| Display Colors | 1.07 B / NTSC 72% |
| Contrast Ratio | 1200 : 1 |
Built-In Android OS
| Operating System | Android 11 |
| CPU / GPU | 4 Core, ARM Cortext A55 2.0 GHz / Mali-G52 |
| ROM / RAM | 32G | LPDDR4 4G |
Interface
| HDMI In | 1 |
| RJ-45 (Ethernet) In | 1 |
| USB 3.0 In | 1 |
| TF Card In | 1 |
| Audio Out | 1 (3.5 mm) |
| 2.4G WiFi / BT 4.2 | 1 / 1 |
Special Features
| Tempered Glass | Anti-Reflective Glass |
| Process, Weatherproof Design | Optical Bonded IP 55 |
| Cooling System | Smart Fan Cooling |
| Built-In Speaker | 10W x 2 |
| Nano Touch (Optional) | Support |
Dimensions & Weight
| Dimension (W x H) | 72.83 x 45.27 x 10.62” / 1850 x 1150 x 270 mm |
| Package Dimension (W x H x D) | 74.4 x 53.54 x 11.81” / 1890 x 1360 x 300 mm |
| Net / Gross Weight | 341.71 lbs (155 kg) / 385.8 lbs (175 kg) |
General Summary
| Power – Electrical Ratings | AC 100 – 240V, 50/60Hz |
| Power – Consumption | 680 W (Avg) / 5 W (Standby)) |
| Operating Temperature | 5 ~ 122°F / -15 ~ 50°C |
| Operating Humidity | 10 ~ 85% (Non-Condensing) |
| Storage Temperature | -4 ~ 140°F ( -20 ~ 60°C ) |
| Storage Humidity | 10 ~ 85% (Non-Condensing) |
| Regulations | FCC(A), CE, RoHs |
| Package | Remote Controller x1, Power Cable x1, Wall Mount Bracket x1, Manual x1 |

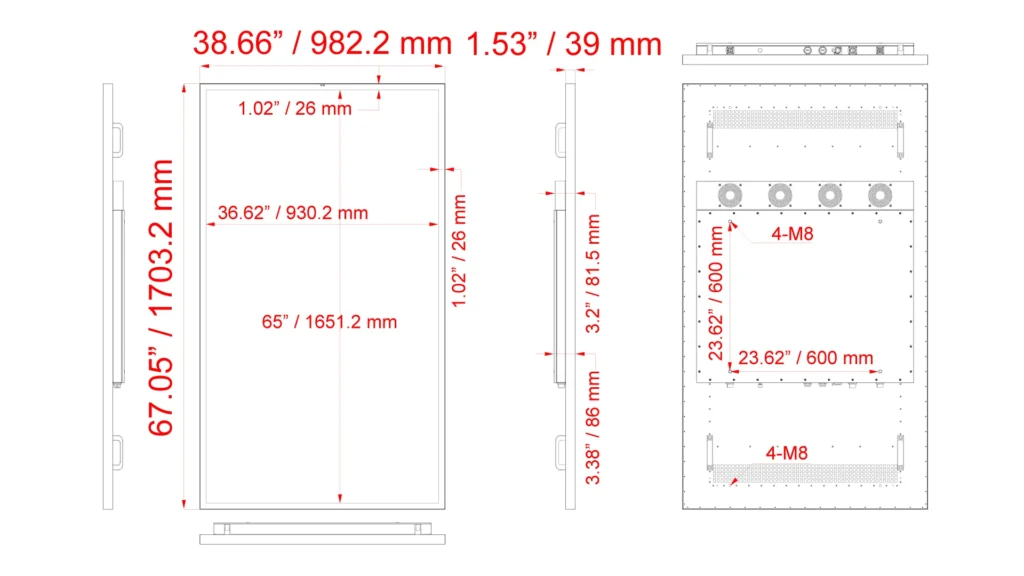

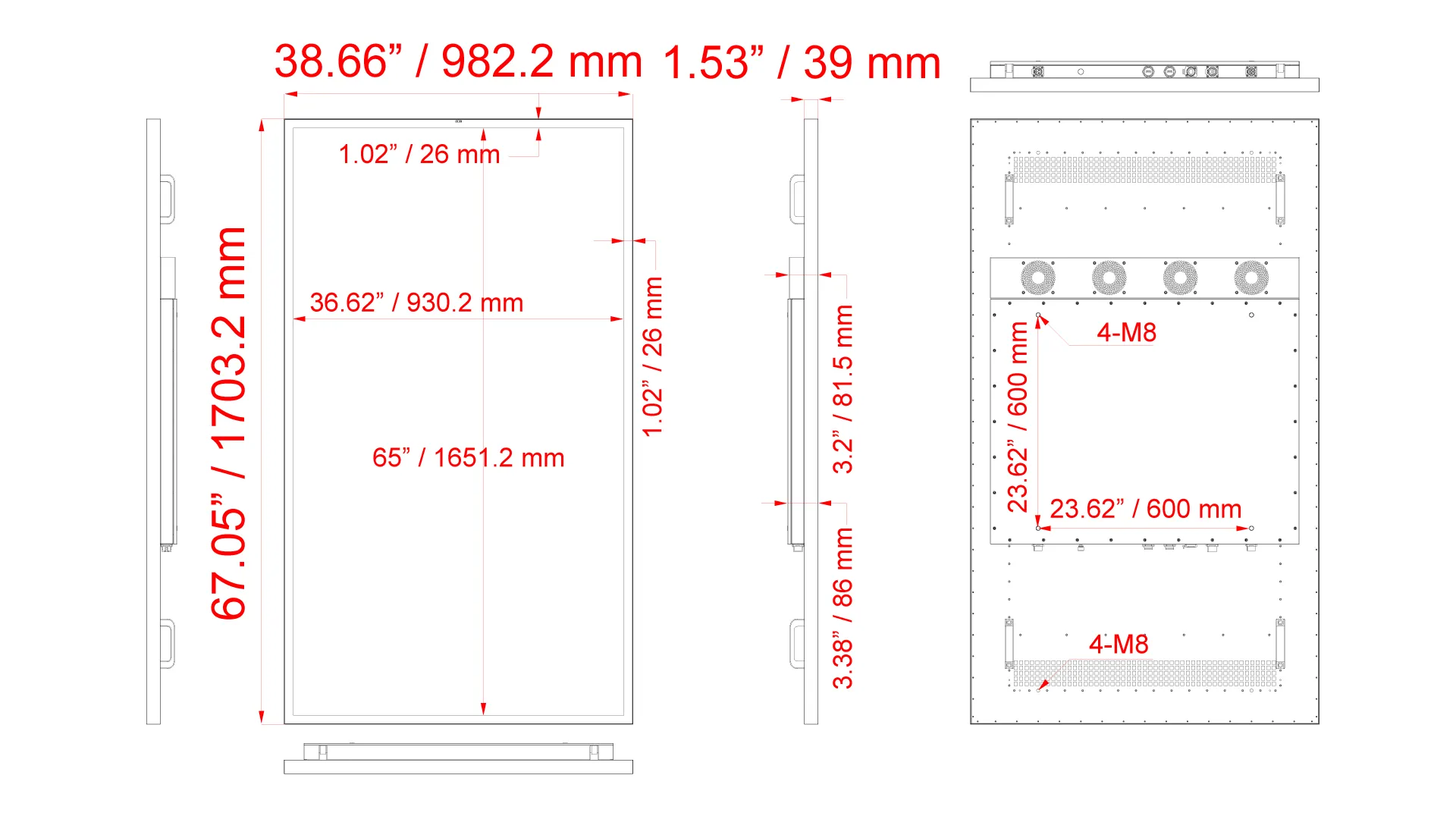

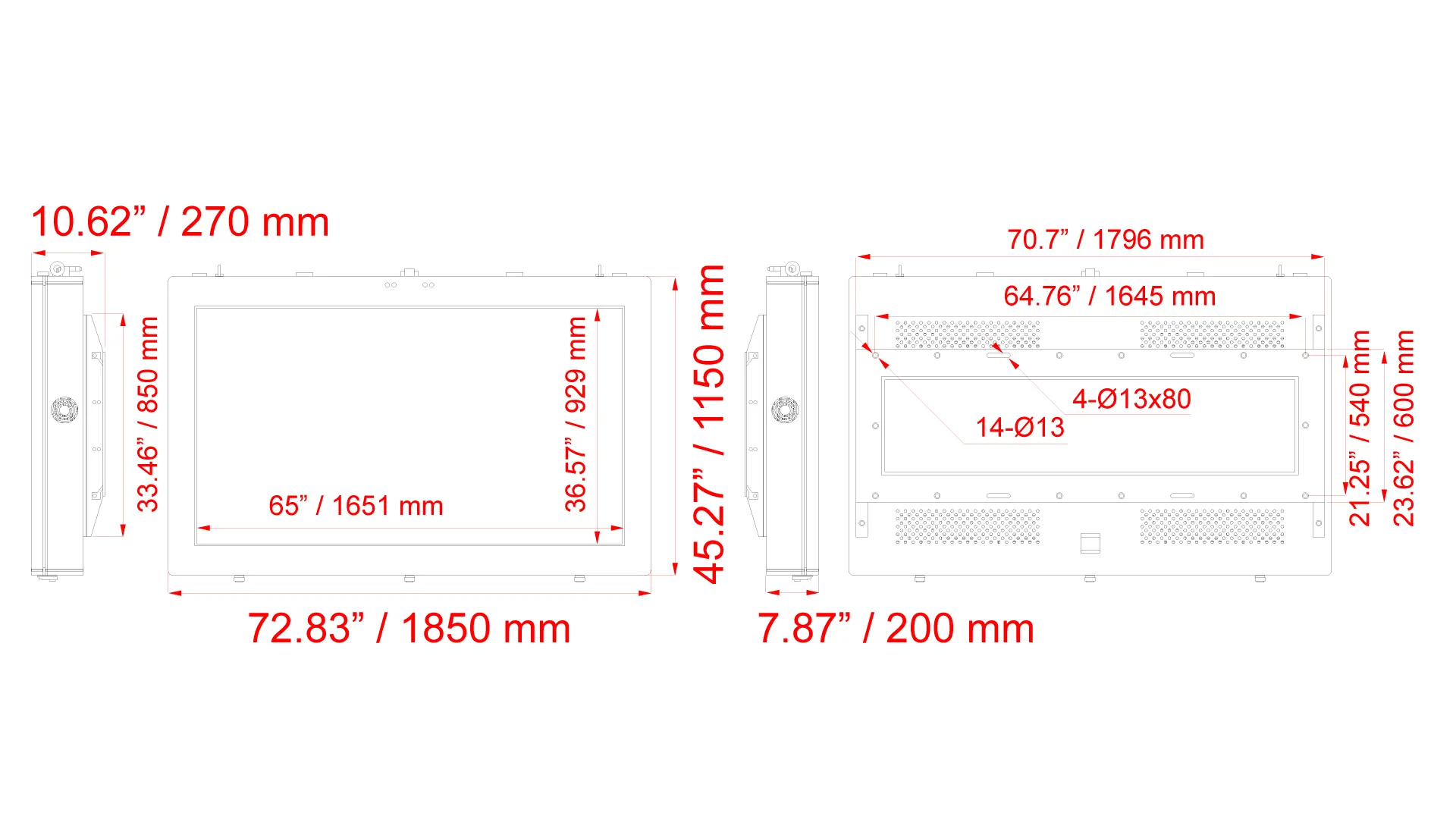

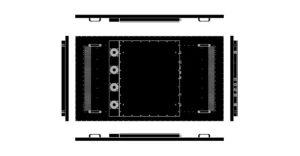

Product Dimension & Weight
Click below to enlarge
