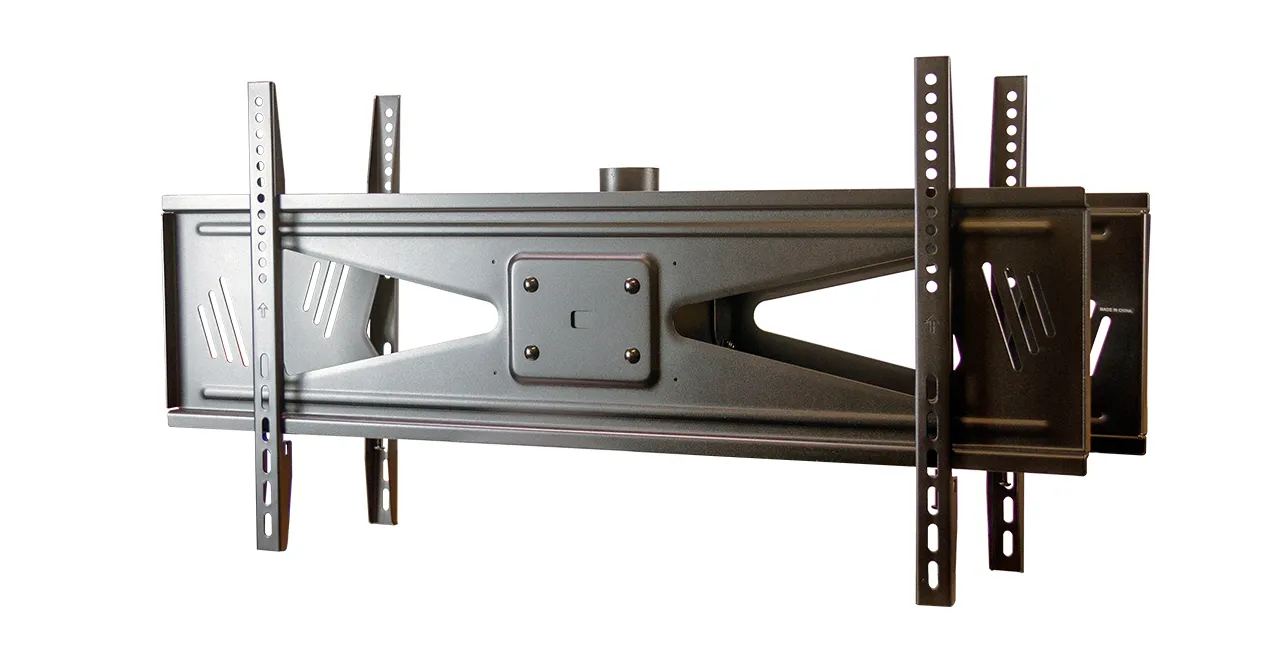

vzcmv4-3

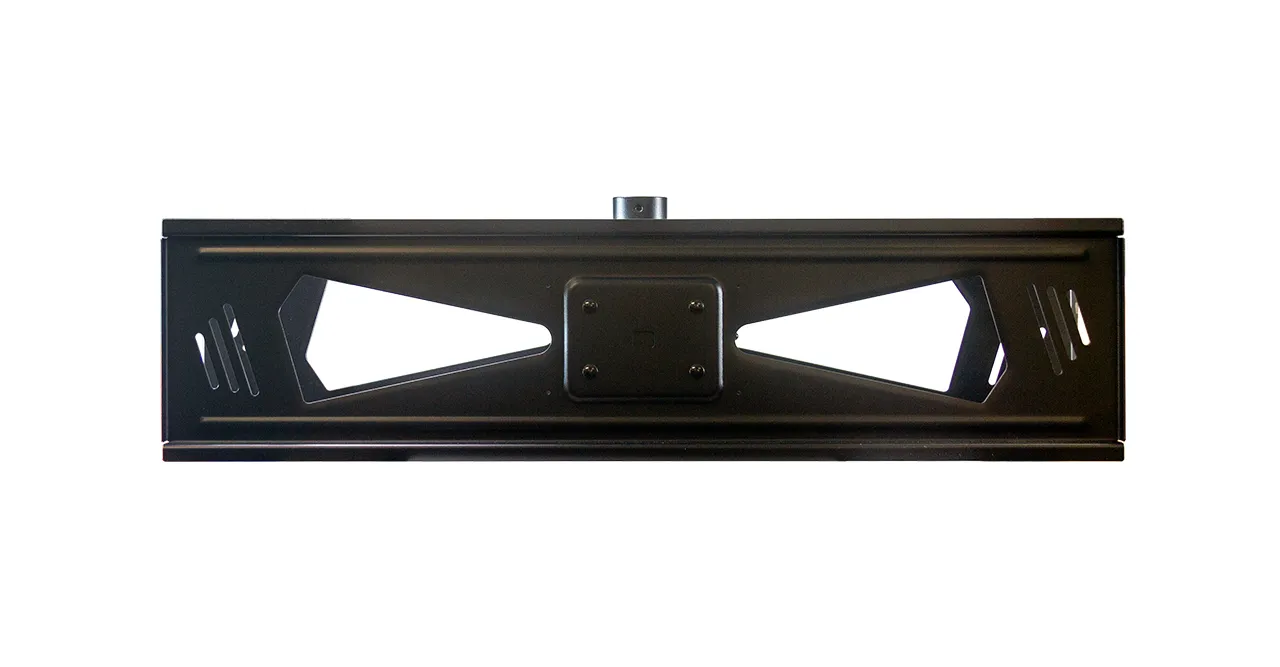

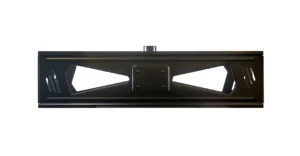

vzcmv4-5

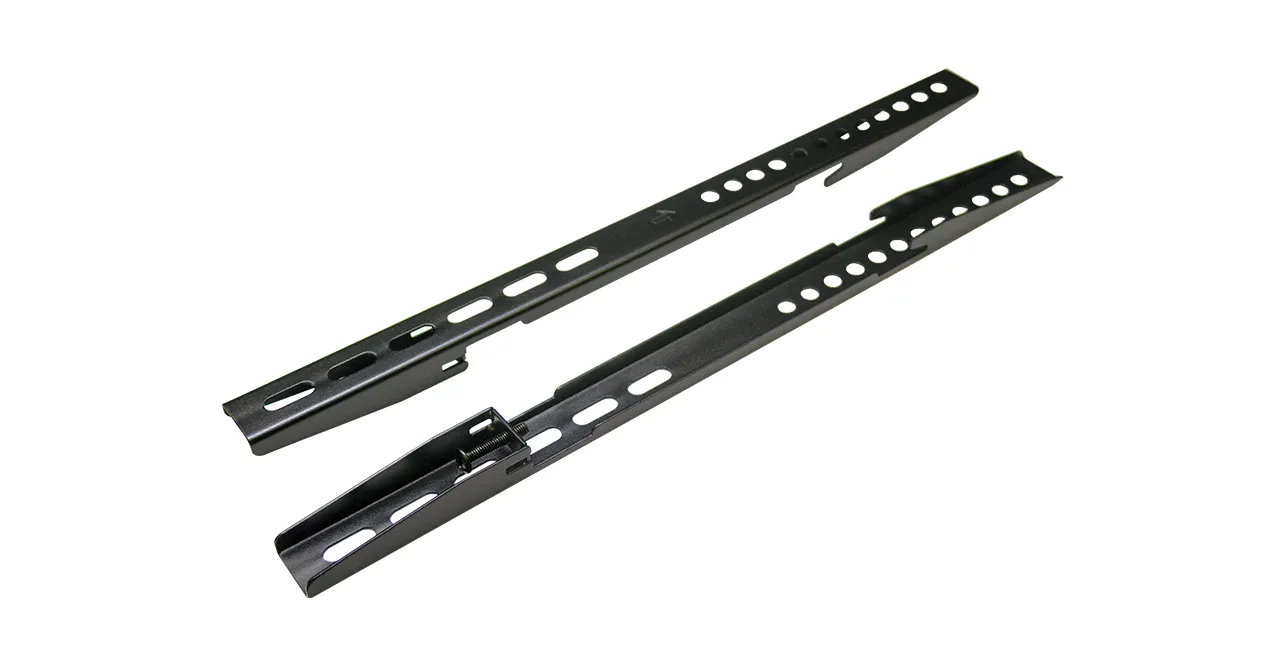

vzcmv4-4

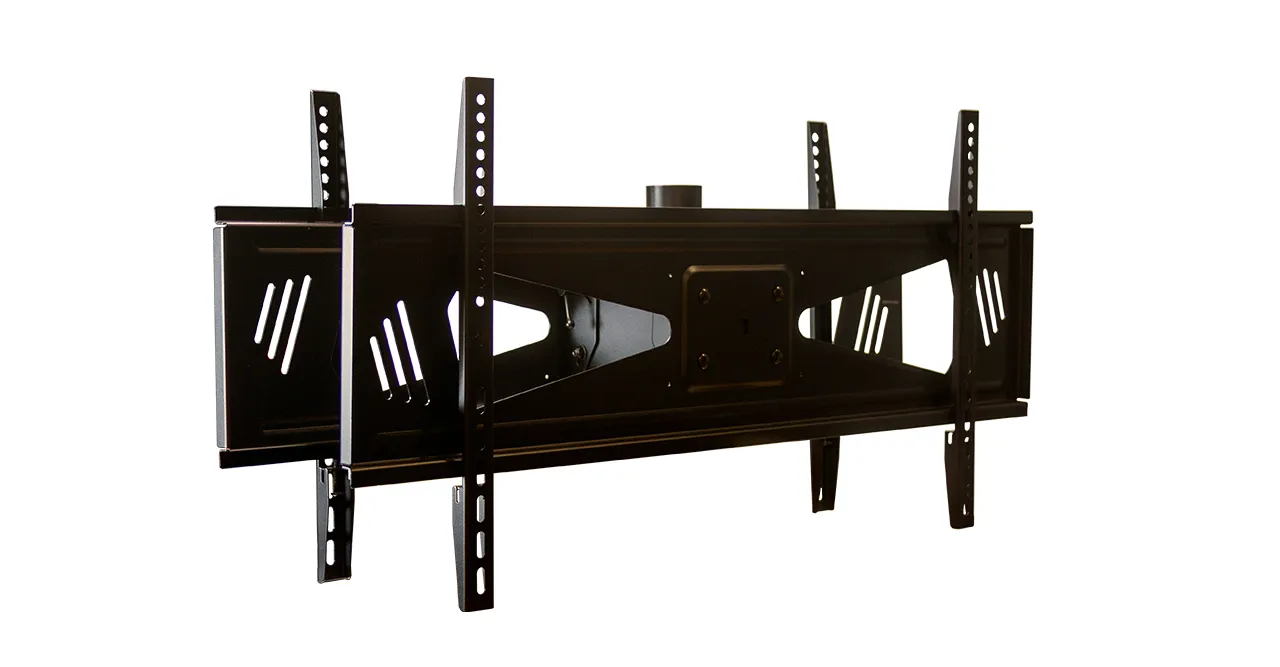

vzcmv4-2
vzcmv4-3 vzcmv4-5 vzcmv4-4 vzcmv4-2

BACK to BACK DUAL Universal Ceiling Mount Head for 43” to 65” CCTV & Video Wall Monitors

  • Dual Mounting head for 43″~65″ ViewZ Monitors
  • Load Capacity is 110 lbs / 50 kg for each head
  • +5° ~ -12° tilt, 360° Pan Rotation for Achieving that Perfect Viewing Angle
  • Universal Range and VESA compliant: 200×200, 300×300, 400×200, 400×400, 600×400, 800×400
  • Easy Cable Management
  • Pole Option : VZ-CM-P36 (35.5″)

Designed specifically for

Product Features

  • Model Number: VZ-CM-V4
  • Dual Mounting Head for 43″ to 65″ CCTV & Video Wall Monitors
  • Load Capacity is 110 lbs / 50 kg for each head
  • 5° Tilt Up and 12° Tilt Down Adjustment along with 360° Pan Rotation for Achieving that Perfect Viewing Angle
  • ± 5° Level Adjustment
  • VESA Standard – 200×200, 300×300, 400×200, 400×400 & 800×400
  • Universal Mounting Support
  • Easy Cable Management
  • Pole Option : VZ-CM-P36 (35.5″)

Specification

Total Weight Capacity 110 lbs / 50 kg (for each head)
Display Range 43″ ~ 65″
PAN Rotation (Swivel) ± 180° (360°)
Tilt Capability +5° ~ – 12°
Mounting Patterns Type Universal, VESA
Mounting Patterns 200×200, 300×300, 400×200, 400×400, 600×400 & 800×400


Dimensions & Weight

Outline Dimension (W x H x D) 35.59” x 17.32” x 8.4” / 904 mm x 440 mm x 214 mm
Pole ( R x Length ) Ø 1.5″ x 3″ / Ø 38.1 x 76 mm
Net Weight 22.04 lbs / 10.0 kg
Gross Weight 26.38 lbs / 11.97 kg
