2.1MP Full HD Varifocal Bullet Camera provides maximum coverage for seeing activity in complete darkness.
- Full HD 1080p over coaxial cable, BNC connection
- 2.1 MP Vari-Focal 2.8 – 12 mm HD Lens
- 1/2.8” SONY Progressive Scan CMOS Sensor
- 30 IR LEDs, ATW/MWB , 3D DNR, WDR
- AHD / TVI / CVI / CVBS (BNC)
- Digital WDR, ICR, BLC, Day & Night
- Minimum Illumination 0.0001 Lux ( F1.2)
Specification | Dimension | Spec & Manual
Series : Camera | Key Features : HD (IR) Camera Vari Focal Lens
Product Features
- Model Number: VZ-VBC-1
- Full HD 1080p over coaxial cable, BNC connection
- 1/2.8” SONY Progressive Scan CMOS Sensor
- 2.1 MP Vari-Focal 2.8 – 12 mm HD Lens
- Up to 1920 x 1080 / NTSC : 30fps & PAL : 25fps
- 0.01 Lux ( Color-AGC On ), 0 Lux ( B/W – IR On )
- 30 IR LEDs, AGC, ATW, WDR, ICR, BLC, Day & Night
- No additional installation cost. (Compatible with existing coaxial cables)
- Video outputs for diverse applications. ( AHD / TVI / CVI / CVBS )
- 3D – DNR (Digital Noise Reduction)
- Built in OSD Control Switch
- DC 12V ± 10% ( IR-LED On )
Specification
| Imaging Sensor | SONY 2.1 Megapixel CMOS Sensor |
| HD Scanning System | 1/2.8” Progressive Scan |
| S/N Ratio | More than 50dB (AGC Closed)) |
| HD Video Output / Resolution | 1080P (1920×1080) |
| Image Frame | NTSC : 30 fps / PAL : 25 fps |
| Min. Illumination | 0.01 Lux (Color, AGC On), 0 Lux (BW, IR On) |
| Analog Video Output Level / Transmission | 1.0 Vp-p (75Ω, Composite) / 300 m |
| Electronic Shutter Speed | NTSC : 1/30sec ~ 1/10,000sec | PAL : 1/25sec ~ 1/10,000sec |
| Lens | Vari-Focal 2.1MP 2.8 – 12 mm |
| WDR (Wide Dynamic Range) | ＞ 120 dB |
| 3D – NR (Digital Noise Reduction) | On, Off |
| FOV (Field Of View) | 90° ~ 35° |
| IR LED | 30pcs IR LED |
| IR Wavelength / Range | 850 nm / 82 – 114 ft ( 25 – 35 m ) |
| White Balance | ATW / MWB |
| Day & Night | ICR ( Auto, B.W, Color, EXT ) |
| BLC | Support |
Interface
| AHD/TVI/CVI/CVBS ( BNC ) | 1 |
| DC 12V | 1 |
Dimensions & Weight
| Outline Dimension (W x H x D) | ɸ 3.14” x 10.93” / ɸ 80.0 mm x 277.8 mm |
| Net Weight | 1.76 lbs / 800g |
General Summary
| OSD Language | English ( Selectable ) |
| Construction | Aluminum Alloy |
| Power – Supplied Voltage | DC12V ±10% |
| Power – Consumption | Max. 4W |
| Operating Temperature | Humidity | 14 – 131°F / -10°C – 55°C | 0% to 85% Non-condensing |
| Regulation | CE, FCC |
| Standard Protection Rating | IP 66 |

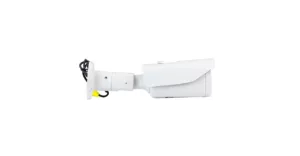

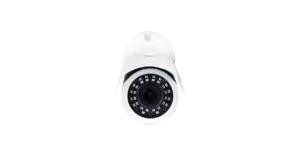

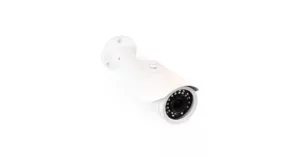

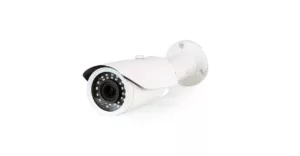

Product Dimension & Weight
Click below to enlarge
