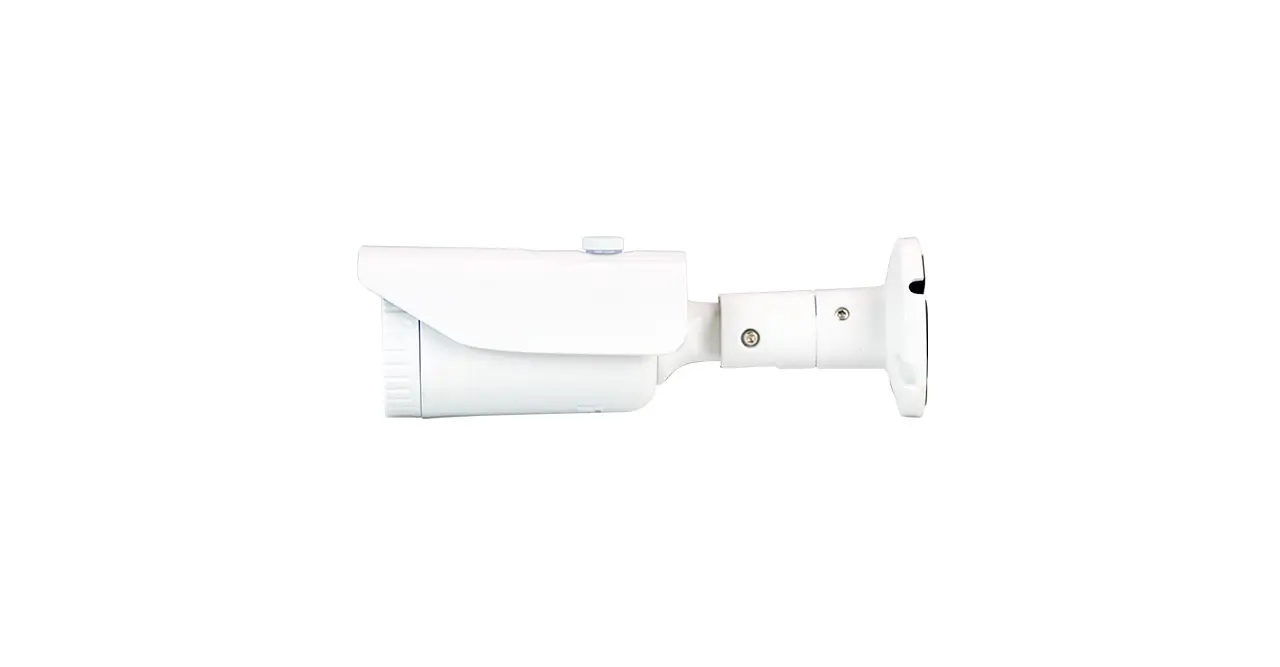

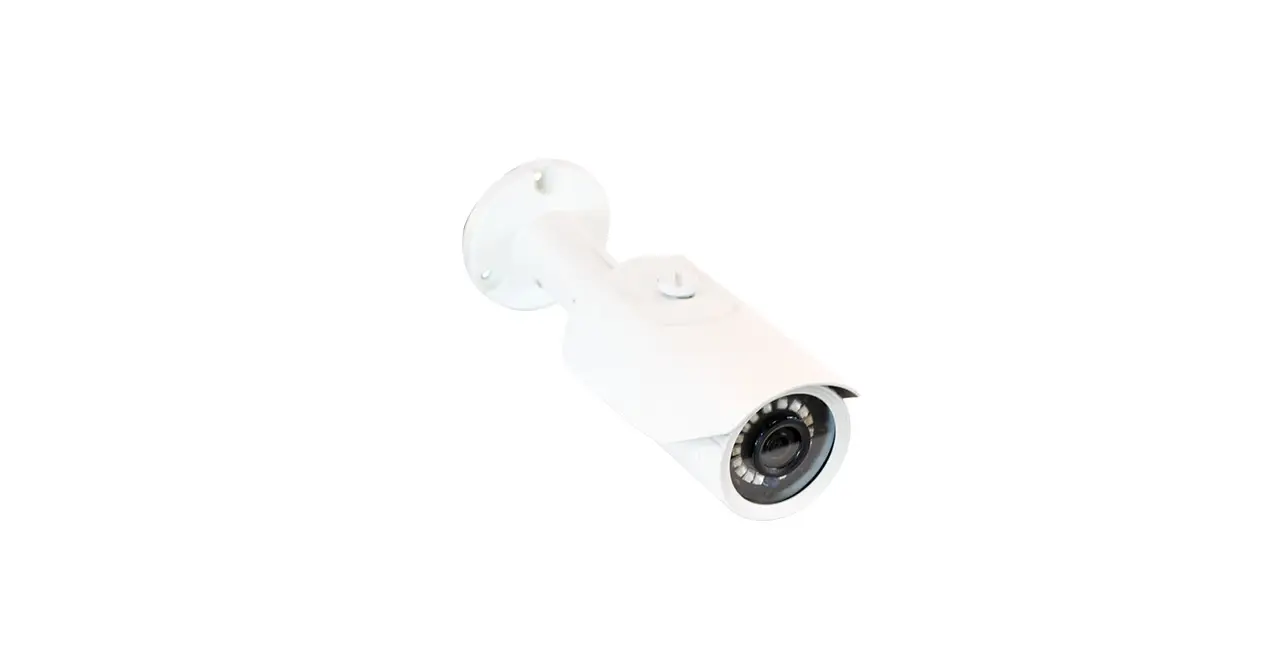

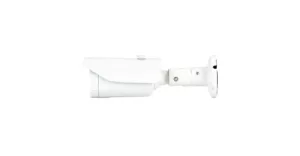

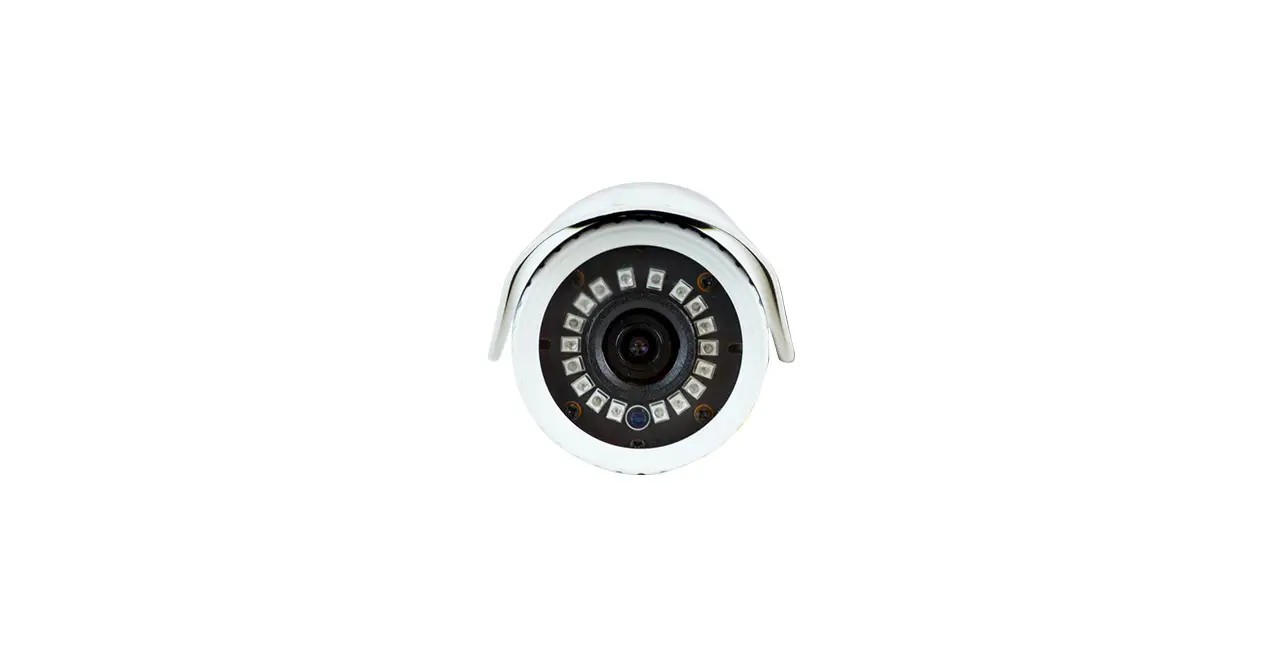

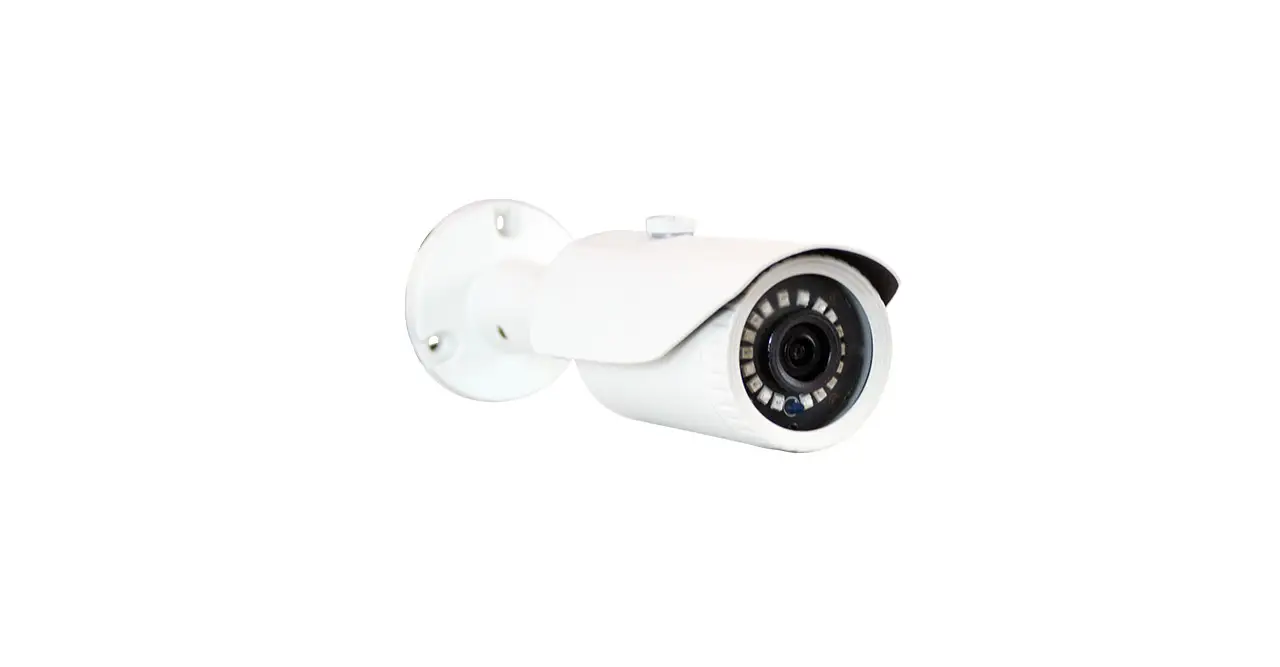

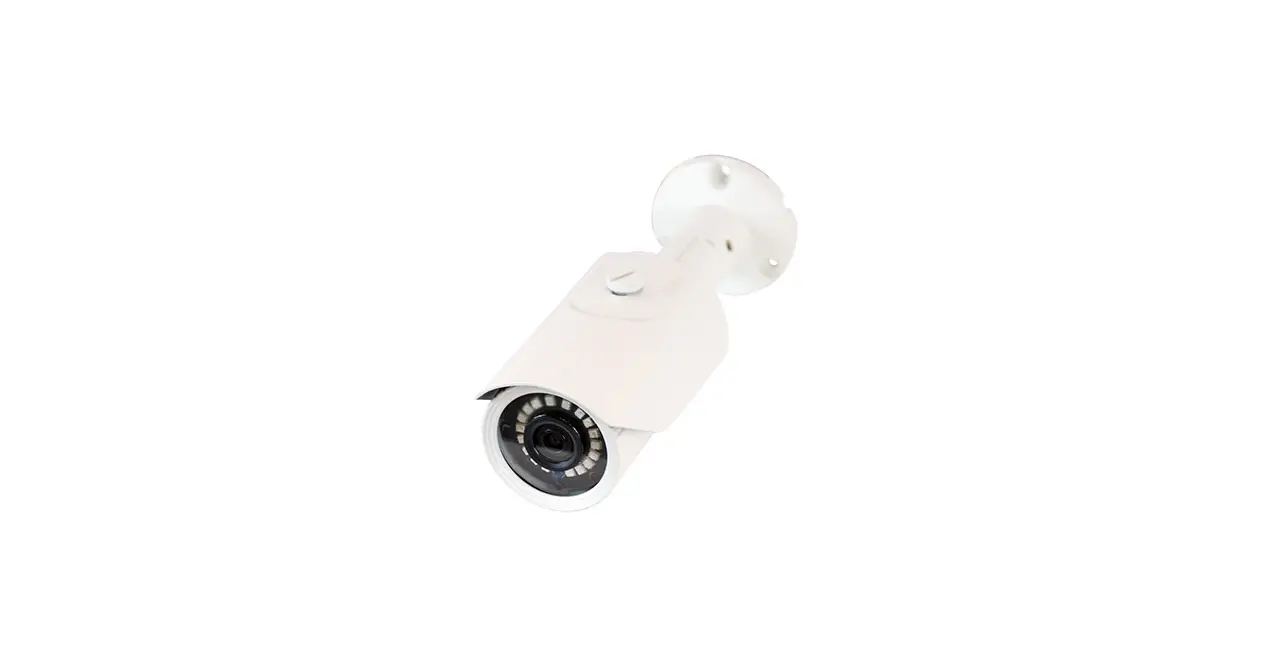

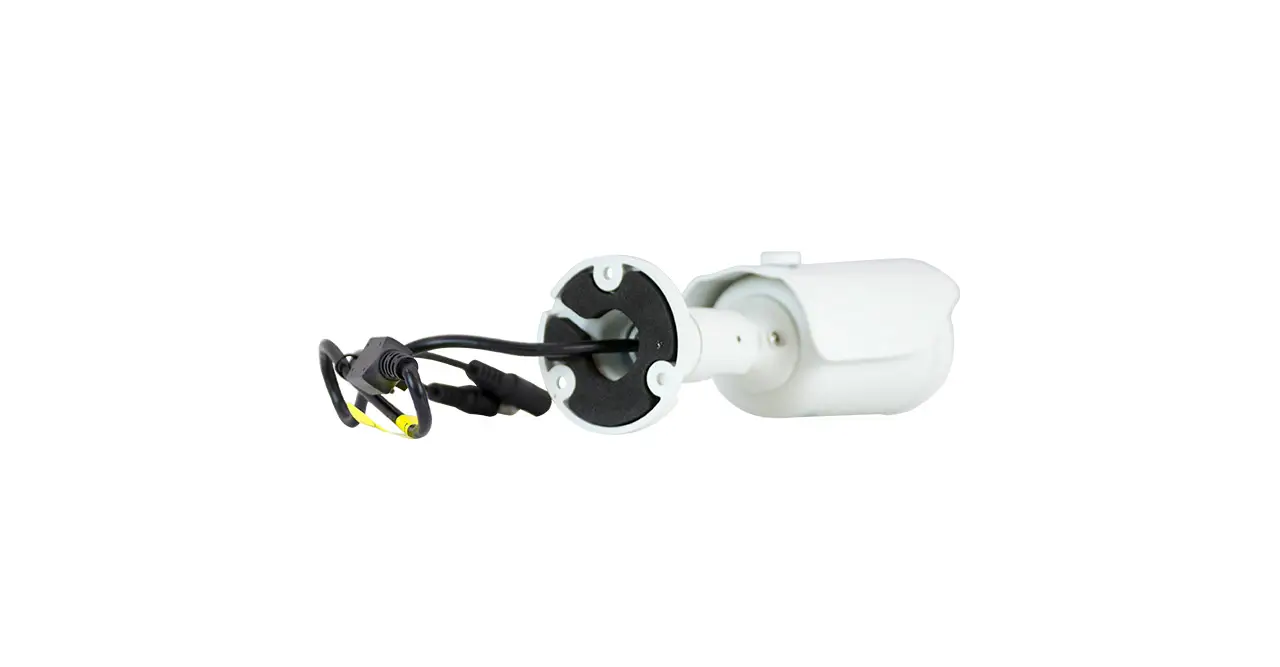

2.1MP Full HD Mini Bullet Camera provides maximum coverage for seeing activity in complete darkness.
- Full HD 1080p over coaxial cable, BNC connection
- 2.1 MP Fixed 3.6 mm HD Lens
- 1/2.8” SONY Progressive Scan CMOS Sensor
- 18 IR LEDs, AGC, ATW, DNR (2D + 3D)
- AHD / TVI / CVI / CVBS (BNC)
- Digital WDR, ICR, BLC, Day & Night
- Minimum Illumination 0.0001 Lux ( F1.2)
Specification | Dimension | Spec & Manual
Series : Camera | Key Features : HD (IR) Camera Mini Bullet Camera
Product Features
- Model Number: VZ-FBC-1
- Full HD 1080p over coaxial cable, BNC connection
- 1/2.9” SONY Progressive Scan CMOS Sensor
- 2.1 MP Fixed 3.6 mm HD Lens
- Up to 1920 x 1080 / NTSC : 30fps & PAL : 25fps
- 0.01 Lux ( Color-AGC On ), 0 Lux ( B/W – IR On )
- 18 IR LEDs, ATW/MWB , 3D DNR, WDR
- No additional installation cost. (Compatible with existing coaxial cables)
- Video outputs for diverse applications. ( AHD / TVI / CVI / CVBS )
- 3D – NR (Noise Reduction)
- Built in OSD Control Switch
- DC 12V ± 10% ( IR-LED On )
Specification
Imaging Sensor | SONY 2.1 Megapixel CMOS Sensor |
HD Scanning System | 1/2.8” Progressive Scan |
S/N Ratio | More than 50dB (AGC Closed)) |
HD Video Output / Resolution | 1080P (1920×1080) |
Image Frame | NTSC : 30 fps / PAL : 25 fps |
Min. Illumination | 0.0001 Lux (F1.2) |
Analog Video Output Level / Transmission | 1.0 Vp-p (75Ω, Composite) / 300 m |
Electronic Shutter Speed | NTSC : 1/30sec ~ 1/10,000sec | PAL : 1/25sec ~ 1/10,000sec |
Lens | 2.1MP 3.6mm |
WDR (Wide Dynamic Range) | > 120 dB |
3D – NR (Digital Noise Reduction) | On, Off |
FOV (Field Of View) | 85° |
IR LED | 18pcs IR LED |
IR Wavelength / Range | 850 nm / 49 ft ( 15m ) |
White Balance | ATW / MWB |
Day & Night | ICR ( Auto, B.W, Color, EXT ) |
BLC | Support |
Interface
AHD/TVI/CVI/CVBS ( BNC ) | 1 |
DC 12V | 1 |
Dimensions & Weight
Outline Dimension (W x H x D) | ɸ 7.85” x 2.63” / ɸ 199.4 mm x 67.0 mm |
Net Weight | 0.66 lbs / 300g |
General Summary
OSD Language | English ( Selectable ) |
Construction | Aluminum Alloy |
Power – Supplied Voltage | DC12V ±10% |
Power – Consumption | Max. 3.5W |
Operating Temperature | Humidity | 14 – 131°F / -10°C – 55°C | 0% to 85% Non-condensing |
Regulation | CE, FCC |
Standard Protection Rating | IP 66 |
