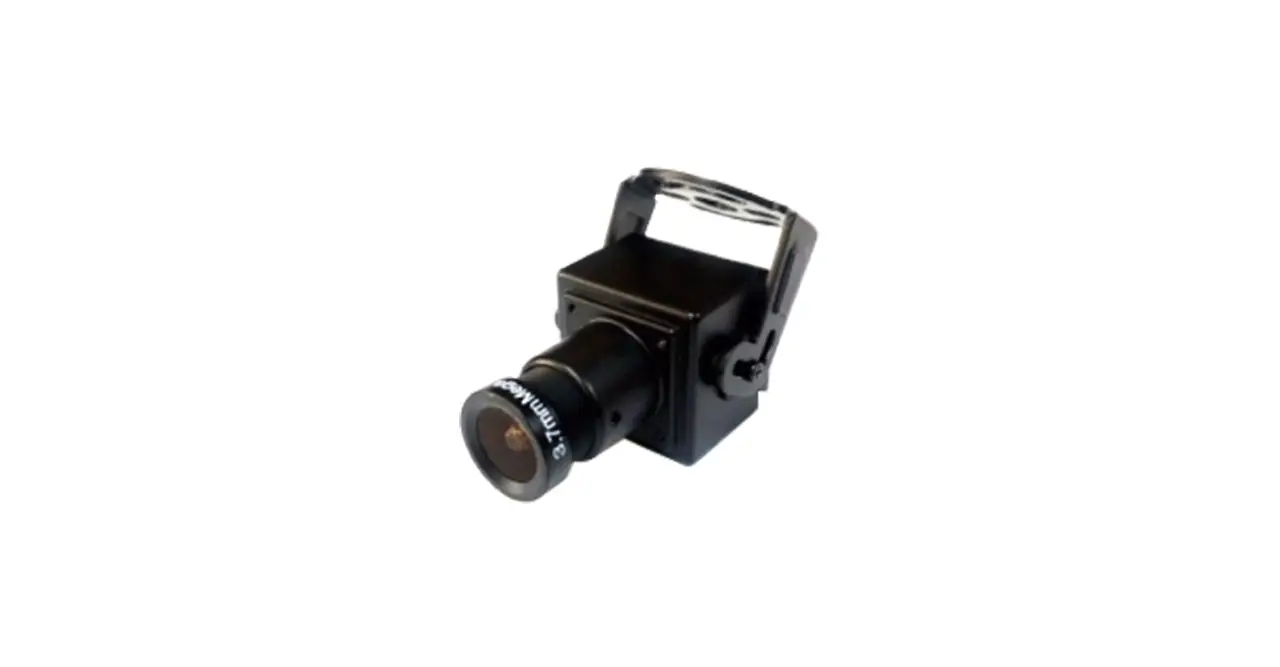

2.1MP Full HD Mini Box Camera provides maximum coverage for seeing activity in complete darkness.
- Full HD 1080p over coaxial cable, BNC connection
- 1/3” 2.1MP Progressive Scan CMOS Sensor
- SDI/HDMI: 1080p (29.97, 59.94fps) / 1080i (29.97, 59.94fps) / 720p (29.97, 59.94fps)
- CVBS: NTSC, PAL / Color Bar
- Digital WDR, AGC, BLC, DNR
- Privacy Masking, Motion Detection
- Minimum Illumination 0.1 Lux ( F1.2 )
Specification | Dimension | Spec & Manual
Series : SDI POV Cameras | Key Features : 3G-SDI
Product Features
- Model Number: VZ-FMS-2
- Full HD 1080p over coaxial cable, BNC connection
- 1/3” 2.1MP Progressive Scan CMOS Sensor
- Up to 1920 x 1080 / NTSC, PAL Composite (1.0Vp-p ,75ohm)
- 0.1Lux (F1.2, 50 IRE, AGC MAX) / DSS X4:0.01 Lux
- More than 1000 TVL, WDR, Privacy Masking, Motion Detection
- No additional installation cost. (Compatible with existing coaxial cables)
- Video outputs for diverse applications. ( 3G/HD-SDI )
- DNR (Digital Noise Reduction)
- Built in OSD Control Switch
- DC 12V, 400mA
Specification
| Imaging Sensor | 2.1 Megapixel CMOS Sensor |
| HD Scanning System | 1/3” Progressive Scan |
| S/N Ratio | More than 50dB (AGC Off) |
| HD Video Output / Resolution | HD-SDI, 3G-SDI, 1080p (29.97, 59.94fps), 1080i ( 59.94fps), 720p (29.97, 59.94fps), Composite(1.0Vp-p ,75ohm), Color Bar Signal |
| Image Frame | NTSC, PAL Composite (1.0Vp-p ,75ohm) |
| Min. Illumination | 0.1Lux (F1.2, 50 IRE, AGC MAX) / DSS X4:0.01 Lux |
| Horizontal TVL | More than 1000 TVL |
| Electronic Shutter Speed | AUTO / MANUAL ( 1/30(25) sec ~ 1/30,000 sec ) |
| Auto White Balance | AUTO / AUTOEXT / PRESET / Manual (R-Gain, B-Gain) |
| Digital Noise Reduction | DNR (Off / Low / Middle / High) |
| Backlight Compensation | BLC (Off / On) |
| Wide Dynamic-Range | WDR (Off / Low / Middle / High) |
| SENS-UP | OFF / x2 / x3 / x4 |
| AGC | Adjustable 0 ~ 10 |
| Color Temperature / R-Gain / B-Gain | Adjustable |
| Mirror Image | MIRROR, FLIP (Off / On) |
| Privacy Masking | Support |
| Motion Detection | Support |
| Digital Zoom | Support |
| Camera ID | Support |
Interface
| HD/3G-SDI | 1 |
| DC 12V / Auto-Iris Connector | 1 |
Dimensions & Weight
| Outline Dimension (W x H x D) | 0.9” x 0.9” x 1.45” / 23.0 mm x 23.0 mm x 37.0 mm |
| Net Weight | 0.11 lbs / 50g (Without Cable) |
General Summary
| OSD Language | English ( Selectable ) |
| Construction | Aluminum Alloy |
| Power – Supplied Voltage | DC12V 150mA |
| Power – Consumption | 1.8 W |
| Operating Temperature | Humidity | 14 ~ 122°F / -10°C ~ 50°C | 0% to 90% Non-condensing |
| Storage Temperature | -4 ~ 158°F / -20°C ~ 70°C |
| LENS Mount | Fix 1/2.5” 3.6mm, M12 (Option: 6mm) |
Product Dimension & Weight
Click below to enlarge
