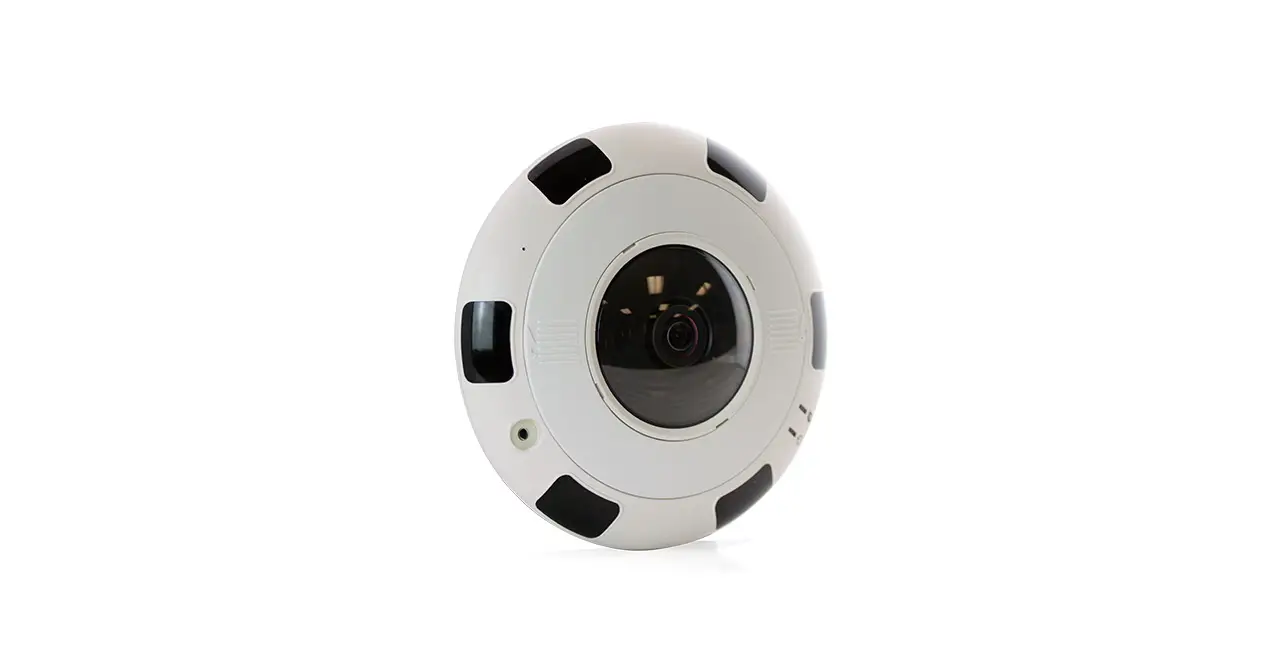

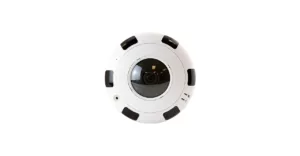

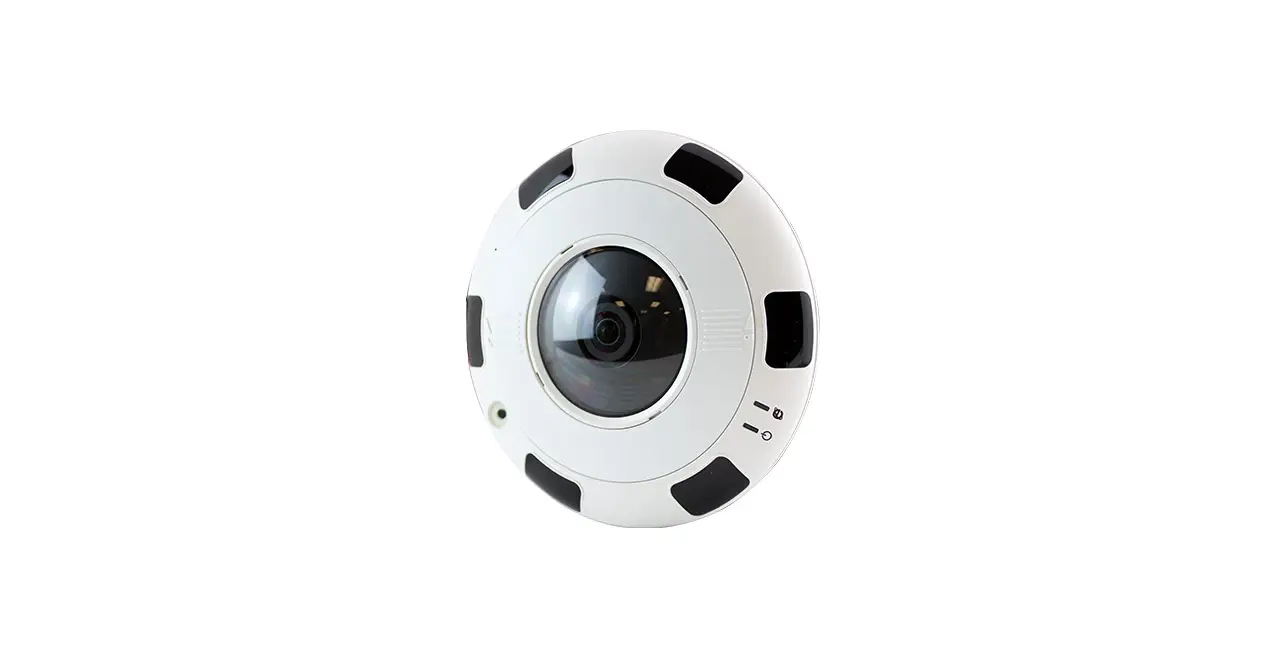

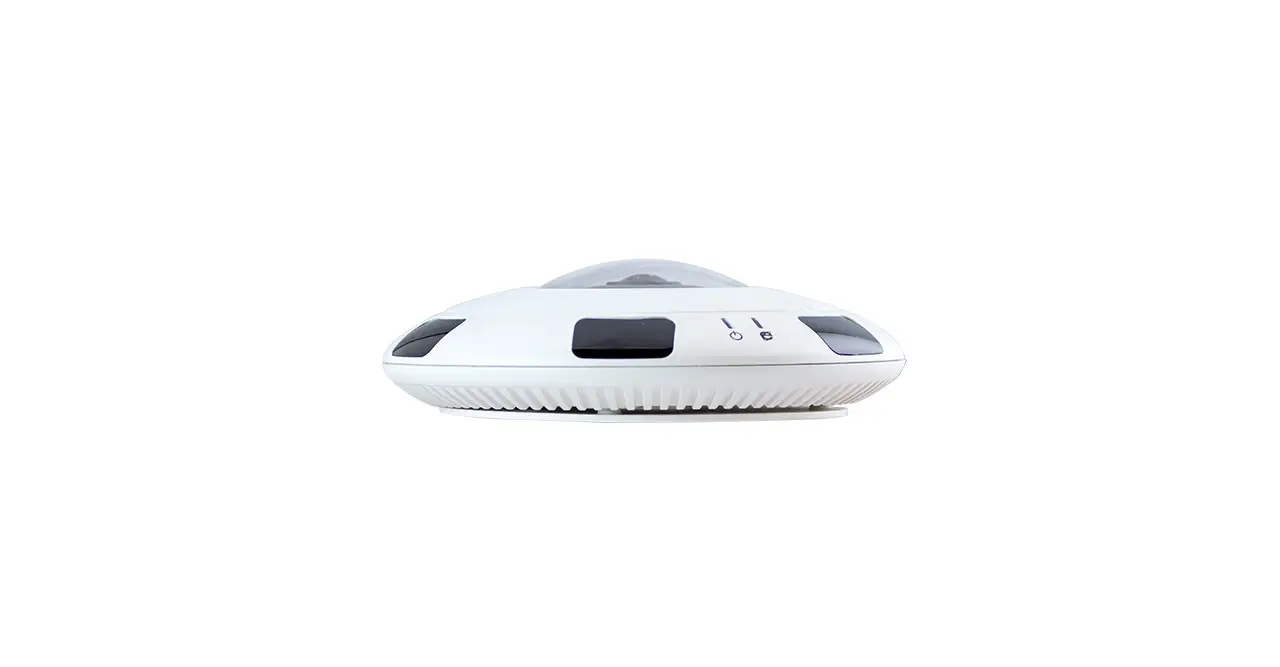

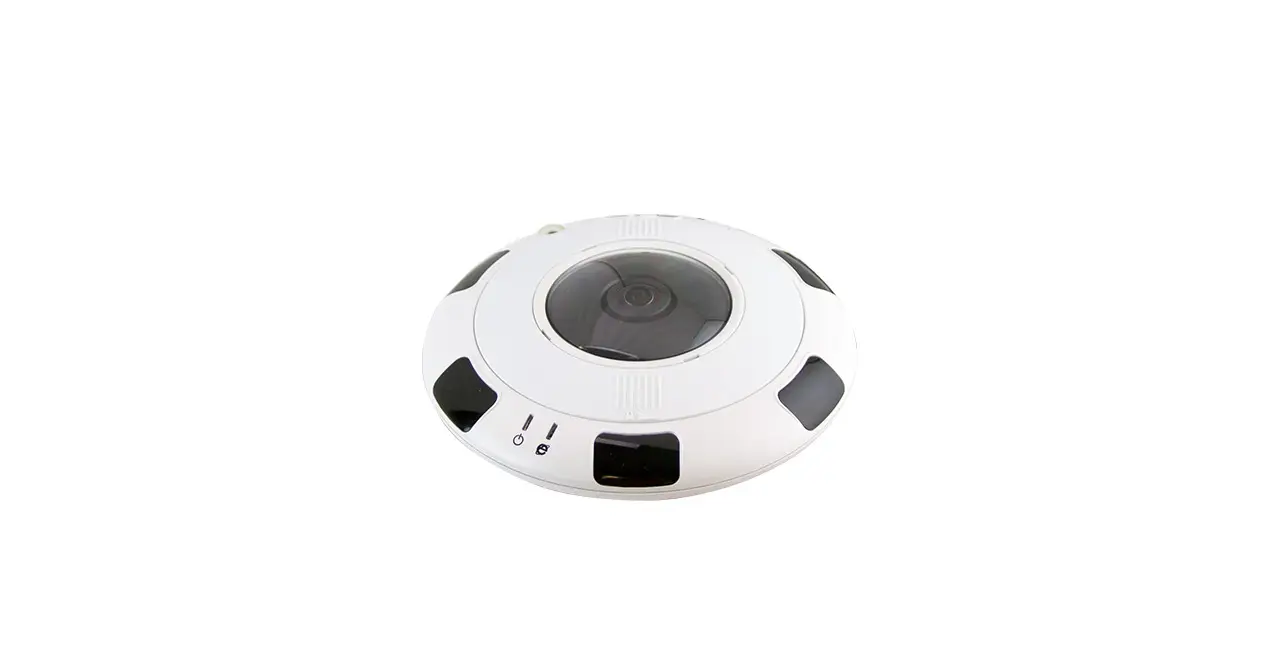

1080p HD Fisheye IP Camera offers a complete, high-resolution, 360-degree panoramic view with no blind spots.
- Full HD 1080p over TCP / IP ( Onvif Profile S)
- 6 MP Fixed 1.6 mm HD Lens / De-warping Image (3600)
- 1/1.8” SONY Progressive Scan CMOS Sensor
- H.264 High/Main/Baseline Profile
- SMART IR, AGC, ATW, DNR (2D / 3D), D-WDR, ICR, HLC, D/N
- 0.01 Lux ( Color-AGC On ), 0 Lux ( B/W – IR On )
Specification | Dimension | Spec & Manual
Series : Camera | Key Features : IP Camera HD (IR) Camera
Product Features
- Model Number: VZ-FE-1
- Full HD 1080p over TCP / IP ( Onvif Profile S)
- 1/1.8” SONY Progressive Scan CMOS Sensor
- 6 MP Fixed 1.6 mm HD Lens / De-warping Image (3600)
- H.264 High/Main/Baseline Profile
- 0.01 Lux ( Color-AGC On ), 0 Lux ( B/W – IR On )
- SMART IR, AGC, ATW, DNR (2D / 3D), D-WDR, ICR, HLC, D/N
- No additional installation cost. (Compatible with existing RJ-45 cables)
- Video Streaming #1 – 3072 x 2048 @15fps, 1920×1920, 1440×1440, 1920×1080 @25/30fps
- Video Streaming #2 – 1280×1280 / 720×720 / 740×576 @15/25/30fps
- 2D/3D – NR (Digital Noise Reduction)
- Built in OSD
- AC24V / DC12V / PoE
Specification
| Imaging Sensor | SONY 6 Megapixel CMOS Sensor |
| HD Scanning System | 1/1.8” Progressive Scan |
| Min. Illumination | 0.01 Lux (Color, AGC On), 0 Lux (BW, IR On) |
| Lens | 6MP 1.6mm |
| Electronic Shutter Speed | 1/5 sec ~ 1/20,000 sec |
| Digital – WDR (Wide Dynamic Range) | On, Off |
| 2D / 3D – NR (Digital Noise Reduction) | On, Off |
| FOV (Field Of View) | 360° |
| IR LED / Range | 6pcs IR LED / 49 ft ( 10m ) |
| Day & Night | ICR ( Auto, B.W, Color ) |
| Video Compression | H.264 High/Main/Baseline Profile, M-JPEG |
| Bit Rate (CBR/VBR) | 500kb – 12000kb |
| Audio Compression | G.711 ,RAW PCM |
| Max. Resolution | 3072 x 2048 @15fps |
| Stream #1 | 3072 x 2048 @15fps | 920×1920/1440×1440/1920×1080 @25/30fps |
| Stream #2 | 1280×1280/720×720/740×576 @15/25/30fps |
| Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
| De-warping | 1F + 3 / 5 / 7, 180° panorama |
| HLC | On, Off |
Interface
| Ethernet | 1ea – Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio I/O | 1ch Audio In, 1ch Audio Out |
| Alarm I/O | 1ch Alarm In, 1ch Alarm Out |
| Additional Storage | 1ea – Micro SD/SDHC/SDXC slot, Max 64GB |
Network
| Network Protocols | HTTP,HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, PPPoE, Unicast and Multicast |
| Alarm Trigger | Network disconnect, Disk alarm, I/O alarm |
| RTSP Video | Standard RFC2326, Support QuickTime / VLC |
| Security | User Sec. Authentication, Reset, H/W WatchDog |
| System Compatibility | Onvif 2.4 Profile-S |
Dimensions & Weight
| Outline Dimension (W x H x D) | ɸ 6.37” x 2.05” / ɸ 161.99 mm x 52.2 mm |
| Net Weight | 1.54 lbs / 700g |
General Summary
| OSD Language | English ( Selectable ) |
| Construction | Aluminum Alloy |
| Power – Supplied Voltage | AC24V / DC12V / PoE |
| Power – Consumption | 8W – IR LED ON | 5W – IR LED OFF |
| Operating Temperature | Humidity | -22 ~ 140°F / -30°C – 60°C | 0% to 90% Non-condensing |
| Regulation | CE, FCC |
| Standard Protection Rating | IP 66 |
Product Dimension & Weight
Click below to enlarge
