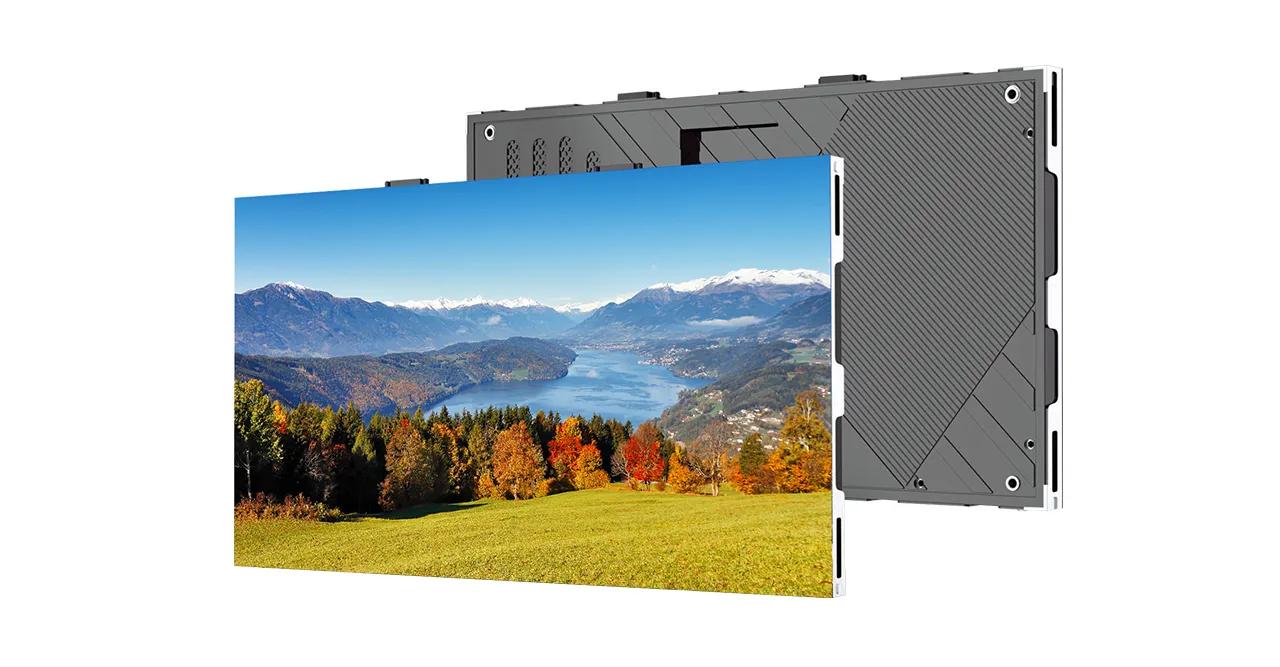

24`` Rectangular Type - Lifting & Wall Mount Available LED Tile
- 0.049”/1.25 mm Pixel Pitch
- High Visual Uniformity without Ghosting & Smearing
- Vivid Color Display (HDR Processing)
- Simple and stylish appearance, easy to install
- Low failure rate and maintenance cost
- Seamlessly splices images without black lines on the screen
- Delicate & Smooth Video
- Color Temperature – 5000k to 12000k Adjustable
- SMD LED, Anti-Collision & Waterproof – IP31 (Front)
- Ultra-Slim Design & Dual Receiving Cards
- Advanced Heat Management without Noise
- Wall Mount, Lifting & Embedded Installation Available
- 3-Year Warranty
Specification | Dimension | Download
Series : IPX | Key Features : LED Tile Indoor LED
Product Features
- Model Number: VZ-IPX2612S
- 0.049”/1.25 mm Pixel Pitch
- High Visual Uniformity without Ghosting & Smearing
- Vivid Color Display (HDR Processing) – HDR processing technology enhances image quality & vivid color display
- Simple and stylish appearance, easy to install
- Ultra-wide viewing angle ensures satisfactory viewing experience from diversified angles
- High brightness and contrast provide optimal images
- Takes up less space with a slim and compact design
- Low heat, excellent heat dissipation, no noise
- Ultra-wide viewing angle ensures satisfactory viewing experience from diversified angles
- High refresh rate and frame frequency provide high image quality without ghosting or smearing
- Low failure rate and maintenance cost
- Delicate & Smooth Video – 3840 Hz high refresh rate and frame frequency provide high image quality without ghosting or smearing
- Seamlessly splices images without black lines on the screen
- Advanced grayscale gives detailed and realistic images
- Color Temperature – 5,000K to 12,000K Adjustable
- Front maintenance & Waterproof – IP 31 (Front)
Display
| LED Type | SMD 1010 |
| Pixel Pitch | 0.049″ x 0.049″ / 1.25 mm x 1.25 mm |
| Brightness | 600 cd/m² (Typical) |
| Module Resolution | 240 x 135 @3840Hz |
| Cabinet Resolution | 480 x 270 @3840Hz |
| Viewing Angle (H/V) | 170° / 170° |
| Contrast Ratio | 10000 : 1 |
| Pixel Density | 640,000 |
| Gray Scale Processing | 16 bit |
| HDR / Brightness Uniformity | Support / ≥ 99.8% |
| Gray Scale Processing | 16 bit |
| Module Qty (WxH) | 2 x 2 |
| Color Temperature | 5000 ~ 12000 K |
| Drive Mode | 1/45 scan |
Dimensions & Weight
| Module Dimension (W x H) | 11.81″ x 6.64″ / 300 mm x 168.75 mm |
| Cabinet Dimension (W x H x D) | 23.62″ x 13.28″ x 1.08″ / 600 mm x 337.5 mm x 27.5 mm |
| Net Weight (Cabinet) | 9.92 lbs / 4.5 kg |
General Summary
| Power – Electrical Ratings | AC 90 – 264V, 47 ~ 63Hz |
| Power – Consumption | 100 W/m2 (Avg) / 350 W/m2 (Max) |
| Maintenance Mode | Front Maintenance |
| Regulations | FCC(A), CE, RoHs |
| Protection Level | IP 31 (Front) |
| Cabinet Material | Die-Cast Aluminum |
| Operating Temperature | Humidity | -4 ~ 140°F / -20 ~ 60°C | 10 ~ 85% RH |
| Storage Temperature | Humidity | -4 ~ 140°F / -20 ~ 60°C | 10 ~ 85% RH |
Product Dimension & Weight
Click below to enlarge
