VZ-IBX-T series can unleash new and exciting possibilities at the touch of a finger. These large size 4k monitors are touch screen, making them perfect for school and presentation digital whiteboards while also catering to digital signage and security application. The future is now with IBX series touch screen monitors.
- 85.6” LED ULTRA HD Monitor
- Supports 4K (3840X2160) Resolution
- 20-Point Multi Touch Interactive Screen
- USB – Built in Media Player
- Supports Screen Sharing Software
- Supports Play Store (Google)
- Supports Zoom Meeting & Microsoft Teams
- Supports Touch Screen & Conference System (Built-in Camera, Mic)
- Supports OPS (Option)
- Wide Viewing Angle (IPS Panel)
- Universal Wall Mounting
- NDAA Compliant
Specification | Dimension | Download
Series : IBX-T | Key Features : 4K Touch Screen NDAA Compliant
Compatible Mounts & Accessories
Product Features

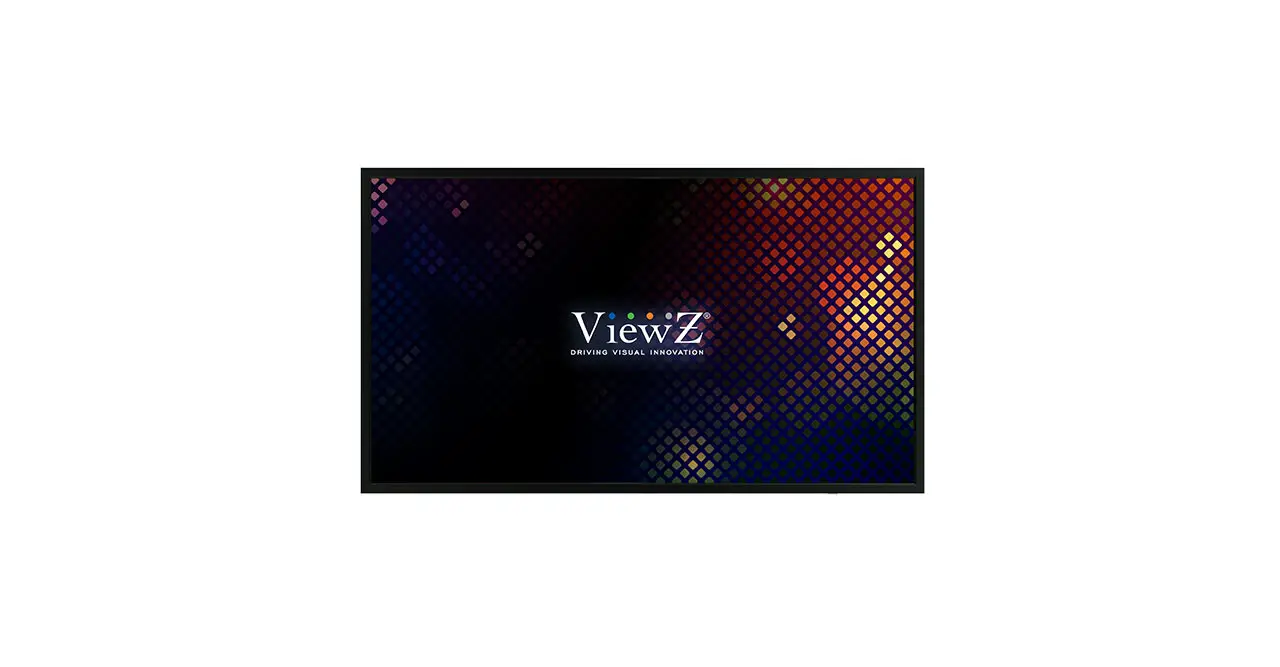

- Model Number: VZ-86IBX-T
- 85.6″ LED UHD Panel
- Supports 4K (3840X2160) Resolution
- Supports Screen Sharing Software
- Supports Play Store (Google)
- Supports Zoom Meeting & Microsoft Teams
- Supports Touch Screen & Conference System (Built-in Camera, Mic)
- Supports OPS (Option)
- 20-Point touch interactive panel
- Wide Viewing Angle (IPS Panel)
- Universal Wall Mounting
- NDAA Compliant
Display
| Screen Size | 85.6″ |
| Max Resolution | 3840 x 2160 @60Hz |
| Pixel Pitch | 0.4935 mm x 0.4935 mm |
| Brightness | 350 cd/m²(Typical) |
| Contrast Ratio | 5000 : 1 |
| Aspect Ratio | 16 : 9 (1.78 : 1) |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 1.07G (8bit + Hi-FRC) |
| Response Time | < 6ms |
Interface
| HDMI (2.0) In | 3 |
| AV (Mini) In / Out | 1 / 1 |
| RJ45 (10/100M) In | 1 |
| RS232 (DB 9) In | 1 |
| VGA In (15Pin D-Sub) | 1 |
| USB 3.0 In (Type-A) | 4 |
| USB 2.0 In (Type-A) | 1 |
| USB In / Out (Touch, Type B) | 2 / 1 |
| USB In (Type C) | 1 (Option) |
| USB In (Touch) | 2 |
| Earphone (Line Out) | 1 |
| AV (Coax) Out | 1 |
Android Board Spec
| Android OS | Ver 11.0 |
| CPU | A55 x 4 / 4 Cores, 1.9 GHZ |
| RAM | 4GB DDR4 / 16GB eMMC |
| WiFi | 2.4G / 5G |
| GPU | G52 x 2 |
| Bluetooth | 5 |
Special Features
| Image Retention | YES |
Media Player
| VIDEO Codec | MPEG1/2, MPEG4, DivX 3.11/4.12/5.x/5, XviD, H.263, H.264, MVC, AVS, WMV3, VC1, Motion JPEG, VP8/9, RV30/40 |
| VIDEO Format | MPEG, AVI, MOV, MP4, MKV, RM, 3GP, FLV, WebM, ASP |
| Audio Format | mp3, mp4, wma |
| Image Format | JPEG, PNG, BMP |
Touch
| Sensor Type | Infrared Recognition |
| Surface Protection | 4mm – physical tempered Mohs level 7 |
| Infrared Touch | 20 Points |
| Glass Transmittance | > 88% |
| Touch Depth | 3 ± 0.5mm |
| Touch Accuracy | ≤ 1 mm |
| Input Mode | Opaque object (Finger, Pen, etc) |
| Theoretical Hit | Same position 60 million times above |
| Power Supply | USB (USB power supply) |
| Supply Voltage | DC 5.0 ± 5% |
CAMERA & MIC
| Camera | 1 (12M HD) |
| Lens | 2.1 mm |
| Mic | 6-Groups |
OPS (Option)
| CPU | Intel Haswell i5 ( i3/ i7 Optional) |
| RAM | DDR3 4G ( 8G Optional) |
| Hard Disk (Storage) | SSD 128G ( 256G / 512G Optional) |
| OS | Windows 10 Pro |
| HDMI Out | 1 ea |
| VGA Out | 1 ea |
| USB 2.0 In | 2 ea |
| USB 3.0 In | 2 ea |
| Power Supply | 60W (12V – 19V, 5A) |
Refresh Rate
| HDMI (2.0) In | 3840 x 2160 @ 60Hz |
Audio
| Built in Speaker | 10W x 2 |

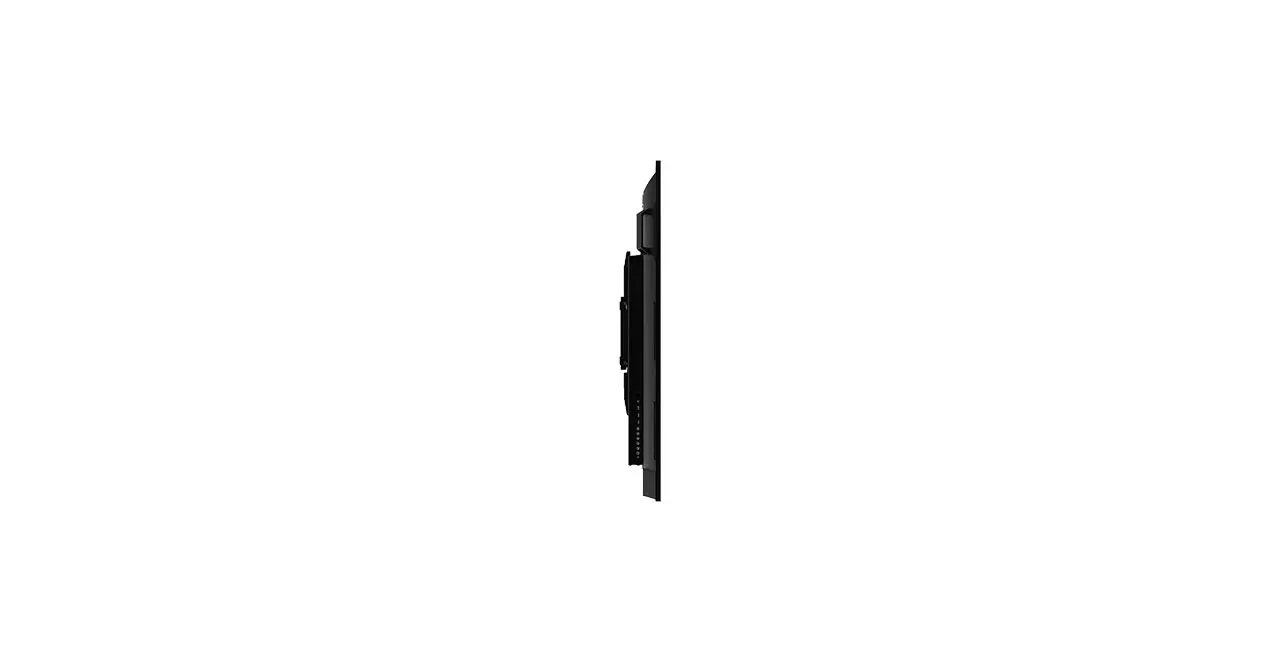

Dimensions & Weight
| Outline Dimension (W x H x D) | 76.9” x 45.32” x 3.62” / 1953.36 mm x 1151.3 mm x 92 mm |
| Net Weight | 1147.71 lbs / 67.0 kg |
| Gross Weight | 180.779 lbs / 82.0 kg |

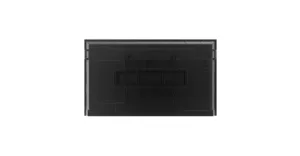

Mount
| Universal Wall Mount | 800 x 600 mm / M8 x L25 |
General Summary
| Transmitter – IR Remote Control | Yes |
| Housing | Aluminum Alloy Frame / Sheet Metal Back Cover |
| Power – Electrical Ratings | AC 100-240V (50/60Hz) |
| Power – Consumption | ≤ 250 W / ≤ 0.5 W (Standby) |
| Regulations | CE, UL, FCC(A), UKCA, NDAA, RoHS |
| Operating Temperature | Humidity | 32 ~ 104°F / 0 ~ 40°C | 10 ~ 90% RH |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Language (OSD) | English |
| Accessories | Manual (1pc), Power Cable (1pc), Touch Pen (1pc), Remote Controller (1pc), Wall Mount (1pc) |
