VZ-PVM-I4B3/I4W3-N
Full HD Resolution, Built-in 2MP IP Camera compatible with many leading VMS's and NVRs and packed with a long list of other great surveillance and digital signage featured
- 32” Mega Pixel Full HD 1080p IP Public View Monitor
- Onvif Profile-S Compliant
- Recording Available with Micro SD
- People Count / Face Detection (Display Face Detection Boxes) / Mask Detection
- Protective Glass & IPS Panel for Wider Viewing Angle – 178°/178°
- 2 MP Camera & DC Auto Iris 2.8-12 mm Varifocal Lens
- Blinking Message – “Recording in Progress”
- Camera Motion Sensor & Time Interval Based Source Switching
- Auto Power / Source Recovery
- Supports Dual Voltage (PoE and 24V DC)
- Built to run 24/7/365
- NDAA Compliant
Specification | Dimension | Spec & Manual
Series : IPPVM-N | Key Features : IP Onvif NDAA Compliant People Count
Compatible Mounts & Accessories
Product Features
- Model Number: VZ-PVM-I4 _ _ N
- 32″ Black/White Panel Widescreen LED “A” Commercial-Grade Monitor
- Full HD 1920×1080 / 16:9
- Recording Available with Micro SD
- People Count / Face Detection / Mask Detection
- 1920×1080 2 Mega Pixel HD D-WDR Camera
- DC Auto Iris 2.8-12 mm Varifocal Lens
- 720×480 Camera BNC Output
- Motion Sensor and Time Interval based Source Switching
- Alert Text / Multi-Color Blinking LED

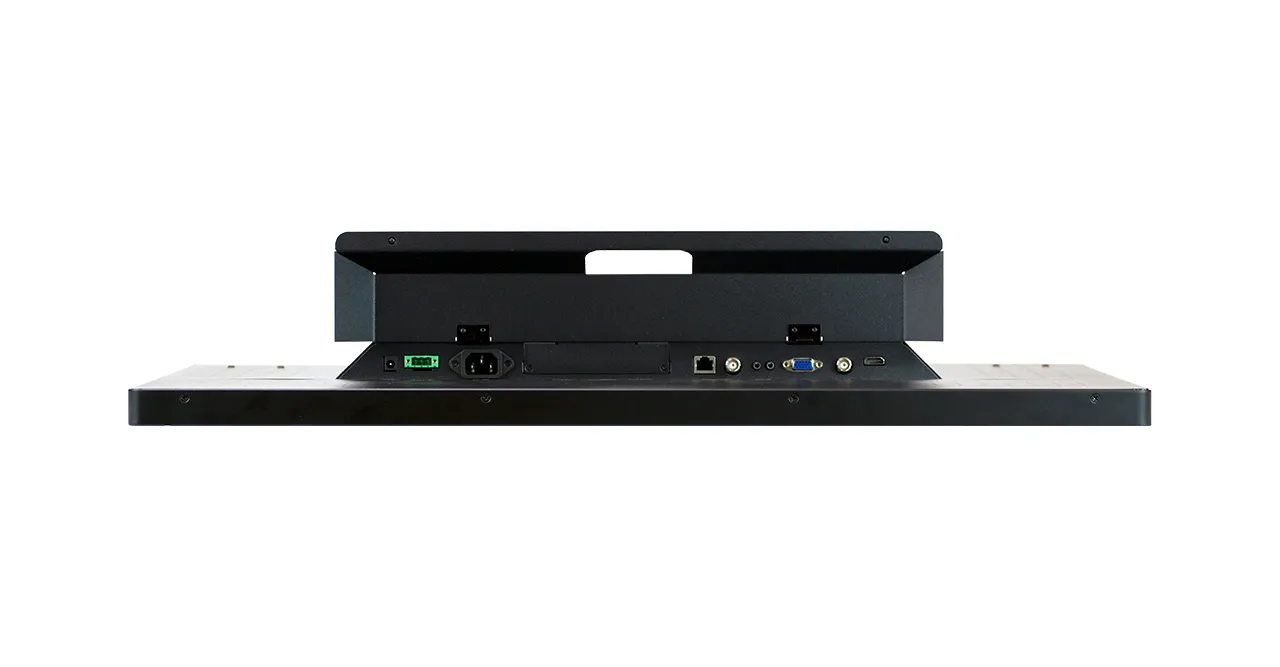

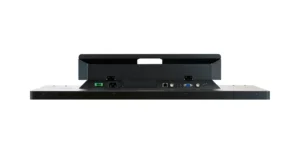

- HDMI In / VGA In / AV(Composite) In / Camera (CVBS) Out /
Audio In-Out - 3D Comb Filter / De-Interlace
- Camera and Monitor OSD / Remote Control
- Auto Power & Source Recovery

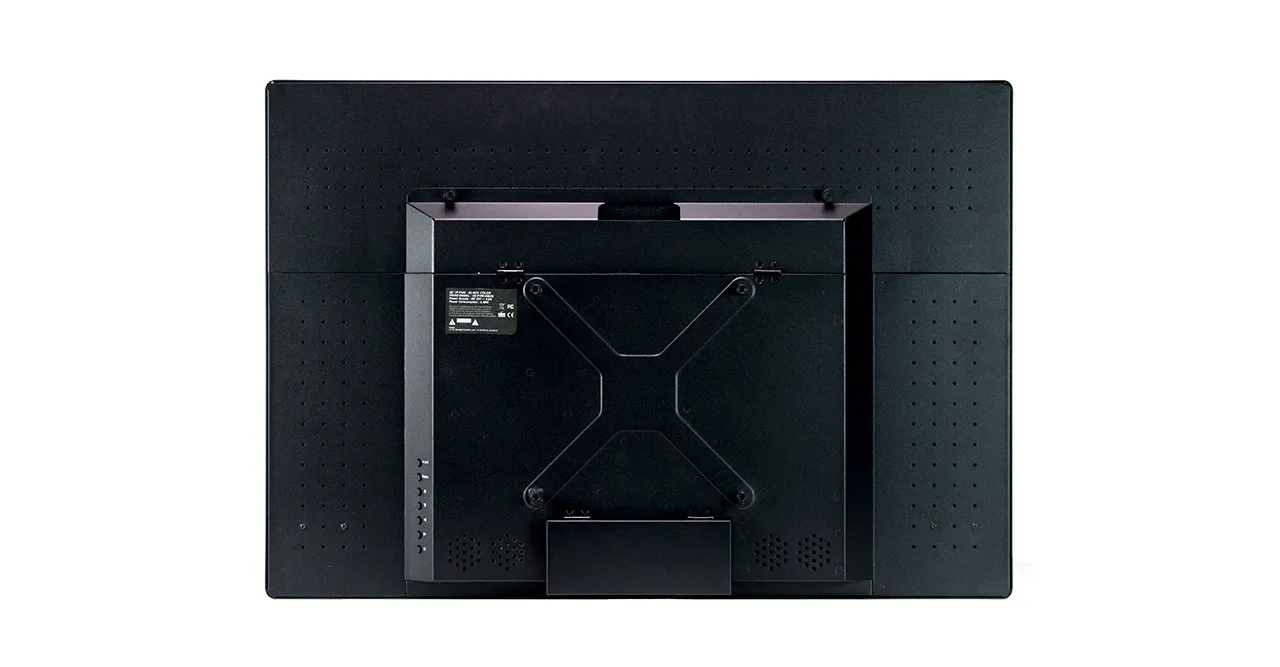

- VESA Wall Mount 100 x 100 / 200 x 200
- PoE ++ (Type 4) and DC 24V (AC110V-240V with DC adaptor) Dual Voltage
- NDAA Compliant
- Built to run 24/7/365
- 3-Year Warranty
Ordering Information : Parts #
| Model Features | Family | Series | Size | Color | Voltage | |
| 32″, Black, PoE / AC 110V / DC 24V | VZ-PVM- | I | 4 | B | 3 | N |
| 32″, White, PoE / AC 110V / DC 24V | VZ-PVM- | I | 4 | W | 3 | N |
- Series: Z (HD PVM) , I (IP PVM)
- Size: 1 (10inch) , 2 (23inch) , 3 (27inch) , 4 (32inch)
- Color: B (Black) , W (White)
- Voltage: 1 (AC110V) , 2 (AC24V), 3 (PoE / DC 24V), 4 (PoE)
Display
| Screen Size | 32″ |
| Max Resolution | 1920 x 1080 @60Hz |
| Pixel Pitch | 0.36375mm x 0.36375mm |
| Brightness | 250cd/m²(Typical) |
| Contrast Ratio | 1200 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 8 ms |
Interface
| AV (Composite) In | 1 |
| Camera (CVBS) Out | 1 ( 720×480 ) |
| Ethernet 10 / 100 | 1 |
| RGB In (15pin D-Sub) | 1 |
| HDMI In | 1 |
| Audio In/Out | 1/1 |
| Micro SD In (Recording) | 1 |
| DC12V Out (Camera Use) | 1 |
IP Features
| Ethernet Interface | 10/100Base-T |
| Web Client Protocol | TCP / IP |
| Supported Protocol | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL |
Special Features
| Filter Type | 3D Comb filter / De-Interlace |
| Blinking Message “Recording” | Yes |
| Time Interval Based Source Switching | Yes |
| Multi-Lingual Language | English, Spanish, French, German, Italian, Portuguese, Dutch |
| People Count / Camera Motion Sensor | Support |
Dimensions
| Outline Dimension (W x H x D) | 28.86” x 20.01” x 2.17” / 733.2mm x 508.3mm x 55.3mm |
| Net Weight | 33.06 lbs / 15.0 kg |
| Gross Weight | 39.68 lbs / 18.0 kg |
Mount
| Vesa | 200mm x 200mm / M6 x L8 Screws |
Camera
| Image Sensor / Encoder Chipset | SONY IMX307 / NT98520 |
| Lens | DC Auto Iris 2.8~12mm Vari-focal Lens |
| Total / Effect Pixel | 1920(H) x 1080p(V) 30p |
| Camera Type | 2 Mega Pixel IP Camera |
| Function | 2D/3D NR, HLC/BLC, Defog, WDR, White Balance, Gain, Noise Reduction, Aisle Mode, Smart IR, Mirror, Privacy Masking, Digital Zoom, Day/Night (Auto ICR), True WDR, Removal Optical Filter |
| Video Compression | H.264 (Main profile), H.265, MJPEG, CBR, VBR |
| Video Out | 1ch CVBS (NTSC/PAL) / 1ch RJ-45 output |
| Motion Detection | Support |
| Network Protocol | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL |
| Ethernet Port | 10 / 100 Base-T |
| Web Application | Support Firefox, Chrome, Edge |
| Intelligent Detection | Perimeter, Single Virtual Fence, Loiter, Converse, Double Virtual Fences, Signal Bad |
| Integration Protocol | ONVIF 2.6 (supported), SDK, CGI |
| MAX. User Access | 10 Users |
| Recording Capacity – TF Card (EXT4 format, MAX256G) | 2MP (H.265 w/256G) – 30fps (11 days) / 15fps (15 days) 2MP (H.264 w/256G) – 30fps (5 days) / 15fps (7 days) |
Media Card Reader - Optional Feature
| Support Type | Photo, Music, Video |
| External Storage | Support SD/SDHC CARD, USB 2.0 HOST |
| Output | VIDEO – HDMI(1080p) / AUDIO – L/R, HDMI |
| Video File Format | RM,RMVB(RV30/RV40), VOB(MPEG-2), HDMOV, AVI(DviX, Xvid, MJPEG;MPEG-4 SP/ASP, H.264), DVIX, MPG (MPEG-1, MPEG-2), M4V, PMP, AVC, FLV, MP4 (MPEG-4 SP/ASP, H.264/H.263; Motion JPEG; H.265(720P)), DAT(MPEG-1), MPEG, MOV/MKV(MPEG-4 SP/ASP, H.264/H.263), TS (MPEG-2, H.264, Avs, Avs+), M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4 |
| Video Resolution | 1080P @60Hz |
| Audio File Format | MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM |
| Image File Format | JPEG, JPG, PNG, BMP |
| VIDEO Play Control | AUTO, REPEAT, ZOOM, RESUME, TIME |
General Summary
| Transmitter – IR Remote Control | Yes |
| Dual Voltage Power – Electrical Ratings | PoE ++ (Type 4) 48V DC / 24V DC, 2A (AC110V-240V with DC adaptor) |
| Power – Consumption | ≤ 65 W |
| Warranty – Parts / Labor | 3 Year / 3 Year |
| Operating Temperature | 14 ~ 122°F / -10 ~ 50°C |
| Compatible Mounts – Wall | VZ-AM02-A, VZ-WM50 |
| Compatible Mounts – Ceiling | VZ-CMKiT-01, VZ-CMKiT-02, VZ-CM308 |
| Regulation | FCC(A), CE, NDAA |
Product Dimension & Weight
Click below to enlarge
