VZ-CSE1202

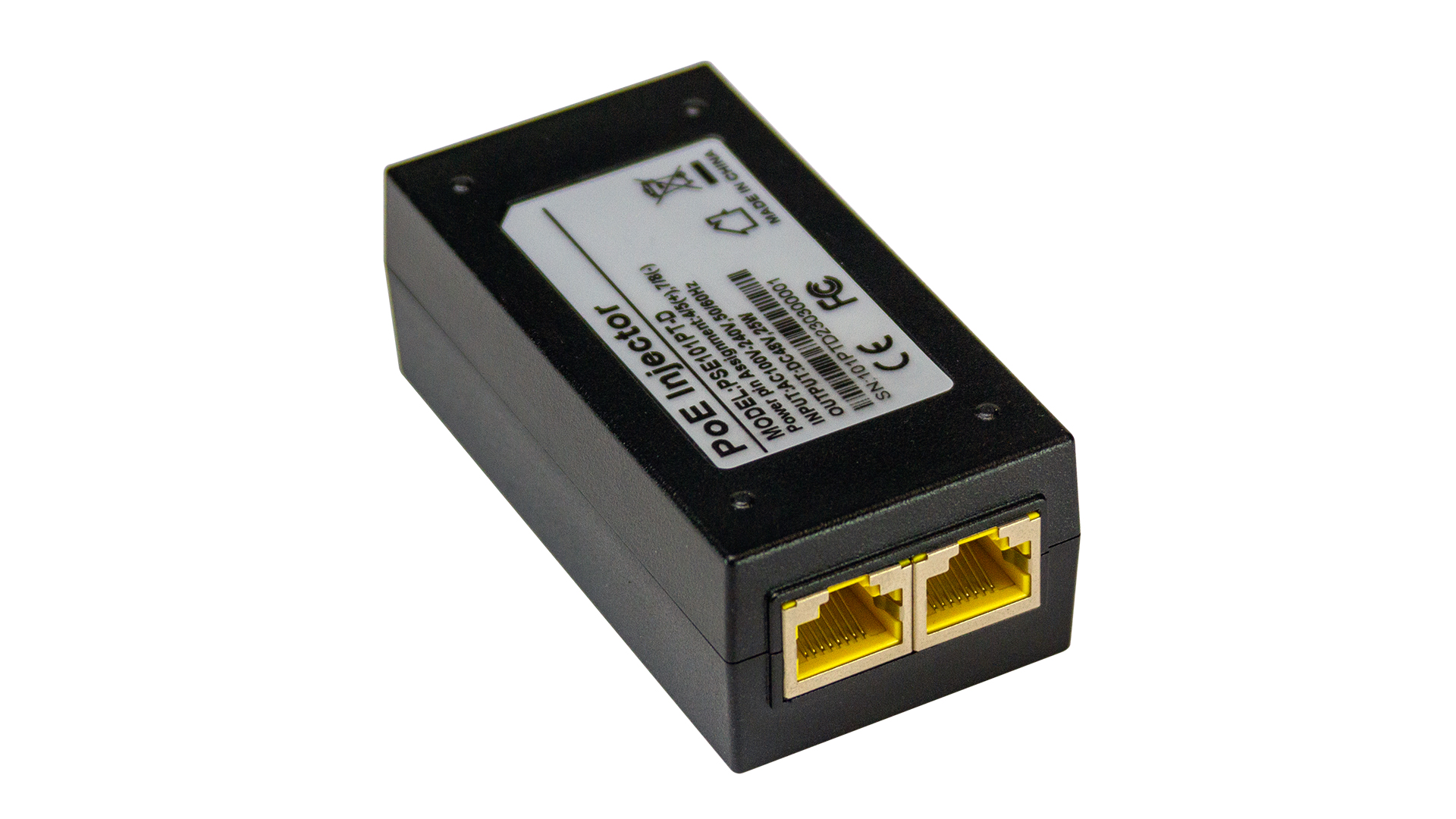

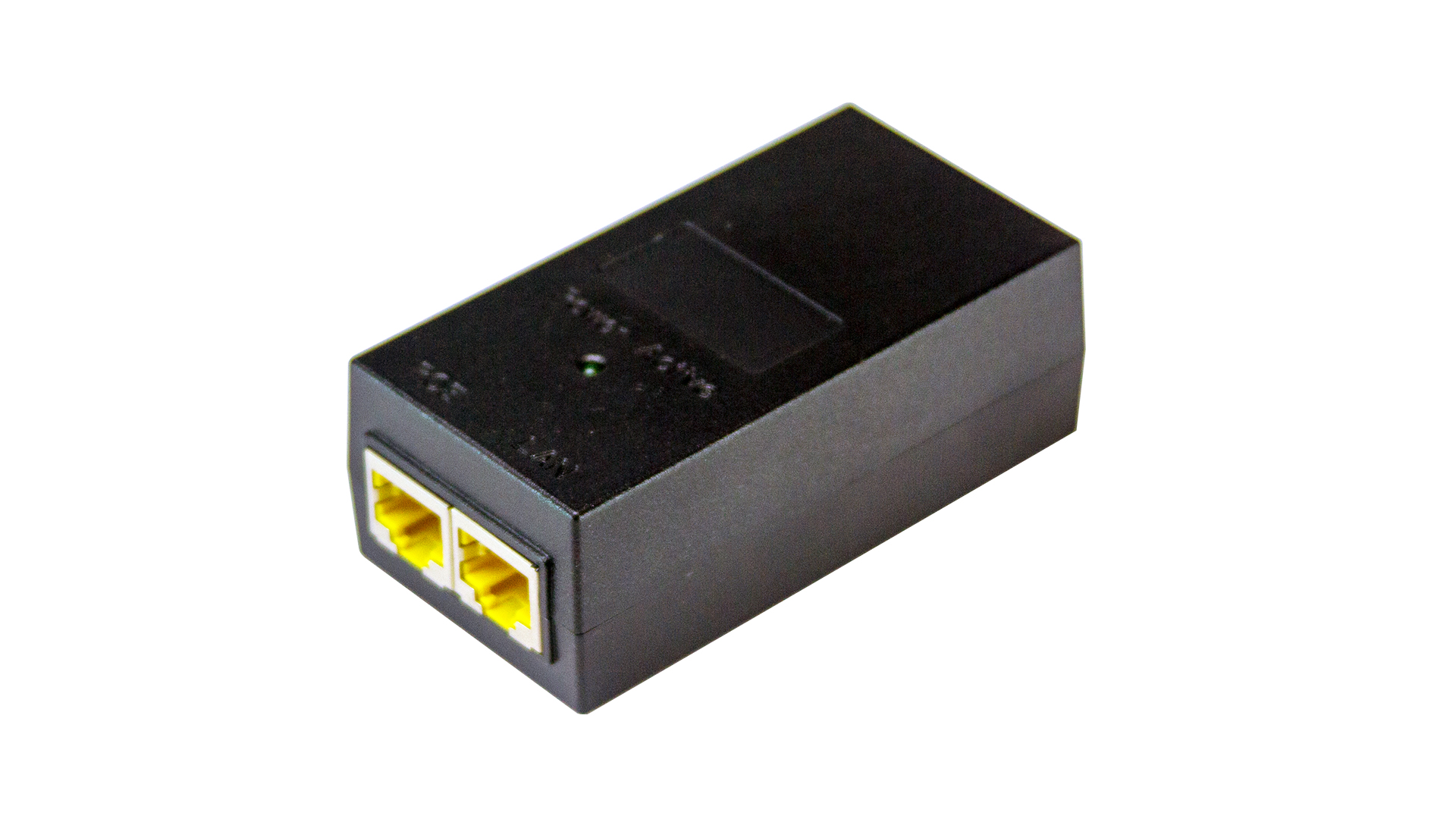

25W PoE Injector for VZ-PVM-I1W4N / VZ-PVM-I1B4N
- Standard IEEE 802.3 af
- Output : 50V DC / 25W
- Passive Plug & Play
- Compact design fits easily in WLAN access point and IP cameras installations
- Safety : UL Listed E353601
- EMI : FCC Class B
Specification | Dimension | Spec & Manual
Series : Power Adapter | Key Features : P.o.E. Injector
Compatible Monitors
Product Features
- Model Number: VZ-CSE1202
- DC 50V / 25W output
- AC 110~220V / 50 or 60Hz
- Single-port gigabit PoE midspan
- Supports 10/100/1000 Base-T applications
- Internal AC/DC converter
- Safe: low power devices receive only the power they need
- Passive Plug & Play
- Compact design fits easily in WLAN access point and IP cameras installations
- Compact & Light-weight
- Safety : UL Listed E353601
- EMI : FCC Class B
Specification
| Pass Through Data Rates | 10/100/1000 Mbps |
| Number of Channel | 1 |
| Input Power Requirements | AC Input Voltage: 110 to 220 V AC @ 50-60 Hz AC Input Current: 0.5A @ 110-220V AC AC Frequency: < 60A Peak @ 110VAC, < 120A Peak @ 220VAC |
Power over Ethernet(PoE) Output
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| Output Power Voltage | 50V DC |
| User Port Power | 25 Watts |
Protection - Safety / EMI Standards
| Regulation – Safety Standards | UL Listed E353601 |
| Regulation – EMI Standards | FCC Class B |
Interface
| Power Input | 110 to 220 V AC @ 50-60 Hz |
| Ethernet | RJ45 Shielded Socket |
Dimensions & Weight
| Outline Dimension (W x H x D) | 3.34 x 1.69 x 1.29″ / 85 x 43 x 33 mm |
| Net Weight | 0.2 lbs / 0.09 kg |
| Gross Weight | 0.5 lbs / 0.23 kg |
General Summary
| Construction | PC material |

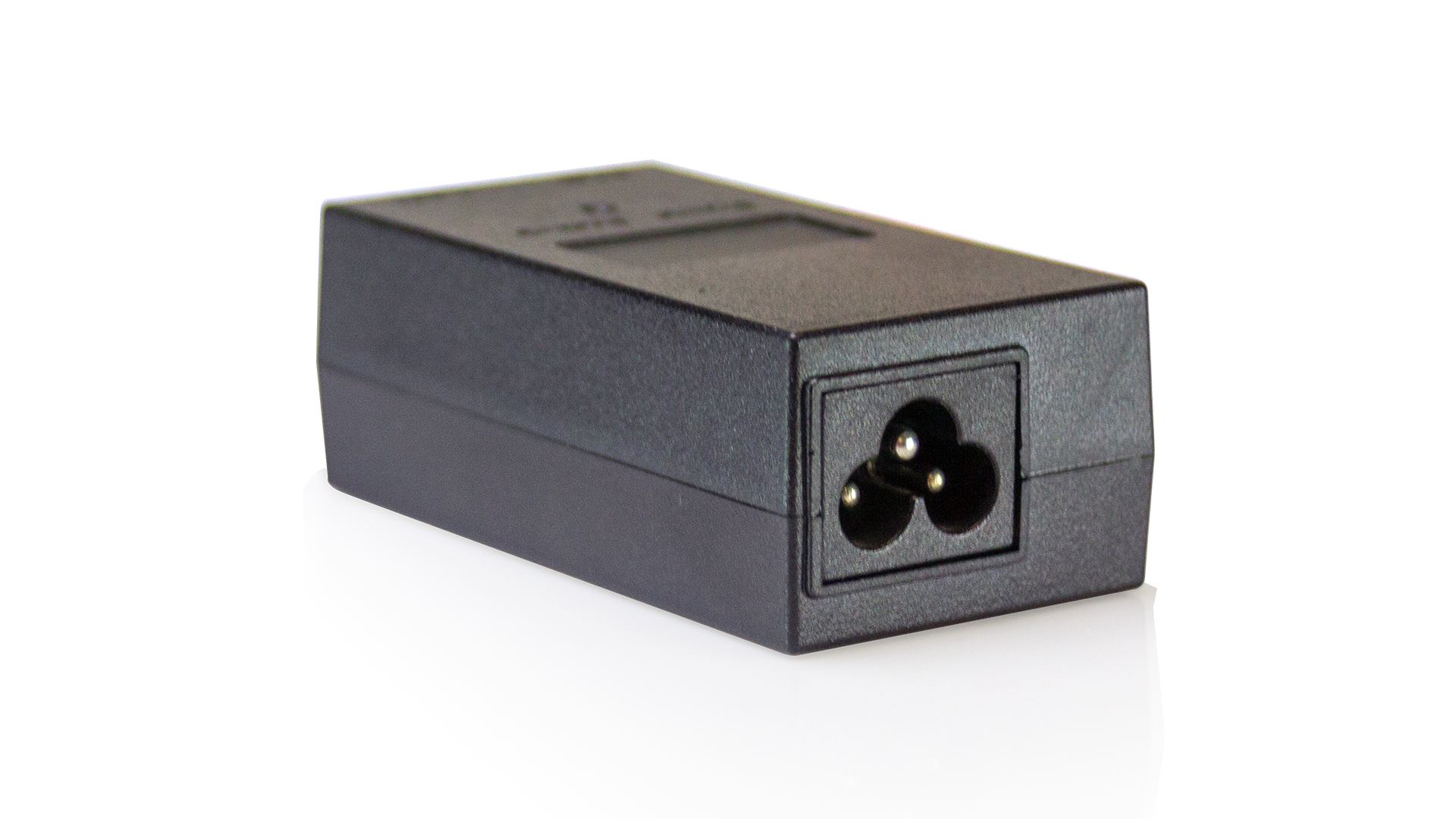

| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Operating Temperature | Humidity | 32°F ~ 104°F / 0°C ~ +40°C | Max 80% Non-condensing |
| Storage Temperature | -40°F ~ 158°F / -40°C ~ +70°C |
| Regulations | UL Listed E353601 |
Recommended Wiring Distance - 10`` IP-PVM-N w/1 Monitor
| Monitor Model | VZ-PVM-I1W4N / VZ-PVM-I1B4N |
| Cable Type | Cat 6 / PoE |
| Ft / Meter | |
| 50 ft / 15.24 m | Tested |
| 100 ft / 30.48 m | Tested |
| 150 ft / 45.72 m | Tested |
| 200 ft / 60.96 m | Tested |
| 300 ft / 91.44 m | Tested |
