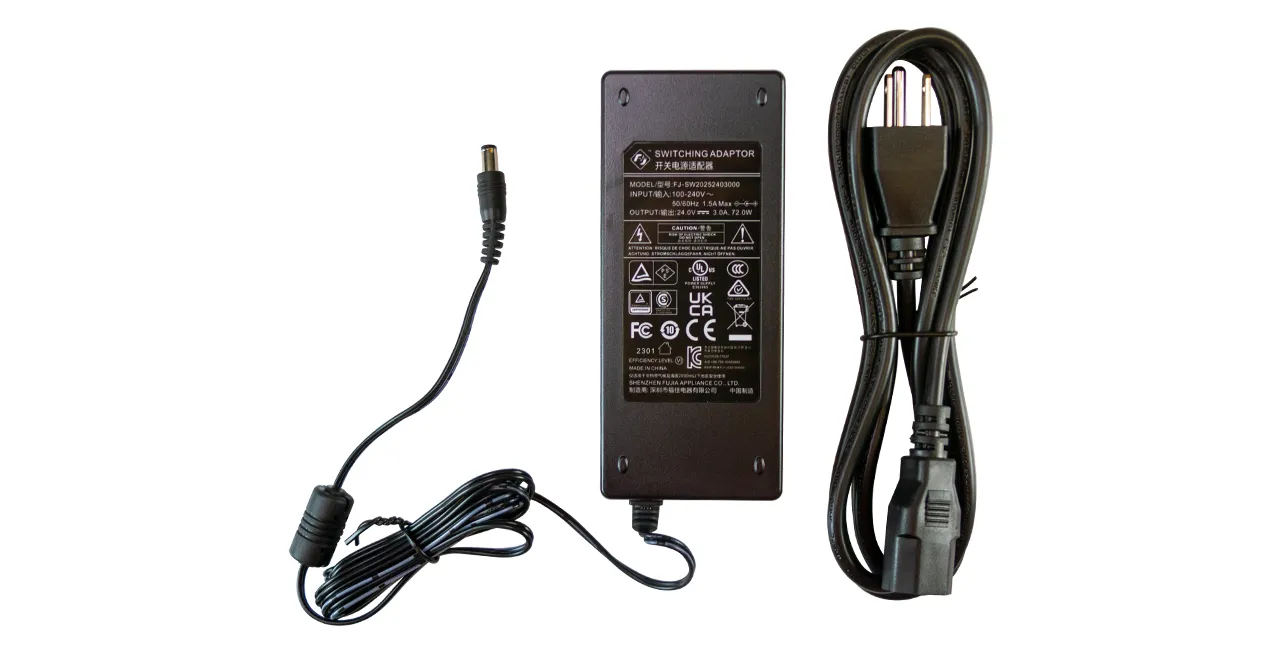

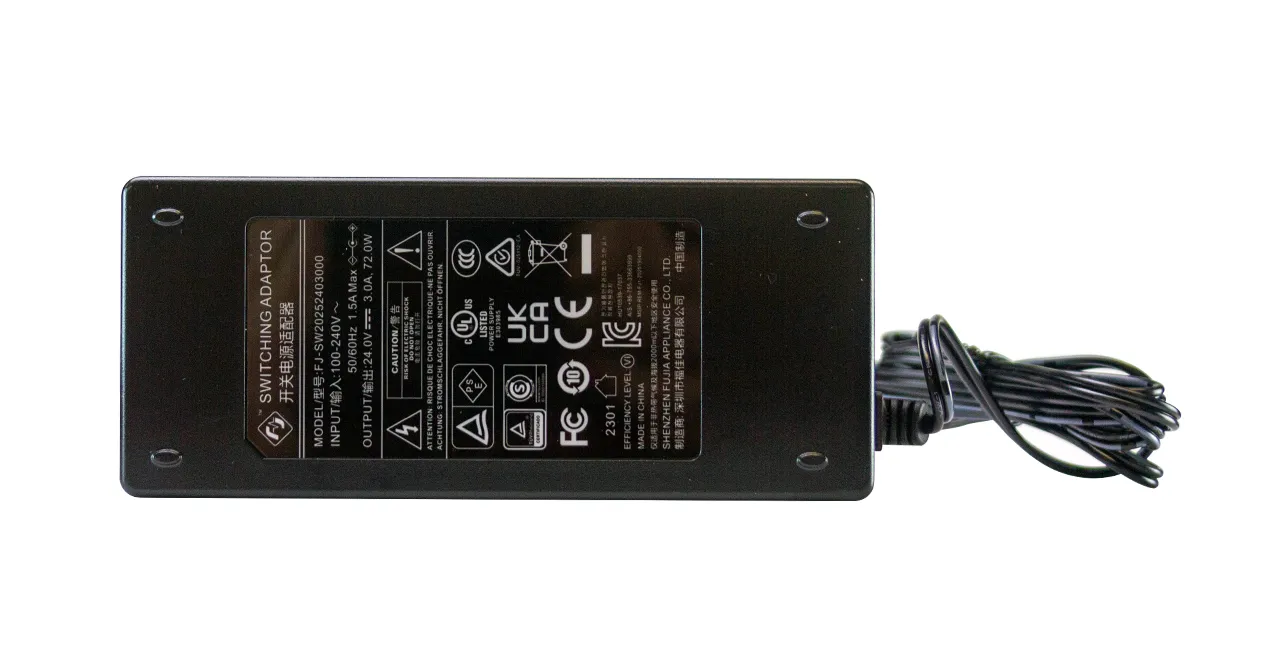

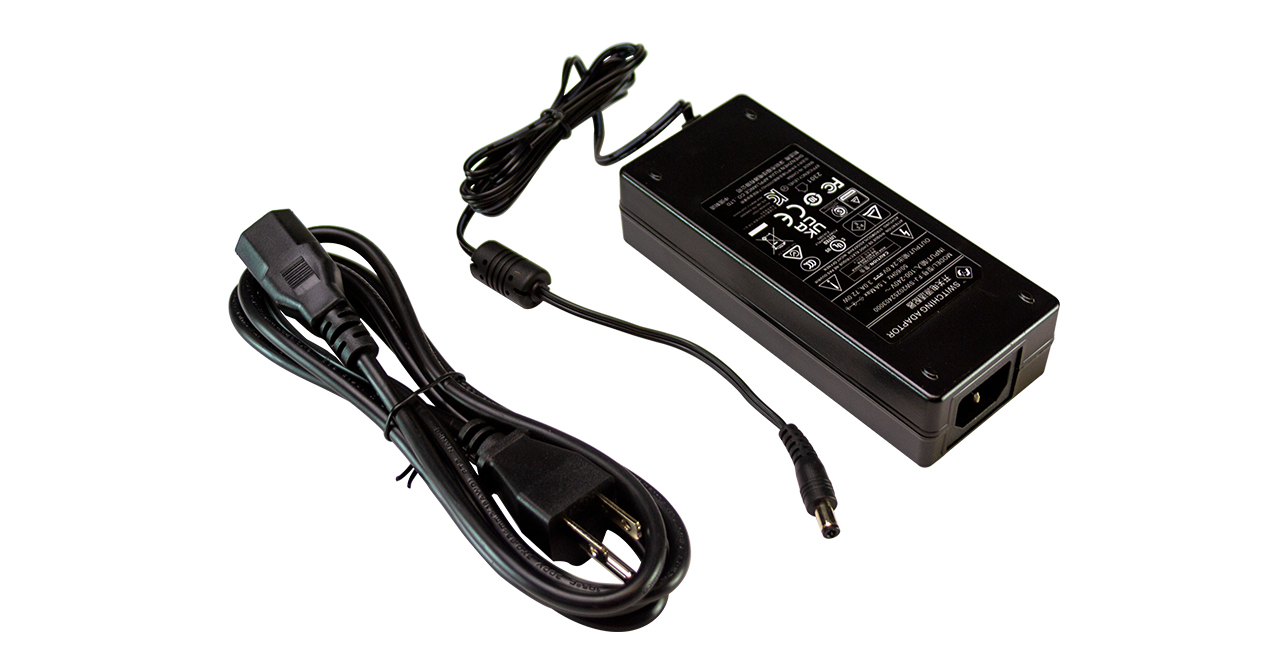

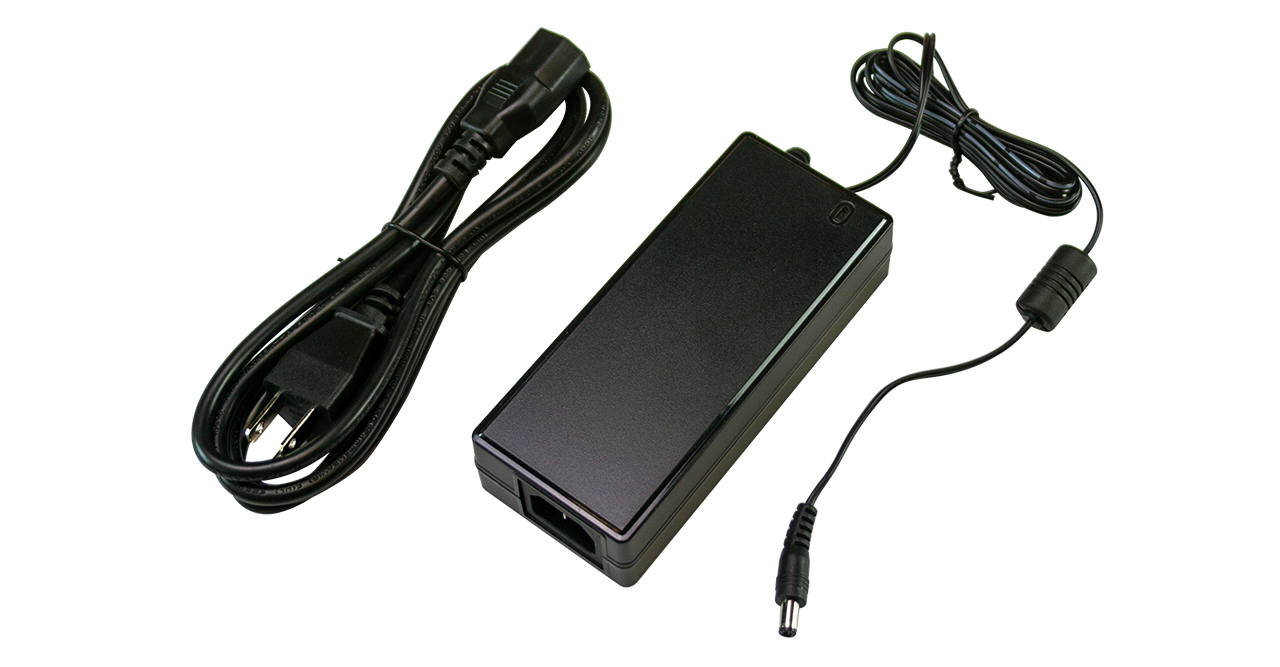

VZ-PSU3P-24
AC 120V to DC 24V Adapter for 27`` & 32” IP PVM Monitors
- Output : 24V DC / 72 W / 3.0A
- Input : 100~ 240VAC / 50~60Hz / 1.5A Max
- Fully tested for 27″ & 32″ IP PVM
- Safe & Reliable
- Complies with Environmental Protection Requirements
- Long Product Life
Specification | Dimension | Spec & Manual
Series : Power Adapter
Compatible Monitors
Product Features
- Model Number: VZ-PSU3P-24
- Fully testified for 27″ & 32″ IP PVM – VZ-PVM-I3B3N / VZ-PVM-I3W3N/ VZ-PVM-I4B3N / VZ-PVM-I4W3N
- DC 24V / 3.0A output
- AC 100~240V / 50 or 60Hz / 1.5A Max
- Green Power On LED
- Energy efficiency rating: VI
- Compact & Light-Weight
- Safe & Reliable
- Complies with International Safety Standards & Environmental Protection Requirements
- Over voltage / Overload / Over current / Short Circuit Protection
- Complies with Environmental Protection Requirements
- Wide Voltage Compatibility
- Long Product Life
- Safety Certification: cULus, CB, GS, CCC, PSE, SAA
- EMC Compliance: FCC Part 15B, EN 55032, EN 55024
- Regulatory Compliance: CE, UKCA, RCM
- Environmental Compliance: REACH, CA65
Specification
| Input – Voltage range | current | 100 ~ 240V AC, 50/60Hz | 1.5A |
| Output – Voltage | 24V DC |
| Output – Watt | 72 W |
| Output – Rated current | 3.0 A |
Protection
| Short Circuit Protection | The Power Supply will be auto recovered when short circuit faults remove. |
| Over Current Protection | Over Current Point Limited: 120-250% (input 110-230V AC) The output shall hiccup when the over currents applied to the output trail, and shall be self-recovery when the fault condition is removed |
Regulation - Safety & EMI Standards
| Safety Standards | cULus(UL62368-1), CB(IEC62368-1), CE(EN55032), GS/LVD(62368-1), PSE(J62368-1), KC(60950-1), BS/UKCA(62368-1 UKCA), C-tick (AS/NZS CISPR 32), FCC+ICES-003 (PART15 B), ERP(62368-1), DOE/CEC, CCC (GB4943.1), SAA (62368-1), RCM (62368-1), PSE(J62368-1), S-mark (62368-1), BSMI (CNS14336-1, CNS13438, CNS15663) |
| EMI STANDARDS | EN 55032 + 55024 |
Dimensions & Weight
| Outline Dimension (W x H x D) | 2.42 x 5.63 x 1.37″ / 61.6 x 143.2 x 34.8 mm |
| Net Weight | 0.782 + 0.04 lbs / 0.355 ± 0.02 kg |
Interface
| Input Plug Type | IEC 721-3-2 2M2 – C14 AC PIN |
| Output Cord | WIRE: 20 AWG / 1500 ± 50 mm | PLUG: JACK PLUG ø5.5 x 10.5 mm |
General Summary
| Construction | PC, ABS, or equivalent |
| Cable | AWM Style 2468 – 20 AWG |
| Cooling | Cooling shall be with natural convection cooling |
| Operating Temperature | Humidity | 32 ~ 77°F / 0°C ~ +25°C | 5 ~ 90% RH. Non-condensing |
| Storage Temperature | Humidity | -4 ~ 158°F / -20°C ~ +70°C | 20 ~ 80% RH. Non-condensing |
Product Dimension & Weight
Click below to enlarge
